Franklin Electric · Pump End

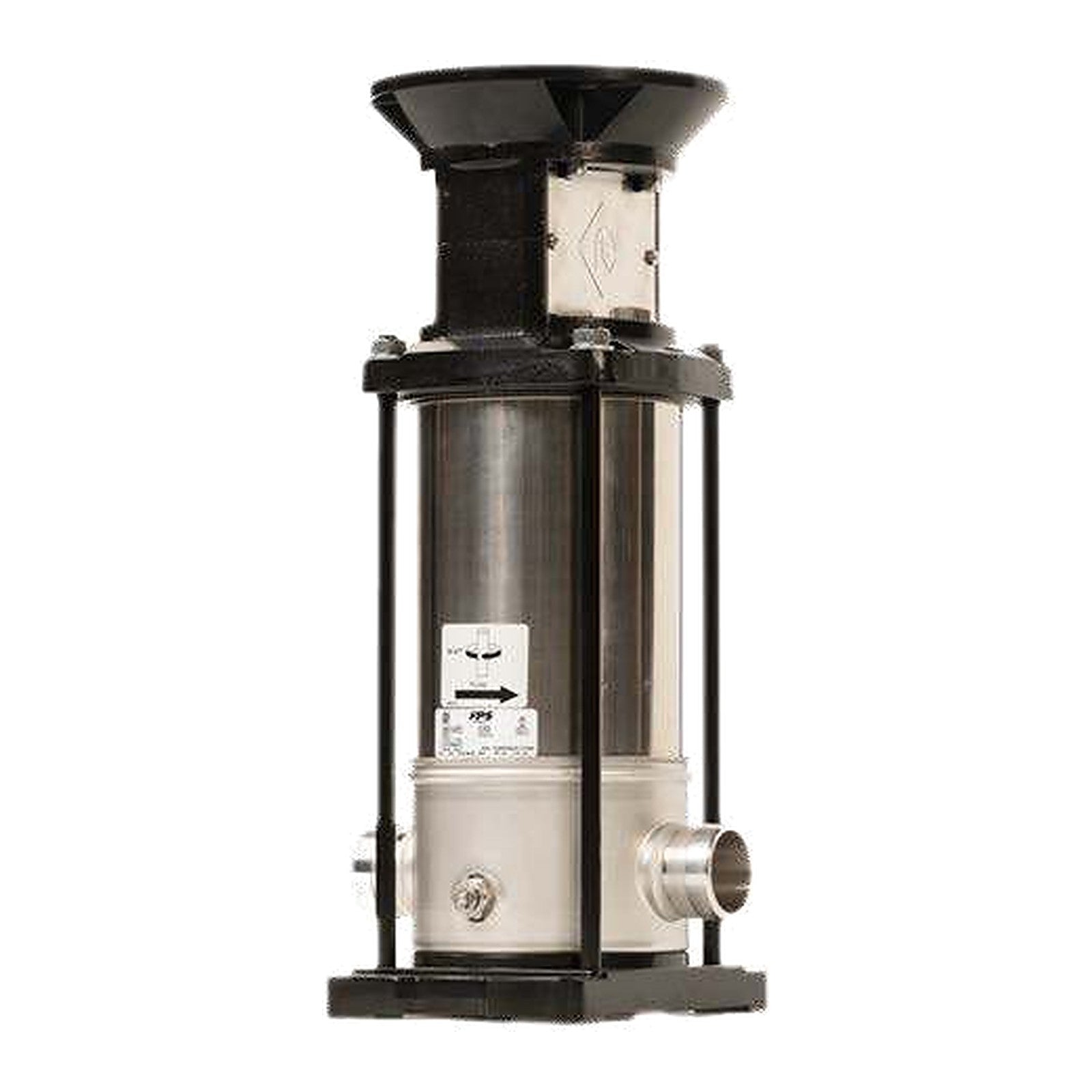

20VR and 20VRL Pump End — No Motor
VR Series pump end supplied without motor, for a standard NEMA C-face motor. The PE code in the part number names the motor frame it takes.
No Motor
2.00 in Round Flange
316 SS Hydraulics
Type 1 Cartridge Seal
NEMA C-Face Mount
Oversized Thrust Bearing
NSF/ANSI 61 + 372
Overview
A complete 20VR or 20VRL pump end — casing, stack, seal and motor mount — without the motor. The pump end carries the thrust load on its own oversized bearing, so it runs on stock NEMA motors in a wide range of ratings and enclosures; special high-thrust motors are not required.
All wetted components are 316 stainless steel (N version).
Pump end codes: PE56 = 56C, PE14 = 140TC, PE18 = 180TC, PE21 = 210TC, PE25 = 250TC, PE28 = 280TC, PE32 = 320TSC, PE36 = 360TSC.
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Models & Ratings
| Part No. |
Series |
Stages |
Motor Frame |
Pump Speed (RPM) |
| 20VR0100NF1A-PE56 |
20VR |
1 |
56C |
3600 |
| 20VR0200NF1A-PE18 |
20VR |
2 |
182-4TC |
3600 |
| 20VR0300NF1A-PE18 |
20VR |
3 |
182-4TC |
3600 |
| 20VR0300NF1A-PE21 |
20VR |
3 |
213-5TC |
3600 |
| 20VR0400NF1A-PE21 |
20VR |
4 |
213-5TC |
3600 |
| 20VR0500NF1A-PE21 |
20VR |
5 |
213-5TC |
3600 |
| 20VR0500NF1A-PE25 |
20VR |
5 |
254-6TC |
3600 |
| 20VR0600NF1A-PE21 |
20VR |
6 |
213-5TC |
3600 |
| 20VR0600NF1A-PE25 |
20VR |
6 |
254-6TC |
3600 |
| 20VR0700NF1A-PE21 |
20VR |
7 |
213-5TC |
3600 |
| 20VR0700NF1A-PE25 |
20VR |
7 |
254-6TC |
3600 |
| 20VR0800NF1A-PE25 |
20VR |
8 |
254-6TC |
3600 |
| 20VR0900NF1A-PE25 |
20VR |
9 |
254-6TC |
3600 |
| 20VR1000NF1A-PE25 |
20VR |
10 |
254-6TC |
3600 |
| 20VRL0100NF1A-PE56 |
20VRL |
1 |
56C |
1800 |
| 20VRL0200NF1A-PE56 |
20VRL |
2 |
56C |
1800 |
| 20VRL0300NF1A-PE56 |
20VRL |
3 |
56C |
1800 |
| 20VRL0400NF1A-PE56 |
20VRL |
4 |
56C |
1800 |
| 20VRL0500NF1A-PE56 |
20VRL |
5 |
56C |
1800 |
| 20VRL0600NF1A-PE56 |
20VRL |
6 |
56C |
1800 |
| 20VRL0600NF1A-PE18 |
20VRL |
6 |
182-4TC |
1800 |
| 20VRL0700NF1A-PE56 |
20VRL |
7 |
56C |
1800 |
| 20VRL0700NF1A-PE18 |
20VRL |
7 |
182-4TC |
1800 |
| 20VRL0800NF1A-PE18 |
20VRL |
8 |
182-4TC |
1800 |
| 20VRL0900NF1A-PE18 |
20VRL |
9 |
182-4TC |
1800 |
| 20VRL1000NF1A-PE18 |
20VRL |
10 |
182-4TC |
1800 |
| 20VRL1100NF1A-PE18 |
20VRL |
11 |
182-4TC |
1800 |
| 20VRL1200NF1A-PE18 |
20VRL |
12 |
182-4TC |
1800 |
| 20VRL1300NF1A-PE18 |
20VRL |
13 |
182-4TC |
1800 |
| 20VRL1400NF1A-PE18 |
20VRL |
14 |
182-4TC |
1800 |
| 20VRL1500NF1A-PE18 |
20VRL |
15 |
182-4TC |
1800 |
| 20VRL1600NF1A-PE18 |
20VRL |
16 |
182-4TC |
1800 |
| 20VRL1700NF1A-PE18 |
20VRL |
17 |
182-4TC |
1800 |
Source: Franklin Electric price list effective 15 Jun 2026 and Franklin Electric VR Series Catalog (60 Hz). VR = 2-pole, VRL = 4-pole.
Specifications
| Specification |
Value |
| Connections |
In-line, round flange, 2.00 in |
| Flange rating |
Round flange on a PN25 body (F version) |
| Mechanical seal |
Type 1 cartridge seal: graphite / silicon carbide faces, EPDM, stainless steel |
| Liquid temperature |
+14 °F to +248 °F |
| Rotation |
Clockwise, looking at the pump from the top down |
Before You OrderPick the motor to match the complete pump: the same frame as the PE code, the horsepower Franklin pairs with that stage count, and the pump speed (2-pole 3600 RPM for VR, 4-pole 1800 RPM for VRL). The motor ratings for each model are on the matching complete-pump listing. Companion flanges are ordered separately on 1 to 20VR sizes.
Materials of Construction
| Specification |
Value |
| Pump casing and upper flange |
Stainless steel, CF8M / AISI 316 |
| Outer case |
Stainless steel, AISI 316 |
| Pump shaft |
Stainless steel, AISI 316 |
| Impellers, stage housings and diffusers |
Stainless steel, AISI 316 |
| Floating neck ring |
PTFE |
| Mechanical seal |
Silicon carbide, graphite, EPDM, stainless steel |
| O-rings |
EPDM |
Source: Franklin Electric VR Series Catalog (60 Hz), materials tables.
