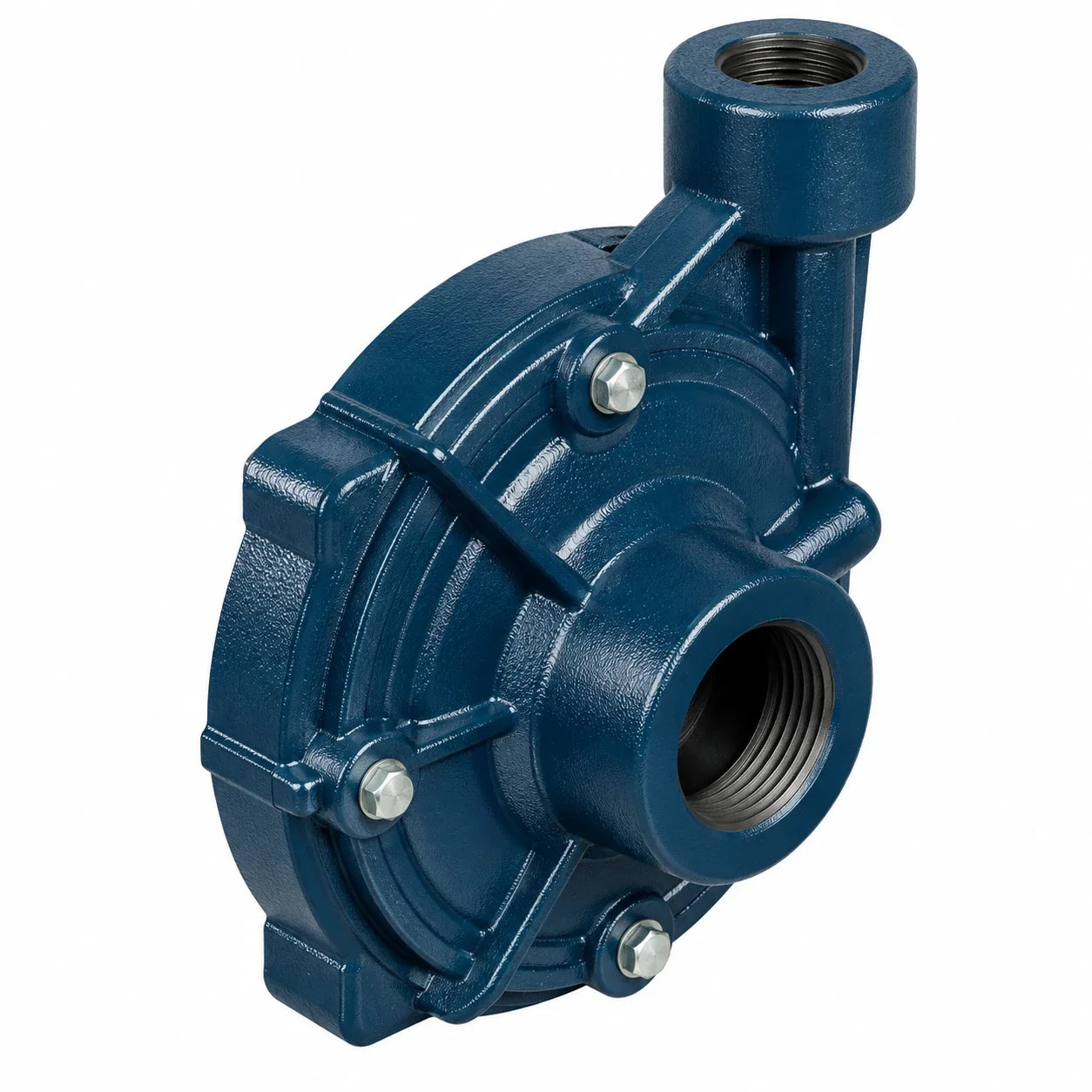

Franklin Electric DR1J and DR2J pump end kit for 56J motors

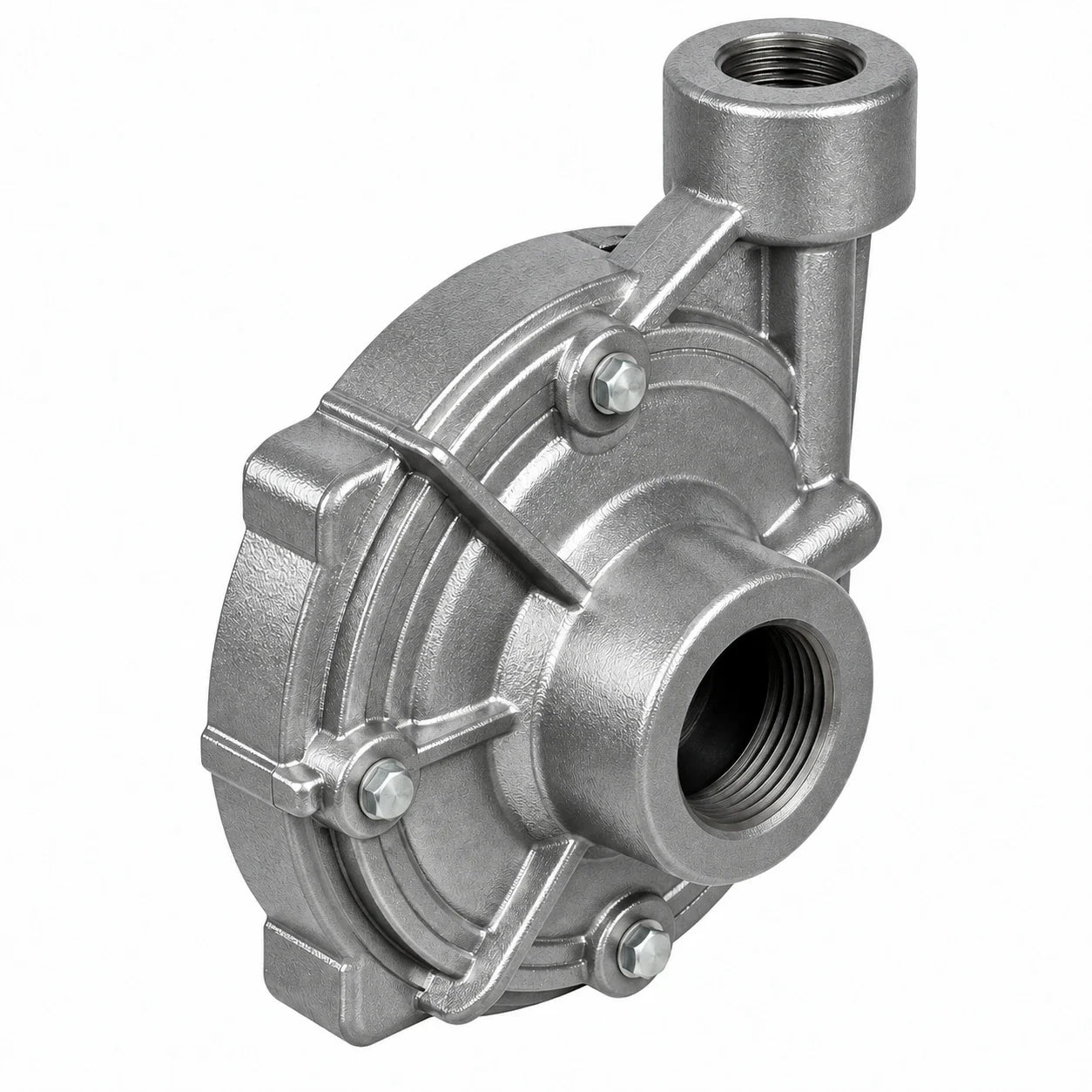

Franklin Electric DR1C pump end kit for 56C motors

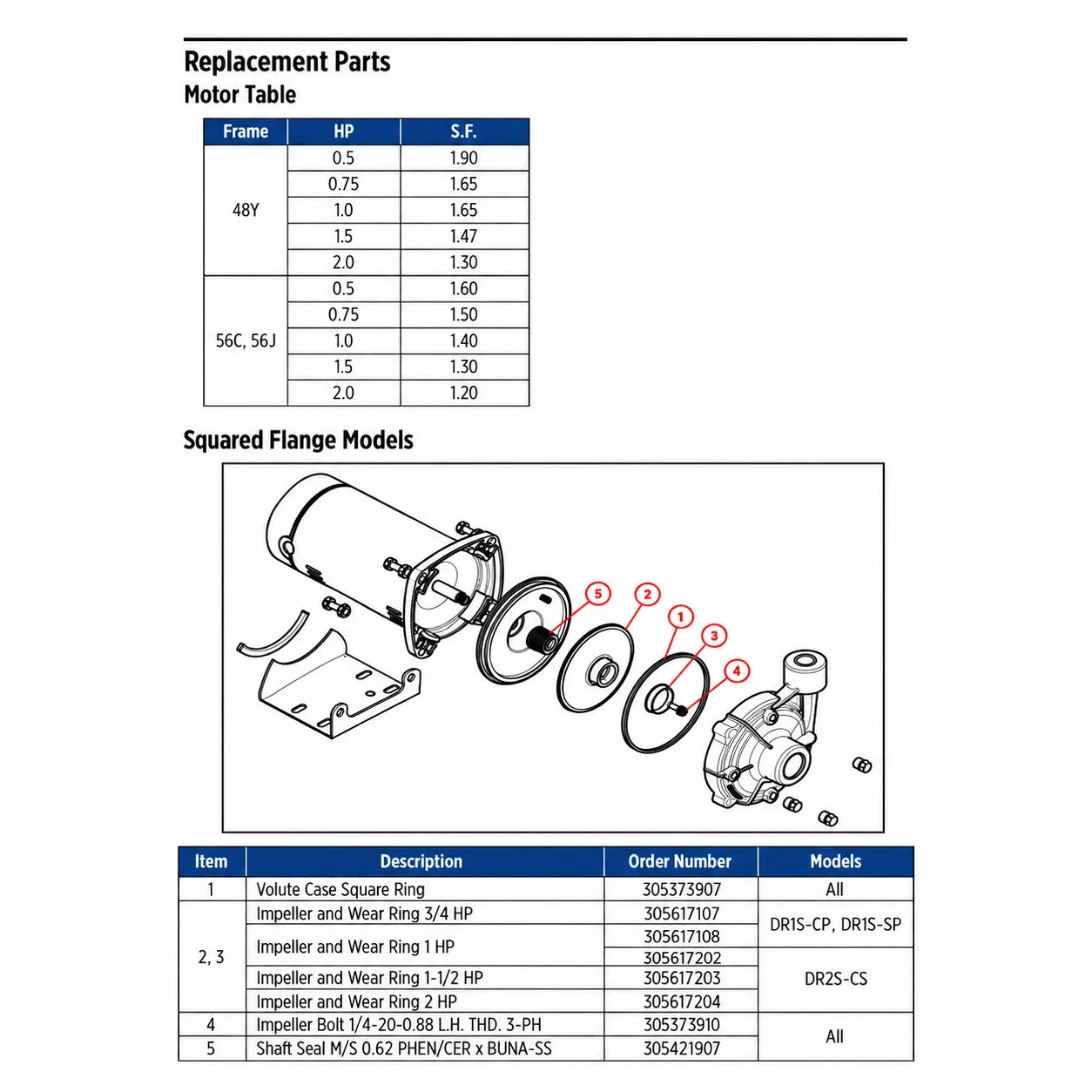

Franklin Electric DR Series exploded view, page 1

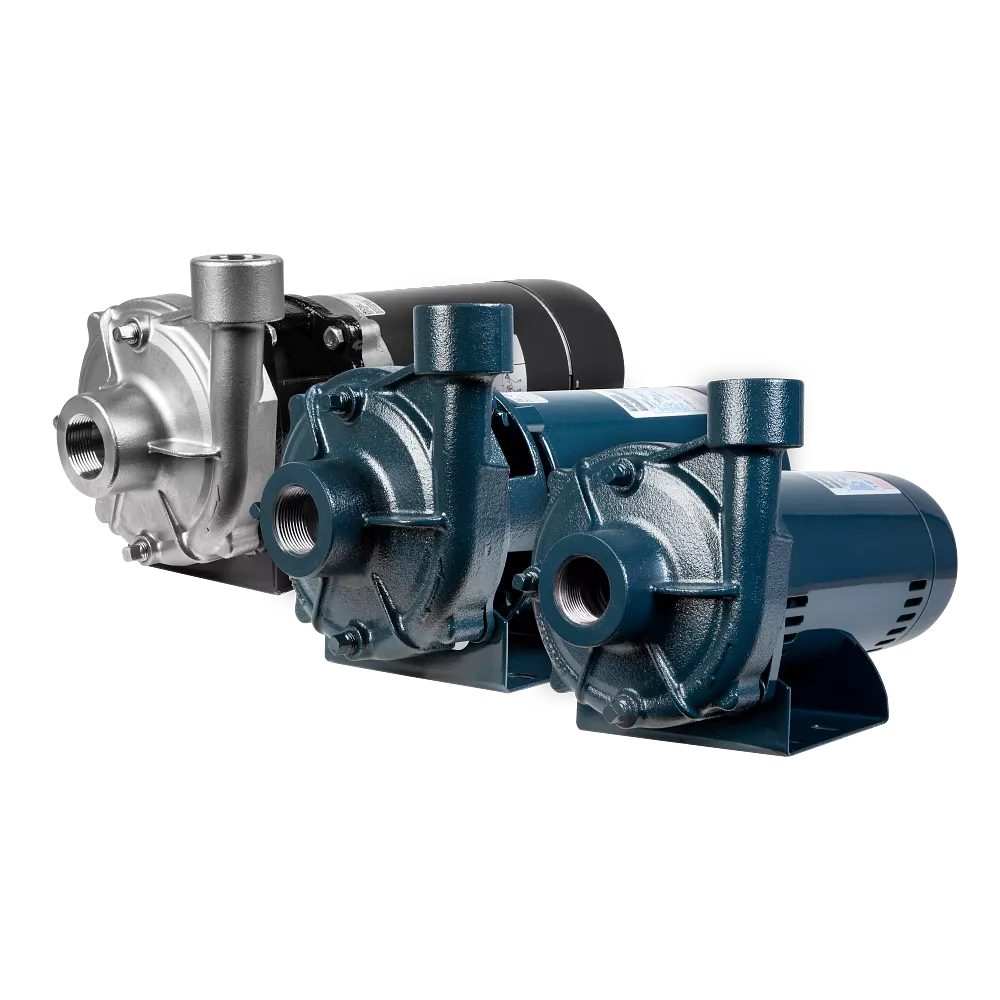

Franklin Electric DR Series end suction centrifugal pumps, complete
Franklin Electric DR1J and DR2J pump end kit for 56J motors
Franklin Electric DR1C pump end kit for 56C motors
Franklin Electric DR Series exploded view, page 1
Franklin Electric DR Series end suction centrifugal pumps, complete

Franklin Electric DR Series Pump End Kits

Series - Motor Fit: DR1J - 56J Motor
Horse Power: 1/2 HP
Model: DR1J05-CS-K

Product variant with selected options does not exist!
$656.48
SKU: 9712K205
Weight : 20.0 lb
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description
Franklin Electric · Pump End Kit, Less Motor
DR Series Pump End Kits
DR Series end suction centrifugal pump ends for NEMA 56J and 56C motors, supplied less motor.
15 Models
Pump End, Less Motor
NEMA 56J or 56C motor
Overview

Franklin Electric lists these as pump end kits, less motor: the complete DR Series wet end, supplied for a customer-supplied NEMA 56J or 56C motor.

Use them to rebuild a pump on a sound motor, or to pair with a motor you already stock. Complete pumps are here: DR Series pumps. Replacement motors: Franklin Electric 56C replacement motors. The owner’s manual on the Data Sheet tab shows the exploded view and where each part sits.

Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Models
Model Order No. Series and Motor Fit Pump Rating Weight
DR1J05-CS-K 9712K205 DR1J - 56J Motor 1/2 HP 20 lb
DR1J07-CS-K 9712K207 DR1J - 56J Motor 3/4 HP 20 lb
DR1J1-CS-K 9712K210 DR1J - 56J Motor 1 HP 20 lb
DR2J1-CS-K 9714K210 DR2J - 56J Motor 1 HP 24 lb
DR2J15-CS-K 9714K215 DR2J - 56J Motor 1-1/2 HP 24 lb
DR2J2-CS-K 9714K220 DR2J - 56J Motor 2 HP 24 lb
DR1C05-CP-K 9715K005 DR1C - 56C Motor 1/2 HP 22 lb
DR1C07-CP-K 9715K007 DR1C - 56C Motor 3/4 HP 22 lb
DR1C1-CP-K 9715K010 DR1C - 56C Motor 1 HP 22 lb
DR1C05-SS-K 9715K305 DR1C Stainless - 56C Motor 1/2 HP 23 lb
DR1C07-SS-K 9715K307 DR1C Stainless - 56C Motor 3/4 HP 23 lb
DR1C1-SS-K 9715K310 DR1C Stainless - 56C Motor 1 HP 23 lb
DR2C1-CS-K 9716K210 DR2C - 56C Motor 1 HP 25 lb
DR2C15-CS-K 9716K215 DR2C - 56C Motor 1-1/2 HP 25 lb
DR2C2-CS-K 9716K220 DR2C - 56C Motor 2 HP 25 lb
Confirm Before OrderingA pump end kit has to match the motor frame and shaft it is going on. Send us the motor nameplate and the old pump model and we will confirm the fit before it ships.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
