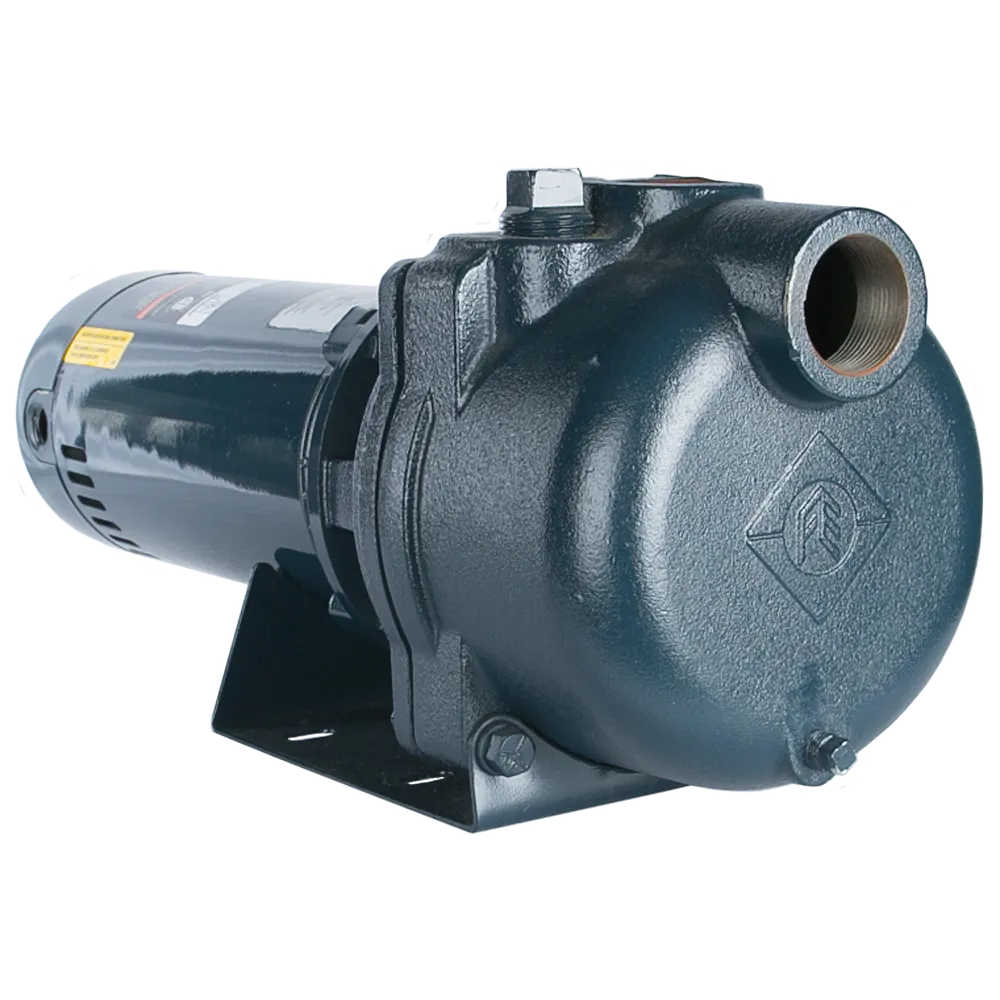

Franklin Electric Turf Boss self-priming centrifugal pump

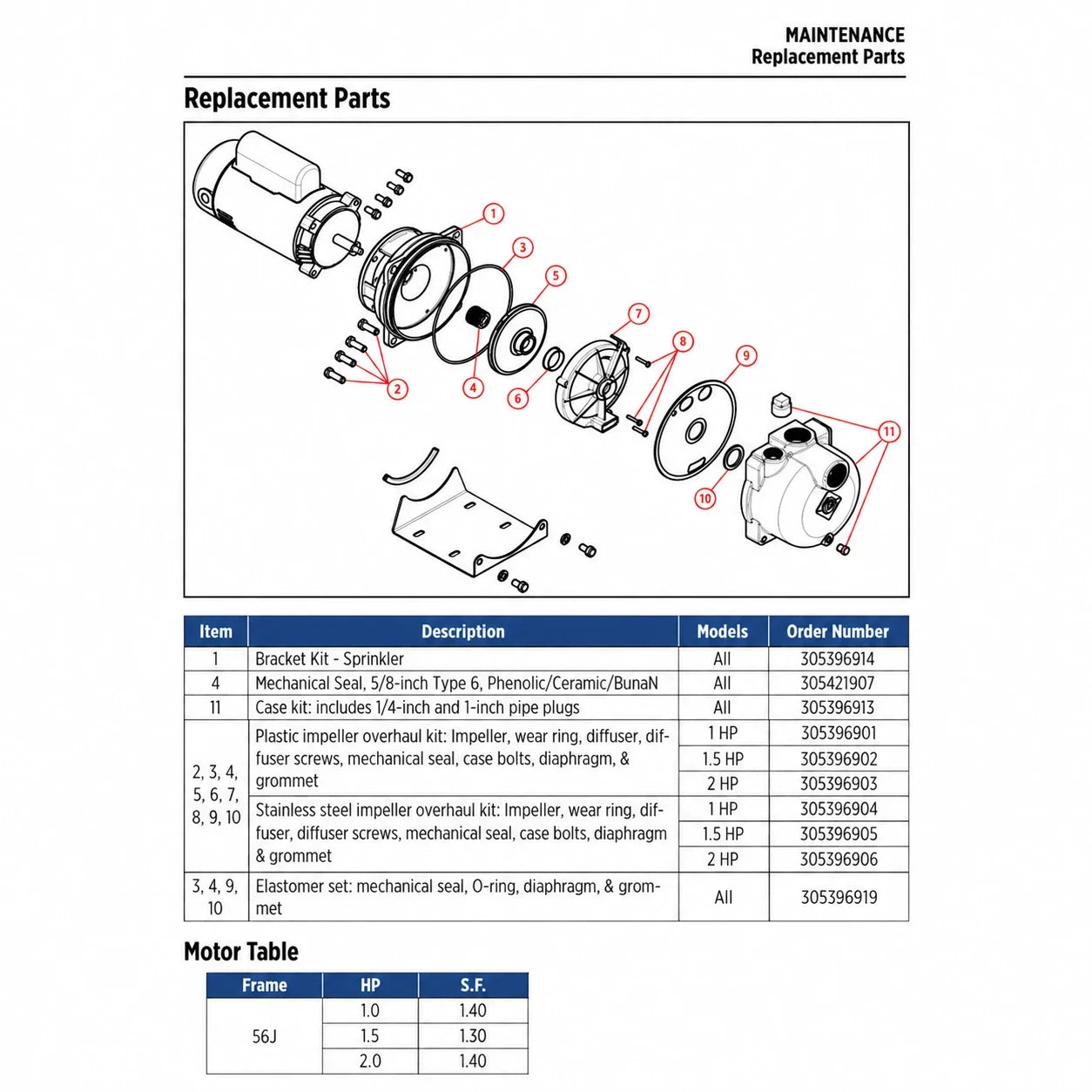

Franklin Electric Turf Boss 1-2 HP exploded view with part callouts

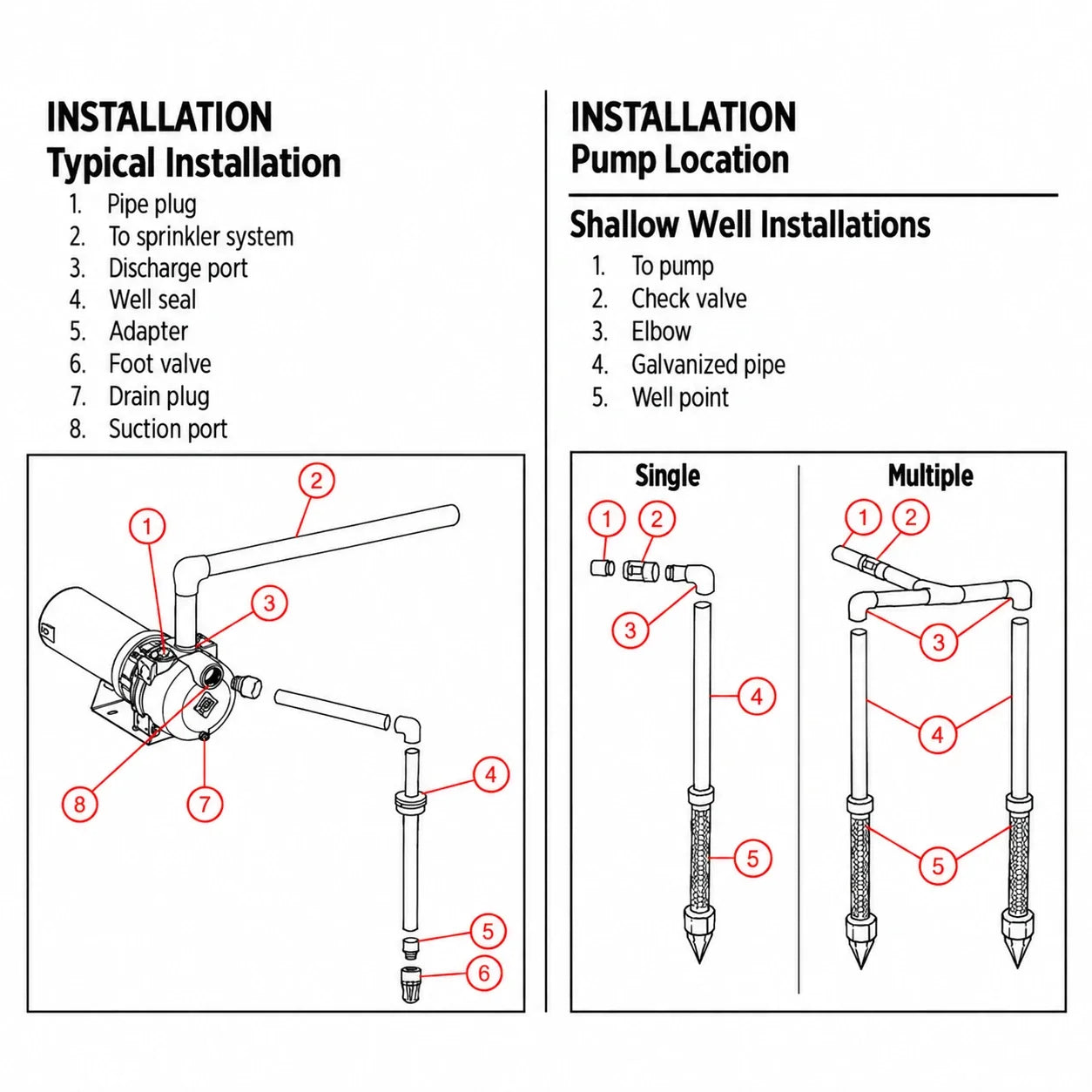

Franklin Electric Turf Boss 1-2 HP typical installation
Franklin Electric Turf Boss self-priming centrifugal pump
Franklin Electric Turf Boss 1-2 HP exploded view with part callouts
Franklin Electric Turf Boss 1-2 HP typical installation

Franklin Electric Turf Boss Repair Parts

Part: Seal, Case Bolt and Diffuser Screw Kit - All models

Product variant with selected options does not exist!
$90.69
SKU: 305395901
Weight : 0.5 lb
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description
Franklin Electric · Genuine Repair Parts
Turf Boss 1-2 HP Repair Parts
Genuine Franklin Electric replacement parts and service kits for Turf Boss self-priming centrifugal pumps, 1 to 2 HP, listed by factory order number.
10 Part Numbers
Genuine Franklin Electric
Order by Factory Number
Overview

Factory replacement parts and service kits for Franklin Electric Turf Boss self-priming centrifugal pumps, 1 to 2 HP. Every item below is listed under Franklin Electric’s own order number, with the pump models it fits as Franklin publishes them.

Match the part to the model on your pump nameplate. The complete pumps are here: Turf Boss 1-2 HP pumps. The owner’s manual on the Data Sheet tab shows the exploded view and where each part sits.

Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Parts and Fitment
Order No. Part Fits
305395901 Mechanical seal, case bolts and diffuser screws kit All models
305396901 Overhaul kit: Plastic impeller, wear ring, diffuser, screws, mechanical seal, bolts, diaphragm, & grommets 1 HP
305396902 Overhaul kit: Plastic impeller, wear ring, diffuser, screws, mechanical seal, bolts, diaphragm, & grommets 1.5 HP
305396903 Overhaul kit: Plastic impeller, wear ring, diffuser, screws, mechanical seal, bolts, diaphragm, & grommets 2 HP
305396904 Overhaul kit: SS impeller, wear ring, diffuser, screws, mechanical seal, bolts, diaphragm, & grommets 1 HP
305396905 Overhaul kit: SS impeller, wear ring, diffuser, screws, mechanical seal, bolts, diaphragm, & grommets 1.5 HP
305396906 Overhaul kit: SS impeller, wear ring, diffuser, screws, mechanical seal, bolts, diaphragm, & grommets 2 HP
305396913 Case with plugs All models
305396914 Bracket Kit - Sprinkler All models
305396919 Elastomer set: mechanical seal, O-ring, diaphragm & grommet All models
Confirm Before OrderingOrder by the model number on the pump nameplate, not by horsepower alone — the same horsepower is built on more than one hydraulic. Send us the nameplate and we will confirm the part before it ships.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet
Turf Boss Owner’s Manual Turf Boss Sprinkler Pump Manual Turf Boss Brochure
