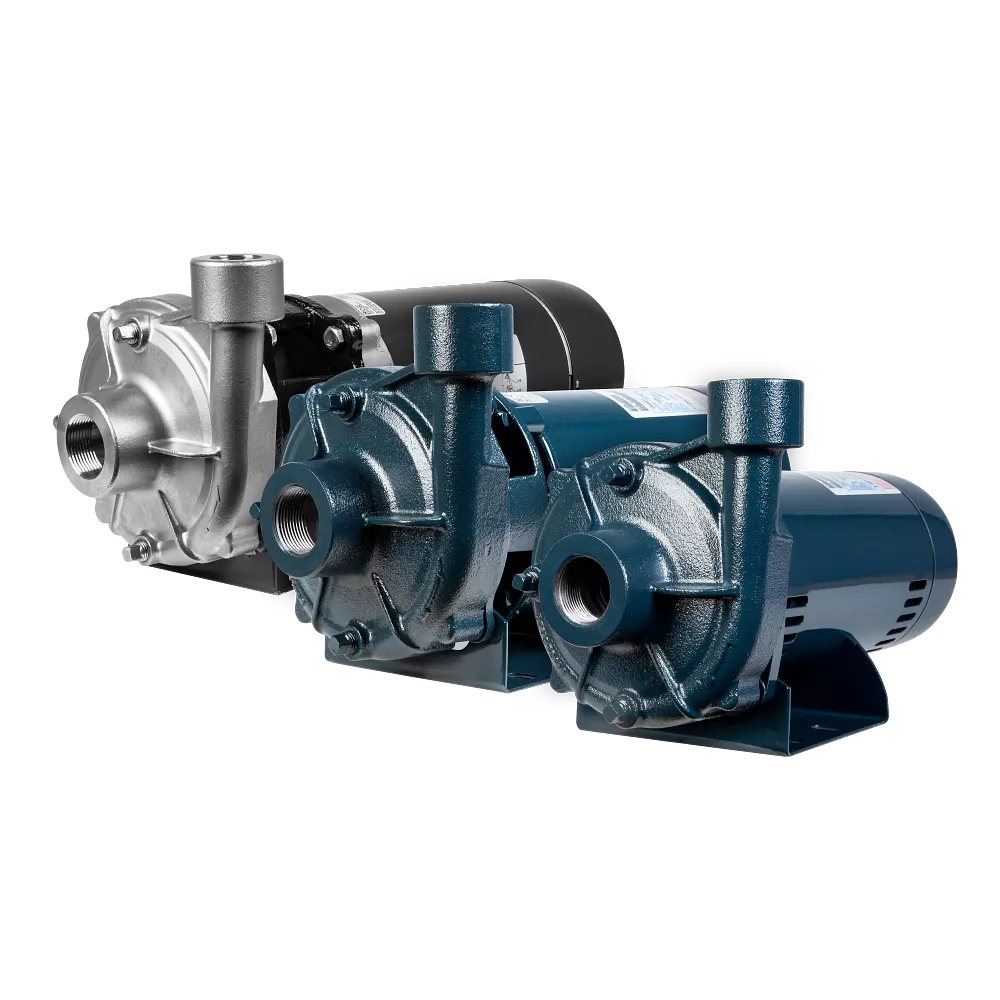

Franklin Electric DR Series end suction centrifugal pumps

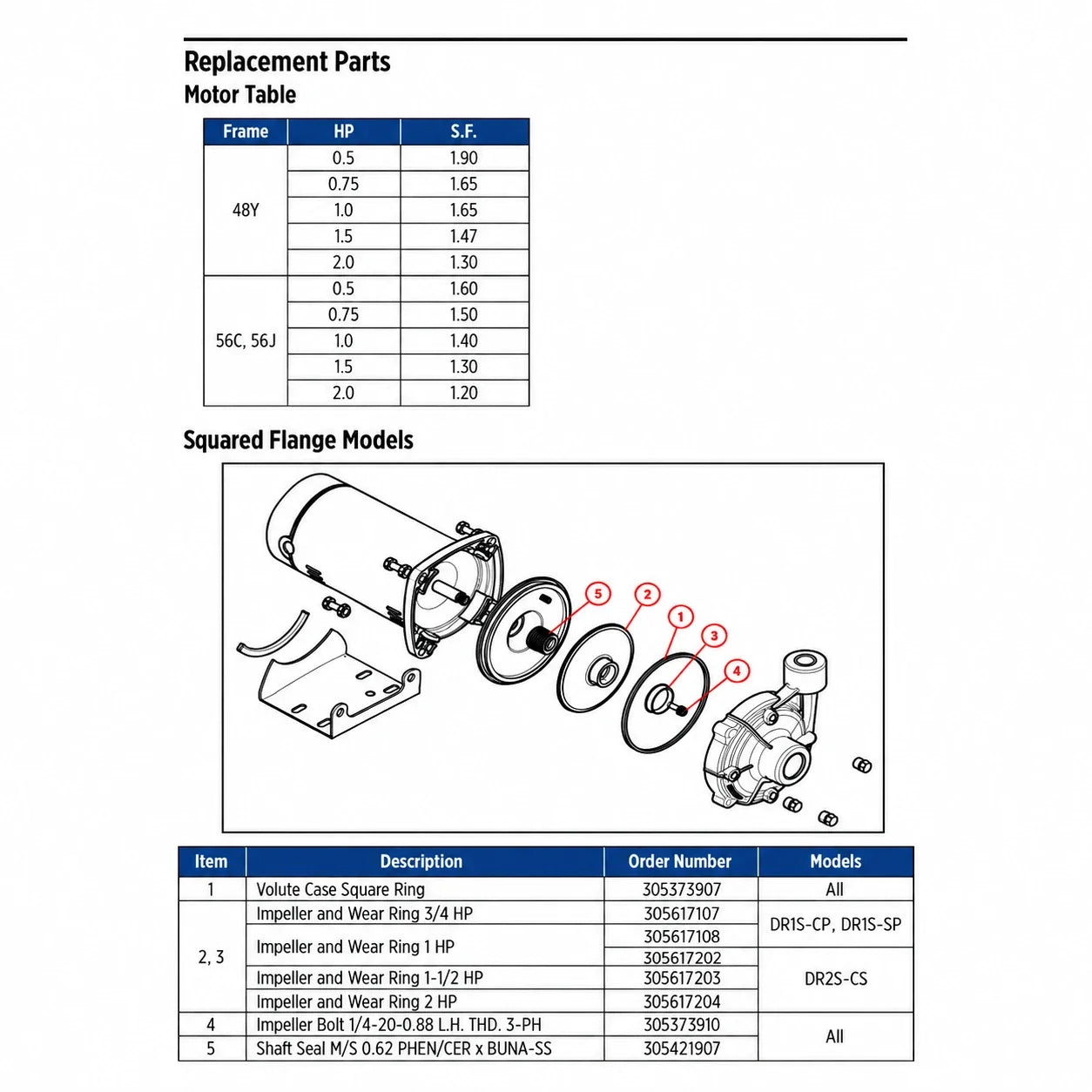

Franklin Electric DR Series exploded view, page 1

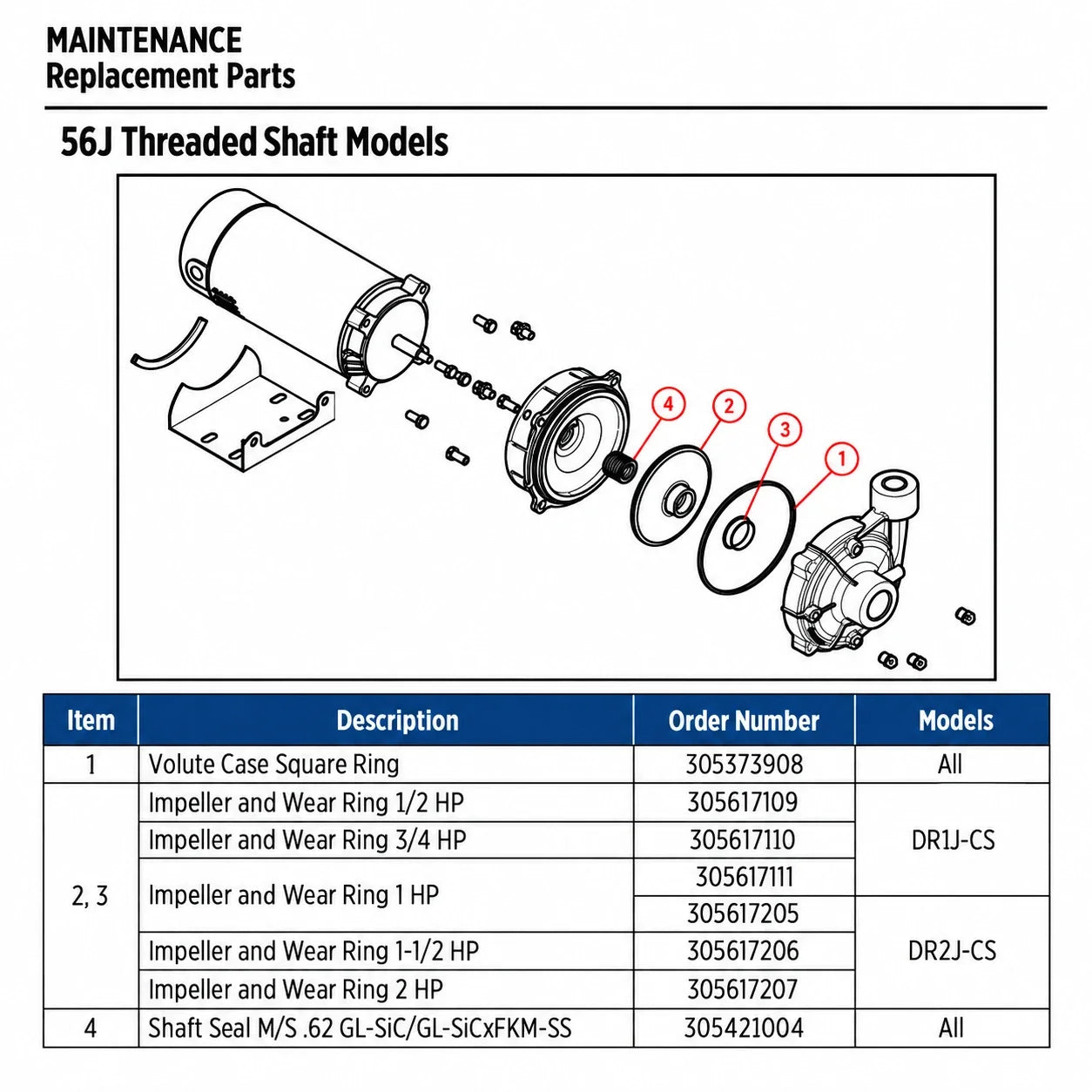

Franklin Electric DR Series exploded view, page 2

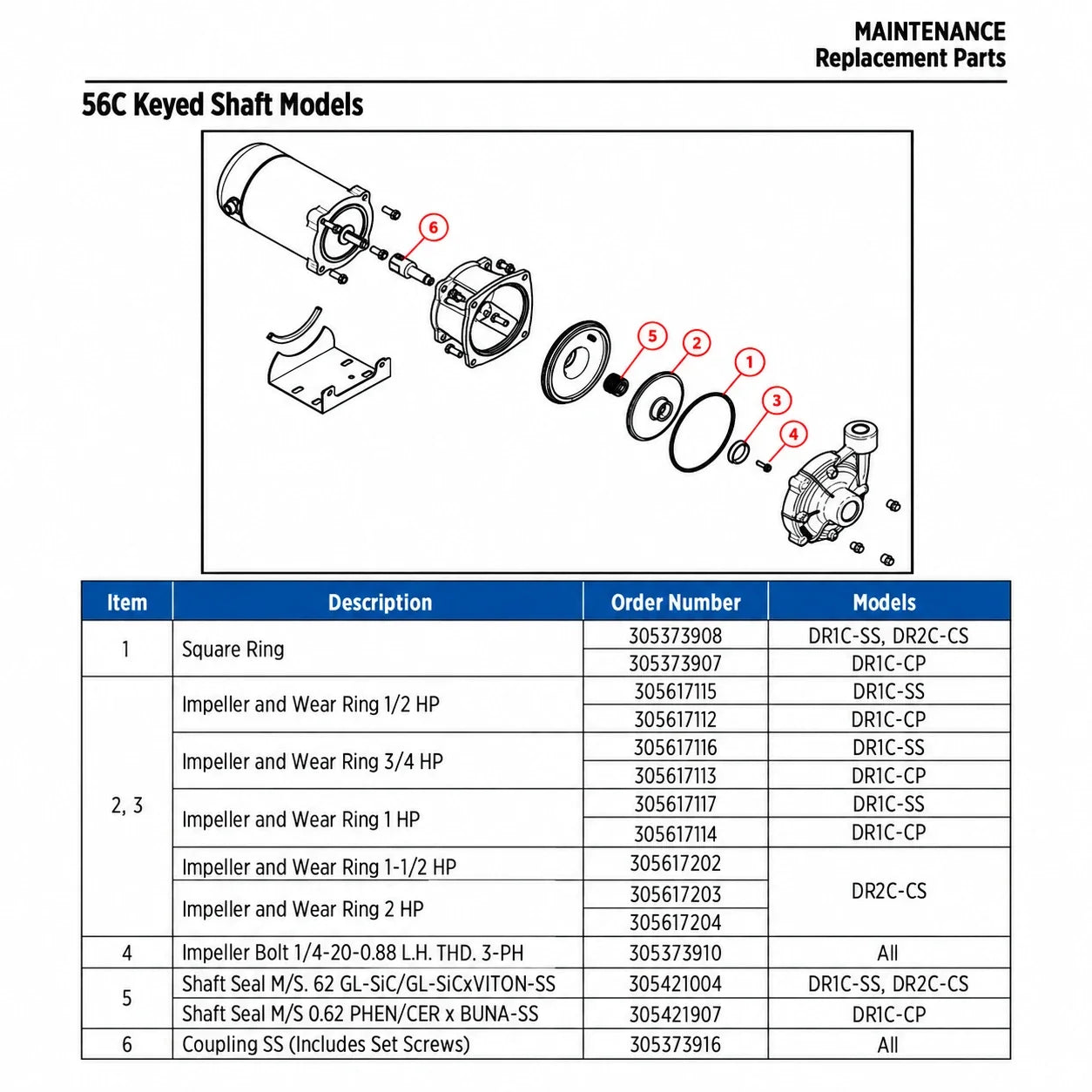

Franklin Electric DR Series exploded view, page 3

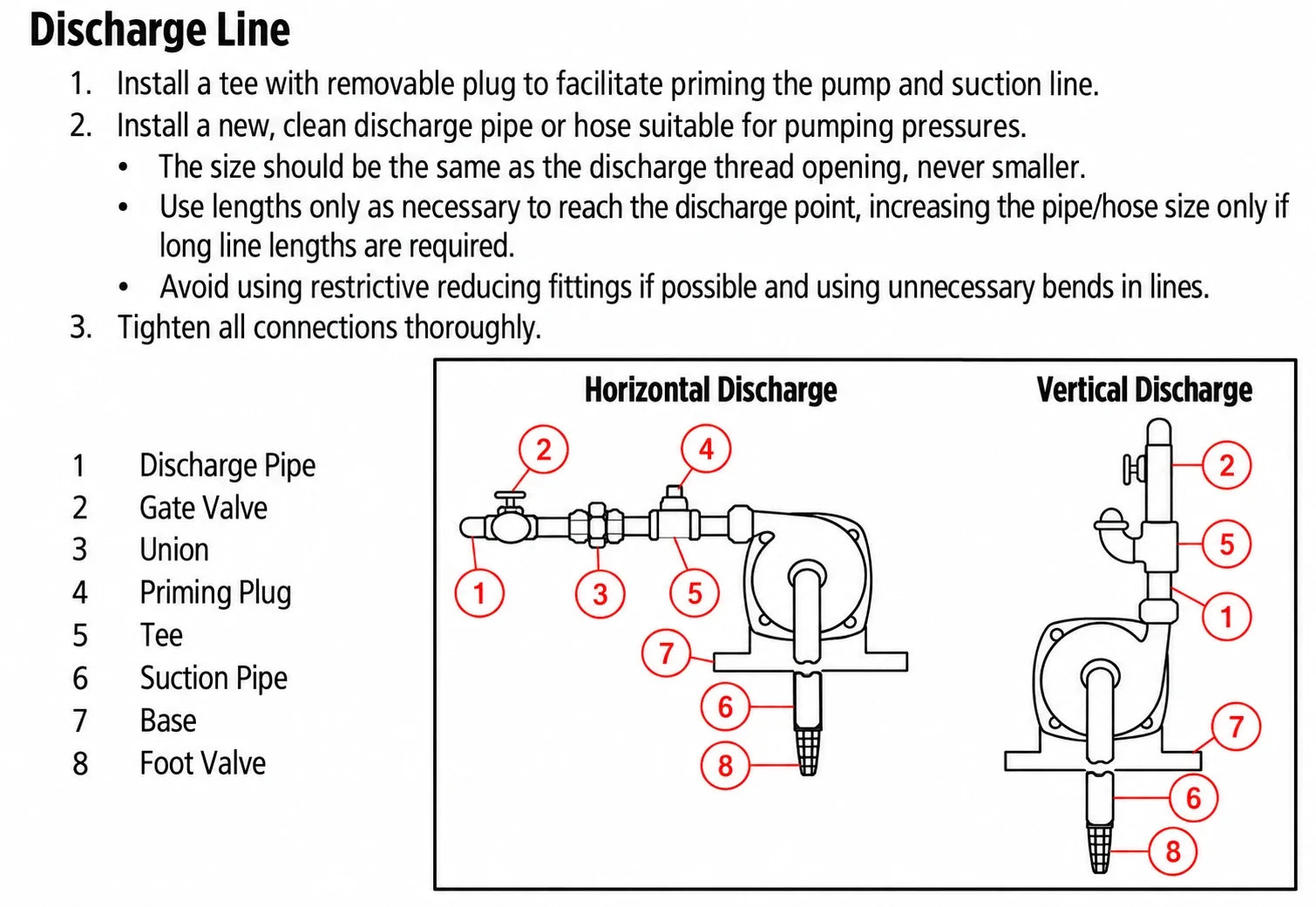

Franklin Electric DR Series typical installation
Franklin Electric DR Series end suction centrifugal pumps
Franklin Electric DR Series exploded view, page 1
Franklin Electric DR Series exploded view, page 2
Franklin Electric DR Series exploded view, page 3
Franklin Electric DR Series typical installation

Franklin Electric DR Series Repair Parts

Part: Impeller and Wear Ring, 1 HP - DR2S-CS

Product variant with selected options does not exist!
$238.87
SKU: 305617202
Weight : 1.0 lb
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description
Franklin Electric · Genuine Repair Parts
DR Series Repair Parts
Genuine Franklin Electric replacement parts and service kits for DR Series end suction centrifugal pumps and pump end kits, listed by factory order number.
22 Part Numbers
Genuine Franklin Electric
Order by Factory Number
Overview

Factory replacement parts and service kits for Franklin Electric DR Series end suction centrifugal pumps and pump end kits. Every item below is listed under Franklin Electric’s own order number, with the pump models it fits as Franklin publishes them.

Match the part to the model on your pump nameplate. The complete pumps are here: DR Series pumps. The owner’s manual on the Data Sheet tab shows the exploded view and where each part sits.

Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Parts and Fitment
Order No. Part Fits
305617202 Impeller and Wear Ring, 1 HP DR2S-CS
305617203 Impeller and Wear Ring, 1-1/2 HP DR2S-CS
305617204 Impeller and Wear Ring, 2 HP DR2S-CS
305617205 Impeller and Wear Ring, 1 HP DR2J-CS
305617206 Impeller and Wear Ring, 1-1/2 HP DR2J-CS
305617207 Impeller and Wear Ring, 2 HP DR2J-CS
305617107 Impeller and Wear Ring, 3/4 HP DR1S-CP, DR1S-SP
305617108 Impeller and Wear Ring, 1 HP DR1S-CP, DR1S-SP
305617109 Impeller and Wear Ring, 1/2 HP DR1J-CS
305617110 Impeller and Wear Ring, 3/4 HP DR1J-CS
305617111 Impeller and Wear Ring, 1 HP DR1J-CS
305617112 Impeller and Wear Ring, 1/2 HP DR1C-CP
305617113 Impeller and Wear Ring, 3/4 HP DR1C-CP
305617114 Impeller and Wear Ring, 1 HP DR1C-CP
305617115 Impeller and Wear Ring, 1/2 HP DR1C-SS
305617116 Impeller and Wear Ring, 3/4 HP DR1C-SS
305617117 Impeller and Wear Ring, 1 HP DR1C-SS
305373907 Square Ring DR1-2S Series, DR1-2C - all
305373910 Impeller Bolt, 3-phase, 1/4-20-0.88 L.H. Thread DR1-2S Series, DR1-2C - all
305421004 Mechanical Seal .625 GL-SiC/GL-SiCxFKM-SS DR1-2J-CS, DR1-2C - all
305373908 Square Ring DR1-2J-CS - all
305373916 Coupling SS (Includes Set Screws) DR1-2C - all
Confirm Before OrderingOrder by the model number on the pump nameplate, not by horsepower alone — the same horsepower is built on more than one hydraulic. Send us the nameplate and we will confirm the part before it ships.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
