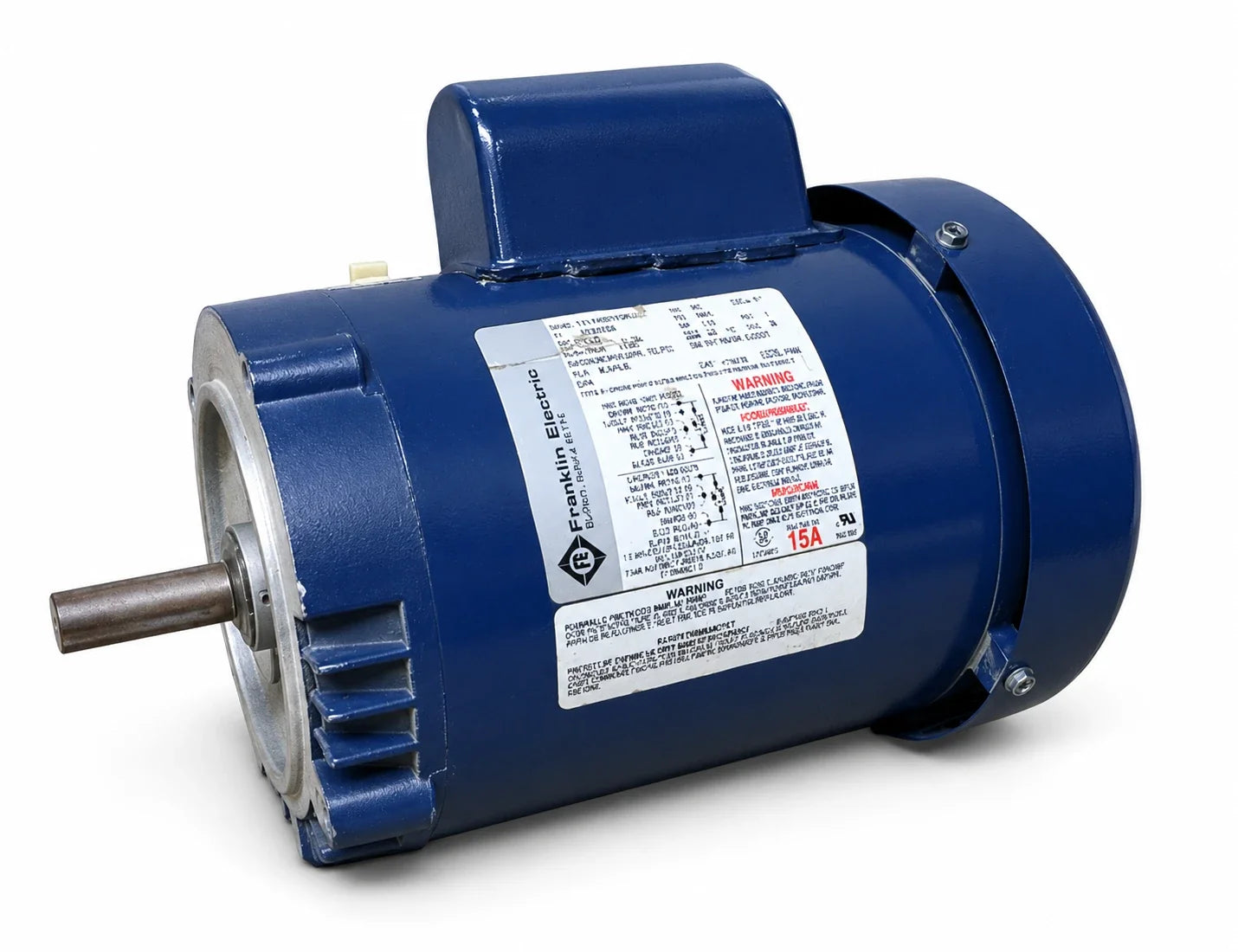

56C TEFC Replacement Motors
Totally enclosed fan cooled 56C motors for Franklin Electric D Series end suction pumps, 1/3 to 3 HP, in 3600 and 1800 RPM, single phase, three phase and 575V.
26 Motors
TEFC Enclosure
56C Frame, 5/8 in Shaft
3600 and 1800 RPM
1/3 to 3 HP
Overview
Franklin Electric lists these in its industrial surface pump price pages as 56C motors for the D Series end suction pumps. All are totally enclosed fan cooled (TEFC), NEMA 56C frame with a 0.625 in shaft.
Fifteen are 3600 RPM — single phase, three phase 208-230/460V and 575V — and eleven are 1800 RPM for the low-speed D Series pumps. The open drip-proof 56C motors are a separate listing: Franklin Electric 56C replacement motors.
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Motors
| Order No. |
Horsepower |
Phase |
Voltage |
Enclosure |
RPM |
Full Load Amps |
Motor Make |
Weight |
| VL3506 |
1/2 HP |
1 |
115/230V |
TEFC |
3600 |
9.6/4.8 |
Baldor |
29 lb |
| EC06 |
3/4 HP |
1 |
115/208-230V |
TEFC |
3600 |
10.0/5.2-5.0 |
Emerson |
30 lb |
| EC09 |
1 HP |
1 |
115/208-230V |
TEFC |
3600 |
12.8/6.6-6.4 |
Emerson |
28 lb |
| EC11 |
1-1/2 HP |
1 |
115/208-230V |
TEFC |
3600 |
16.6/9.0-9.3 |
Emerson |
35 lb |
| EC13 |
2 HP |
1 |
115/230V |
TEFC |
3600 |
9.6-9.0 |
Emerson |
37 lb |
| U34S1ACR |
3/4 HP |
3 |
208-230/460V |
TEFC |
3600 |
2.4-2.2/1.1 |
Emerson |
27 lb |
| U34P1GCR |
3/4 HP |
3 |
575V |
TEFC |
3600 |
1 |
Emerson |
30 lb |
| U1P1DCR |
1 HP |
3 |
208-230/460V |
TEFC |
3600 |
2.9-2.7/1.4 |
Emerson |
30 lb |
| U1P1GCR |
1 HP |
3 |
575V |
TEFC |
3600 |
1.1 |
Emerson |
30 lb |
| T32P1ACR |
1-1/2 HP |
3 |
208-230/460V |
TEFC |
3600 |
4.9-5.0/2.5 |
Emerson |
32 lb |
| U32P1GFCR |
1-1/2 HP |
3 |
575V |
TEFC |
3600 |
1.6 |
Emerson |
30 lb |
| T2P1ACR |
2 HP |
3 |
208-230/460V |
TEFC |
3600 |
6.0-5.6/2.8 |
Emerson |
35 lb |
| U2P1GFCR |
2 HP |
3 |
575V |
TEFC |
3600 |
2 |
Emerson |
30 lb |
| T3P1ACR |
3 HP |
3 |
208-230/460V |
TEFC |
3600 |
7.9-6.7/3.4 |
Emerson |
40 lb |
| U3P1GFCR |
3 HP |
3 |
575V |
TEFC |
3600 |
2.8 |
Emerson |
30 lb |
| VL3501 |
1/3 HP |
1 |
115/208-230V |
TEFC |
1800 |
6/3.6-3 |
Baldor |
22 lb |
| VL3504 |
1/2 HP |
1 |
115/208-230V |
TEFC |
1800 |
7.4/4.3-3.7 |
Baldor |
27 lb |
| VL3507 |
3/4 HP |
1 |
115/208-230V |
TEFC |
1800 |
8.4/5.4-4.2 |
Baldor |
33 lb |
| VL3510 |
1 HP |
1 |
115/208-230V |
TEFC |
1800 |
12.8/7-6.4 |
Baldor |
40 lb |
| VL3514 |
1-1/2 HP |
1 |
115/208-230V |
TEFC |
1800 |
12.4/6.8-6.2 |
Baldor |
48 lb |
| KENM3534 |
1/3 HP |
3 |
230/460V |
TEFC |
1800 |
1.1/.55 |
Baldor |
33 lb |
| VEM3538 |
1/2 HP |
3 |
208-230/460V |
TEFC |
1800 |
1.68-1.54/.77 |
Baldor |
31 lb |
| VEM3542 |
3/4 HP |
3 |
208-230/460V |
TEFC |
1800 |
2.5-2.28/1.14 |
Baldor |
35 lb |
| VEM3546 |
1 HP |
3 |
208-230/460V |
TEFC |
1800 |
3.1-3/1.5 |
Baldor |
36 lb |
| VEM3554 |
1-1/2 HP |
3 |
208-230/460V |
TEFC |
1800 |
4.5-4.4/2.2 |
Baldor |
42 lb |
| VEM3558 |
2 HP |
3 |
208-230/460V |
TEFC |
1800 |
6.6-5.8/2.9 |
Baldor |
46 lb |
Confirm Before OrderingMatch horsepower, phase, voltage, speed and the 56C frame to the motor you are replacing. A 1800 RPM motor is for a low-speed pump only. Send us the old motor nameplate and we will confirm it.
