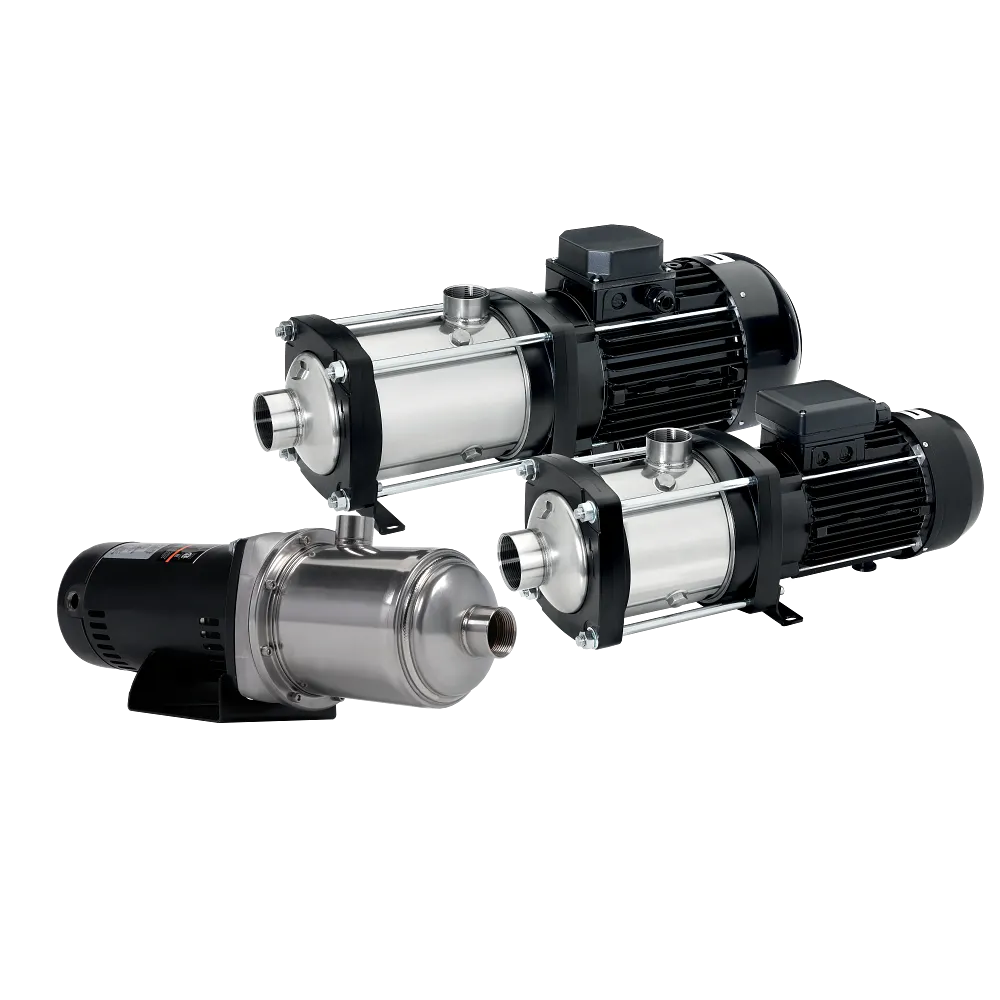

Franklin Electric MH Series multi-stage booster pumps

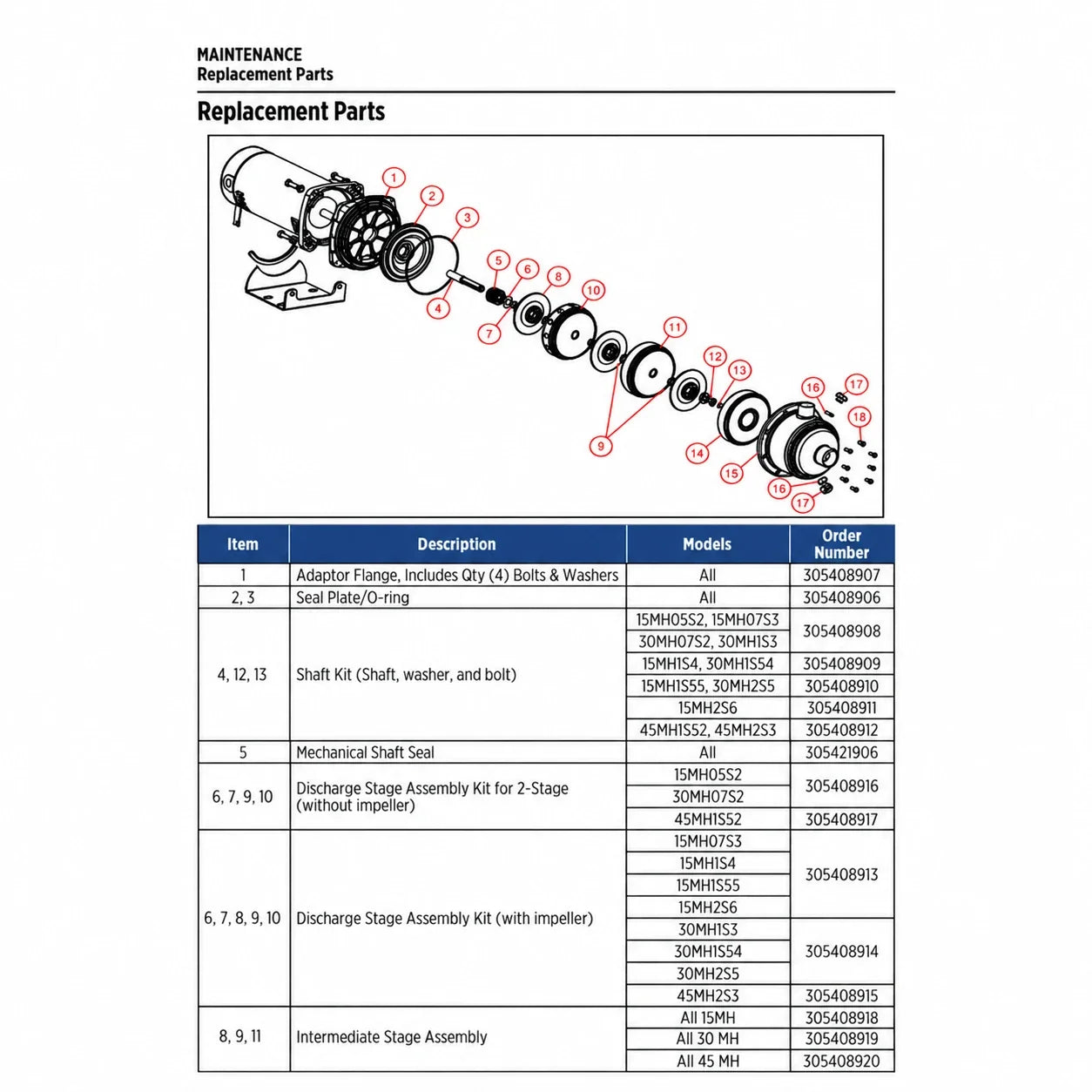

Franklin Electric MH Series booster pump exploded view, page 1
Franklin Electric MH Series booster pump exploded view, page 2

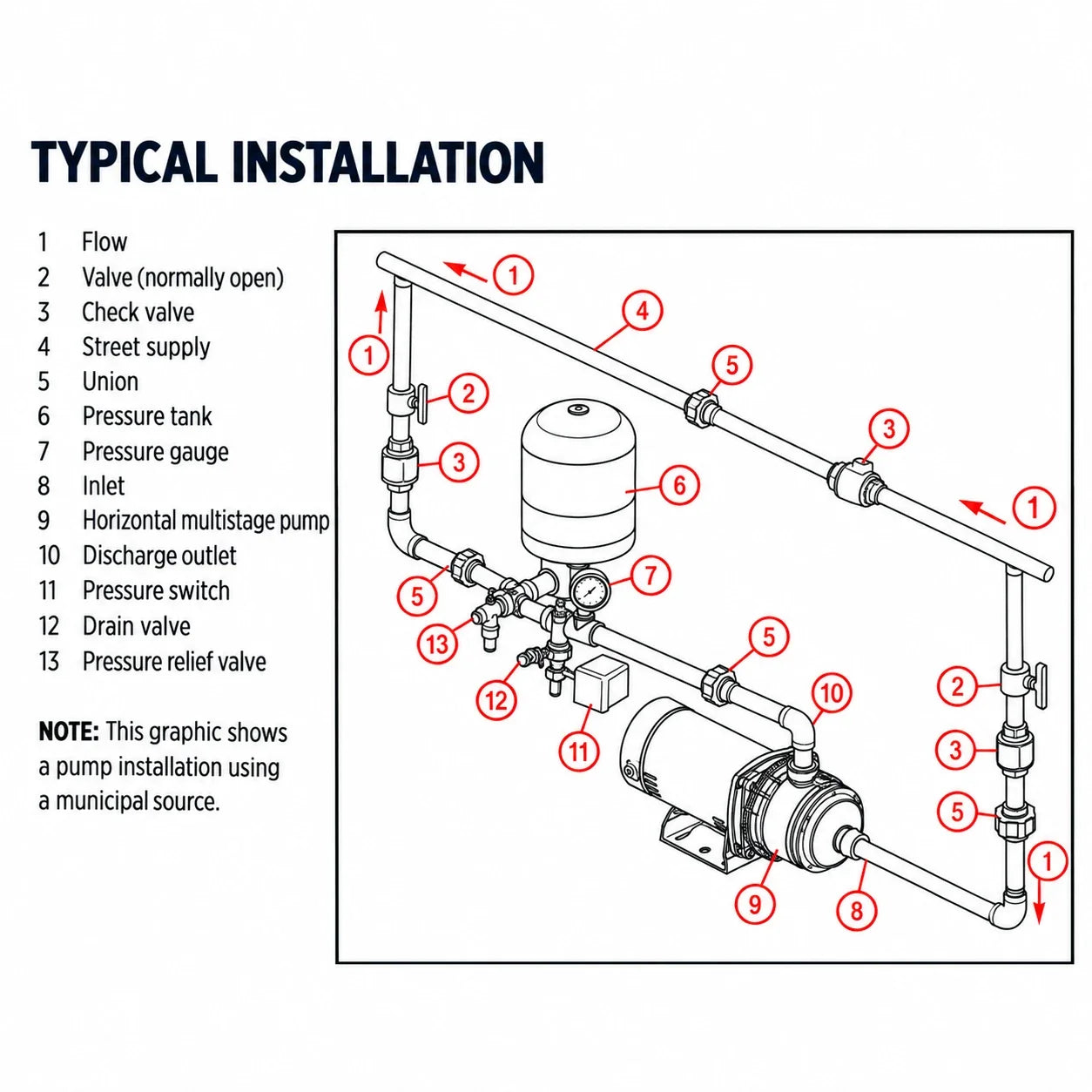

Franklin Electric MH Series typical installation

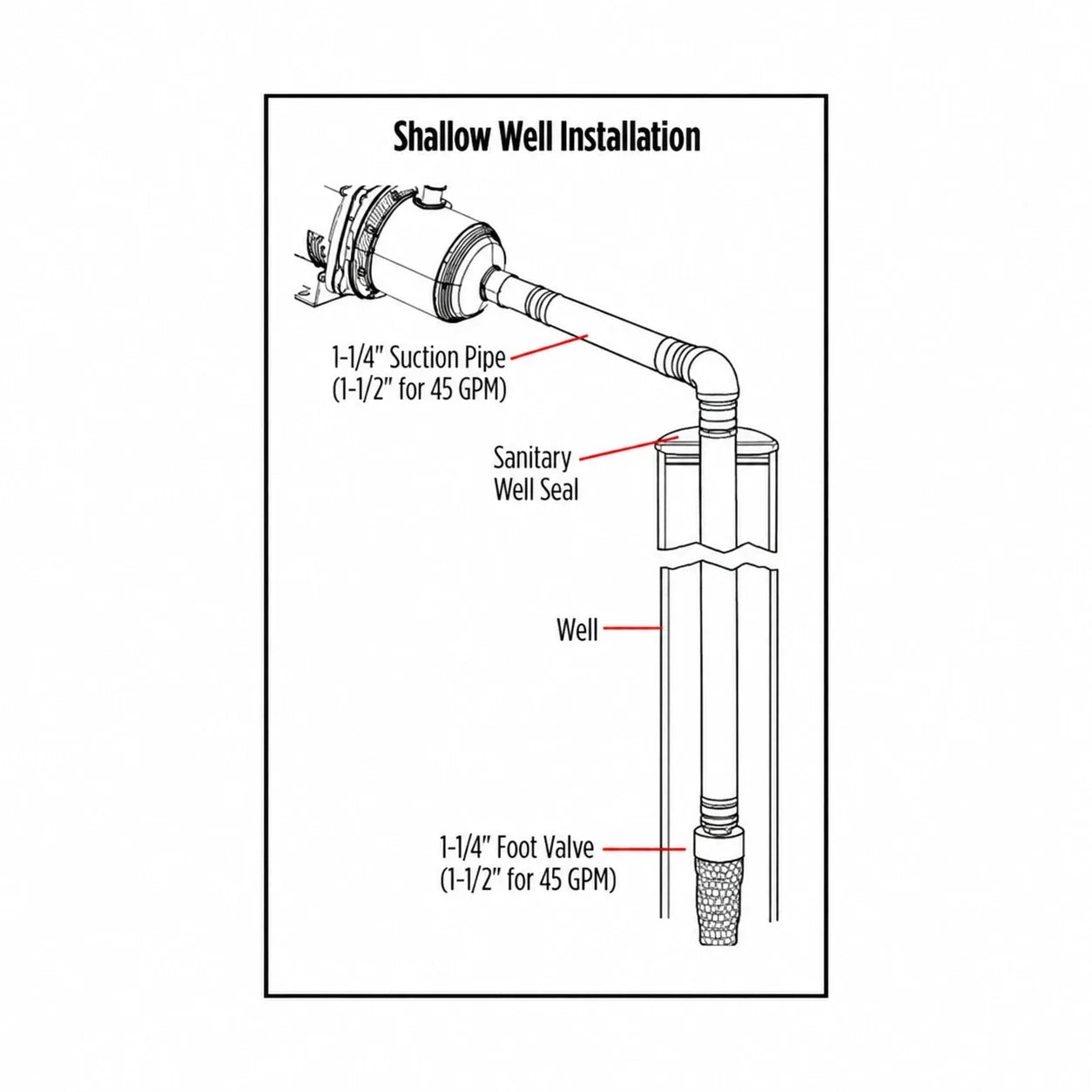

Franklin Electric MH Series shallow well installation
Franklin Electric MH Series multi-stage booster pumps
Franklin Electric MH Series booster pump exploded view, page 1
Franklin Electric MH Series booster pump exploded view, page 2
Franklin Electric MH Series typical installation
Franklin Electric MH Series shallow well installation

Franklin Electric MH Series Repair Parts

Part: Casing Kit - 15MH05S2, 15MH07-S3, 30MH07S2, 30MH1S3

Product variant with selected options does not exist!
$277.73
SKU: 305408901
Weight : 10.0 lb
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description
Franklin Electric · Genuine Repair Parts
MH Series Repair Parts
Genuine Franklin Electric replacement parts and service kits for MH multi-stage booster pumps, listed by factory order number.
23 Part Numbers
Genuine Franklin Electric
Order by Factory Number
Overview

Factory replacement parts and service kits for Franklin Electric MH multi-stage booster pumps. Every item below is listed under Franklin Electric’s own order number, with the pump models it fits as Franklin publishes them.

Match the part to the model on your pump nameplate. The complete pumps are here: MH Series pumps. The owner’s manual on the Data Sheet tab shows the exploded view and where each part sits.

Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Parts and Fitment

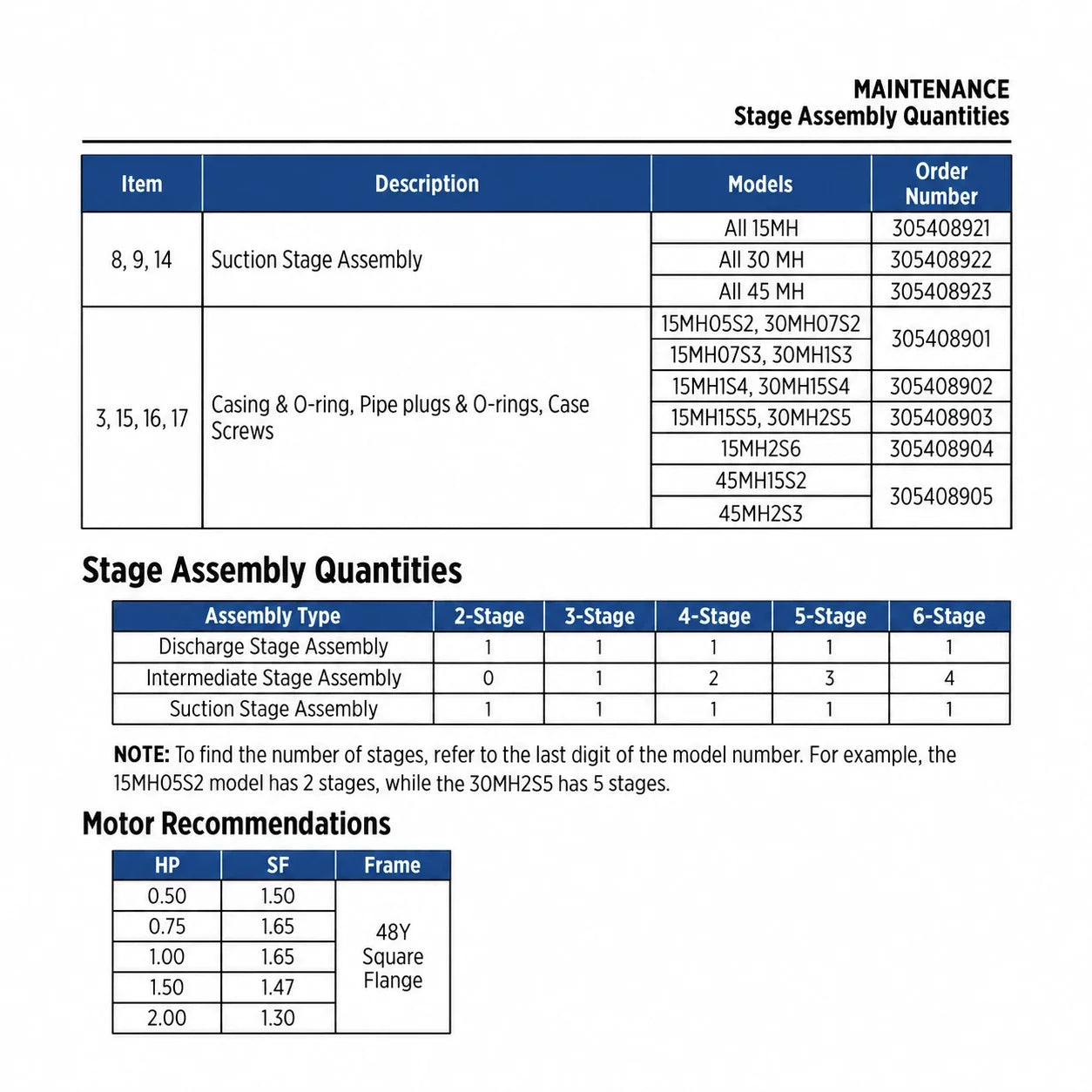

Order No. Part Fits
305408901 Casing & O-ring, Pipe plugs & O-rings, Case Screws, 2-3 stage 15-30MH 15MH05S2, 15MH07-S3, 30MH07S2, 30MH1S3
305408902 Casing & O-ring, Pipe plugs & O-rings, Case Screws, 4-stage 15-30MH 15MH1S4, 30MH15S4
305408903 Casing & O-ring, Pipe plugs & O-rings, Case Screws, 5-stage 15-30MH 15MH15S5, 30MH2S5
305408904 Casing & O-ring, Pipe plugs & O-rings, Case Screws, 6-stage 15-30MH 15MH2S6
305408905 Casing & O-ring, Pipe plugs & O-rings, Case Screws, 2-3 stage 45MH 45MH15S2, 45MH2S3
305408906 Seal Plate/O-ring All models
305408907 Adaptor Flange, Includes Qty (4) Bolts & Washers All models
305408908 Shaft Kit (Shaft,washer, and bolt), 2-3 stage 15-30MH 15MH05S2, 15MH07S3, 30NH07S2, 30MH1S3
305408909 Shaft Kit (Shaft,washer, and bolt), 4-stage, 15-30MH 15MH1S4, 30MH15S4
305408910 Shaft Kit (Shaft,washer, and bolt), 5-stage, 15-30MH 15MH15S5, 30MH2S5
305408911 Shaft Kit (Shaft,washer, and bolt), 6-stage, 15-30MH 15MH2S6
305408912 Shaft Kit (Shaft,washer, and bolt), 2-3 stage, 45MH 45MH15S2, 45MH2S3
305408913 15MH Discharge Stage Assembly 15MH, 3-6 stages
305408914 30MH Discharge Stage Assembly 30MH, 3-5 stages
305408915 45MH Discharge Stage Assembly 45MH2S3
305408916 15MH Discharge Stage Assembly (Note: 2-stage pumps do not use an impeller) 15MH, 2-stage and 30MH, 2-stage
305408917 45MH Discharge Stage Assembly (Note: 2-stage pumps do not use an impeller) 45MH15S2
305408918 15MH Intermediate Stage Assembly 15MH, all stage counts
305408919 30MH Intermediate Stage Assembly 30MH, all stage counts
305408920 45MH Intermediate Stage Assembly 45MH, all stage counts
305408921 15MH Suction Stage Assembly 15MH, all stage counts
305408922 30MH Suction Stage Assembly 30MH, all stage counts
305408923 45MH Suction Stage Assembly 45MH, all stage counts
Confirm Before OrderingOrder by the model number on the pump nameplate, not by horsepower alone — the same horsepower is built on more than one hydraulic. Send us the nameplate and we will confirm the part before it ships.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
