Franklin Electric Inline SpecPAK Booster System

Pump Boost: 80 PSI
Motor HP-Phase: 2 x 1-1/2 HP - Single Phase - 200-240V
Flow: 92 GPM

Product variant with selected options does not exist!

Price
$12,140
SKU: SPIL2-5VL04-S2
Weight : 126.9995 lb
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description
Franklin Electric Inline SpecPAKβ„’

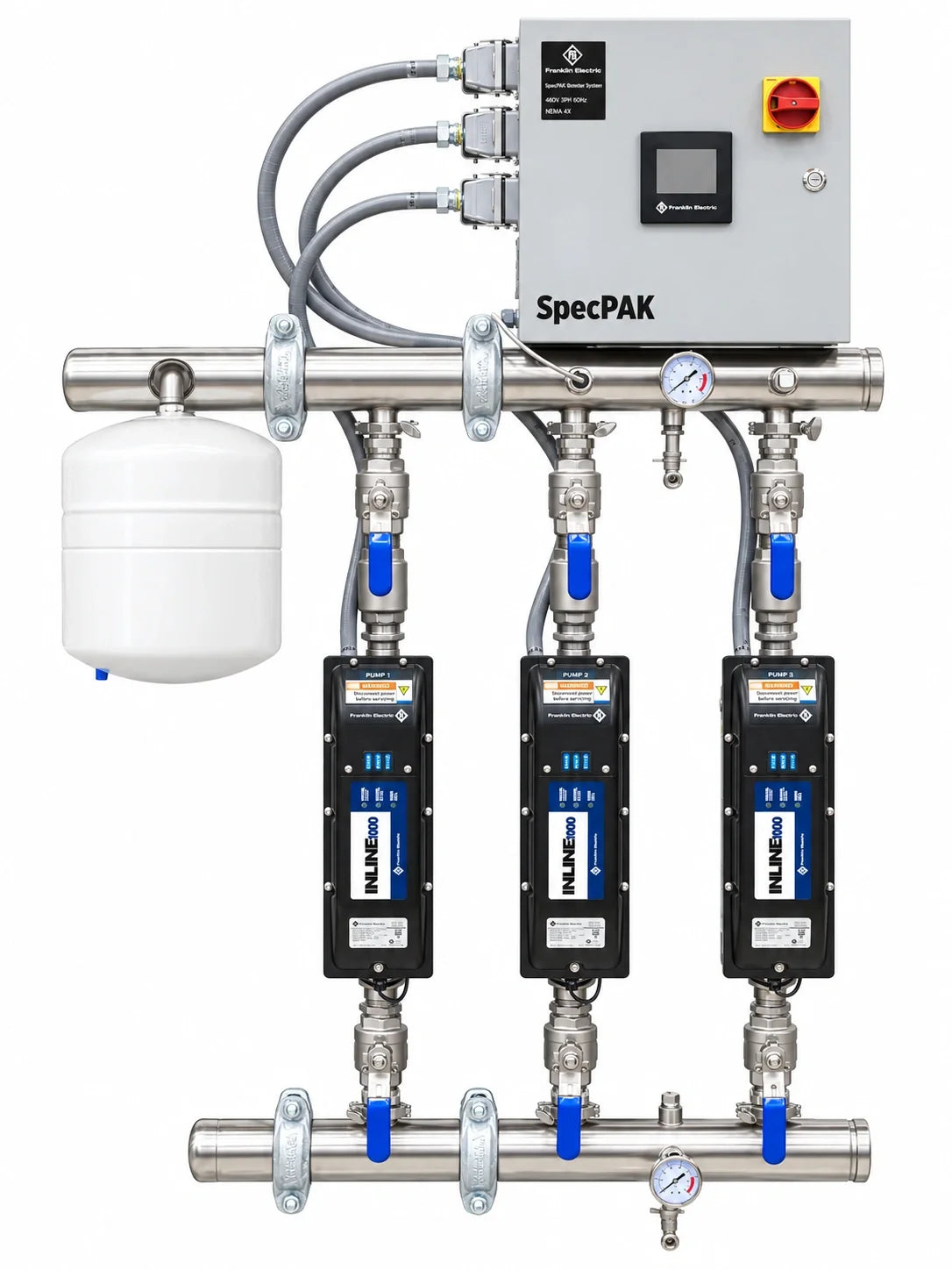

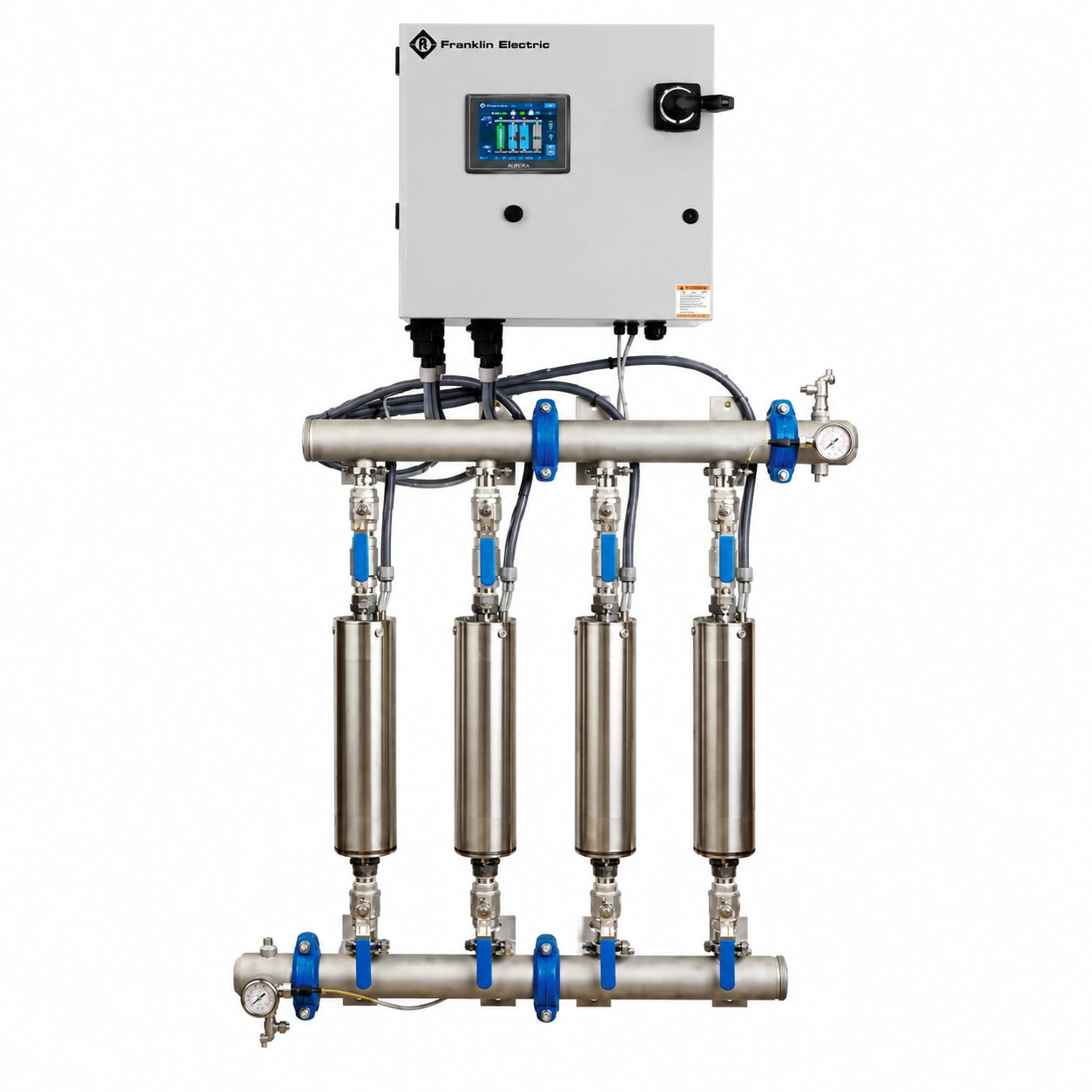

Franklin Electric Inline SpecPAK Booster System
Factory-packaged variable-speed booster for commercial, industrial, and multi-residential plumbing. Duplex, triplex, and quadplex configurations with four inline multi-stage pump models. Arrives complete and ready for electrical service and site plumbing.
Duplex / Triplex / Quadplex
1.5 – 3 HP per Pump
3 – 12 HP System
50 – 190 GPM System Flow
Shut-Off to 260 ft
208-230V Single Phase
All Stainless Wetted Parts
NSF/ANSI/CAN 61 & 372
UL 508A Panel Β· 100 kAIC SCCR
7-inch Color HMI
Modbus Remote Monitoring
Patented Zero-Footprint Design
Genuine Franklin Electric equipment, factory-new in original packaging β€” sold and supported by Watermain Supply, an independent industrial distributor.
Genuine Franklin Electric equipment, factory-new in original packaging β€” sold and supported by Watermain Supply, an independent industrial distributor.
12-Month Warranty

Covered for 12 months from the date of purchase.

Overview

The Franklin Electric Inline SpecPAKβ„’ integrates into nearly any commercial, industrial, or multi-residential plumbing setup. Sizing is reduced to two decisions β€” required flow and desired constant pressure β€” and the system arrives fully packaged and ready to install. As demand rises, each pump adjusts speed automatically to hold constant discharge pressure.

Inline multi-stage centrifugal pumps are plumbed in parallel across common suction and discharge manifolds. Every pump carries its own isolation valves and discharge check valve, so any single pump can be removed for service while the rest of the system stays online. A dedicated VFD drives each pump, and a factory-programmed PLC automates the system from suction and discharge sensor feedback.

Key Advantages
  • Patented Zero-Footprint Design β€” Vertical stacked layout minimises required installation area, preserving critical floor space and allowing mounting flexibility.
  • 7-Inch Color Touchscreen HMI β€” Ships preconfigured with factory presets. Operators view system status, monitor pressure, and adjust settings without opening the panel.
  • Modular β€” Add Pumps Later β€” Pump modules can be added to the base package so the system grows to meet new or unexpected water demand.
  • All Stainless Wetted Components β€” 304 and 316 stainless throughout for corrosion resistance and uncompromised water quality.
  • Grooved Plumbing Connections β€” Reduce set-up time and minimise stress transfer between piping connections. 3-inch or 4-inch by pump model.
  • Full Port Ball Valves β€” Reduce pressure loss through fittings and maintain smooth, consistent water velocity through the system.
  • Low-Friction Manifold Sizing β€” Manifold and circuit piping sized across the full flow range with minimal friction loss.
  • UL 508A Panel, 100 kAIC SCCR β€” Lockable electrical disconnects, fused branch disconnects, and prewired quick connectors between each pump and the panel.
  • Service Without Shutdown β€” Fused branch disconnects let an offline pump receive maintenance while the remaining pumps stay online.
  • Modbus Remote Monitoring β€” Remote monitoring and control. Lead/lag or parallel pump operation selectable in system settings.
  • Quick-Connect Pump Circuits β€” Quick connections in each pump circuit allow service and installation with minimal labour and tools.
  • Field-Programmable Firmware β€” PLC and HMI accept firmware updates in the field, extending service life of the control platform.
Model Nomenclature

SPIL2-5VL04-S2 β€” reading left to right: SP SpecPAK family Β· IL Inline series Β· 2 number of pumps (2, 3, or 4) Β· 5VL04 pump model and stage count Β· S single phase Β· 2 208-230V.

Components & Materials of Construction
Inline Variable Speed Pump 304 SS / 316 SS β€” Casing, shaft, impellers, diffusers, suction head
Pump Discharge Head Nickel-Plated Brass β€” Per Inline VL series specification
Floating Neck Rings PPS β€” One per stage
Mechanical Shaft Seal SiC / Carbon Graphite / NBR β€” Double seal assembly
Motor Class F, IP68 β€” Asynchronous, SS capsule, fluid-cooled, 3450 RPM sync
Isolation Valve 316 SS Full Port Ball β€” Two piece, ΒΌ-turn, NSF 61 certified
Check Valve 303 SS Inline Spring Check β€” Spring-loaded poppet, NSF 372 certified
Pressure Transducer 316 SS β€” NSF certified for potable water
Pressure Gauge 316 SS β€” 2.5 in centre mount, liquid filled, 0-160 PSI
Drain Valve 304 SS β€” ΒΎ in
Inlet & Discharge Connection 304 SS β€” 3 in or 4 in grooved, by pump model
Pump Connection 304 SS β€” 150# flange
Control Panel UL Type 1 / NEMA 1 β€” UL 508A listed, SCCR not less than 100 kAIC
HMI 7 in Color Touchscreen β€” PLC controlled, Modbus capable
Models & Specifications
Model Number Config Pump Model Pump HP System HP System Flow (GPM) Shut-Off Head (ft) Motor Amps Max Service Amps Grooved Conn. (in) Panel Size (in) Panel Order No. Weight, less panel (lbs)
SPIL2-5VL04-S2 Duplex 5VL04 1.5 3 50 208 11 32 3 24x20x10 ISP1-2-H02 127
SPIL2-5VL05-S2 Duplex 5VL05 2 4 50 260 13 32 3 24x20x10 ISP1-2-H02 135
SPIL2-9VL03-S2 Duplex 9VL03 2 4 95 167 13.6 32 4 24x20x10 ISP1-2-H02 156
SPIL2-9VL04-S2 Duplex 9VL04 3 6 95 221 19.6 44 4 24x20x10 ISP1-2-H03 169
SPIL3-5VL04-S2 Triplex 5VL04 1.5 4.5 80 208 16.5 47 3 24x20x10 ISP1-3-H02 192
SPIL3-5VL05-S2 Triplex 5VL05 2 6 80 260 19.5 47 3 24x20x10 ISP1-3-H02 203
SPIL3-9VL03-S2 Triplex 9VL03 2 6 180 167 20.4 47 4 24x20x10 ISP1-3-H02 234
SPIL3-9VL04-S2 Triplex 9VL04 3 9 180 221 29.4 65 4 24x20x10 ISP1-3-H03 253
SPIL4-5VL04-S2 Quadplex 5VL04 1.5 6 105 208 22 61 3 24x24x12 ISP1-4-H02 244
SPIL4-5VL05-S2 Quadplex 5VL05 2 8 105 260 26 61 3 24x24x12 ISP1-4-H02 259
SPIL4-9VL03-S2 Quadplex 9VL03 2 8 190 167 27.2 61 4 24x24x12 ISP1-4-H02 298
SPIL4-9VL04-S2 Quadplex 9VL04 3 12 190 221 39.2 86 4 24x24x12 ISP1-4-H03 323
Performance β€” Will It Do What You Need?

The figures below are the pressure this pump adds. That is what a pump curve measures β€” the impeller does not know what pressure is already on its inlet.

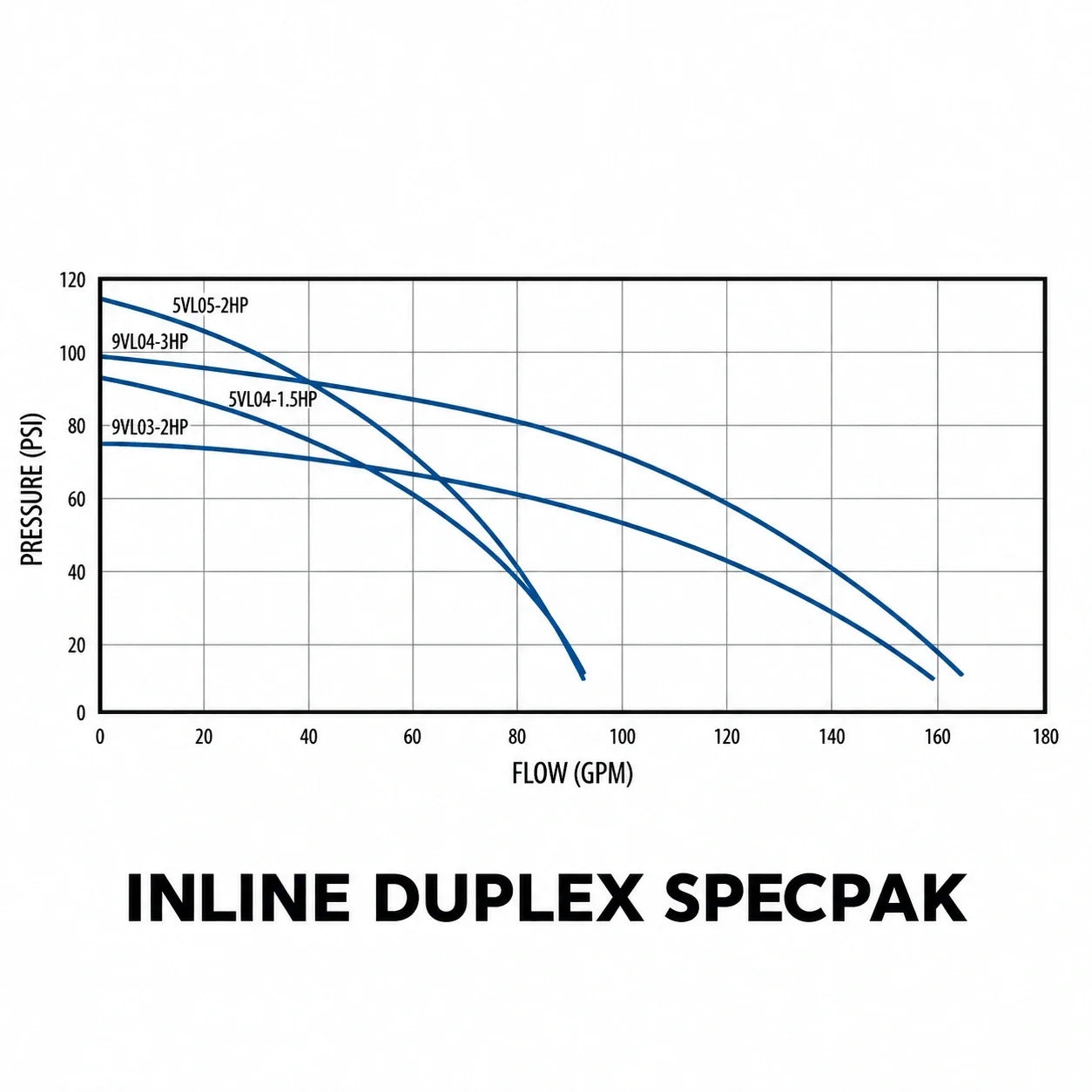

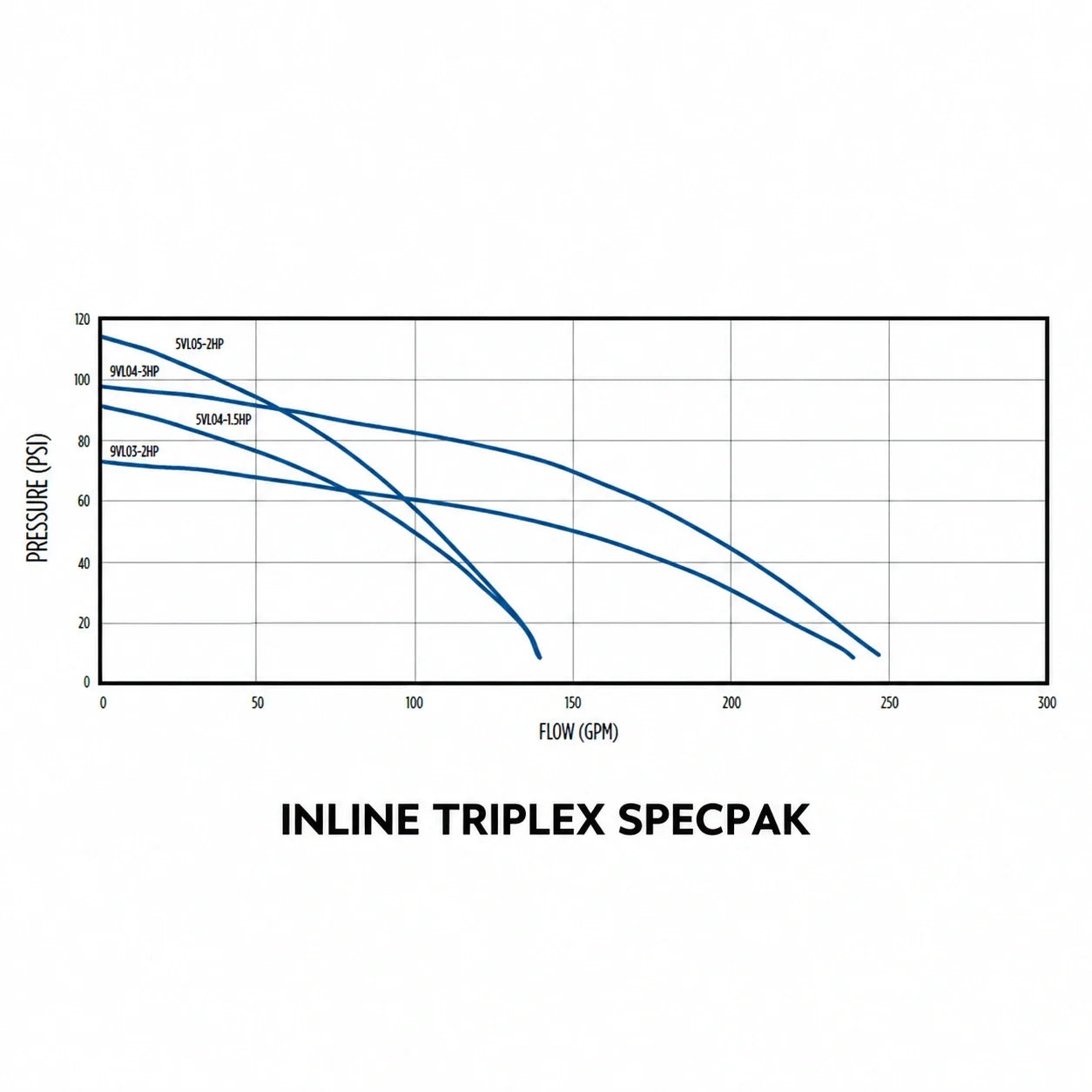

SPIL2-5VL04-S2 / SPIL2-5VL05-S2 β€” up to 90 GPM β€” PSI boost at flow

Flow β€” GPM 0 20 40 60 75 90
SPIL2-5VL04-S2 β€” 1-1/2 HP 92 86 76 60 38 10
SPIL2-5VL05-S2 β€” 2 HP 115 108 92 66 40 10

SPIL2-9VL03-S2 β€” up to 158 GPM β€” PSI boost at flow

Flow β€” GPM 0 30 60 90 120 158
SPIL2-9VL03-S2 β€” 2 HP 74 72 66 58 40 10

SPIL2-9VL04-S2 β€” up to 165 GPM β€” PSI boost at flow

Flow β€” GPM 0 30 60 90 120 145 165
SPIL2-9VL04-S2 β€” 3 HP 98 94 88 80 65 38 12

SPIL3-5VL04-S2 / SPIL3-5VL05-S2 β€” up to 135 GPM β€” PSI boost at flow

Flow β€” GPM 0 30 60 90 112.5 135
SPIL3-5VL04-S2 β€” 1-1/2 HP 92 86 76 60 38 10
SPIL3-5VL05-S2 β€” 2 HP 115 108 92 66 40 10

SPIL3-9VL03-S2 β€” up to 237 GPM β€” PSI boost at flow

Flow β€” GPM 0 45 90 135 180 237
SPIL3-9VL03-S2 β€” 2 HP 74 72 66 58 40 10

SPIL3-9VL04-S2 β€” up to 247.5 GPM β€” PSI boost at flow

Flow β€” GPM 0 45 90 135 180 217.5 247.5
SPIL3-9VL04-S2 β€” 3 HP 98 94 88 80 65 38 12

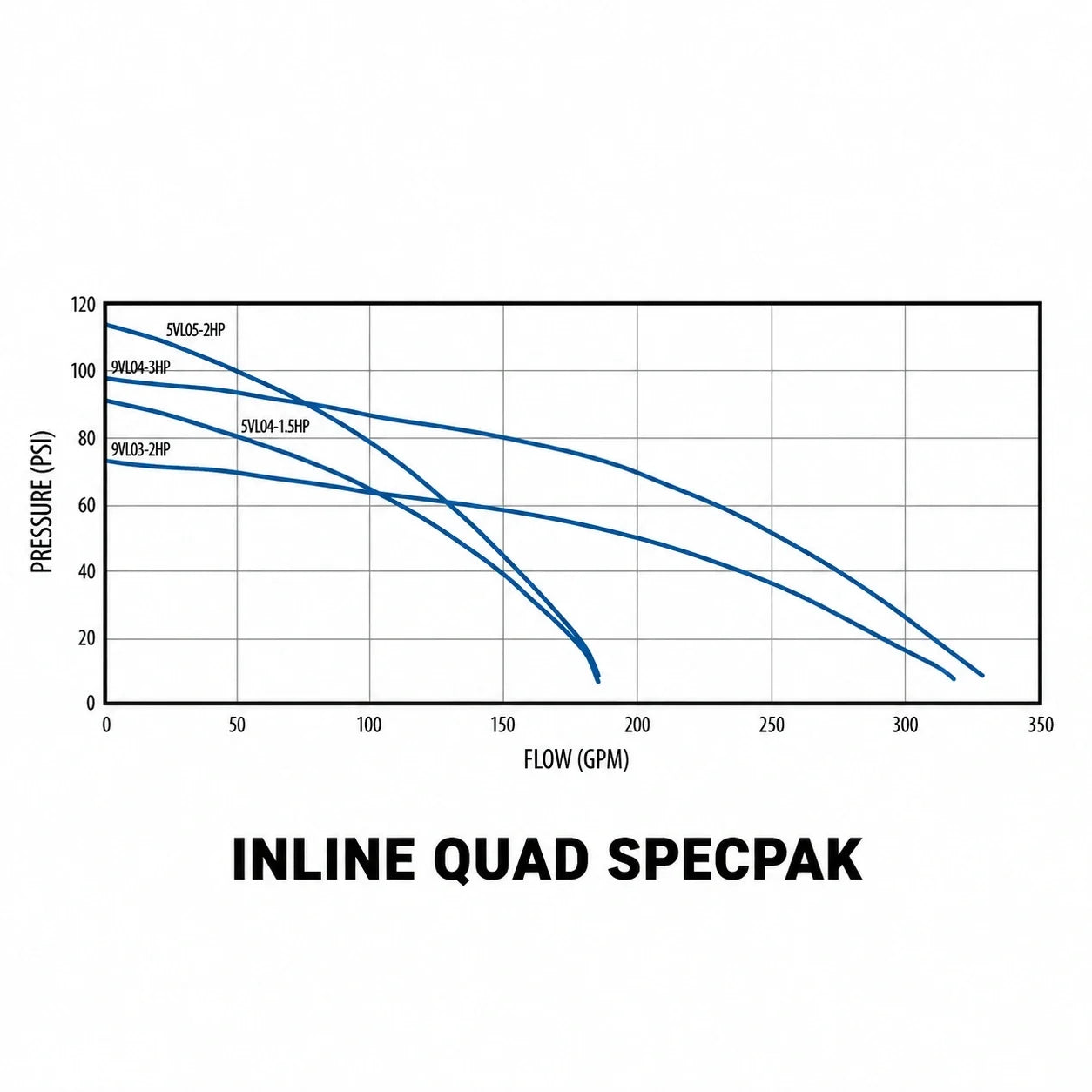

SPIL4-5VL04-S2 / SPIL4-5VL05-S2 β€” up to 180 GPM β€” PSI boost at flow

Flow β€” GPM 0 40 80 120 150 180
SPIL4-5VL04-S2 β€” 1-1/2 HP 92 86 76 60 38 10
SPIL4-5VL05-S2 β€” 2 HP 115 108 92 66 40 10

SPIL4-9VL03-S2 β€” up to 316 GPM β€” PSI boost at flow

Flow β€” GPM 0 60 120 180 240 316
SPIL4-9VL03-S2 β€” 2 HP 74 72 66 58 40 10

SPIL4-9VL04-S2 β€” up to 330 GPM β€” PSI boost at flow

Flow β€” GPM 0 60 120 180 240 290 330
SPIL4-9VL04-S2 β€” 3 HP 98 94 88 80 65 38 12

Zero flow is the shut-off point β€” a ceiling, not a working point. Figures are the published system curves in the Franklin Electric Inline SpecPAK catalog M5122 04-26; each row is the packaged system, not a single pump. Convert psi to head by dividing by 0.433.

Dimensions
Model Number A β€” Width B β€” Manifold Centerline C β€” Depth D β€” Overall Height E F G
SPIL2-5VL04-S2 26.15 in 42.19 in 7.7 in 49.69 in 5.56 in 42.19 in 47.75 in
SPIL2-5VL05-S2 26.15 in 45.07 in 7.7 in 52.57 in 5.56 in 45.07 in 50.63 in
SPIL2-9VL03-S2 26.65 in 49.21 in 7.9 in 57.71 in 6.56 in 49.21 in 55.77 in
SPIL2-9VL04-S2 26.65 in 50.4 in 7.9 in 58.9 in 6.56 in 50.4 in 56.96 in
SPIL3-5VL04-S2 36.36 in 42.19 in 7.7 in 49.69 in 5.56 in 42.19 in 47.75 in
SPIL3-5VL05-S2 36.36 in 45.07 in 7.7 in 52.57 in 5.56 in 45.07 in 50.63 in
SPIL3-9VL03-S2 36.8 in 49.21 in 7.9 in 57.71 in 6.56 in 49.21 in 55.77 in
SPIL3-9VL04-S2 36.8 in 50.4 in 7.9 in 58.9 in 6.56 in 50.4 in 56.96 in
SPIL4-5VL04-S2 46.3 in 42.19 in 7.7 in 49.69 in 5.56 in 42.19 in 47.75 in
SPIL4-5VL05-S2 46.3 in 45.07 in 7.7 in 52.57 in 5.56 in 45.07 in 50.63 in
SPIL4-9VL03-S2 46.8 in 49.21 in 7.9 in 57.71 in 6.56 in 49.21 in 55.77 in
SPIL4-9VL04-S2 46.8 in 50.4 in 7.9 in 58.9 in 6.56 in 50.4 in 56.96 in
Accessories & Replacement Components
Category Order No. Description
Step-Down Transformer I-130661 480V – 240V, 7.5 kVA β€” Duplex (SPIL2) with 5VL04, 5VL05, 9VL03. Wall mount, 150 lbs.
Step-Down Transformer I-130662 480V – 240V, 10 kVA β€” Triplex (SPIL3) with 5VL04/5VL05/9VL03, or Duplex with 9VL04. Wall mount, 175 lbs.
Step-Down Transformer I-130663 480V – 240V, 15 kVA β€” Quadplex (SPIL4) with 5VL04/5VL05/9VL03, or Triplex with 9VL04. Wall mount, 270 lbs.
Step-Down Transformer I-130668 480V – 240V, 25 kVA β€” Quadplex (SPIL4) with 9VL04. Floor mount, 195 lbs.
VL Pump 96295046260AD05 5VL04 replacement pump
VL Pump 96295056260AD05 5VL05 replacement pump
VL Pump 96299036260AD05 9VL03 replacement pump
VL Pump 96299046260AD05 9VL04 replacement pump
Pipe Connector I-VIC107-3 Grooved 3-inch x 3-inch
Pipe Connector I-VIC107-4 Grooved 4-inch x 4-inch
Pipe Connector I-VIC750-3X2.50 Grooved 3-inch x 2.5-inch
Pipe Connector I-VIC750-4X3 Grooved 3-inch x 4-inch
Flange I-VIC741-3 3 in 150# flange with gasket
Flange I-VIC743-3 3 in 300# flange with gasket
Flange I-VIC741-4 4 in 150# flange with gasket
Flange I-VIC743-4 4 in 300# flange with gasket
Adapter I-VIC356-3 3 in grooved PVC adapter
Adapter I-VIC644-3 3 in grooved copper tube adapter
Sensor I-100435-0-150 0-150 PSI pressure transducer
Sensor I-100434-3M Shielded transducer cable, 3 m
Gauge I-PG0/160CM 2.5 in centre mount liquid-filled pressure gauge, 0-160 PSI, ΒΌ in NPT
Panel Component PROG-HMI-ISPVR 7 in touchscreen HMI
Panel Component PROG-PLC-ISPVR Programmable Logic Controller
VFD VFD7A5MS21AFSAA 7A β€” for pump models 5VL04, 5VL05, 9VL03
VFD VFD11AMS21AFSAA 11A β€” for pump model 9VL04
Panel Fan PF-32000-24VDC Duplex systems (2 pumps)
Panel Fan PF-33000SL-24VDC Triplex and quadplex systems (3 or 4 pumps)
Panel Filter PFF-30000 Fan filter
Applicable Standards & Certifications
NSF/ANSI/CAN 61 & 372 Potable Water Certified β€” All wetted components
UL 508A Industrial Control Panels β€” Panel label required, no exception
ASHRAE 90.1-2010 Energy Compliance β€” Package level
AWWA / HI / ASTM / ANSI Reference Standards β€” Per specification M5120
Hydrostatic Test Non-Witness β€” Each package, to max working pressure
Hydraulic Test Non-Witness β€” Each package, to project design point pre-shipment
Installation Environment
Requirement Limit
Max ambient temperature 104Β°F (40Β°C)
Max fluid temperature 140Β°F (40Β°C)
Panel enclosure rating NEMA 1 β€” indoor only, Pollution Degree 2
Altitude 3,281 ft (1,000 m). De-rate current 1% per 328 ft from 3,281–6,562 ft. Consult Technical Support above 6,562 ft
Relative humidity 90% maximum, non-condensing
PLC operating range -4Β°F to 140Β°F, 0 to 6,561 ft

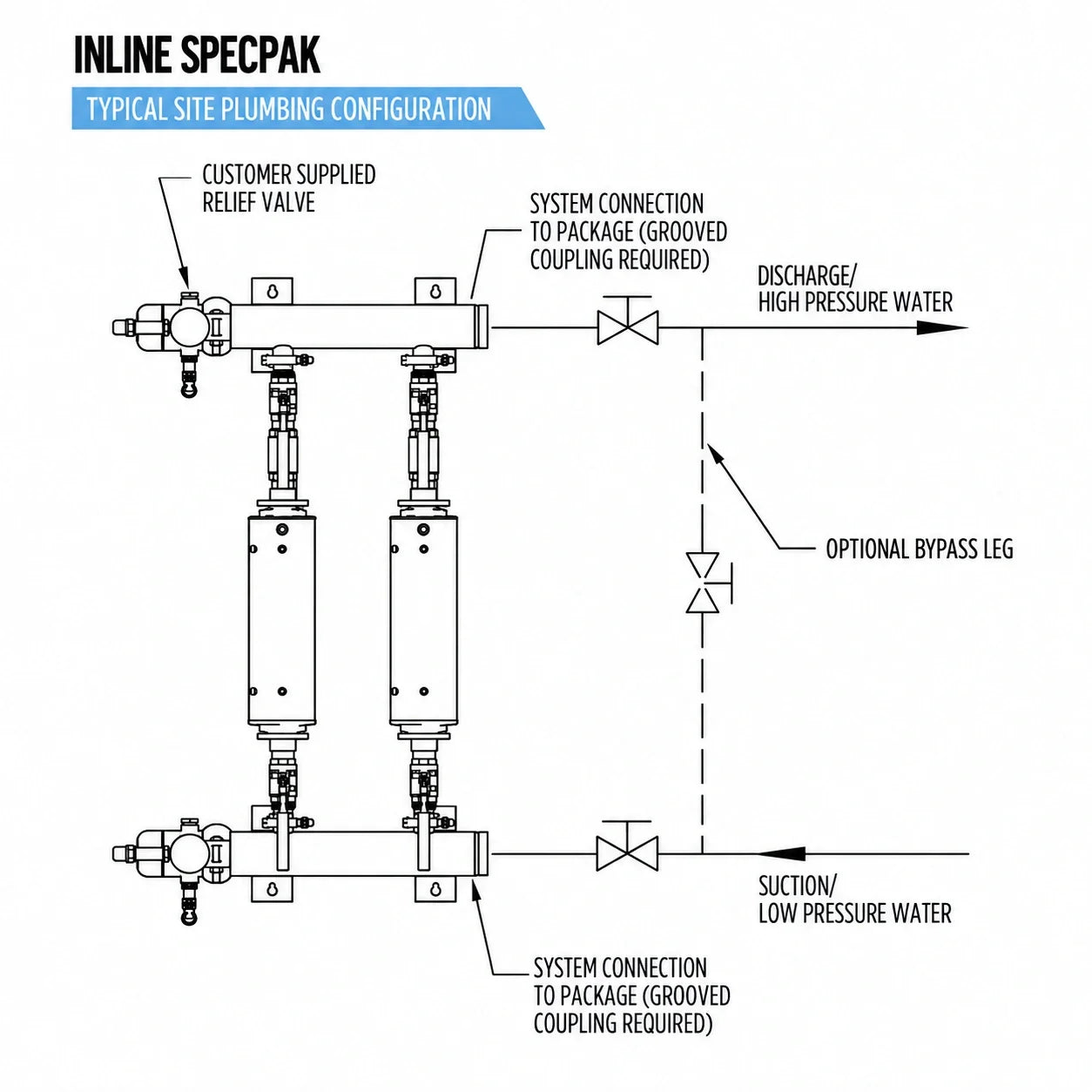

Indoor Installation Only β€” Customer-Supplied Relief Valve RequiredThe control panel is NEMA 1 rated and must be installed indoors in a controlled environment. A relief valve is customer supplied and is not included in the package; size the relief discharge pipe for maximum pump outlet at relief discharge pressure. Do not install in corrosive environments, do not operate with fan filters removed, and do not expose the HMI to direct sunlight.
Warranty β€” Extendable to 36 MonthsStandard warranty is 12 months from date of install or 24 months from date of manufacture, whichever occurs first. A completed and approved Start-Up and Commissioning Checklist extends coverage to 36 months from date of installation. Download the form above.
