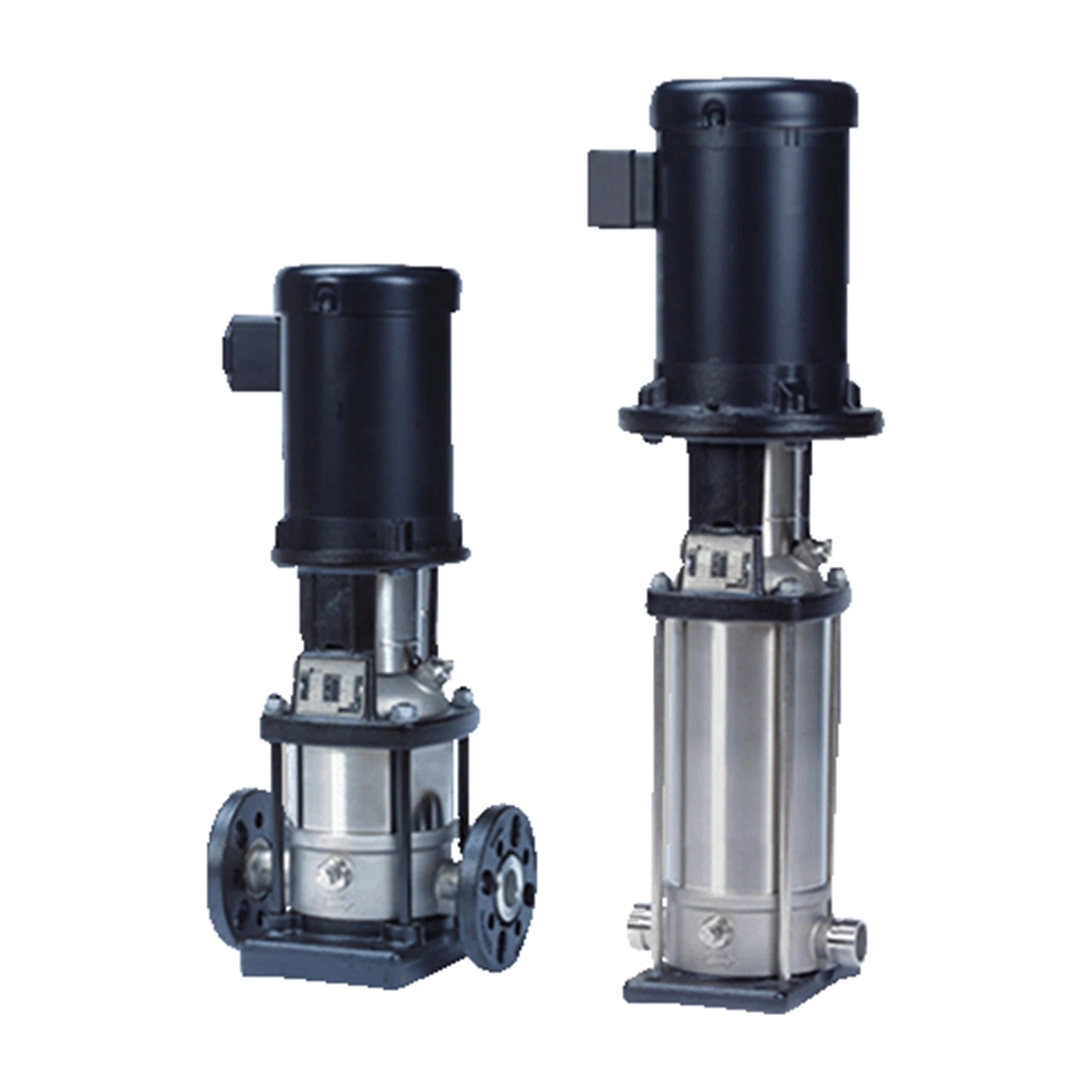

Grundfos CRN 10 Vertical Multistage Pump

Vertical, multistage centrifugal pump with suction and discharge ports on the same level. CRN is the AISI 316 grade of the CR platform: every wetted part — pump head, base, chambers, impellers, shaft and sleeves — is AISI 316. Because the ports share a centreline, the pump installs in a straight pipe run without an offset.

The CRN 10 frame is rated at 53.3 GPM. The family number is Grundfos’s nominal duty in cubic metres per hour, not a GPM figure — size the pump from the rated head table below, not from the model number.

14 models are offered, from CRN 10-1 to CRN 10-17, covering 3/4 to 15 HP on NEMA 56C, 182TC, 213TC, 254TC C-face totally enclosed fan-cooled (TEFC) motors. Adding stages raises head at the same flow without changing the footprint. Connections are 2 in Victaulic grooved, or 2 in ANSI 300 lb flanged. Both are rated 362 psi maximum operating pressure.

Why 316 rather than 304. The hydraulics are shared across CR, CRI and CRN, so a CRN 10-2 and the matching CR or CRI model have the same rated duty point. What changes is corrosion resistance. The molybdenum in AISI 316 is what resists chloride pitting, so CRN is the grade for chloride-bearing water, softened or brackish supplies, coastal installations, and process liquids that would pit 304. Where chlorides are not the issue, CRI in 304 does the same hydraulic job for less money, and CR in cast iron less again. For seawater and stronger chloride duty Grundfos offers the CRT range in titanium.

• AISI 316 wetted path — pump head, base, chambers, impellers, shaft and sleeves in EN 1.4401 (AISI 316). The molybdenum content is what resists chloride pitting.
• In-line ports — suction and discharge on the same level, so the pump installs in a straight run without an elbow or offset.
• Cartridge shaft seal — replaced as a complete unit without setting the seal by hand and without special tools.
• Silicon-carbide seal faces — SiC against SiC on both faces in every seal option listed here.
• NSF/ANSI 61 certified for drinking water contact.
• Totally enclosed fan-cooled (TEFC) NEMA C-face motor — 56C, 182TC, 213TC, 254TC frames across this range, 60 Hz.

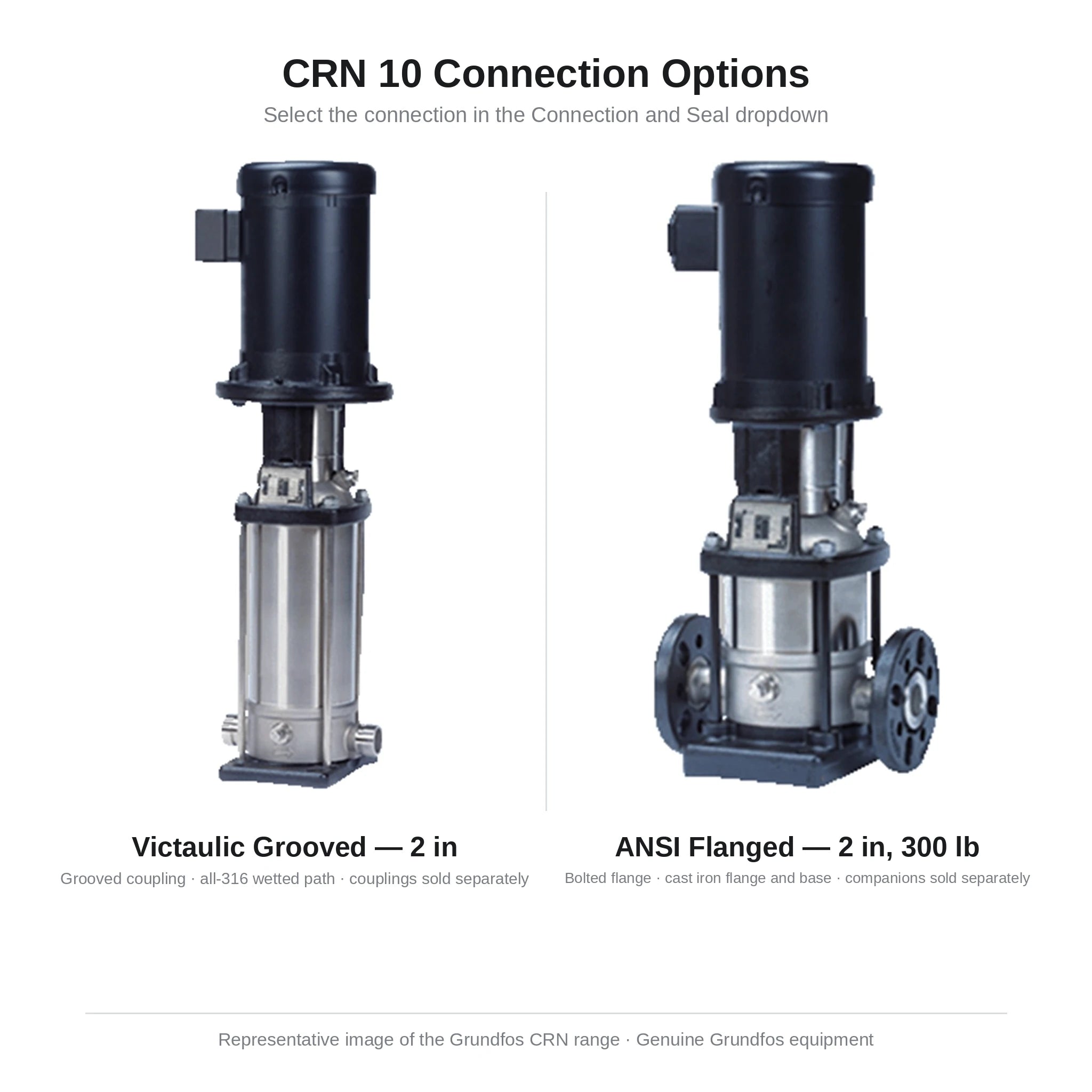

• Two connection styles — 2 in Victaulic grooved, or 2 in ANSI 300 lb flanged. Both are rated 362 psi maximum operating pressure.

• HQQE — EPDM. Silicon-carbide faces with an EPDM O-ring, rated −4 °F to 248 °F. The standard water seal: potable water, hot water and glycol. Mineral oils need HQQV.
• HQQV — FKM (Viton). Silicon-carbide faces with an FKM O-ring, rated −4 °F to 194 °F. For mineral oils, fuels and liquids that attack EPDM.

In the Grundfos type key the final letter is the rubber: E = EPDM, V = FKM. Both options use silicon-carbide faces (QQ) and the same cartridge format.

• Chloride-bearing, softened and brackish water, where 304 stainless would be at risk of pitting
• Coastal and marine-adjacent installations
• Reverse osmosis feed and permeate, demineralised and deionised water
• Boiler feed, condensate and chemical dosing skids
• Food, beverage and pharmaceutical process duty
• Industrial process cooling, liquid transfer and pressure boosting

Each part number is a complete pump: pump end, motor, coupling, coupling guard and shaft seal, factory assembled and tested.

Companion connections are ordered separately on both styles. Grundfos supplies the CRN pump with its connection prepared but not with the mating hardware: Victaulic couplings and gaskets for the grooved version, and companion flanges, bolts and gaskets for the ANSI version. Order them with the pump so the job is not held up. The ANSI flanged version uses a cast iron flange and base plate; neither contacts the pumped liquid, so the wetted path stays all 316 stainless.

Motor starters, variable frequency drives, pressure sensors, base plates, foundation bolts and isolation valves are not included. These are fixed-speed pumps; for integrated variable-speed control see the CRNE range.

Select the HP and voltage, then the model, then the connection and seal. Each combination is a distinct Grundfos part number, listed in the table above and shown in the SKU of the selected variant.

The picker shows only the combinations Grundfos publishes.
