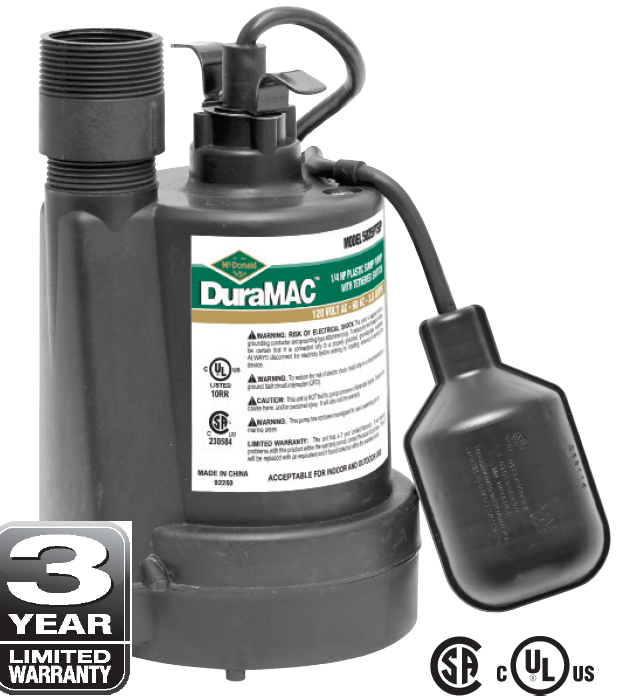

With a tough thermoplastic construction, the 5025PTSP can handle up to 30 gallons per minute (GPM).
Features:
• Split Capacitor Motor - 1/4 HP continuous duty, thermal protected
• Lifts water up to 25' of vertical height
• 10' power cord, 25' cords are available for an additional charge
• Large 1 1/4" or 1 1/2" discharge for high capacity pumping
• Clog resistant impeller
• Tethered float switch
Specifications
|
Part No. |
Model No. |
HP |
Volts |
Hz |
Amps |
Construction |
Discharge Size |
Cord Length |
Solids Handling |
RPM |
Phase |
Wt. |
|
6190-146 |
5025PTSP |
1/4 |
120 |
60 |
3.8 |
Thermoplastic |
1 1/4" or 1 1/2" |
10' |
1/8" |
3450 |
1 |
9 |

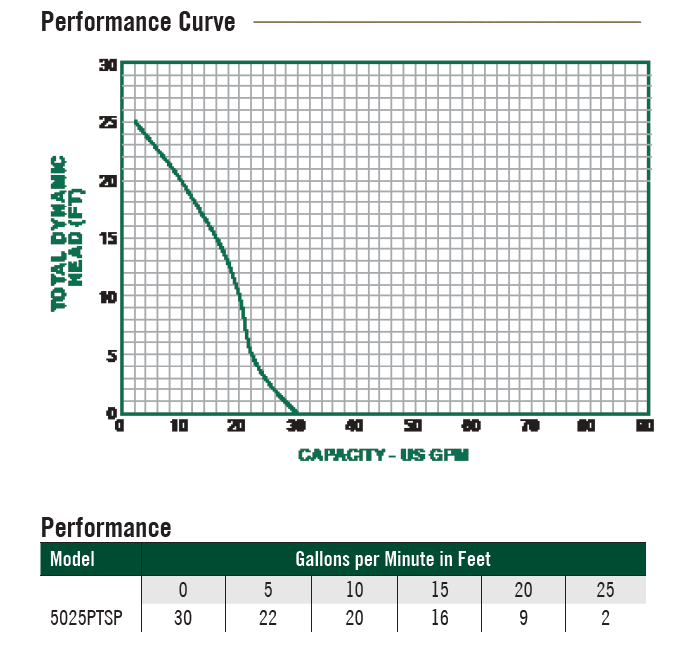

Performance
Gallons per Minute in Feet
|
Model |
0 |
5 |
10 |
15 |
20 |
25 |
|
5025PTSP |
30 |
22 |
20 |
16 |
9 |
2 |
