Monitor Turtle Watertight Well Cap - Iron or ABS Lid, PAS-97
Monitor Turtle Watertight Well Cap - Iron or ABS Lid, PAS-97
Monitor Turtle Watertight Well Cap - Iron or ABS Lid, PAS-97
Monitor Turtle Watertight Well Cap - Iron or ABS Lid, PAS-97
Monitor Turtle Watertight Well Cap - Iron or ABS Lid, PAS-97
Monitor Turtle Watertight Well Cap - Iron or ABS Lid, PAS-97

Monitor Turtle Watertight Well Cap - Iron or ABS Lid, PAS-97

Casing Size: 4-1/2 in
Configuration: Iron Lid + Iron Ring
Pack: Single

Product variant with selected options does not exist!
$132.01
SKU: 4WE1
Weight : 6.0 lb
Need it fast? Call for same-day shipping options: 281.664.8000
Description

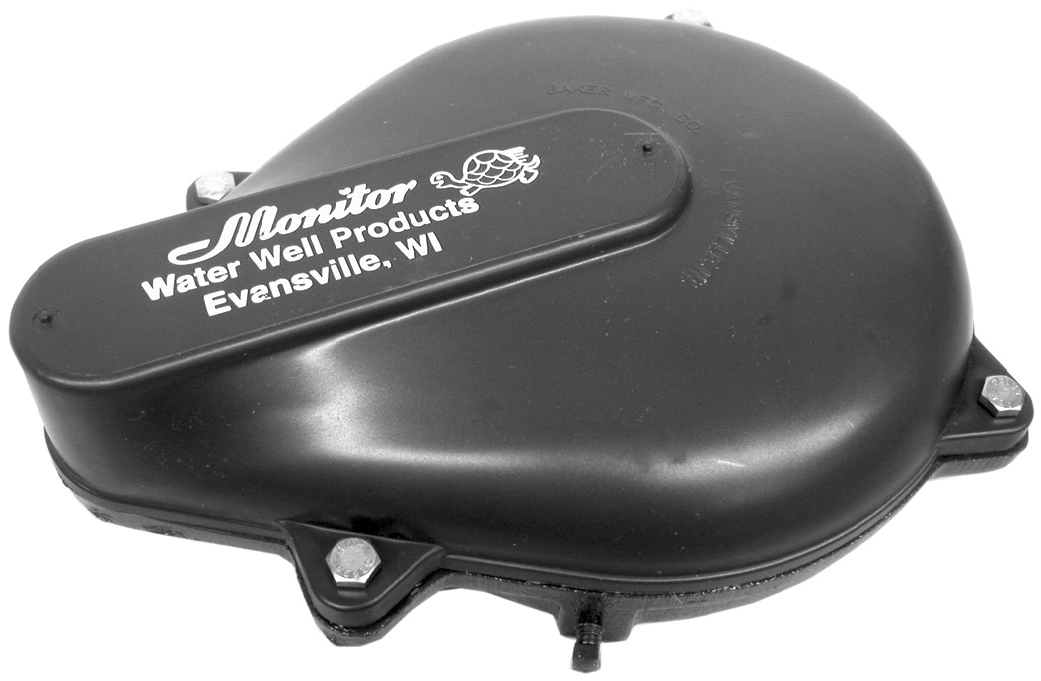

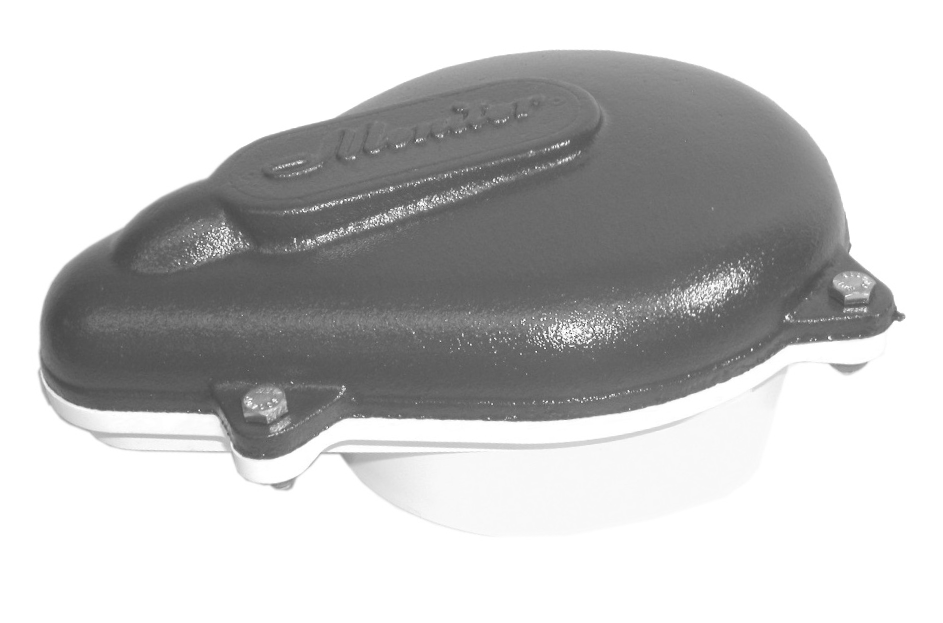

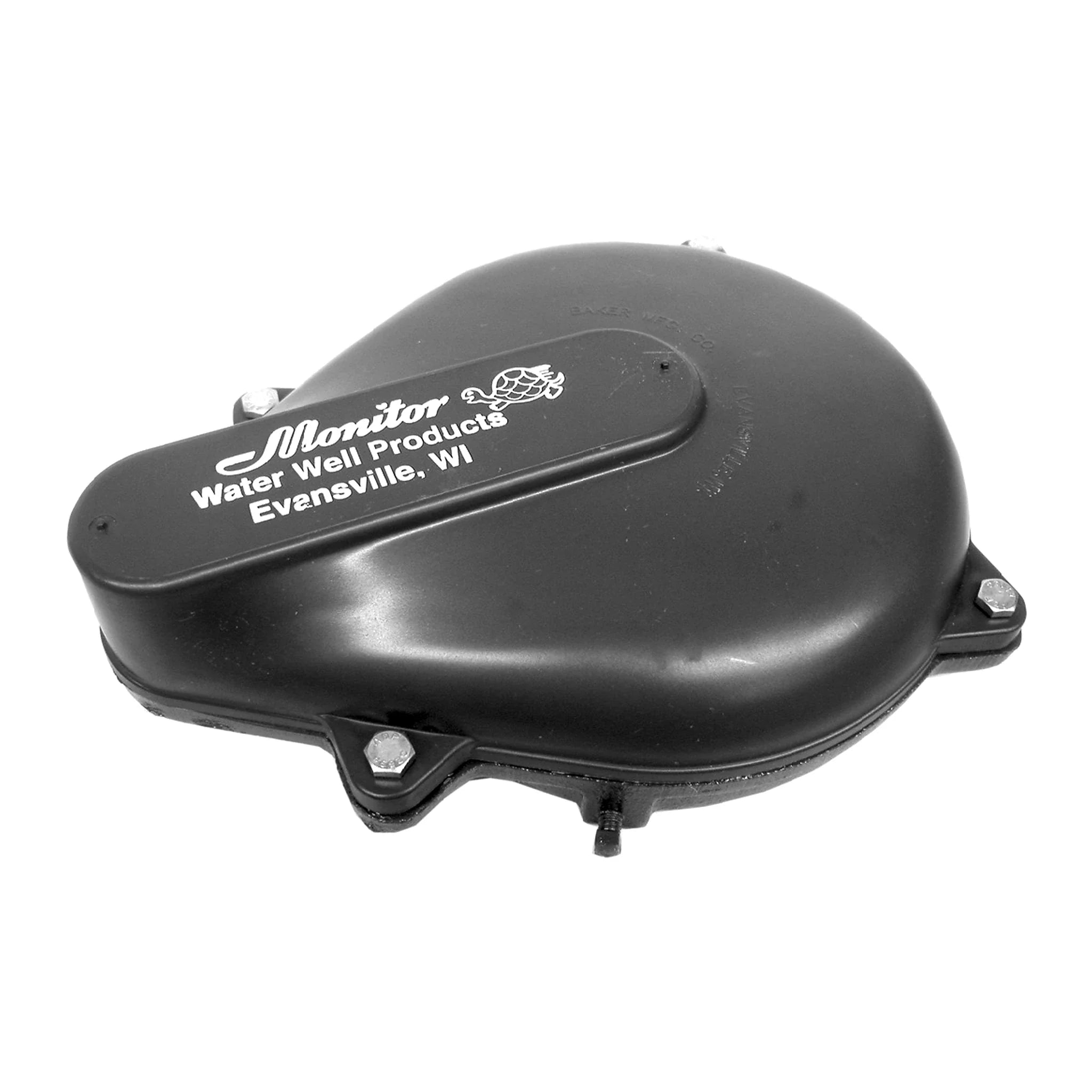

The Monitor Turtle Watertight Well Cap is a two-piece cap with a Neoprene O-ring that seals against the well casing. The lid lifts off for well and pump service while the base ring stays sealed to the casing, and two large screened vent areas let the well breathe.

Available with a cast iron or lighter ABS lid, and with a cast iron base ring (three square-head bolts to steel or PVC casing) or a PVC base ring (solvent-welded to PVC casing). All hardware is stainless steel. Choose casing size, lid and ring configuration, and single or 6-pack.

Design Two-piece, Neoprene O-ring casing seal, removable lid
Lid material Cast iron or ABS
Base ring Cast iron (bolt-on) or PVC (solvent weld)
Ventilation Two large screened vent areas
Hardware Stainless steel
Conduit tap 1 in (1-1/4 in on selected 6-series)
Casing sizes 4-1/2 in to 7-5/8 in O.D.
Standards Water Systems Council PAS-97(2017)
Origin Made in USA

Downloads: Monitor Domestic Products Catalog | Monitor Repair Parts & Installation Catalog

For engineering-led selection support or a factory submittal, email sales@watermainsupply.com or call 281.664.8000.
