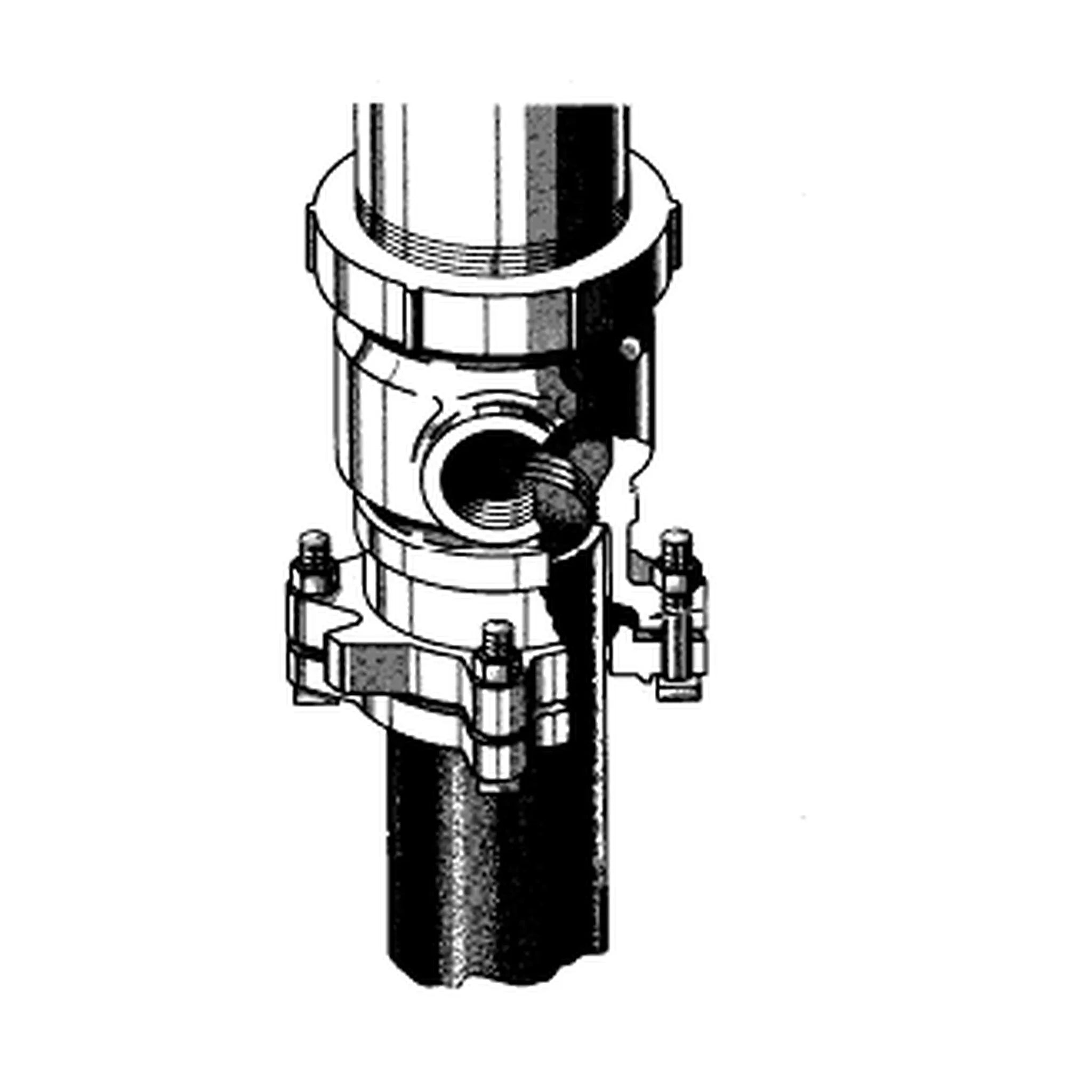

The Monitor PS Domestic Pitless Unit in Kwikonect style uses a built-in compression seal fitting that slips onto the top of the well casing and tightens with a single wrench, no threading or welding required.
All water passages are below the frost line and the inner assembly lifts out for service. Supplied as a spool without check valves, less cap; order the well cap separately. Select well size and bury depth.
| Type | Spool pitless unit for submersible pump |
| Pitless case | Meets ASTM A53 |
| Seals | Neoprene O-rings, hot-dipped lead-free galvanized |
| Well sizes | 4 in, 5 in, 6 in I.D. |
| Bury depths | 0 ft to 8 ft |
| Standards | Water Systems Council PAS-97(2017) |
Downloads: Monitor Domestic Products Catalog | Monitor Repair Parts & Installation Catalog
For engineering-led selection support or a factory submittal, email sales@watermainsupply.com or call 281.664.8000.
