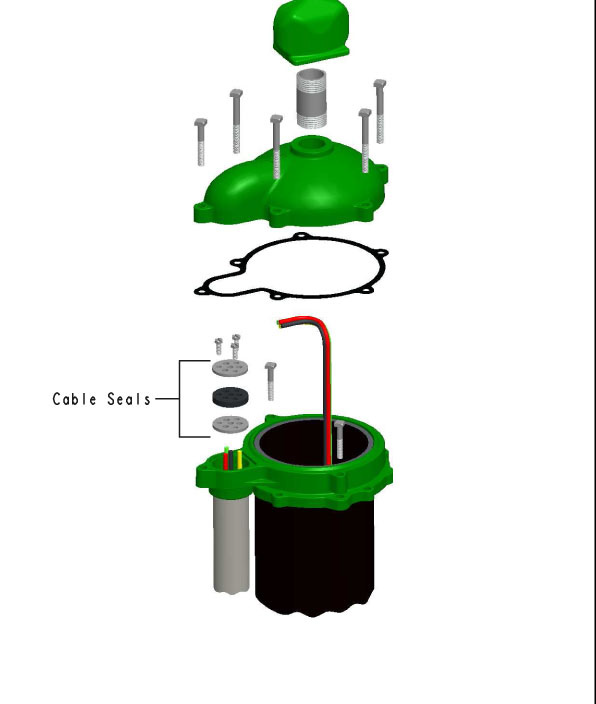

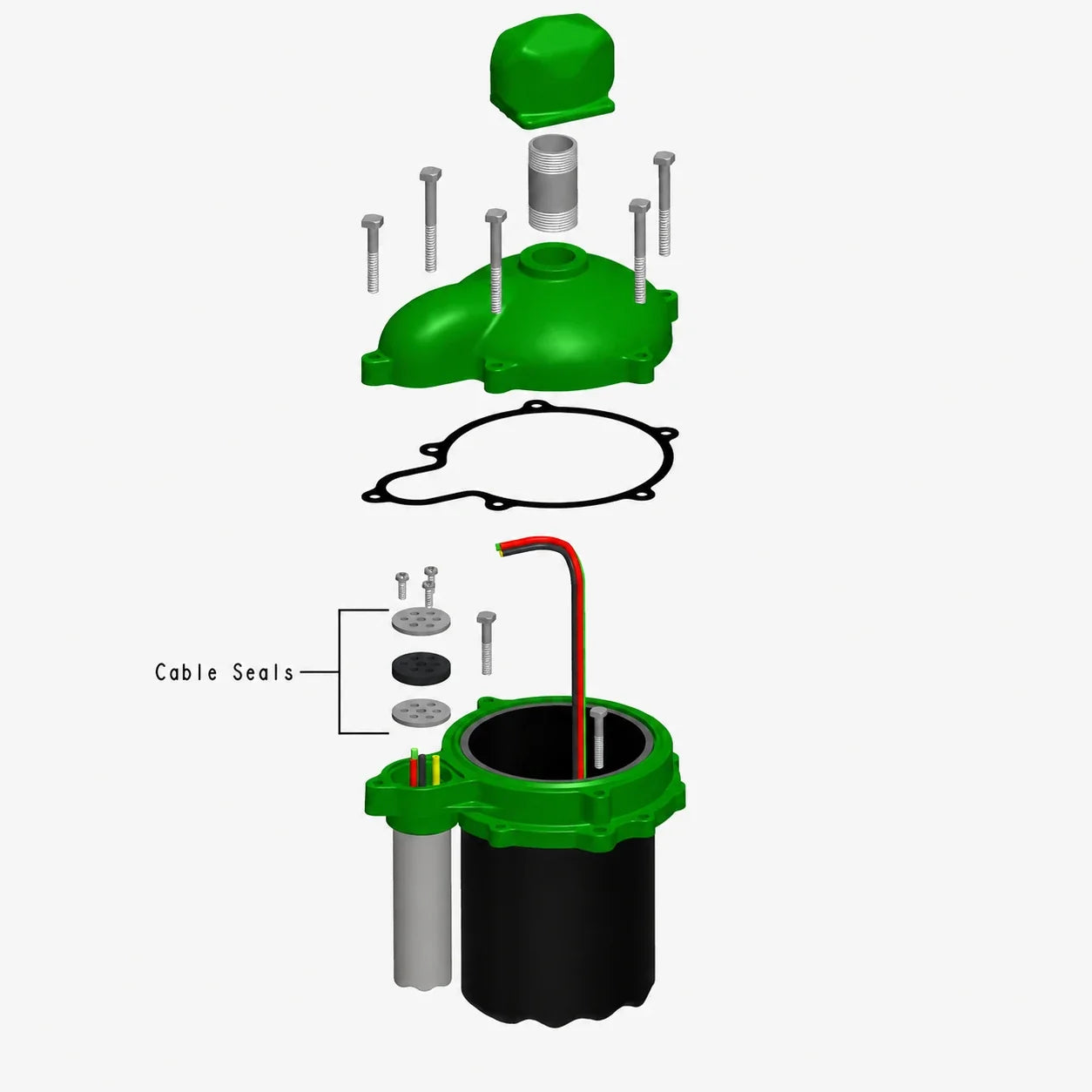

The Monitor Cap Cable Seal seals the submersible pump cable where it passes through a Monitor Premium Watertight well cap, keeping the cap assembly watertight around the wiring.
For use in 4 in to 8 in Monitor Premium Watertight caps. Each seal is matched to a range of cable outside diameter and the common conductor gauges that fall in that range, for four-wire twisted plastic submersible cable. Select by measured cable O.D. rather than wire gauge alone.
| Use with | Monitor Premium Watertight well caps, 4 in to 8 in |
| Cable type | Four-wire twisted plastic submersible cable |
| Cable O.D. range | 0.125 in to 0.437 in (by model) |
| Conductor sizes | #14 to #6 AWG (by model) |
| Material | Neoprene cable seal |
Downloads: Monitor Domestic Products Catalog | Monitor Repair Parts & Installation Catalog
For engineering-led selection support or a factory submittal, email sales@watermainsupply.com or call 281.664.8000.
