How to Size a Residential Booster Pump
How to Size a Residential Booster Pump
Pressure, Flow & Head Calculation
A practical walkthrough for sizing booster pumps in residential and light-commercial applications — covering pressure requirements, flow estimation, head calculation, and pump-curve interpretation.
A booster pump raises municipal or well water pressure to the level needed for residential fixtures, irrigation systems, or multi-story buildings where city supply alone isn't adequate. Sizing the pump correctly means delivering the required flow at the required pressure across every operating condition — not just the easy ones.
This guide walks through the four-variable sizing problem (pressure, flow, head, NPSH), the standard methodology engineers and plumbers use to estimate residential demand, and how to read a pump curve to confirm your selected pump actually meets the spec at the operating point.
TL;DR — Booster Pump Sizing in 60 Seconds
Four numbers drive the selection. Calculate all four before opening a pump catalog.
- Required pressure at the highest fixture — typically 45 to 60 psi at the showerhead
- Peak flow rate — estimate from fixture units using Hunter's curve or equivalent
- Total dynamic head — static lift + friction loss + residual pressure requirement
- Available inlet pressure — what the supply gives you before the pump boosts it
Then: select a pump whose performance curve crosses your operating point (GPM at TDH) with margin for friction increase as the system ages.
Step 1 — Determine Required Pressure
The pressure required at any plumbing fixture is the manufacturer's minimum operating pressure plus the head loss in the piping between the pump and the fixture. For residential applications, work from the highest, most distant fixture — usually a top-floor shower.
Minimum Pressures at Common Fixtures
| Fixture | Min. Required Pressure (psi) | Notes |
|---|---|---|
| Standard Shower | 20 | Functional minimum; modern showers prefer 30+ |
| Rain Shower / Body Spray | 45-60 | Higher-flow heads need more pressure |
| Toilet (gravity) | 15 | Tank refill, not flush |
| Toilet (flushometer) | 25 | Direct-supply commercial-style |
| Kitchen Sink Faucet | 20 | Standard residential |
| Washing Machine | 20 | Manufacturer minimum varies |
| Hose Bib / Outdoor | 30 | For useful spray distance |
| Irrigation Spray Heads | 30-50 | Depends on head type; rotary needs more |
| Tankless Water Heater | 30-45 | Required activation pressure; verify model |
Design Target: 45-60 psi at the Fixture
The typical design target for residential supply is 45 to 60 psi at the highest fixture. Below 45 psi, performance feels weak. Above 60 psi, pipe noise increases and high-pressure failures (burst supply lines, leaking faucets) become more common. Plumbing code in most jurisdictions limits maximum static pressure to 80 psi without a pressure-reducing valve.
Step 2 — Estimate Peak Flow Demand
Residential peak flow is estimated from the total fixture-unit count using Hunter's method — a probability-based curve developed by Roy Hunter at the National Bureau of Standards in 1940. It estimates how many fixtures will be running simultaneously at any given moment based on usage probability.
Fixture Units by Fixture Type (Cold + Hot Water)
| Fixture | Fixture Units (FU) | Approx. GPM Equivalent |
|---|---|---|
| Bathroom Group | 6 - 8 | Toilet + sink + tub/shower combined |
| Toilet (tank) | 3 | ~3 GPM during tank fill |
| Lavatory Sink | 1 | ~1.5 GPM at low-flow aerator |
| Tub w/ Shower | 4 | ~2.5 GPM modern showerhead |
| Kitchen Sink | 2 | ~2.2 GPM modern aerator |
| Dishwasher | 2 | Cycling; 1-2 GPM average |
| Washing Machine | 3 | ~3-5 GPM peak fill |
| Hose Bib (each) | 3 | 5-8 GPM unrestricted |
| Irrigation Zone | Per-zone GPM | Use the actual zone design flow |
Hunter's Curve — Total FU to Peak GPM
| Total Fixture Units | Peak Demand (GPM) | Typical Application |
|---|---|---|
| Up to 10 FU | 5 - 8 GPM | Small house, 1 bath + kitchen |
| 15 FU | 10 GPM | 2-bath, 1 kitchen, 1 laundry |
| 20 FU | 14 GPM | 3-bath standard residence |
| 30 FU | 18 GPM | 4-bath residence with laundry + dishwasher |
| 50 FU | 26 GPM | Large home or small duplex |
| 80 FU | 35 GPM | Large home with significant irrigation |
| 100 FU | 42 GPM | Light commercial or large estate |
Irrigation Demand is a Separate Calculation
Don't add irrigation zones to indoor fixture units — they're typically not running simultaneously with indoor demand. Size the pump for the LARGER of (a) indoor peak demand from Hunter's method, or (b) irrigation peak demand from the largest single zone. If you have to support both at once, add them directly; otherwise take the larger value.
Step 3 — Calculate Total Dynamic Head
Total Dynamic Head (TDH) is what the pump must overcome to deliver water at the required flow and pressure. It's the sum of three components:
Total Dynamic Head Formula
TDH = Static Lift + Friction Loss + Required Discharge Pressure
Component 1: Static Lift
The vertical distance from the pump centerline to the highest fixture. Each foot of vertical lift equals 0.433 psi of pressure drop. A 2-story residence with the pump in the basement and the top-floor shower 25 feet above the pump has 25 ft of static lift = 10.8 psi consumed by elevation alone.
Component 2: Friction Loss
The pressure drop through pipe, fittings, valves, and filters at the design flow rate. Friction loss depends on pipe diameter, material, length, and flow velocity. For residential PEX or copper supply piping at typical residential flows:
| Pipe Size | Flow (GPM) | Friction Loss per 100 ft (psi) |
|---|---|---|
| 3/4 in PEX | 5 | 2.5 |
| 3/4 in PEX | 10 | 9 |
| 1 in PEX | 10 | 3 |
| 1 in PEX | 20 | 11 |
| 1-1/4 in PEX | 20 | 4 |
| 1-1/4 in PEX | 30 | 9 |
| 3/4 in copper | 10 | 7 |
| 1 in copper | 15 | 5 |
Add fitting losses by equivalent length (each 90° elbow adds about 3 ft of equivalent straight pipe; each tee on flow-through adds about 6 ft; each gate valve adds about 1 ft). For typical residential runs with 8-10 fittings on the main, expect equivalent length of about 30-50% more than the measured pipe length.
Component 3: Required Discharge Pressure
The minimum pressure required at the most distant fixture. For typical residential design, this is 45 to 60 psi at the showerhead converted to feet of head: 45 psi × 2.31 ft/psi = 104 ft. The constant 2.31 converts psi to feet of water head.
Worked Example: 3-Bath Residence
Calculate TDH for a 3-bath, 2-story residence with the pump in the garage.
- Static lift: Pump-to-top-fixture vertical = 24 ft = 10.4 psi
- Pipe run: 80 ft of 1 in PEX, equivalent length with fittings = 110 ft. At 14 GPM peak (20 FU per Hunter): friction loss = 110 ft × 5 psi/100ft = 5.5 psi
- Required discharge: 50 psi at showerhead
- Total required: 10.4 + 5.5 + 50 = 65.9 psi
- Available inlet: Assume 35 psi from city/well after PRV
- Pump boost required: 65.9 - 35 = 30.9 psi ≈ 31 psi boost at 14 GPM
This is the operating point. Translate to feet of head for pump curve reading: 31 psi × 2.31 = 72 ft of head at 14 GPM.
Step 4 — Read the Pump Curve
A pump performance curve shows how much head (or pressure) the pump delivers at any given flow rate. Your selected pump must deliver AT LEAST the required head at the required flow — with margin for system aging.
Reading a Centrifugal Pump Curve
- X-axis: Flow rate (GPM)
- Y-axis: Head (feet) or pressure (psi)
- Curve shape: Head decreases as flow increases — the pump delivers more pressure at lower flow, less pressure at higher flow
- Shutoff head: The head at zero flow (where the curve meets the Y-axis) — not a useful operating point but tells you maximum pressure
- Free-flow: The flow at zero head (where curve meets X-axis) — theoretical maximum flow at no resistance
- Operating point: Where your required GPM intersects with the curve — this point must be above your required head, not below
Design Margin: Add 10-15% Above Calculated Operating Point
System friction increases over time as pipes scale, valves wear, and filters foul. Size the pump so the operating point at install is 10-15% below the curve maximum at that flow — not on the curve. This margin keeps the system functional as conditions degrade.
Constant-Pressure vs Pressure-Tank Systems
Constant-Pressure (Variable Frequency Drive)
A constant-pressure booster system uses a VFD-controlled pump that varies speed to maintain a constant discharge pressure regardless of flow. Holds 50 or 60 psi steady whether one fixture is running or five. Premium option for whole-house applications.

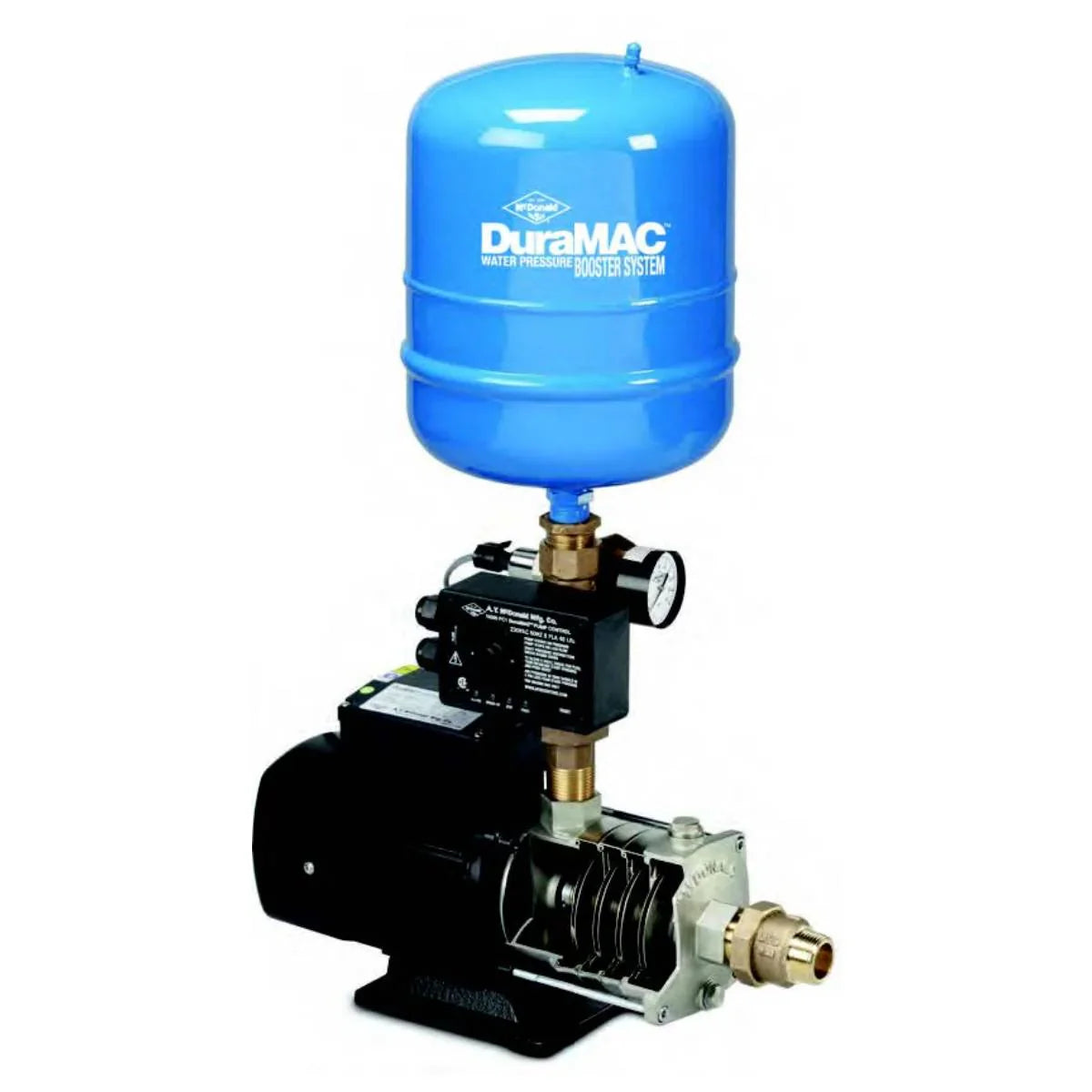

Pressure-Tank with Cycling Pump
A traditional setup uses a pressure tank that stores pressurized water at the pump discharge. The pump cycles on when tank pressure drops to the cut-in setting (typically 30 psi) and cycles off at the cut-out setting (typically 50 psi). Less expensive than VFD, with the trade-off of pressure variation during operation.
Davey Booster Pump Family
Watermain Supply is an authorized Davey distributor. Davey booster systems include constant-pressure VFD packages (HM and BMH series) and traditional pressure-tank packages. Australian-engineered to AS/NZS 4020 standards, also WQA-certified to NSF/ANSI 61 for US potable water service.
Frequently Asked Questions
Do I need a booster pump if my city pressure is already 60 psi?
Probably not for indoor use, unless you have multi-story service where elevation losses bring top-floor pressure below 30 psi. Booster pumps make most sense when (a) city pressure is below 40 psi, (b) you have significant elevation gain (multi-story), or (c) you have high-demand applications (irrigation, large-flow fixtures) that drop dynamic pressure at peak demand.
Can I oversize a booster pump for future capacity?
Oversize moderately, yes. Oversize aggressively, no. An oversized pump cycles more frequently against the pressure tank, wears faster, and can cause water hammer issues. 15-25% oversize is reasonable; 50%+ oversize creates problems.
What's the difference between booster and well pump?
A well pump pulls water FROM a source (well, lake, cistern) at low or negative inlet pressure. A booster pump takes water that's ALREADY pressurized (from city main or a holding tank) and raises that pressure further. Different suction conditions, different pump designs. Don't substitute one for the other.
How much electrical service does a residential booster pump need?
Most residential booster pumps run 0.5 HP to 3 HP. A 1 HP pump on 230V single-phase draws about 5-7 amps running. Confirm the breaker size required (typically 15A or 20A on a dedicated circuit) and disconnect requirements per local electrical code.
How do I size the pressure tank?
For cycling-pump systems, size the pressure tank so the pump runs at least 1 minute per cycle (longer is better for motor life). Drawdown volume needed = peak GPM × 1 minute. A 14 GPM peak demand needs at least 14 gallons of drawdown, which translates to about a 35-40 gallon nominal tank (drawdown is roughly 1/3 of nominal tank size at standard differential).
Should I install a pre-filter on the booster pump inlet?
Yes, in most cases. A pre-filter (typically 5-50 micron sediment cartridge) protects the pump impeller and seals from grit, scale, and debris in the supply. Add the filter pressure drop (typically 2-5 psi clean, more as it fouls) to your TDH calculation.
Sizing a Booster Pump for Your Project?
Send us the number of fixtures, building height, supply pressure, and required discharge pressure. We'll work the calculation, recommend the right Davey or alternative pump, and confirm in-stock availability.
Davey is a trademark of Davey Water Products. NSF, AWWA, AS/NZS, and ANSI are trademarks of their respective organizations. Hunter's method and fixture unit calculations are presented as engineering reference; verify local plumbing code requirements for permitted installations. Watermain Supply (a DBA of E4 Industrial LLC) is a Houston, TX-based authorized Davey distributor.
