Product Features:

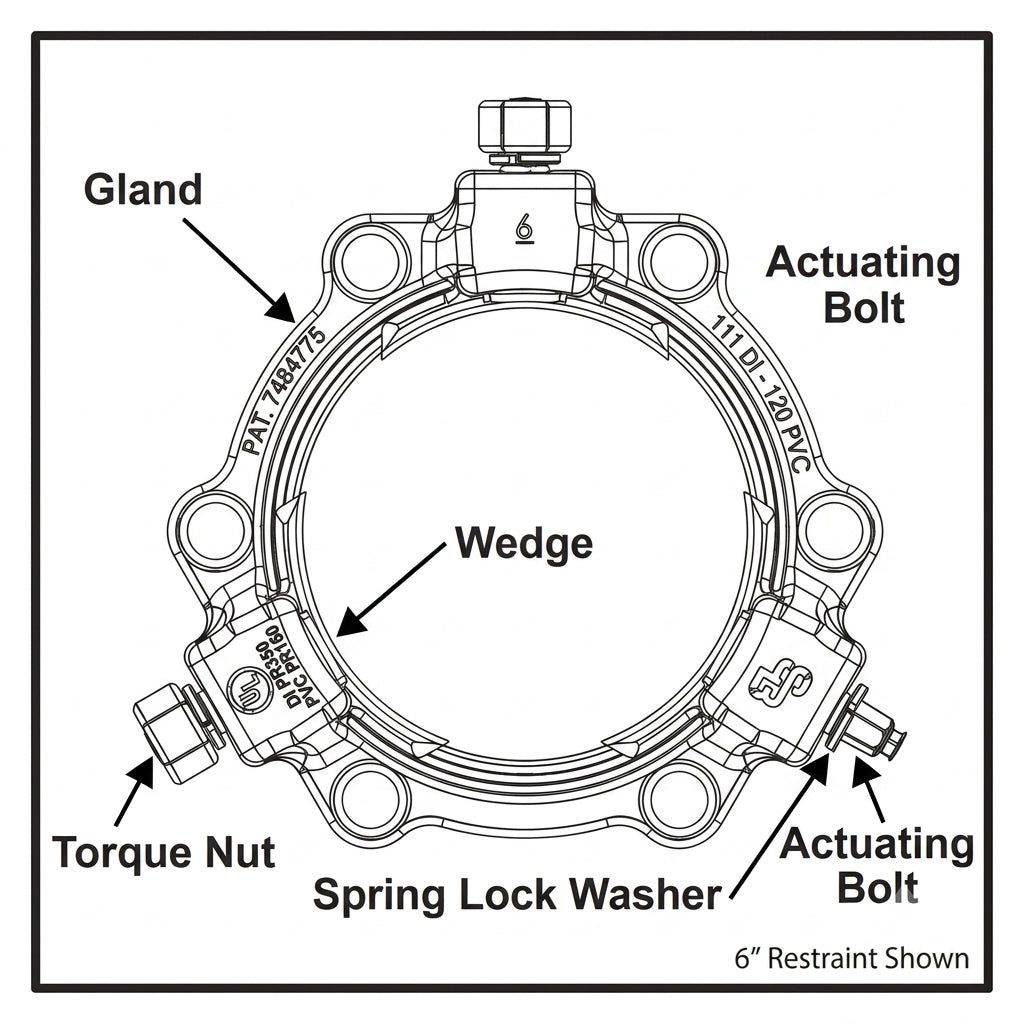

• Cam-Locks are mechanical joint gland with multiple and independent single-tooth cam-action wedges designed to restrain a fitting on a piece of pipe.
• Application Restraining pipe ends on mechanical joint fittings.
• Fewer wedges for time-saving installations
• Lower torque requirement to fully actuate bolts
• Multi-Seal MJ Gasket available in 4-12. Fits IPS or DI size pipe.
• Corrosion resistant
• Secondary hex shank for easy removal and re-installation
• The 120 Cam-Locks have been tested without failure according to ASTM F 1674-05 on sizes 4-12 DR 18 PC 150 pipe conforming to the requirements of AWWA C900

Style 120 Smith Blair Spec Sheet

Materials:

• GLAND 65-45-12 Ductile Iron (ASTM A536)
• WEDGES Single Tooth Ductile Iron
• ACTUATING BOLTS 60-40-18 Ductile Iron (ASTM A536)
• BREAKAWAY NUTS Carbon Steel
• FINISH Gland is Flexi-Coat Epoxy per AWWA C213. Wedges and Actuating Bolts are E-coated Epoxy

Specifications:

• Ductile Iron pipe sizes: 4" through 36" nominal
• IPS pipe sizes: 3" through 12" nominal
• Working pressure: up to 235 PSI on PVC (DI size), up to 235 PSI on PVC (IPS size)
• Gland & Wedge: Ductile Iron per ASTM A536 with Flexi-Coat Epoxy finish
• UL Listed for AWWA C900 DR18 PC150 PVC pipe sizes 4"–12" at 150 PSI
