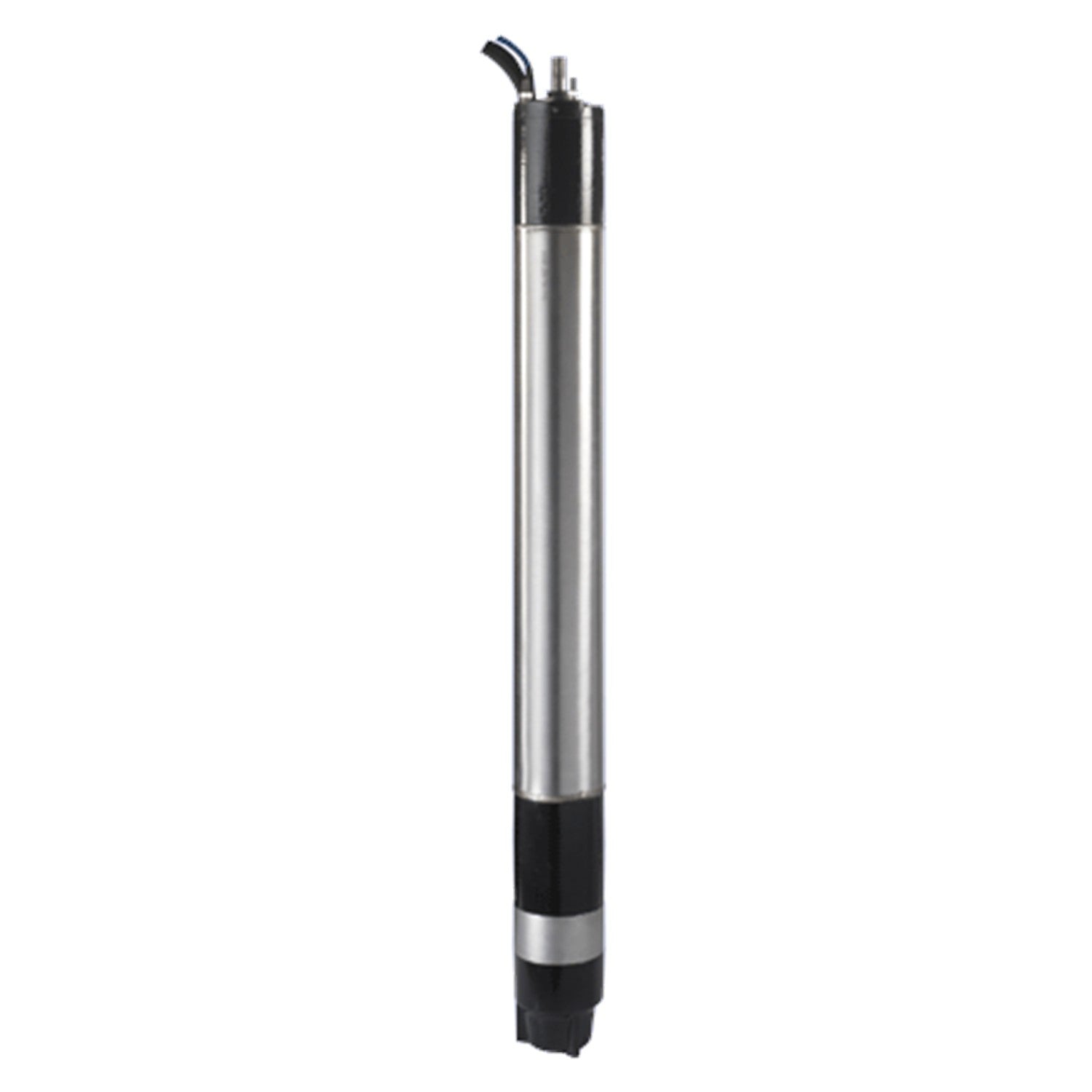

Grundfos MMS rewindable submersible motors for heavy-duty 8 in and larger wells: the MMS8000 (40 to 150 HP, 8 in) and MMS10000 (175 to 250 HP, 10 in), all 460V three-phase with 13,000 lb of thrust, each priced and supplied with its motor lead. They are the motors behind the Grundfos SP 385S to 1100S pumps and the 90S sleeve builds, in standard construction or in 316 stainless steel for aggressive water.
Included: the motor and its motor lead (Grundfos prices the MMS motors with lead).
Pump end required, ordered separately. An 8 in or 10 in SP pump end of the motor horsepower: 385S, 475S, 625S, 800S or 1100S.
Magnetic starter or drive required, ordered separately. Rated for the motor, with three-leg ambient-compensated quick-trip overload protection (see Before You Buy).
Drop cable and splice kit: sized to your setting depth and ordered separately.
24 months from date of installation, but not more than 30 months from date of manufacture. In Grundfos's words, products are “warranted to the original user only to be free of defects in material and workmanship”; the full terms are in the installation and operating instructions on the Data Sheet tab.
| Specification | Value |
|---|---|
| Motor | MMS8000 8 in (40-150 HP); MMS10000 10 in (175-250 HP); rewindable |
| Voltage and phase | 460V 3Ph, 60 Hz |
| Maximum thrust | 13,000 lb |
| Temperature rating | T45, 113°F (45°C), per the Grundfos price list |
| Cooling (motor guide) | At least 0.50 ft/s past the motor: about 25 GPM on the MMS8000, 55 GPM on the 175 and 200 HP MMS10000, 41 GPM on the 250 HP; the guide lists 86°F (30°C) water at that flow, 68°F (20°C) on the 250 HP |
| Construction | Standard, or 316 stainless steel |
| Length | MMS8000 43.7-81.1 in; MMS10000 73.6-94.5 in |
| Included | Motor and motor lead |
Sources: Grundfos US price list, January 2026 (HP, thrust, temperature rating, part numbers, lead); Grundfos MS/MMS submersible motor guide (cooling table and motor dimensions and weights). The price list rates these motors T45; the motor guide's cooling table lists 86°F at minimum flow: plan on the guide figure unless Grundfos confirms the higher rating for your duty.
| Check | What to confirm |
|---|---|
| Well size | 8 in casing or flow sleeve for the MMS8000; 10 in for the MMS10000 |
| Cooling | At least 0.50 ft/s of flow past the motor; use a flow sleeve where the well cannot give it |
| Power | 460V three-phase supply through a magnetic starter or drive rated for the motor |
| Three-phase protection | The Grundfos warranty on three-phase submersible motors calls for true three-phase power (no phase converter), three-leg ambient-compensated extra quick-trip overload protectors, a checked and recorded current imbalance, and high-voltage surge arresters |
| Not included | Pump end, starter or drive, drop cable and splice kit |
