Grundfos 1100S SP 10 in Submersible Pump End

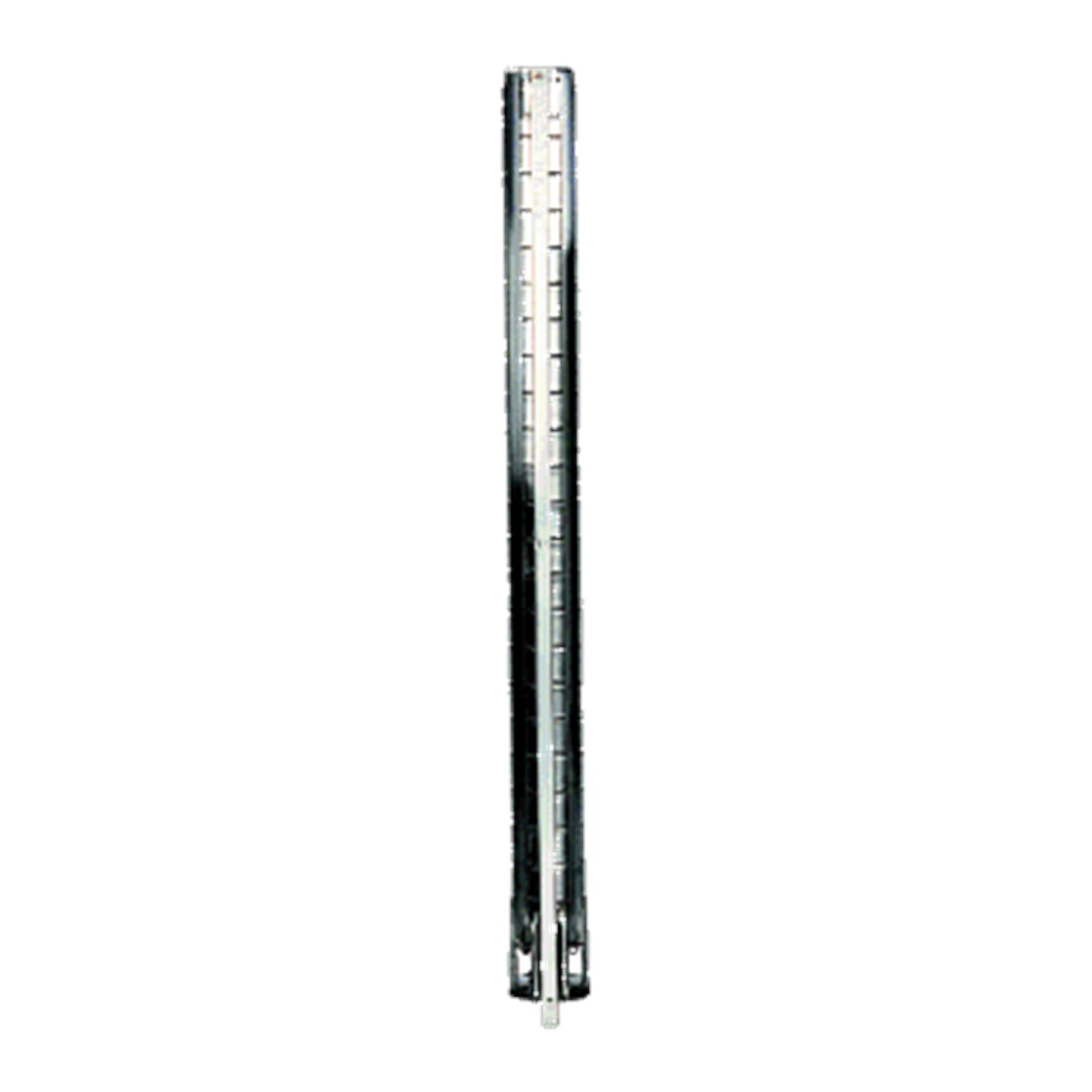

The Grundfos 1100S is the 1,100 GPM class of the SP 10 in submersible range, sold here as the pump end alone: stainless steel chambers and impellers with a built-in check valve, ready to mount on a submersible motor. Pump and impellers are AISI 304 stainless steel. Use it to rebuild an SP installation on a sound motor, or to build a pump around a motor you already have; the complete 1100S pumps with Grundfos motors are listed separately.

Every 1100S pump end has a Grundfos motor flange and a 6 in NPT discharge. Match the motor horsepower and diameter in the selector; send us the motor model and we will confirm the fit.

Each pump end builds one pump for one well. For a duty/standby pair, or a flow outside the 1100S range, send us the duty: the SP 10 in pump ends run from 625 to 1,100 GPM, and we will size the set with you.

The model code reads flow class, horsepower and stages: 1100S1500-4A is the 1100S for a 150 HP motor with 4 stages. In the selector, choose the motor horsepower and diameter first, then the model; each model shows the head it adds at 1,100 GPM. Order by part number; every build is in the Models & Ratings table.

• Letters after the stage count (for example -3AA) mark builds with reduced-diameter impellers; the head figure for each build is in the selector and the Models & Ratings table.
• Several models come in more than one motor size under different part numbers; the selector shows the motor size with the horsepower.
• 10 in motor builds (18BV0005, 18BV0006, 18BV00A5, 18BV00A6, 18BV00B5, 18BV00B6): the Grundfos price list says to attach these to a Grundfos motor only; for another motor, ask us and we will consult the factory.
• 1100S2500-6, -6A and -6AA are the price list and Product Center names; the Grundfos SP data booklet prints the same 250 HP, 6-stage builds as 1100S2600-6, -6A and -6AA. The head figures shown come from those booklet rows.
• 1100S1250-3 (part 18BG0003): the price list prints 195 in its minimum-well column; every other 1100S row and Grundfos Product Center give a 10 in well, so 10 in is shown.
• 1100S1750-5AA, 1100S2000-5, 1100S2000-5A: not in the Grundfos data booklet tables for their motor size, so no head figure is shown; ask us for the curve.

Part numbers, horsepower, motor size and minimum well: Grundfos US price list, effective January 1, 2026. Nominal head: Grundfos SP data booklet, 60 Hz, May 2026 (complete-pump tables for the same model and motor size; where two figures are shown, builds on different motors or voltages differ slightly). Discharge thread, pump-end diameter and length, and net weight: Grundfos Product Center.

Every 1100S is rated at 1,100 GPM. The nominal head in the Models & Ratings table is the total head Grundfos publishes for each model at that rated flow, in feet: from 77 ft on the smallest build to 703 ft on the largest. Pick a model whose nominal head covers your pumping level plus the pressure you need at the surface (2.31 ft per psi) plus pipe friction.

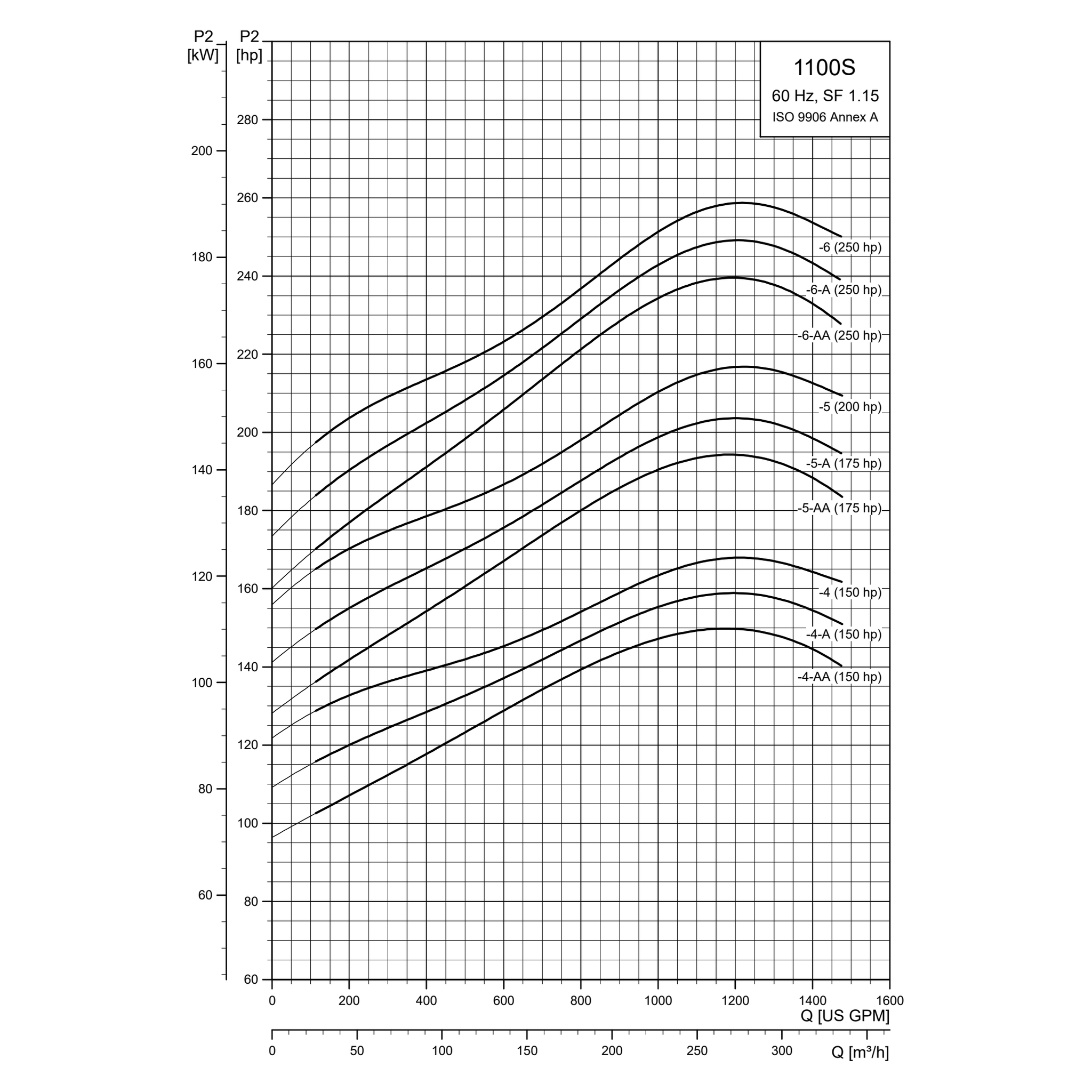

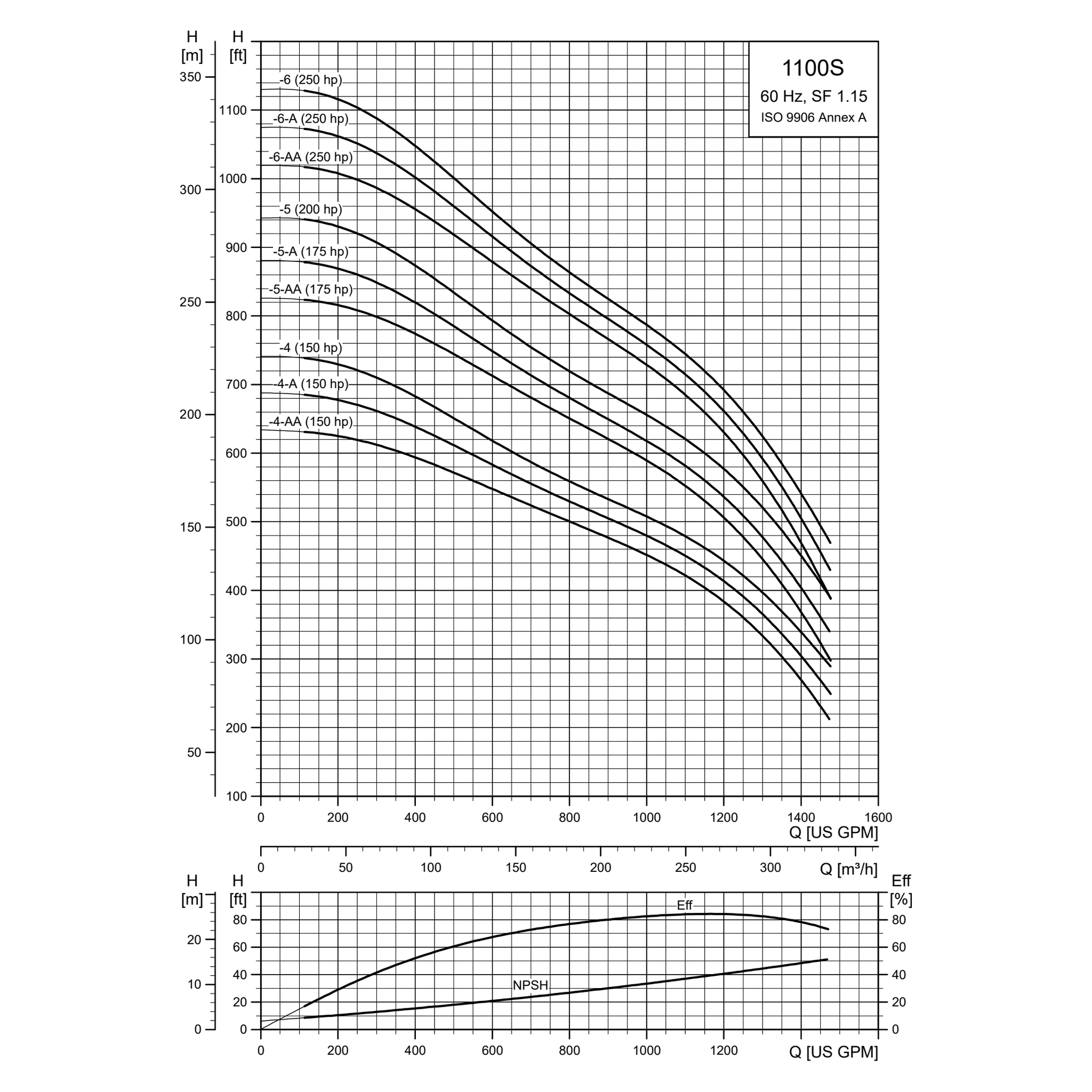

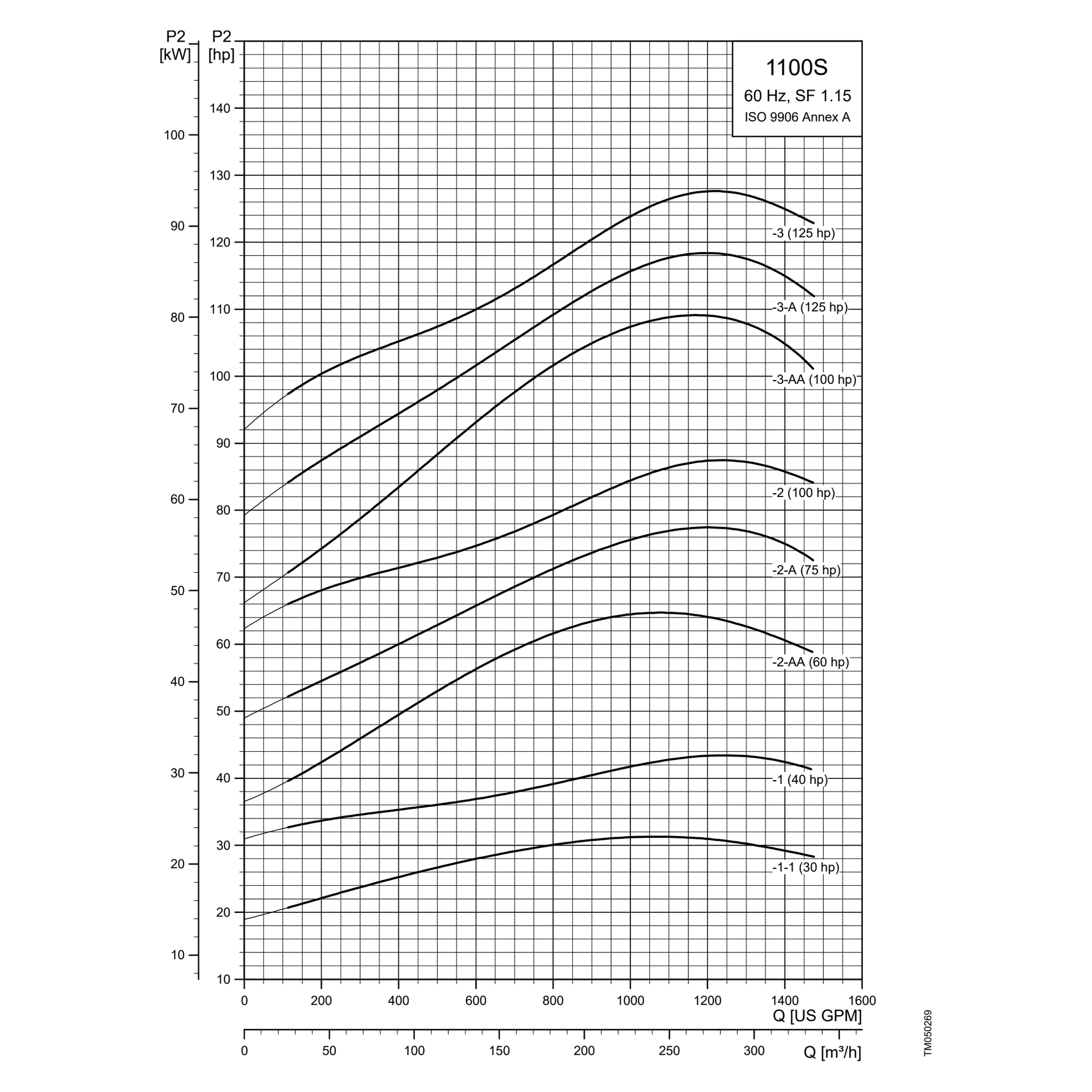

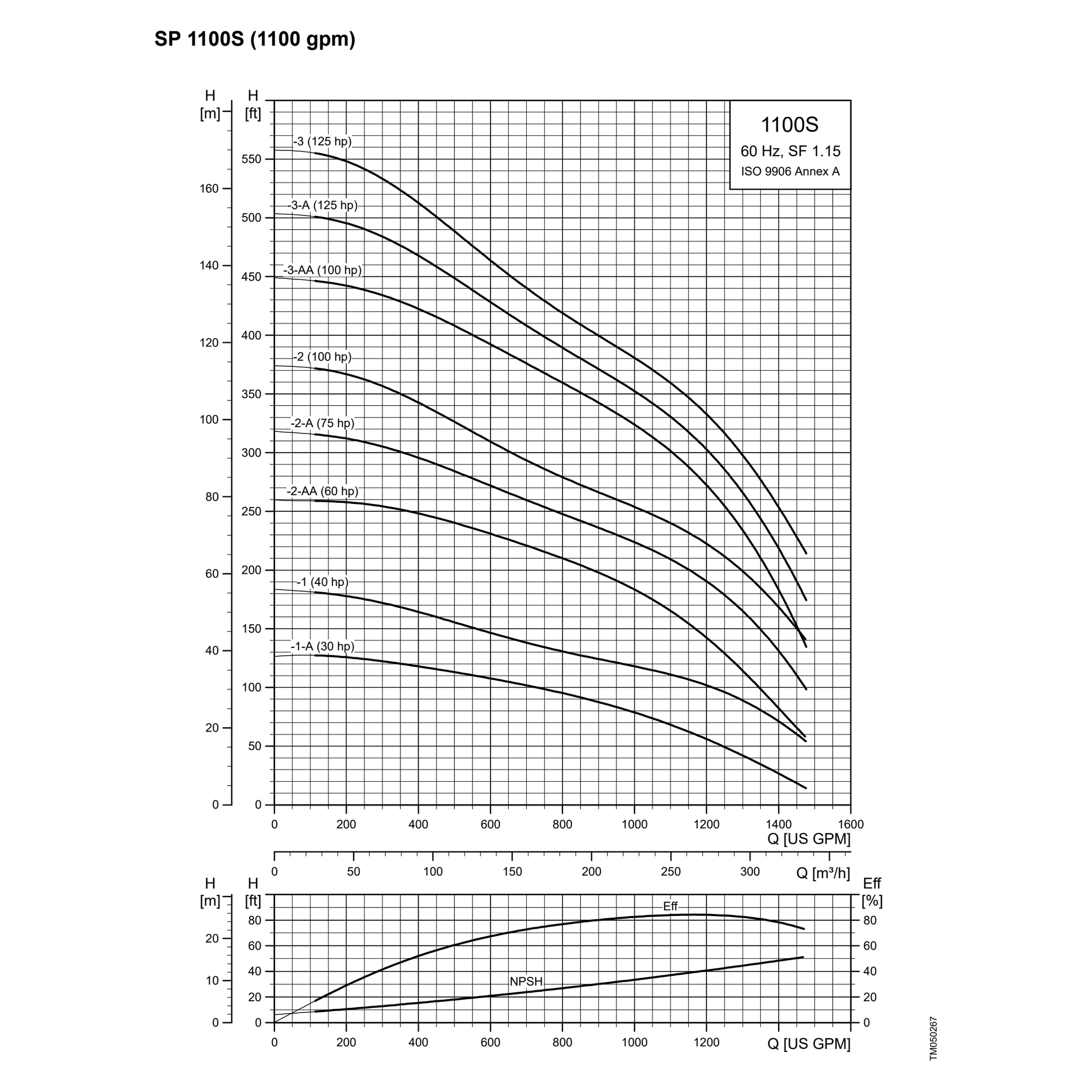

Source: Grundfos SP data booklet, 60 Hz, May 2026 (SP 1100S section). Performance conforms to ISO 9906. The 1100S head and power curves are in the product images, and the 1100S data sheet on the Data Sheet tab carries the full curves and tables.

Source: Grundfos Product Center.
