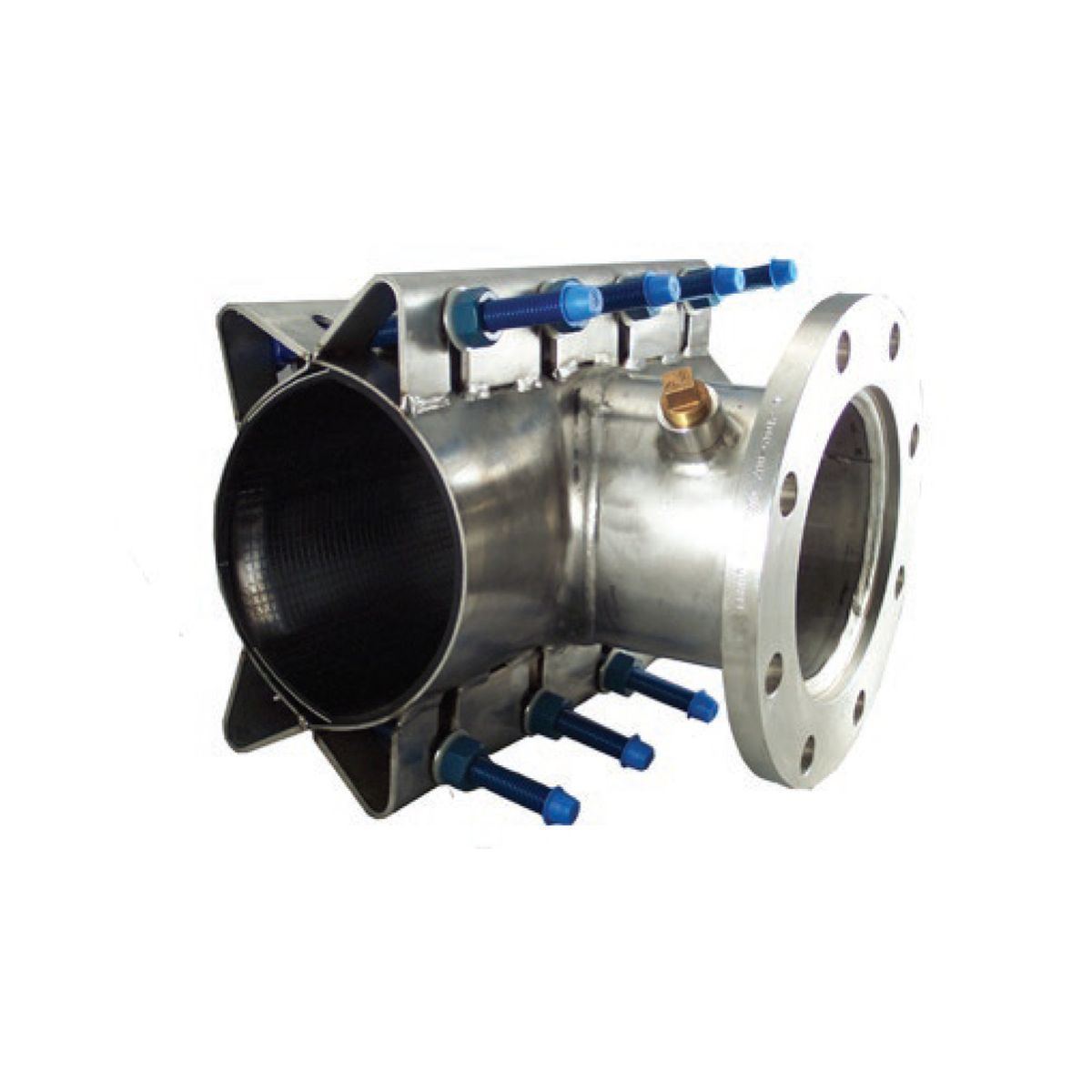

Smith-Blair Tapping Sleeve Sizing
Smith-Blair Tapping Sleeve Sizing
Matching the Sleeve to Your Pipe OD
How to specify the correct tapping sleeve for any waterworks main — ductile iron, cast iron, PVC, AC, steel, or HDPE — with the OD verification, outlet sizing, and pressure rating details a successful hot-tap depends on.
Tapping sleeves are the most failure-sensitive product in waterworks repair. Get the sizing wrong and the result is a blown gasket under pressure, a damaged main during the hot tap, or a leaking branch service that drives a return trip and a costly excavation. Get the sizing right and the sleeve delivers decades of leak-free service.
This guide walks through Smith-Blair tapping sleeve selection from start to finish: pipe OD verification, sleeve series selection, outlet sizing, pressure rating, gasket selection, and the field-installation checks that separate a clean install from a callback.
TL;DR — Sizing Tapping Sleeves
Four numbers determine the right sleeve. Get all four right before you order.
- Actual pipe OD (not the nominal size) — verify by measurement, not assumption
- Outlet size and thread — matches the corp stop or branch valve thread
- Working pressure — main pressure plus surge allowance
- Pipe material — determines sleeve series and gasket compound
For mixed-pipe inventory: Smith-Blair Series T3 universal stainless steel saddle works on ductile iron, cast iron, PVC, AC, steel, and HDPE — cutting saddle inventory by over 70% versus material-specific designs.
Step 1 — Verify the Actual Pipe Outside Diameter
This is where most tapping sleeve specifications go wrong. The nominal pipe size (6 in, 8 in, 12 in) does NOT tell you the actual OD. Different materials have different ODs at the same nominal size. Different pipe classes have different ODs. Different manufacturing eras have different ODs.
Common Pipe ODs by Material — Nominal Sizes 4 in through 16 in
| Nominal Size | Ductile Iron / C900 PVC (CIOD) | Steel (Sched 40) | Cast Iron (older) | AC Pipe |
|---|---|---|---|---|
| 4 in | 4.80 | 4.50 | 4.74 - 5.06 | 5.00 |
| 6 in | 6.90 | 6.625 | 6.84 - 7.16 | 7.05 |
| 8 in | 9.05 | 8.625 | 8.99 - 9.36 | 9.30 |
| 10 in | 11.10 | 10.75 | 11.04 - 11.76 | 11.40 |
| 12 in | 13.20 | 12.75 | 13.14 - 13.56 | 13.50 |
| 14 in | 15.30 | 14.00 | 15.30 | — |
| 16 in | 17.40 | 16.00 | 17.40 | — |
Numbers shown are typical published outside diameters in inches. Always measure the actual pipe before final spec — CIOD pipe alone has multiple class variants (Class 350, 250, 200, 150, etc.) and field tolerances vary.
Critical: Measure, Don't Assume
If the existing main is unknown vintage, dig a small pothole and measure the OD with a tape or pi tape before ordering. A 6 in nominal pipe could be 6.625 in (steel), 6.84-7.16 in (cast iron), 6.90 in (CIOD ductile iron), or 7.05 in (AC). A sleeve sized for 6.90 in will not seal on 7.16 in cast iron.
Step 2 — Select the Sleeve Series
Smith-Blair tapping sleeves come in stainless steel, ductile iron, and bronze body configurations. Selection depends on pipe material, working pressure, branch size, and corrosion environment.
Series T3 Universal Stainless Steel (Most Versatile)
The Series T3 is a wide-range stainless steel saddle that works on virtually every waterworks pipe material: ductile iron, cast iron, PVC, asbestos cement, steel, and HDPE. The patented Cam Lug System (U.S. Patents 9,970,584 and 10,544,894) carries over twice the OD range of a standard saddle.
| Specification | Detail |
|---|---|
| Body | Type 304 18-8 Stainless Steel, fully passivated, 14/18/20 gauge depending on diameter |
| Pressure Rating | Up to 250 psi maximum working pressure (varies by diameter) |
| Temperature | Up to 180°F continuous working temperature |
| Gasket | NSF-61 approved NBR rubber (EPDM optional) |
| Branch Connections | Type 304 Thread-O-Lets in 1/2 in to 2 in diameter |
| Outlet Threads | Type 304 stainless, CC or NPT thread pitches |
| Bolts | Type 304 stainless, fluoropolymer-coated to prevent galling |
| 2 in - 16 in Diameter | Single Panel design, up to 250 psi |
| 18 in - 24 in Diameter | Double Panel design, up to 200 psi |
| 30 in - 36 in Diameter | Double Panel design, up to 150 psi |
| 42 in - 48 in Diameter | Triple Panel design, up to 125 psi |
| Sewerage Service | Available in Type 316 SS with 2 in NPT outlets |
Why T3 Dominates Modern Specifications
The T3's wide OD range means one part number covers multiple pipe materials at the same nominal size. A municipality with mixed-vintage infrastructure (cast iron, ductile iron, AC, PVC) can stock T3 saddles instead of carrying separate brass, ductile iron, and PVC-specific saddles. Inventory reduction of over 70% is common.
Step 3 — Specify the Outlet
The outlet is the branch connection where you'll thread in a corp stop or tapping valve before drilling the main. Three details to lock down:
Outlet Size
Standard outlet sizes are 1/2 in, 3/4 in, 1 in, 1-1/2 in, and 2 in for service taps. Larger taps (4 in, 6 in, 8 in, and up) use tapping sleeves with flanged outlets that accept tapping valves rather than corp stops.
Outlet Thread
Two thread standards dominate:
- AWWA CC Thread (tapered) — the waterworks industry standard for corp stops. Self-sealing taper, no thread tape needed.
- NPT (National Pipe Thread) — used in some jurisdictions and for certain branch valve specifications. Requires thread sealant.
Match the outlet thread to whatever corp stop or branch valve you're installing. AWWA CC is the default in most municipal specs.
Outlet Material
For Series T3 sleeves, outlets are Type 304 stainless steel as standard. For sewerage applications or aggressive chemistry, Type 316 stainless with 2 in NPT outlets is the standard upgrade. Bronze outlets are available on legacy saddle series for specific brass-fitting compatibility requirements.
Step 4 — Working Pressure & Gasket
The sleeve must be rated for the main's working pressure plus a surge allowance. Standard rule of thumb: rate the sleeve for at least 25% above sustained working pressure to handle hammer events.
| Pressure Class | Typical Service | Surge Margin Recommendation |
|---|---|---|
| 250 psi | Standard distribution mains, urban service | Adequate for 150 psi sustained service |
| 200 psi | Larger diameter mains (18 in - 24 in) | Adequate for 125 psi sustained service |
| 150 psi | Large diameter (30 in - 36 in), transmission mains | Adequate for 100 psi sustained service |
| 125 psi | Very large (42 in - 48 in), gravity mains | Adequate for 80 psi sustained service |
Gasket Compound Selection
- NBR rubber (standard) — NSF-61 approved for potable water. The default gasket on Series T3.
- EPDM (optional) — better high-temperature performance and chemical resistance for dilute acids/alkalis.
- Specialty gaskets — available for hydrocarbon service, sewerage, or aggressive chemistry. Consult factory.
Installation & Field Verification
Tapping sleeve installation is a regulated procedure in most jurisdictions. The high-level steps are below; always follow the manufacturer's printed installation instructions and any local utility's tap-permit requirements.
1
Excavate & Expose
Expose the main fully around the tap location. Clean the pipe of all coating, scale, and corrosion at the gasket contact zone. The pipe surface must be clean and smooth for the gasket to seal.
2
Measure OD One More Time
Even if you measured before ordering, verify the OD on-site before installing the sleeve. Field surprises happen. Bring the sleeve back to the truck rather than damage it forcing a fit.
3
Position & Pre-Torque
Position the sleeve so the outlet is at 12 o'clock (top of pipe) or as specified by local utility practice. Engage the bolts hand-tight, then bring them up in a cross-pattern sequence to the manufacturer's specified torque. Series T3 has its torque value on the product label — verify before tightening.
4
Install Tapping Valve / Corp Stop
Thread the tapping valve (for larger taps) or corp stop (for service taps) into the outlet. Use thread sealant for NPT threads; AWWA CC threads are self-sealing. Close the valve fully before tapping.
5
Pressure Test the Sleeve
Before tapping the main, pressure-test the sleeve assembly through the tapping valve. Hold the test pressure for the specified duration per local code. Any leak at this stage is correctable; a leak after tapping the main is a much harder problem.
6
Drill the Main
Mount the tapping machine on the closed tapping valve. Open the valve. Advance the cutter through the live main, retract through the valve, and close. The coupon (the cut-out piece of pipe wall) is retained in the cutter.
7
Final Inspection & Backfill
Re-check sleeve bolt torque after tapping. Visually inspect for leaks under pressure. Backfill with compacted bedding material per local specification. Document the tap location, depth, and details for the as-built record.
For Corrosive or Hot Soil Conditions
Series T3 standard configuration uses Type 304 stainless steel. For corrosive soil conditions (high chloride content, near saltwater, high sulfate soils) or hot-soil environments, consult with the piping engineer about upgrading to Type 316 or higher-grade stainless steel. The wrong material in aggressive soil shortens service life significantly.
Frequently Asked Questions
What's the difference between a tapping sleeve and a service saddle?
Functionally similar but sized differently. Service saddles are typically 1/2 in to 2 in outlet for residential and light commercial service taps. Tapping sleeves cover the full size range up to 48 in outlets for larger branch connections that need flanged tapping valves. Smith-Blair offers both as part of their pipeline repair product family.
Can the same tapping sleeve be used as a repair clamp?
No. Tapping sleeves are designed for live-tap branch service from a sound main. Repair clamps (Smith-Blair Style 226, 227, or full-circle clamps) are designed to repair a damaged section of pipe in place. They have different gasket geometry and don't include outlet provisions.
What's the lead time on non-stock sizes?
Common sizes (2 in - 12 in CIOD on Series T3) are typically in stock at Watermain Supply for same-day shipment. Larger diameters (18 in and up), specialty pipe materials, or non-standard outlet configurations are factory-direct with lead times typically 2-6 weeks depending on size and configuration.
Can I tap a PVC main with the same sleeve I use on ductile iron?
If the sleeve is Series T3 universal, yes — the wide OD range covers both materials. For older single-material saddle designs, you typically need a PVC-specific saddle with OD-controlled body that won't over-compress the pipe wall. PVC has tighter dimensional tolerance than ductile iron and is more sensitive to clamp force.
How do I know if the sleeve is rated for my pressure?
Check the product label on the sleeve itself. The actual pressure rating, temperature rating, and bolt torque are stamped or printed on the sleeve. These ratings can vary depending on product diameter, type of connection, and pipe material. When in doubt, send us your pipe OD, working pressure, and outlet requirement and we'll verify the right product.
What if I'm tapping a main with an unknown OD?
Pothole the main and measure with a pi tape (preferred over a regular tape because it gives circumference and OD directly). For unknown vintage pipe, also check for ovality — cast iron pipe in service for decades may not be perfectly round. The Series T3 cam-lug design tolerates more out-of-round than fixed-OD saddles, but extreme cases may need a custom solution.
Specifying a Tapping Sleeve?
Send us the pipe material, actual OD, working pressure, outlet size, and thread type (CC or NPT). We'll confirm the correct Series T3 (or alternative) part number, in-stock confirmation, and lead time. Same-day shipment on standard configurations from our Houston stock.
