Grundfos SPE is a speed-controlled submersible pump system: the SP stainless steel pump end on a Grundfos MS6000P interior permanent magnet (IPM) motor, run through a variable frequency drive such as the Grundfos CUE. The drive matches pump speed to demand, so the pump holds a constant pressure, flow or level as the duty changes, and Grundfos rates the system for a low running cost in changing operating conditions.
The MS6000P is a 4-pole synchronous motor with the magnets embedded in a hermetically sealed rotor, a canned stator, silicon carbide shaft seal faces and heavy duty thrust bearings. Grundfos quotes 8-10% higher efficiency than an asynchronous motor of the same output, in a lighter, more compact motor. The motor runs at 3 × 410 V and up to 3600 rpm (120 Hz) from the drive.
Typical uses listed by Grundfos include water supply, irrigation, groundwater lowering, pressure boosting, fountains, mining and offshore applications. The CUE soft-starts the motor, protects the installation against water hammer and runs the predefined constant pressure, constant flow and constant level modes.
The one thing to plan for: an SPE motor cannot be connected straight to the power line. It needs a variable frequency drive with IPM motor control and an IPM-ready sine-wave filter, both sold separately; the matching Grundfos CUE drive and filter part numbers are in the Drive and Filter by Pump Power table under Models & Performance.

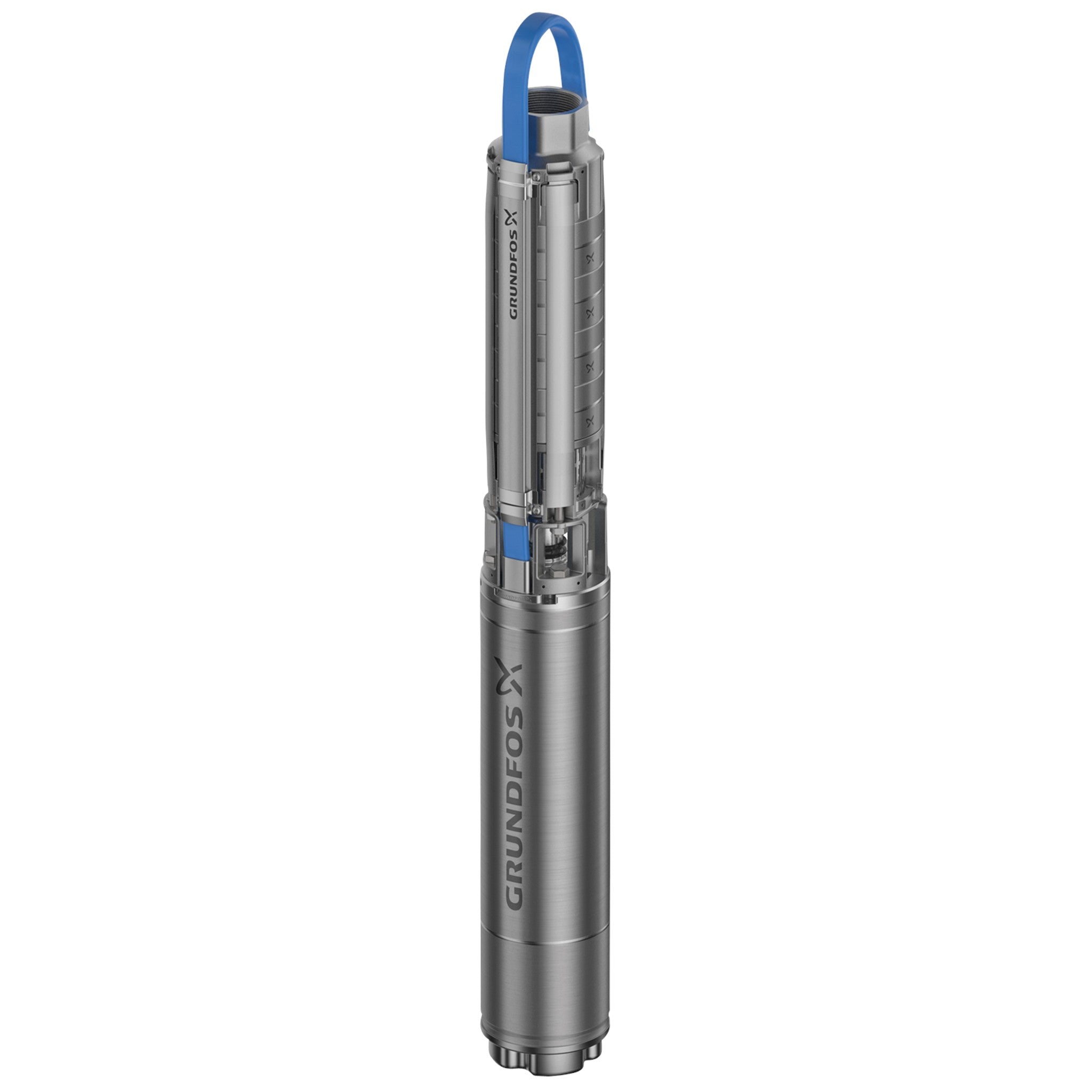

Included: the SPE pump end and its Grundfos MS6000P permanent magnet motor, factory-assembled as one complete pump.
Variable frequency drive required, ordered separately. Every build runs from your 460V 3Ph supply through a drive with IPM motor control, such as the Grundfos CUE (NEMA 1 indoor) or CUE NEMA 4X (outdoor); the matching CUE for each build is in the Drive and Filter by Pump Power table under Models & Performance. The motor runs only from the drive.
Sine-wave filter required, ordered separately. An IPM-ready sine-wave filter goes on the drive output; the matching filter for each build is in the Drive and Filter by Pump Power table under Models & Performance.
Drop cable and splice kit: sized to your setting depth and ordered separately.
24 months from date of installation, but not more than 30 months from date of manufacture. In Grundfos's words, products are “warranted to the original user only to be free of defects in material and workmanship”; the full terms are in the installation and operating instructions on the Data Sheet tab.
Grundfos extends this to a 5-year system warranty when the SPE complete pump is purchased together with a Grundfos CUE drive (Grundfos US price list, January 2026).
| Specification | Value |
|---|---|
| Motor | Grundfos MS6000P 6 in interior permanent magnet (IPM) motor, 4-pole synchronous, 10, 25, 40 or 50 HP execution |
| Motor supply | 3 × 410 V at 120 Hz from the drive (460V 3Ph CUE drive input), 1650-3600 rpm |
| Drive | Variable frequency drive with IPM motor control required, for example Grundfos CUE; IPM-ready sine-wave filter required |
| Control modes (CUE) | Constant pressure, constant flow, constant level |
| Liquid temperature | Up to 140°F (60°C) with 0.5 ft/s flow past the motor |
| Max. operating pressure | 870 psi |
| Flow range | 0.1 to 1.3 × rated flow for continuous running |
| Max. sand content | SPE 90S: 100 ppm; SPE 160S: 100 ppm; SPE 230S: 100 ppm; SPE 240S: 100 ppm; SPE 300S: 100 ppm |
| Enclosure | IP68 |
| Approvals | cCSAus, with CULDWUS on most builds (Grundfos Product Center codes) |
| Curve tolerance | ISO 9906:2012 Grade 3B |
| Included | Pump end and MS6000P motor, assembled as one complete pump. CUE drive and sine-wave filter sold separately |
| Pump | Rated Flow | Discharge | Min. Borehole | Min. Submergence | Motor | Builds |
|---|---|---|---|---|---|---|
| SPE 90S | 90 GPM | 3 in NPT | 6.1 in | 5 ft | 10-40 HP | 13 |
| SPE 160S | 160 GPM | 3 in NPT | 6.1 in | 5 ft | 10-50 HP | 11 |
| SPE 230S | 230 GPM | 4 in NPT | Ask us | Not in booklet | 10-50 HP | 7 |
| SPE 240S | 240 GPM | 4 in NPT | 6.3 in | 8 ft | 10-50 HP | 7 |
| SPE 300S | 300 GPM | 4 in NPT | 6.3 in | 8 ft | 10-50 HP | 8 |
Source: Grundfos SPE data booklet, May 2026 (recommended minimum borehole with standard connections; minimum submergence per pump table) and Grundfos Product Center (discharge).

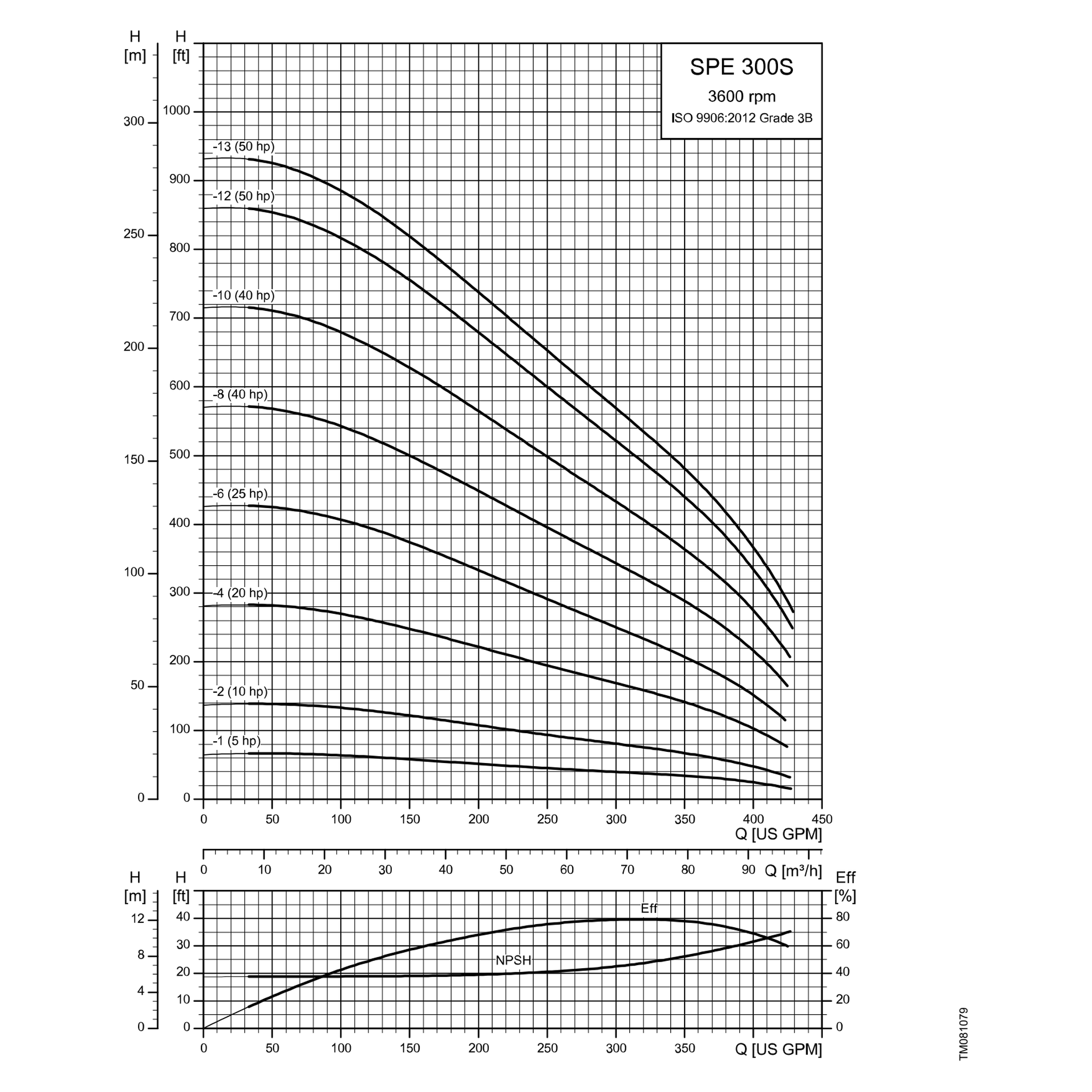

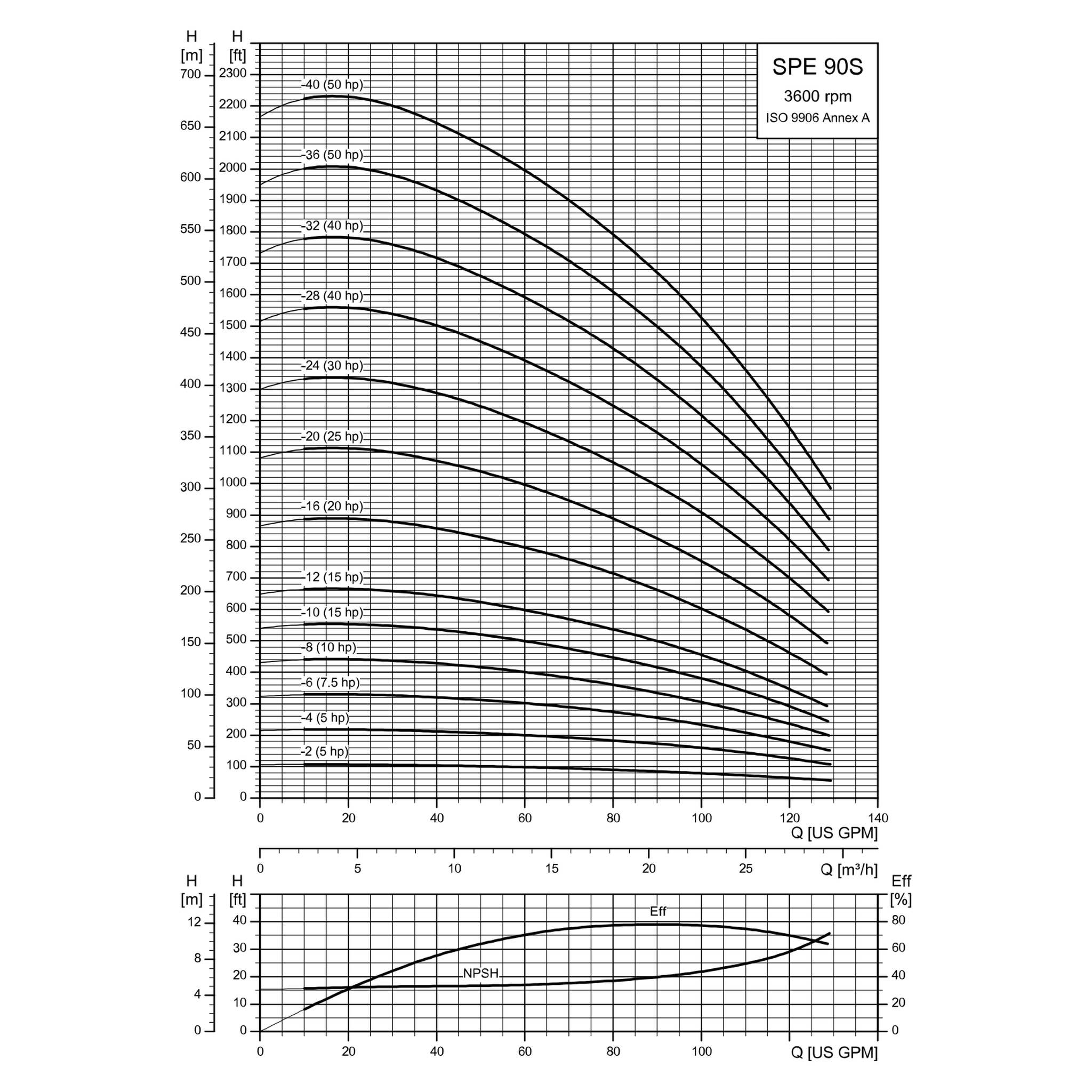

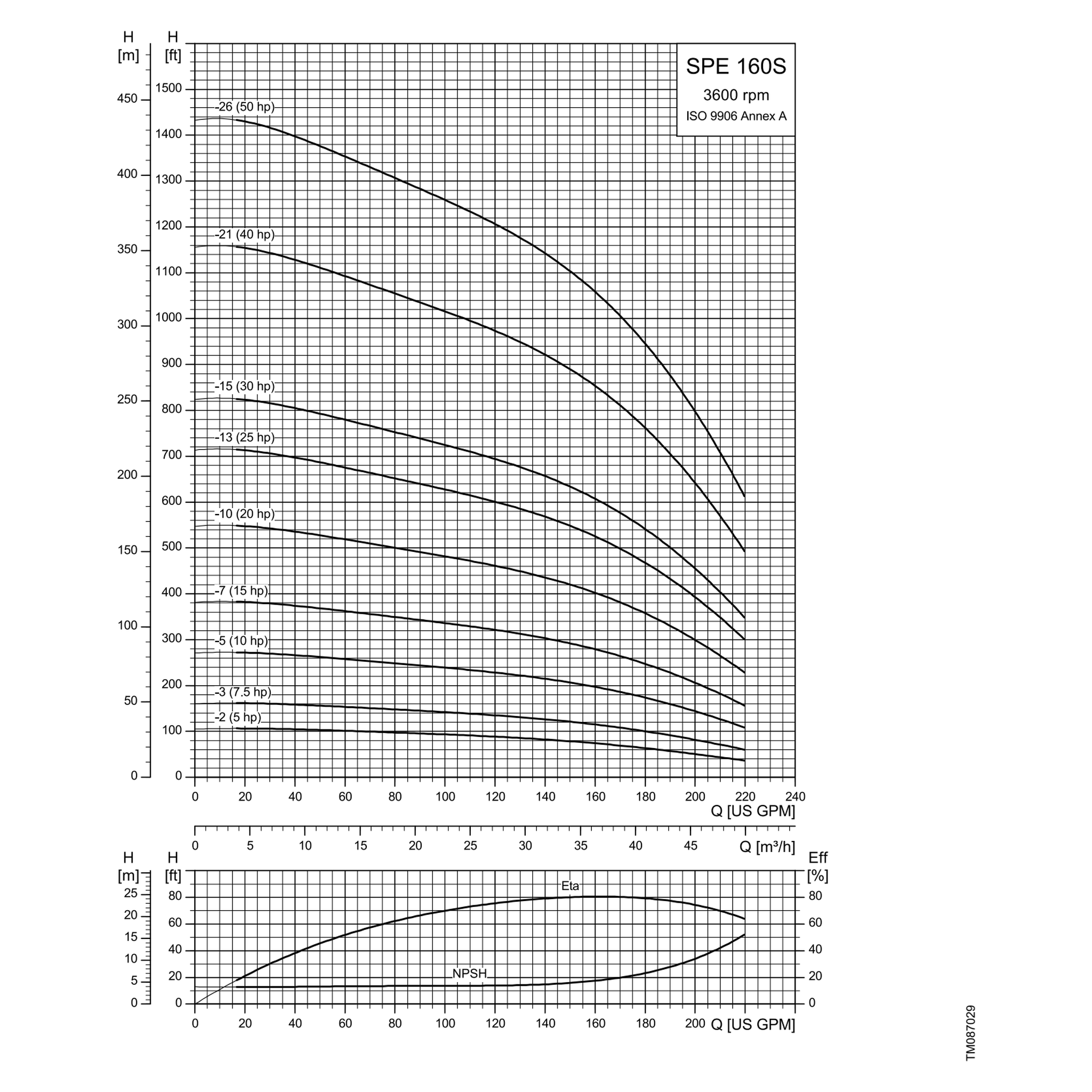

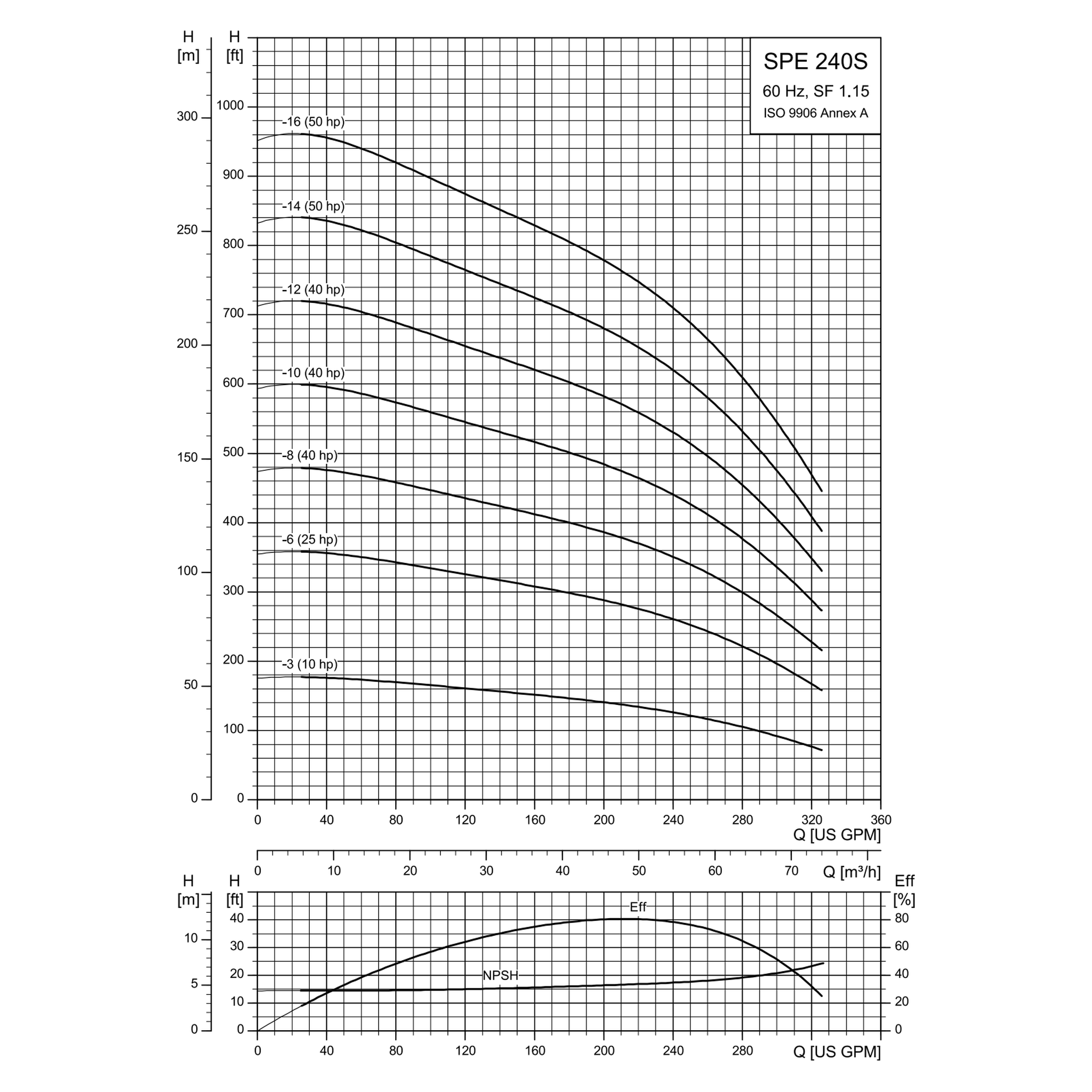

Each table reads like the curve: the head the pump adds at shut-off, along its curve and at the rated flow of 90 GPM, 160 GPM, 230 GPM, 240 GPM and 300 GPM, out to the end of the published curve. Pick a model whose head at your flow covers the pumping level, the pressure you need at the surface (2.31 ft per psi) and pipe friction.

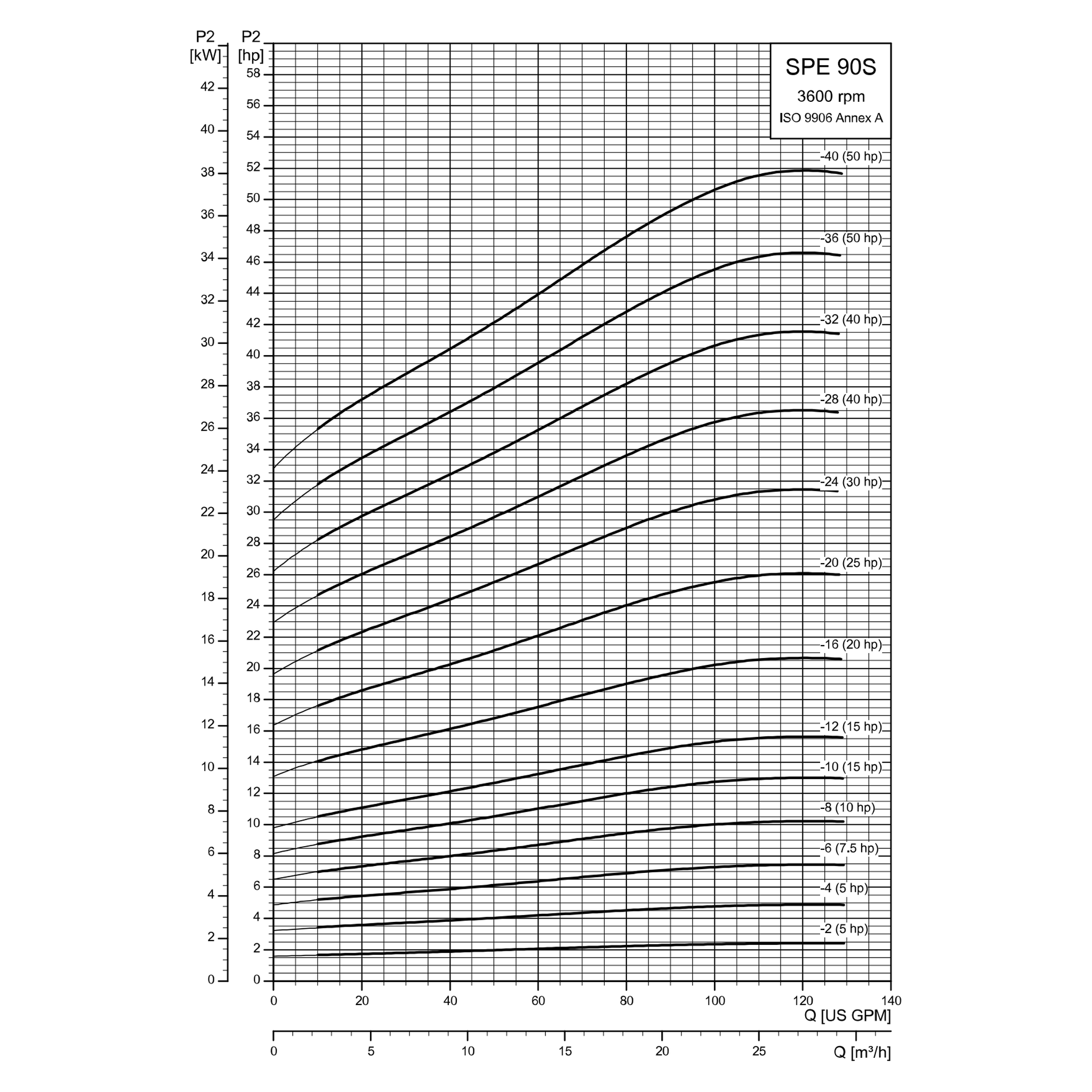

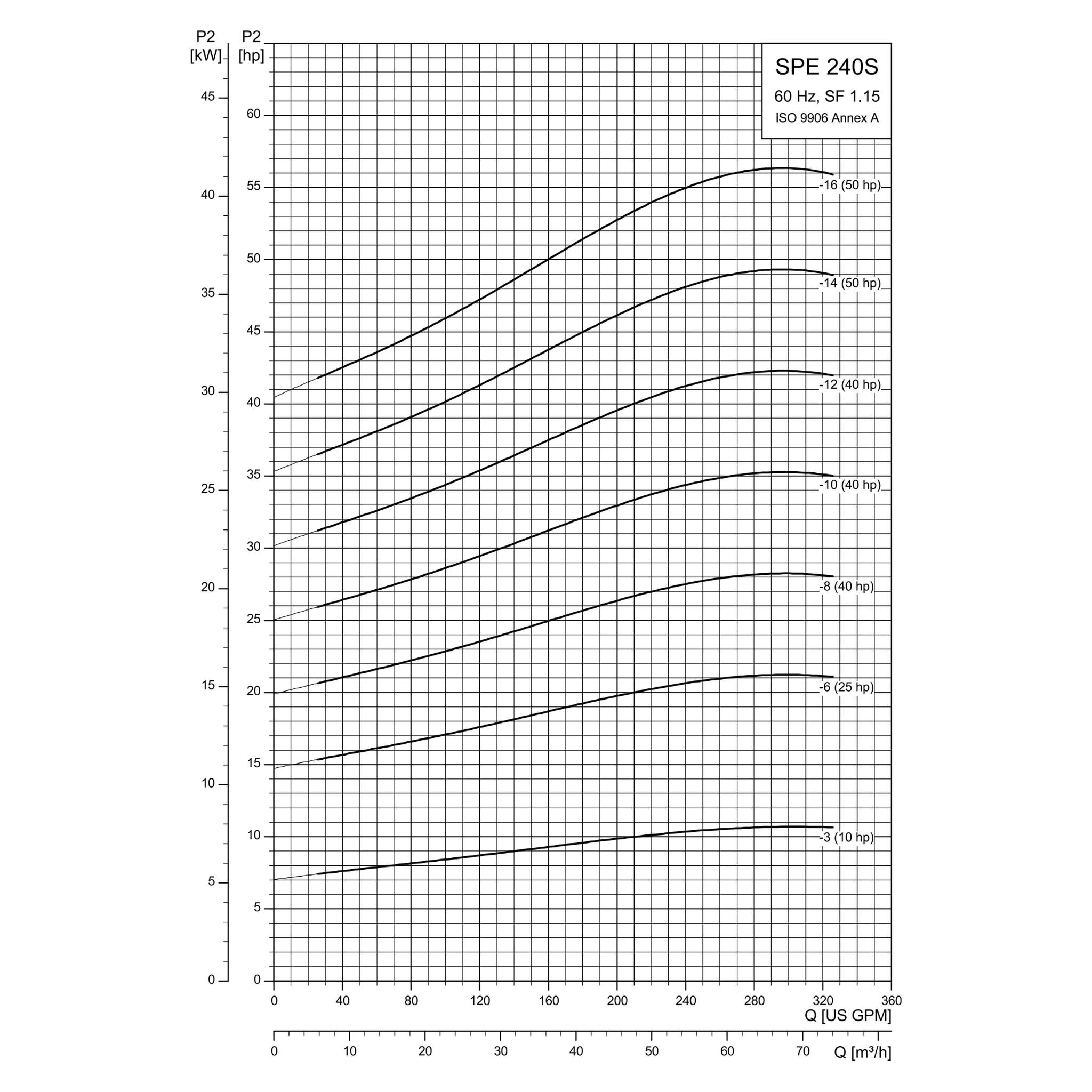

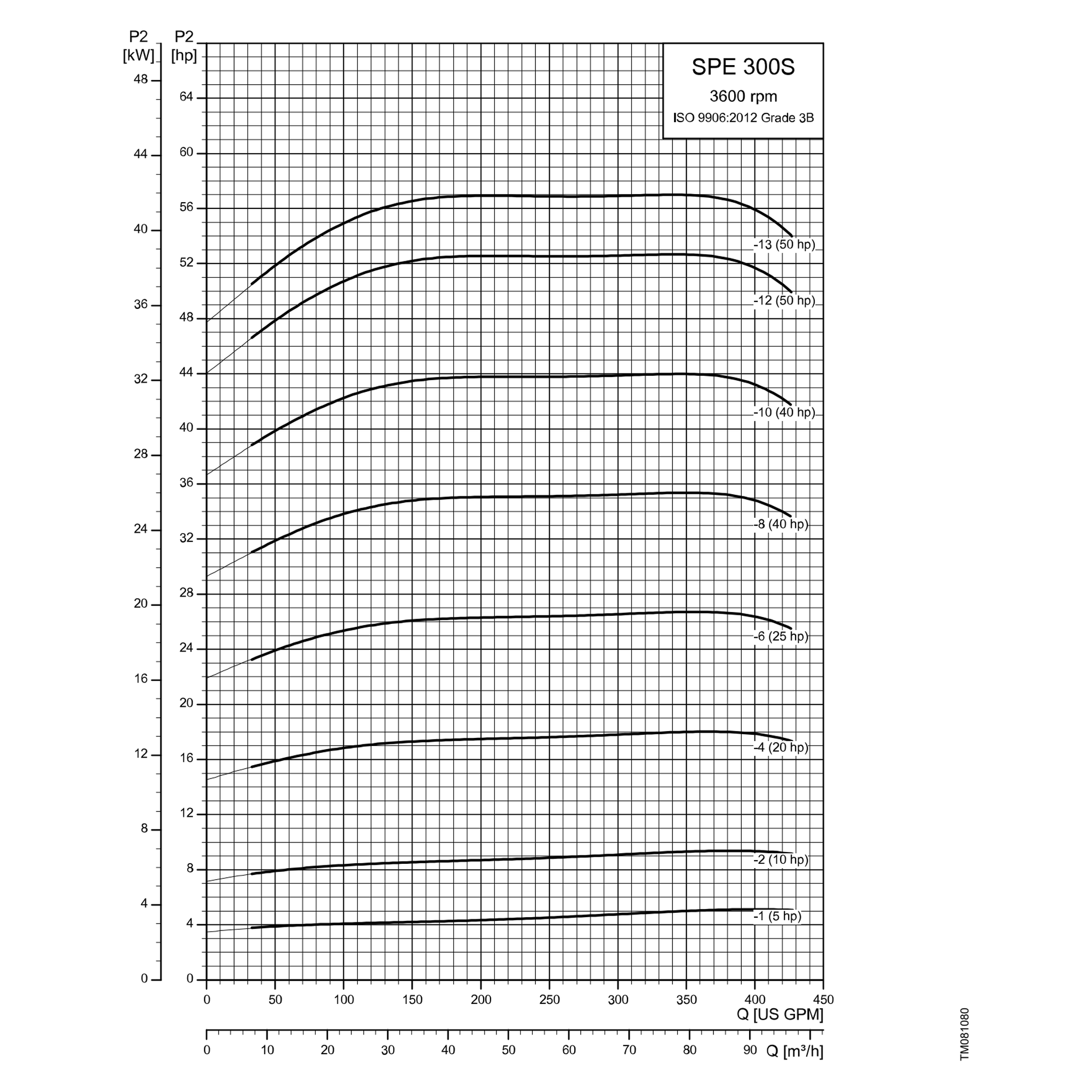

| Model | HP | 0 GPM (Shut-off) | 26 GPM | 64 GPM | 90 GPM (Rated) | 128.4 GPM (Max) |
|---|---|---|---|---|---|---|
| SPE90S100-2 | 10 | 100 | 106 | 97 | 89 | 56 |
| SPE90S100-4 | 10 | 219 | 217 | 196 | 179 | 107 |
| SPE90S100-6 | 10 | 320 | 328 | 295 | 271 | 152 |
| SPE90S100-8 | 10 | 431 | 440 | 391 | 359 | 199 |
| SPE90S100-10 | 10 | 539 | 550 | 487 | 450 | 244 |
| SPE90S250-12 | 25 | 648 | 662 | 583 | 542 | 293 |
| SPE90S250-16 | 25 | 860 | 884 | 778 | 724 | 393 |
| Model | HP | 0 GPM (Shut-off) | 26 GPM | 64 GPM | 90 GPM (Rated) | 128.4 GPM (Max) |
|---|---|---|---|---|---|---|
| SPE90S250-20 | 25 | 1080 | 1107 | 972 | 906 | 492 |
| SPE90S400-24 | 40 | 1299 | 1329 | 1164 | 1089 | 592 |
| SPE90S400-28 | 40 | 1520 | 1551 | 1358 | 1271 | 693 |
| SPE90S400-32 | 40 | 1739 | 1774 | 1554 | 1453 | 788 |
| SPE90S400-36 | 40 | 1949 | 1996 | 1752 | 1635 | 886 |
| SPE90S400-40 | 40 | 2159 | 2218 | 1949 | 1818 | 984 |
| Model | HP | 0 GPM (Shut-off) | 44 GPM | 110 GPM | 160 GPM (Rated) | 219.7 GPM (Max) |
|---|---|---|---|---|---|---|
| SPE160S100-2 | 10 | 100 | 103 | 91 | 83 | 36 |
| SPE160S100-3 | 10 | 160 | 157 | 138 | 125 | 60 |
| SPE160S100-5 | 10 | 271 | 264 | 233 | 209 | 108 |
| SPE160S250-7 | 25 | 380 | 371 | 329 | 292 | 156 |
| SPE160S250-10 | 25 | 547 | 531 | 472 | 419 | 228 |
| SPE160S250-13 | 25 | 713 | 692 | 614 | 545 | 300 |
| SPE160S400-15 | 40 | 819 | 798 | 710 | 624 | 348 |
| SPE160S400-18 | 40 | — | — | — | 749 | — |
| SPE160S400-21 | 40 | 1159 | 1119 | 995 | 876 | 493 |
| SPE160S500-24 | 50 | — | — | — | 1001 | — |
| SPE160S500-26 | 50 | 1432 | 1387 | 1233 | 1086 | 612 |
| Model | HP | 230 GPM (Rated) |
|---|---|---|
| SPE230S100-2 | 10 | — |
| SPE230S250-4 | 25 | — |
| SPE230S250-6 | 25 | — |
| SPE230S250-7 | 25 | — |
| SPE230S400-10 | 40 | — |
| SPE230S400-12 | 40 | — |
| SPE230S500-15 | 50 | — |
| Model | HP | 0 GPM (Shut-off) | 65 GPM | 163 GPM | 240 GPM (Rated) | 326 GPM (Max) |
|---|---|---|---|---|---|---|
| SPE240S100-3 | 10 | 175 | 171 | 151 | 132 | 71 |
| SPE240S250-6 | 25 | 354 | 346 | 307 | 265 | 158 |
| SPE240S400-8 | 40 | 473 | 463 | 412 | 353 | 215 |
| SPE240S400-10 | 40 | 593 | 580 | 516 | 441 | 273 |
| SPE240S400-12 | 40 | 712 | 696 | 620 | 530 | 330 |
| SPE240S500-14 | 50 | 832 | 813 | 724 | 620 | 388 |
| SPE240S500-16 | 50 | 951 | 930 | 829 | 710 | 445 |
| Model | HP | 0 GPM (Shut-off) | 85 GPM | 212 GPM | 300 GPM (Rated) | 423 GPM (Max) |
|---|---|---|---|---|---|---|
| SPE300S100-1 | 10 | 64 | 64 | 50 | 44 | 18 |
| SPE300S100-2 | 10 | 136 | 135 | 104 | 85 | 36 |
| SPE300S250-4 | 25 | 281 | 273 | 216 | 169 | 76 |
| SPE300S250-6 | 25 | 425 | 411 | 325 | 254 | 115 |
| SPE300S400-8 | 40 | 570 | 549 | 438 | 338 | 165 |
| SPE300S400-10 | 40 | 714 | 687 | 551 | 419 | 225 |
| SPE300S500-12 | 50 | 859 | 826 | 663 | 505 | 277 |
| SPE300S500-13 | 50 | 931 | 895 | 721 | 547 | 305 |

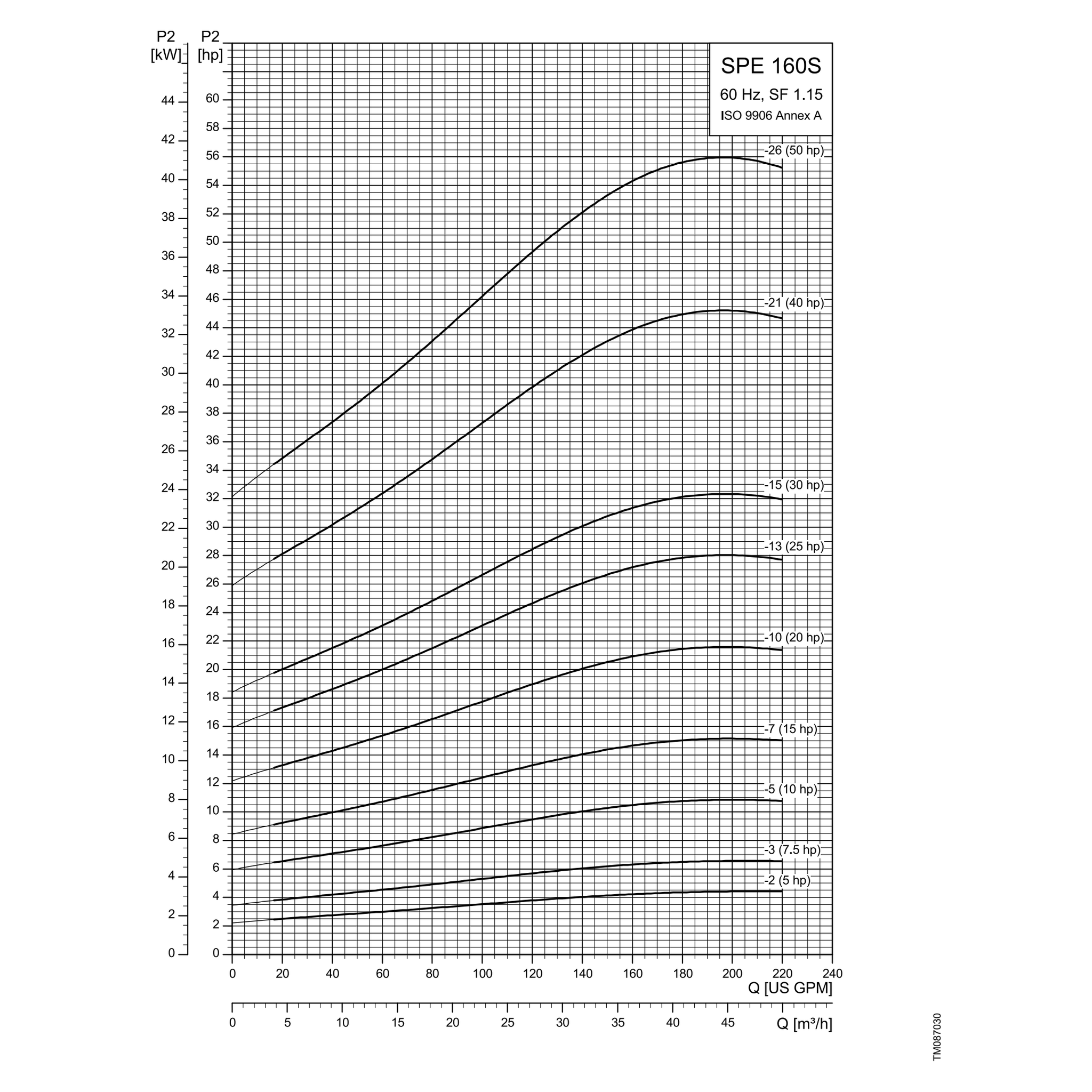

Total head in feet. The shut-off and flow columns are read from the Grundfos 60 Hz curves at 3600 rpm, digitized from the published vector curves in the Grundfos SPE data booklet, at the nearest published point and rounded down. The (Rated) column is the nominal head Grundfos prints for each model at its rated flow, verbatim; where two figures are shown, builds on different motors or voltages differ slightly. Grundfos's curve and printed table disagree here. SPE 90S: the published curve reads below the printed nominal head at 90 GPM by about 7% of shut-off head on the median model; SPE 160S: the published curve reads below the printed nominal head at 160 GPM by about 3% of shut-off head on the median model. Both are shown as published; we check your duty point against the curve before you order. No published curve for SPE160S400-18, SPE160S500-24, SPE230S100-2, SPE230S250-4, SPE230S250-6, SPE230S250-7, SPE230S400-10, SPE230S400-12, SPE230S500-15: rated figure only, full curve on request. 1 ft of head = 0.433 PSI. Full curves are in the product images and on the Data Sheet tab.
Drive and Filter by Pump Power
| Pump power | Models | CUE drive, NEMA 1 indoor | CUE drive, NEMA 4X outdoor | Sine-wave filter |
|---|---|---|---|---|
| 5 HP | SPE90S100-2, SPE90S100-4, SPE160S100-2, SPE300S100-1 | 99616714 | 99619042 | 92617569 |
| 7-1/2 HP | SPE90S100-6 | 99616715 | 99619043 | 92617580 |
| 7-1/2 HP | SPE160S100-3, SPE230S100-2, SPE240S100-3 | 99616716 | 99619043 | 92617580 |
| 10 HP | SPE90S100-8, SPE160S100-5, SPE300S100-2 | 99616716 | 99619044 | 92617581 |
| 15 HP | SPE90S100-10, SPE90S250-12, SPE160S250-7, SPE230S250-4 | 99616717 | 99619045 | 92617582 |
| 20 HP | SPE90S250-16, SPE160S250-10, SPE230S250-6, SPE240S250-6, SPE300S250-4 | 99616718 | 99619046 | 92617583 |
| 25 HP | SPE90S250-20, SPE160S250-13, SPE300S250-6 | 99616719 | 99619047 | 92617587 |
| 30 HP | SPE90S400-24, SPE160S400-15 | 99616720 | 99619048 | 92617588 |
| 40 HP | SPE230S250-7, SPE240S400-8 | 99616719 | 99619047 | 92617587 |
| 40 HP | SPE90S400-28, SPE90S400-32, SPE160S400-18, SPE160S400-21, SPE230S400-10, SPE230S400-12, SPE240S400-10, SPE240S400-12, SPE300S400-8, SPE300S400-10 | 99616721 | 99619049 | 92617589 |
| 50 HP | SPE90S400-36, SPE90S400-40, SPE160S500-24, SPE160S500-26, SPE230S500-15, SPE240S500-14, SPE240S500-16, SPE300S500-12, SPE300S500-13 | 99616723 | 99619051 | 92617591 |
Grundfos US price list, January 2026, following the easy-selection table in the Grundfos SPE data booklet. Drives are on our Grundfos CUE Variable Frequency Drive and CUE IP66 listings; filters on Grundfos TCI Sine-Wave Output Filter. We confirm drive and filter against your cable length and duty when you order.
| Check | What to confirm |
|---|---|
| Well size | Casing ID at least the minimum borehole for the flow class, 6.1 in to 9.8 in (Flow Classes table) |
| Submergence | At least the minimum submergence for the flow class (Flow Classes table) |
| Drive | A variable frequency drive with IPM motor control is required: the motor cannot run on line power. The Grundfos CUE is the matched drive; for another brand, the motor data the drive needs is in the data booklet |
| Sine-wave filter | An IPM-ready sine-wave filter is required on SPE pumps, sized on motor current at 120 Hz |
| Power | 460V 3Ph supply to the drive |
| Flow | Do not run continuously below 0.1 × or above 1.3 × rated flow |
| Part | Material |
|---|---|
| Valve casing, chamber, impellers, suction interconnect, strainer, strap, cable guard | Stainless steel AISI 304 |
| Valve cup | Stainless steel AISI 316 (SPE 90S-300S); AISI 304 (SPE 385S-1100S) |
| Pump shaft | Stainless steel AISI 431 |
| Neck ring, valve seat | NBR-FKM |
| Bearing | FKM-LSR (SPE 90S-300S); NBR-FKM (SPE 385S-1100S) |
| Motor sleeve and end shield (MS6000P) | Stainless steel AISI 304 |
| Motor shaft | Stainless steel AISI 431 |
| Motor shaft seal | SiC/SiC |
| Motor rubber parts and diaphragm | NBR |
| Motor radial / axial bearings | Carbon/stainless steel; ceramic/carbon |
Source: Grundfos SPE data booklet, May 2026, standard version. N (AISI 316) and R (AISI 904L) versions are available to order for aggressive water.
