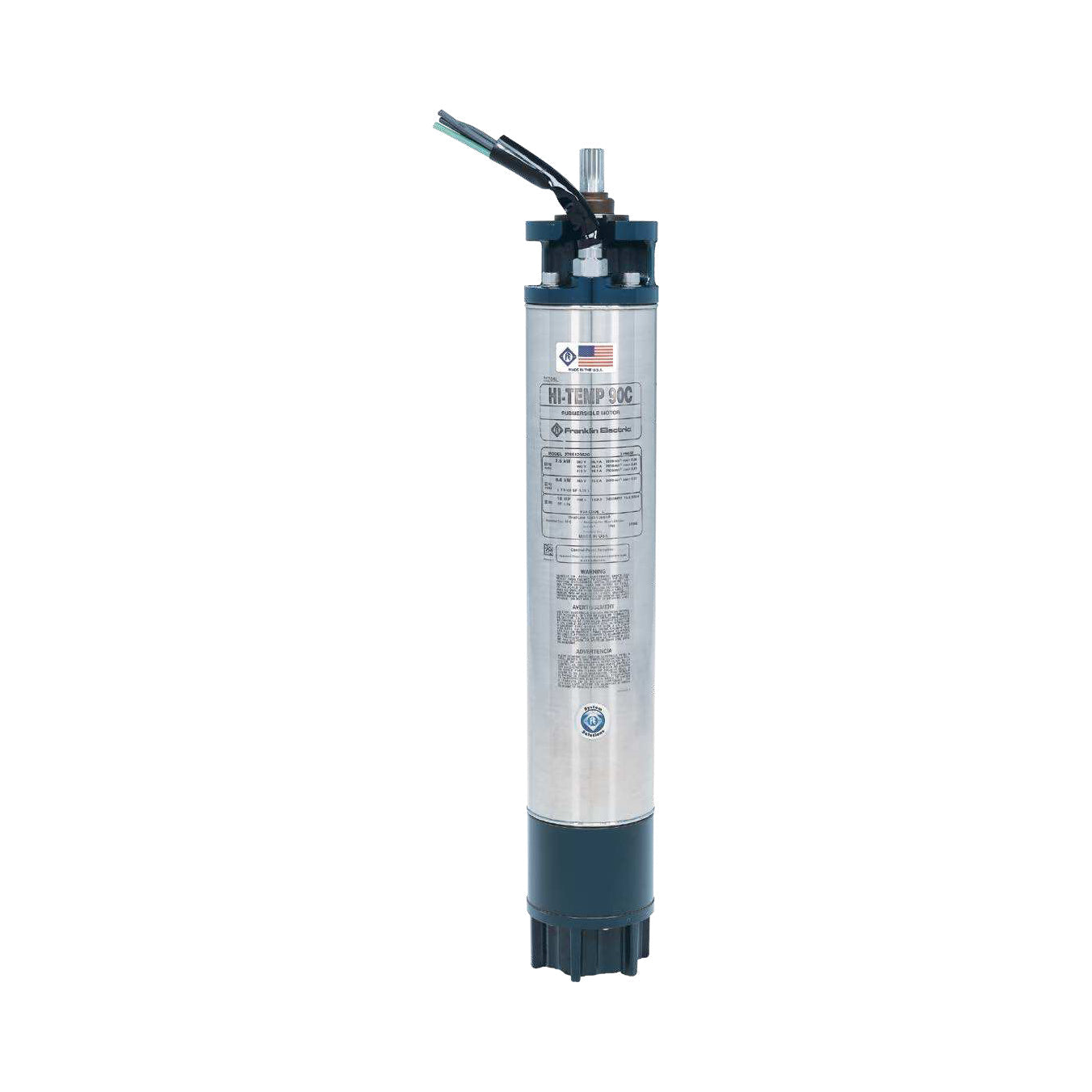

Franklin Electric 6in-Hi-Temp-90C-Motor 5-40 HP

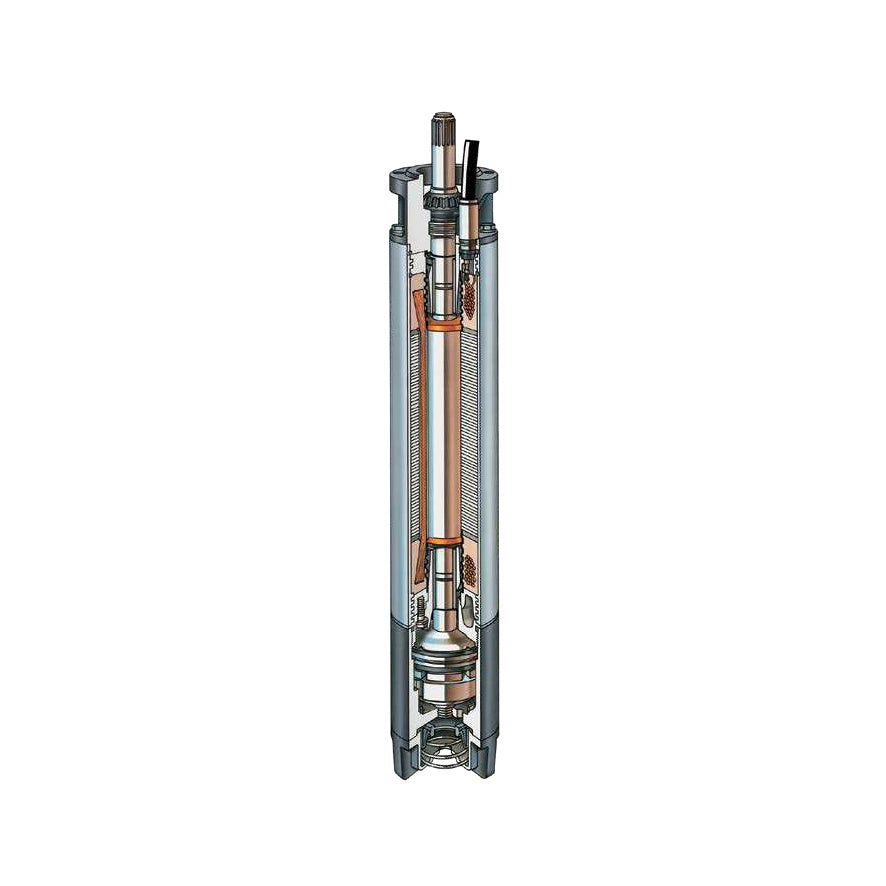

Franklin Electric 6in-Hi-Temp-90C-Motor Cutaway Diagram

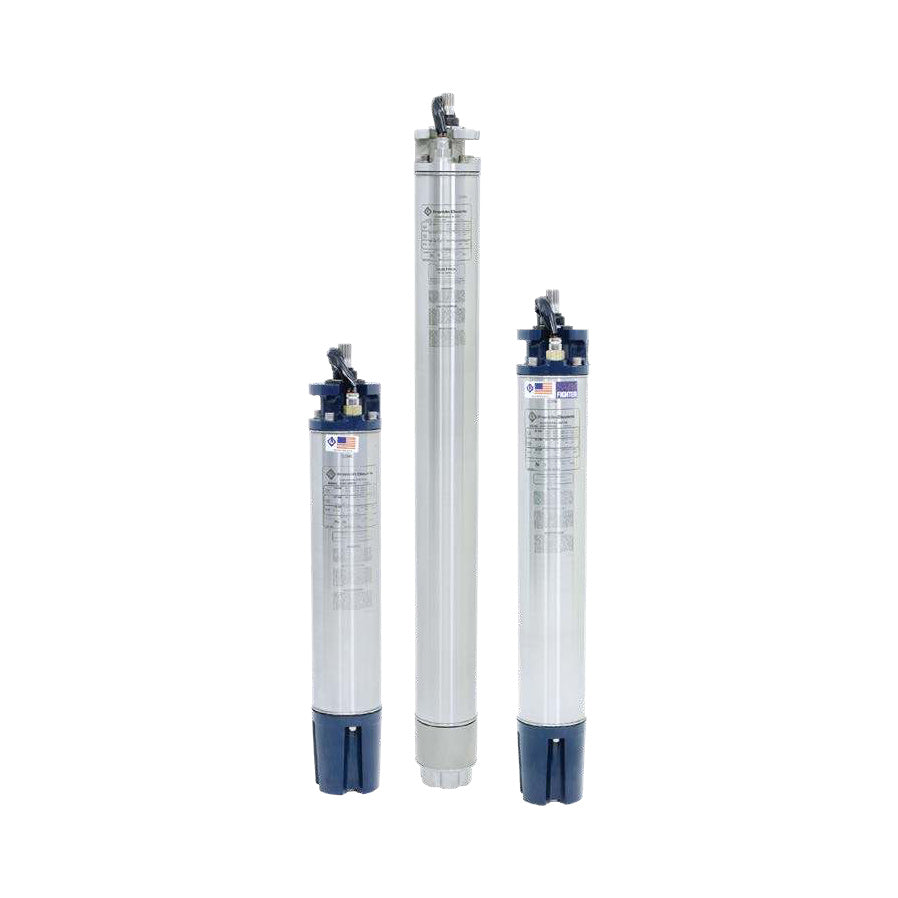

Franklin Electric 6in-Encapsulated-Motors Lineup
Franklin Electric 6in-Encapsulated-Motor 5-60 HP
Franklin Electric 6in-Hi-Temp-90C-Motor 5-40 HP
Franklin Electric 6in-Hi-Temp-90C-Motor Cutaway Diagram
Franklin Electric 6in-Encapsulated-Motors Lineup

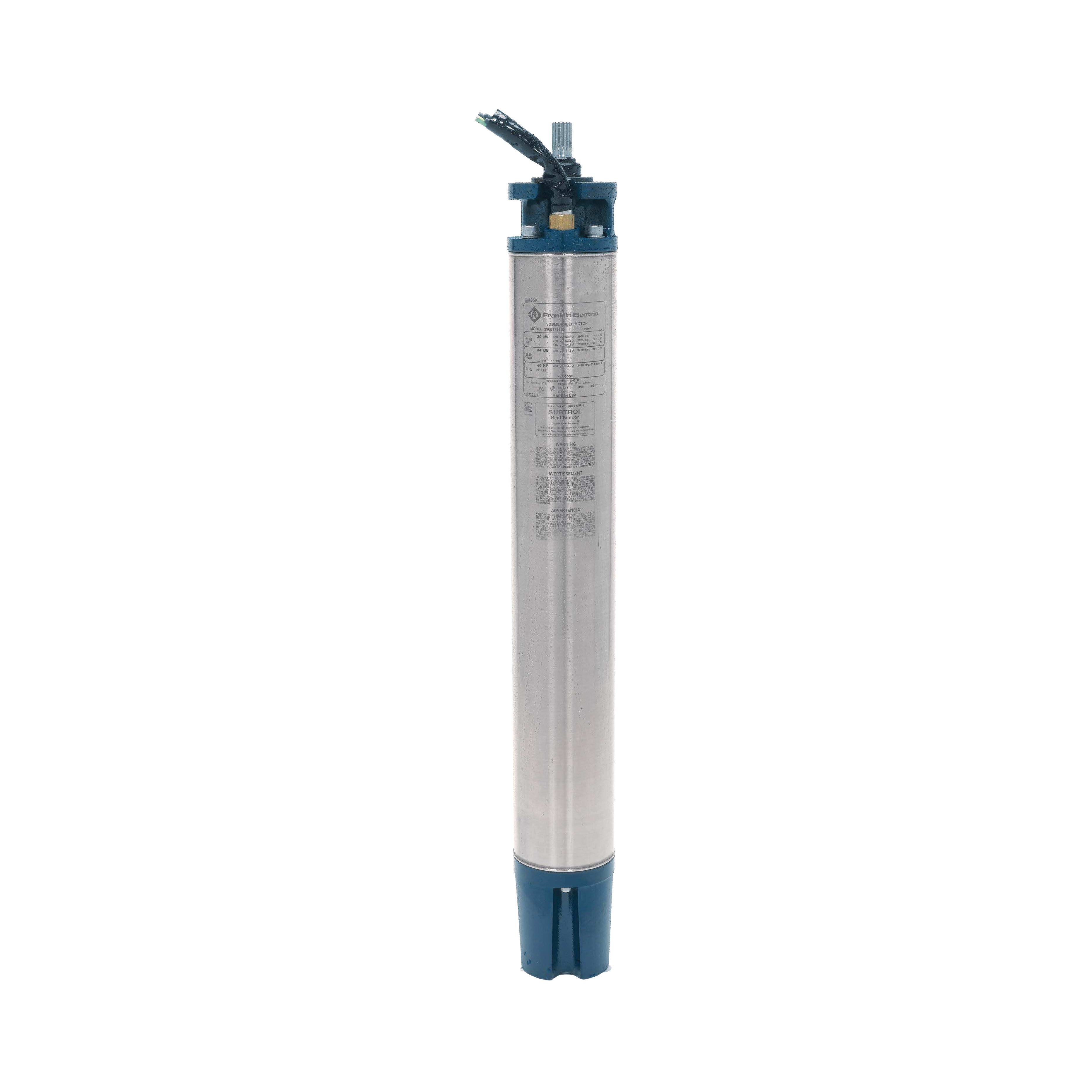

Franklin Electric 6 in Submersible Motor - 5-60 HP

HP: 5 HP
Voltage - Phase: 230V 1Ph 3-Wire
Type - Model: Sand Fighter - 2261108020

Product variant with selected options does not exist!
$2,565.24
SKU: 2261108020
Weight : 110.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Franklin Electric · Submersible Motor
6 in Submersible Motor
100 Franklin builds, 5 to 60 HP.
5 to 60 HP
Single-Phase and Three-Phase
200-575V
VFD Compatible
6 in Motor, 22.5-64.14 in L
What Ships and What It Needs to Run

Included: the submersible motor. Franklin lists the lead arrangement for each build (DOL 3-lead or Y-Delta 6-lead) in the Models & Performance table.

Replacement and longer leads: on our motor leads listing. Franklin voids the motor warranty if Franklin-supplied leads are not used.

Pump end required, ordered separately. A pump end of the same horsepower that fits this motor diameter. Couplings are on our couplings and accessories listing.

Control required, ordered separately. single-phase 6 in motors must be used with a Franklin control box (Franklin 3-wire control box); three-phase motors need a magnetic starter with quick-trip overloads or a drive such as the Franklin X-Drive SUB panel.

Drop cable and splice kit: sized to your setting depth and ordered separately.

Overview

These motors are built for dependable operation in 6 in diameter or larger water wells.

  • Double flanged NEMA mounting design
  • Stainless steel splined shaft
  • StatorShield, Franklin’s six-feature encapsulation system
  • High-capacity, Kingsbury-type, water-lubricated thrust bearing
  • Factory-filled with Franklin’s non-toxic water soluble fill solution
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Franklin Electric Warranty

Franklin warrants its products for 12 months from the date of installation, but no more than 24 months from the date of manufacture. Franklin states the motor warranty can be extended to 3 years with Franklin overload-protection controls, and is void if Franklin-supplied leads are not used.

Source: Franklin Electric limited warranty, Submersible Pumps AG/Industrial/Municipal Product Catalog.

Specifications
Model Phase HP Range kW Range Poles RPM Max Ambient Duty
Standard* 1 5 - 15 3.7 - 11 2 3450 86 °F / 30 °C Continuous
Standard* 3 5 - 40 3.7 - 30 2 3450 86 °F / 30 °C Continuous
Standard* 3 50 - 60 37 - 45 2 3450 122 °F / 50 °C Continuous
Sand Fighter* 3 5 - 40 3.7 - 30 2 3450 86 °F / 30 °C Continuous
Sand Fighter* 3 50 - 60 37 - 45 2 3450 86 °F / 30 °C Continuous
DR56 (Sand Fighter or 316 SS) 3 60 45 2 3450 122 °F / 50 °C Continuous
High-Temp 90° C** 3 5 - 40 3.7 - 30 2 3450 195 °F / 90 °C Continuous

**Source:** `Combo Binder.pdf`, PDF page 142 of 205. *At 0.5 ft/sec flow past motor, motors are rated for continuous duty up to 86 °F (30 °C) water temperature. **At 0.5 ft/sec flow past motor, motors are rated for continuous duty up to 195 °F (90 °C) water temperature and up to 86 °F (30 °C) water temperature with NO FLOW in lakes or in wells 12 inches or larger in diameter.

60 Hz ratings. Source: Franklin Electric Submersible Motors and Control Boxes product catalog.

Models & Ratings

100 builds, grouped by HP. Open a group to see its rows.

5 HP · 11 builds
Order No. Type Volts Lead Thrust lb
2261108020 Sand Fighter 230 DOL (3) 3500
2366508120 Sand Fighter 200 DOL (3) 3500
2766003003 Hi-Temp 90 °C - 316 SS 230 DOL (3) 4500
2366008120 Sand Fighter 230 DOL (3) 3500
2363108120 Sand Fighter With SubTrol 230/460 DOL (3) 3500
2766100003 Hi-Temp 90C 460/380 DOL (3) 4500
2366104020 316 SS w/SubTrol 460/380 DOL (3) 3500
2766103003 Hi-Temp 90 °C - 316 SS 460/380 DOL (3) 4500
2366108120 Sand Fighter 460/380 DOL (3) 3500
2366204020 316 SS w/SubTrol 575 DOL (3) 3500
2366208120 Sand Fighter 575 DOL (3) 3500
7-1/2 HP · 11 builds
Order No. Type Volts Lead Thrust lb
2261118020 Sand Fighter 230 DOL (3) 3500
2366518120 Sand Fighter 200 DOL (3) 3500
2766013003 Hi-Temp 90 °C - 316 SS 230 DOL (3) 4500
2366018120 Sand Fighter 230 DOL (3) 3500
2363118120 Sand Fighter With SubTrol 230/460 DOL (3) 3500
2766110003 Hi-Temp 90 °C 460/380 DOL (3) 4500
2366114020 316 SS w/SubTrol 460/380 DOL (3) 3500
2766113003 Hi-Temp 90 °C - 316 SS 460/380 DOL (3) 4500
2366118120 Sand Fighter 460/380 DOL (3) 3500
2366214020 316 SS w/SubTrol 575 DOL (3) 3500
2366218120 Sand Fighter 575 DOL (3) 3500
10 HP · 12 builds
Order No. Type Volts Lead Thrust lb
2261128020 Sand Fighter 230 DOL (3) 3500
2366528120 Sand Fighter 200 DOL (3) 3500
2366024020 316 SS w/SubTrol 230 DOL (3) 3500
2766023003 Hi-Temp 90 °C - 316 SS 230 DOL (3) 4500
2366028120 Sand Fighter 230 DOL (3) 3500
2363128120 Sand Fighter With SubTrol 230/460 DOL (3) 3500
2766120003 Hi-Temp 90 °C 460/380 DOL (3) 4500
2366124020 316 SS w/SubTrol 460/380 DOL (3) 3500
2766123003 Hi-Temp 90 °C - 316 SS 460/380 DOL (3) 4500
2366128120 Sand Fighter 460/380 DOL (3) 3500
2366224020 316 SS w/SubTrol 575 DOL (3) 3500
2366228120 Sand Fighter 575 DOL (3) 3500
15 HP · 13 builds
Order No. Type Volts Lead Thrust lb
2261138020 Sand Fighter 230 DOL (3) 3500
2366534020 316 SS With SubTrol 200 DOL (3) 3500
2366538120 Sand Fighter 200 DOL (3) 3500
2366034020 316 SS w/SubTrol 230 DOL (3) 3500
2766033003 Hi-Temp 90 °C - 316 SS 230 DOL (3) 4500
2366038120 Sand Fighter 230 DOL (3) 3500
2363138120 Sand Fighter With SubTrol 230/460 DOL (3) 3500
2766130003 Hi-Temp 90 °C 460/380 DOL (3) 4500
2366134020 316 SS w/SubTrol 460/380 DOL (3) 3500
2766133003 Hi-Temp 90 °C - 316 SS 460/380 DOL (3) 4500
2366138120 Sand Fighter 460/380 DOL (3) 3500
2366234020 316 SS w/SubTrol 575 DOL (3) 3500
2366238120 Sand Fighter 575 DOL (3) 3500
20 HP · 11 builds
Order No. Type Volts Lead Thrust lb
2366548120 Sand Fighter 200 DOL (3) 3500
2366044020 316 SS w/SubTrol 230 DOL (3) 3500
2766043003 Hi-Temp 90 °C - 316 SS 230 DOL (3) 4500
2366048120 Sand Fighter 230 DOL (3) 3500
2363148120 Sand Fighter With SubTrol 230/460 DOL (3) 3500
2766140003 Hi-Temp 90 °C 460/380 DOL (3) 4500
2366144020 316 SS w/SubTrol 460/380 DOL (3) 3500
2766143003 Hi-Temp 90 °C - 316 SS 460/380 DOL (3) 4500
2366148120 Sand Fighter 460/380 DOL (3) 3500
2366244020 316 SS w/SubTrol 575 DOL (3) 3500
2366248120 Sand Fighter 575 DOL (3) 3500
25 HP · 10 builds
Order No. Type Volts Lead Thrust lb
2366558120 Sand Fighter 200 DOL (3) 3500
2366054020 316 SS w/SubTrol 230 DOL (3) 3500
2366058120 Sand Fighter 230 DOL (3) 3500
2363158120 Sand Fighter With SubTrol 230/460 DOL (3) 3500
2766150103 Hi-Temp 90 °C 460/380 DOL (3) 7500
2366154020 316 SS w/SubTrol 460/380 DOL (3) 3500
2766153103 Hi-Temp 90 °C - 316 SS 460/380 DOL (3) 7500
2366158120 Sand Fighter 460/380 DOL (3) 3500
2366254020 316 SS w/SubTrol 575 DOL (3) 3500
2366258120 Sand Fighter 575 DOL (3) 3500
30 HP · 10 builds
Order No. Type Volts Lead Thrust lb
2366568120 Sand Fighter 200 DOL (3) 3500
2366064020 316 SS w/SubTrol 230 DOL (3) 3500
2366068120 Sand Fighter 230 DOL (3) 3500
2363168120 Sand Fighter With SubTrol 230/460 DOL (3) 3500
2766160103 Hi-Temp 90 °C 460/380 DOL (3) 7500
2366164020 316 SS w/SubTrol 460/380 DOL (3) 3500
2766163103 Hi-Temp 90 °C - 316 SS 460/380 DOL (3) 7500
2366168120 Sand Fighter 460/380 DOL (3) 3500
2366264020 316 SS w/SubTrol 575 DOL (3) 3500
2366268120 Sand Fighter 575 DOL (3) 3500
40 HP · 8 builds
Order No. Type Volts Lead Thrust lb
2766170103 Hi-Temp 90 °C 460/380 DOL (3) 10000
2366174025 316 SS w/SubTrol 460/380 DOL (3) 6000
2766173103 Hi-Temp 90 °C - 316 SS 460/380 DOL (3) 10000
2366178125 Sand Fighter w/SubTrol 460/380 DOL (3) 6000
2390006121 Sand Fighter 460/380 DOL (3) 10000
2366274025 316 SS w/SubTrol 575 DOL (3) 6000
2366278125 Sand Fighter w/SubTrol 575 DOL (3) 6000
2390106121 Sand Fighter 10000 lb 575 DOL (3) 10000
50 HP · 6 builds
Order No. Type Volts Lead Thrust lb
2366184025 316 SS 460/380 DOL (3) 6000
2390016121 Sand Fighter 460/380 DOL (3) 10000
2366188125 Sand Fighter w/SubTrol 460/380 DOL (3) 6000
2366284025 316 SS 575 DOL (3) 6000
2390116121 Sand Fighter 575 DOL (3) 10000
2366288125 Sand Fighter w/SubTrol 575 DOL (3) 6000
60 HP · 8 builds
Order No. Type Volts Lead Thrust lb
2366194025 316 SS 460/380 DOL (3) 6000
2390026121 Sand Fighter 460/380 DOL (3) 10000
2366198125 Sand Fighter w/SubTrol 460/380 DOL (3) 6000
2760096262 DR56 Sand Fighter w/SubTrol, 50 °C 460/380 DOL (3) 10000
2366294025 316 SS 575 DOL (3) 6000
2390126121 Sand Fighter 575 DOL (3) 10000
2366298125 Sand Fighter w/SubTrol 575 DOL (3) 6000
2760596462 DR56 316 SS w/SubTrol, 50 °C 575 DOL (3) 10000

Source: Franklin Electric Submersible Motors and Control Boxes product catalog and Franklin price list effective 15 Jun 2026. Length is Franklin's motor “L” dimension; Franklin publishes motor weights as shipping weights, so they are not shown. A blank means Franklin publishes no figure for that build.

Before You Buy — The Limits That Decide the Fit
  • Continuous duty to 86 °F (30 °C) at 0.5 ft/sec flow past the motor; Standard 50-60 HP to 122 °F (50 °C); Hi-Temp 90 °C builds to 194 °F (90 °C).
  • Install in a 6 in diameter or larger well.
  • 316 stainless steel builds are for acid, low pH and seawater applications and include a SubTrol heat sensor.
  • All models are VFD compatible.
  • Use Franklin-supplied leads: Franklin voids the motor warranty otherwise. Size the cable from Franklin's AIM manual.
Materials of Construction
Part Material 304 build
Shaft Extension 300 Series SS (5-30 hp) / 17-4 SS (40-60 hp) 17-4 SS
Shaft Mechanical Seal Sand Fighter Seal System Sand Fighter Seal System
Shaft Slinger Nitrile (5-40 hp) / FKM (50-60 hp) Nitrile
Stator Shell 300 series SS 316 SS
Thrust Bearing Rating (86 °F / 30 °C) 3500 lbs (5-30 hp) 6000 lbs (40-60 hp) 3500 lbs (5-30 hp) 6000 lbs (40-60 hp)
Mechanical Seal / Rubber Components Nitrile (5-40 hp) / FKM (50-60 hp) Nitrile (5-40 hp) / FKM (50-60 hp)
UL Insulation Class Rating Class F Class F
Motor Ambient Temp. Rating 86 °F / 30 °C 86 °F / 30 °C
Stator Resin Type Standard (5-40 hp) / Hi-Temp (50-60 hp) Standard (5-40 hp) / Hi-Temp (50-60 hp)
Motor Fill Solution (Water Soluble/Non-Toxic) FES91 FES91
Accessories
Part No. Description
305517901 Lead, Brass, 13 ft, w/Ground
305517902 Lead, Brass, 26 ft, w/Ground
305517951 Lead, 316 SS, 13 ft, w/Ground
305517952 Lead, 316 SS, 26 ft, w/Ground
305518952 Lead, 316 SS, 26 ft, w/Ground
305519951 Lead, 316 SS, 13 ft, w/Ground
305519952 Lead, 316 SS, 26 ft, w/Ground
151935901 Coupling, 6-inch, #416 SS, 7/8 in Pump Shaft, 1/4 x 3/16 x 1-3/4 Key
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet
