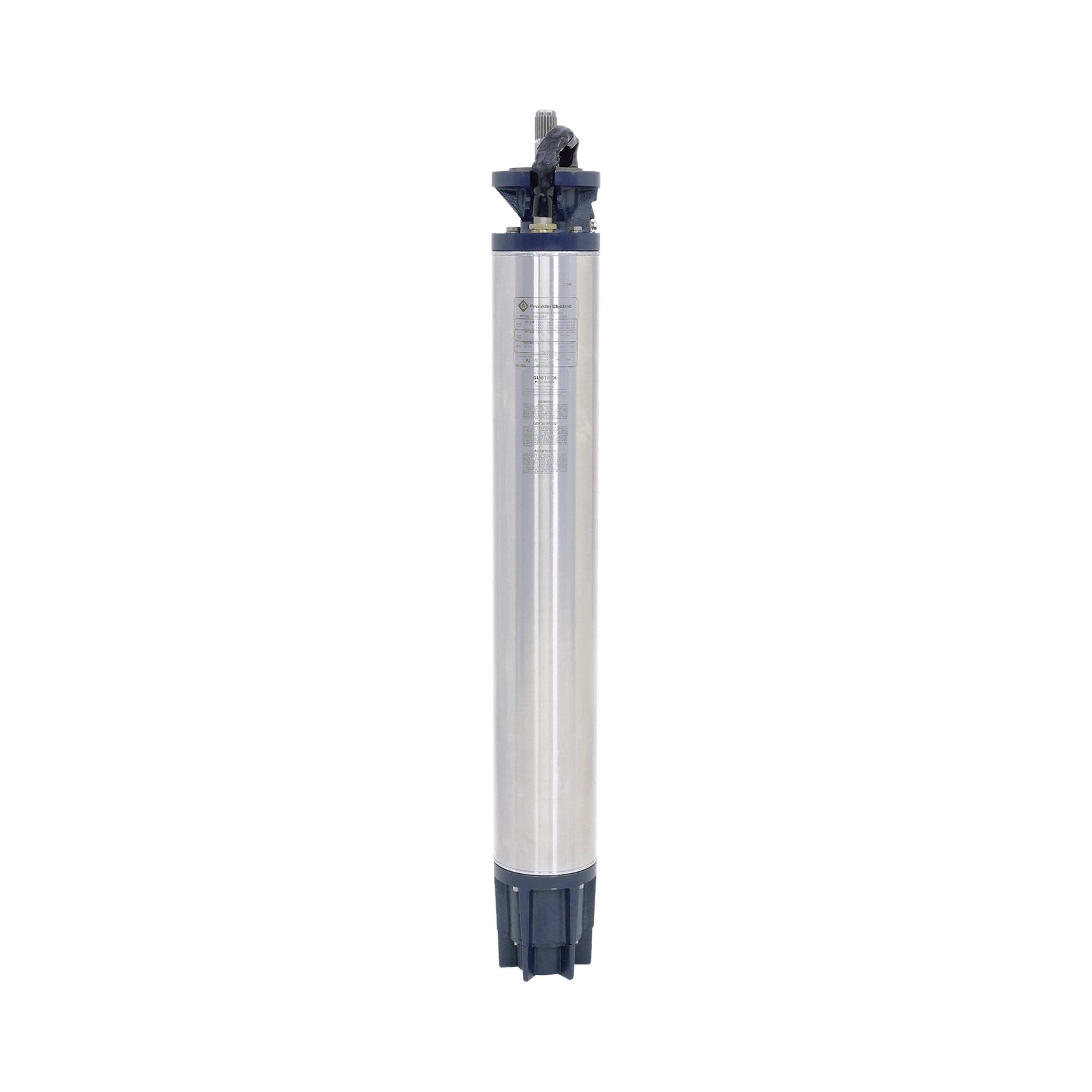

Franklin Electric 8in-Encapsulated-Motor 40-200 HP

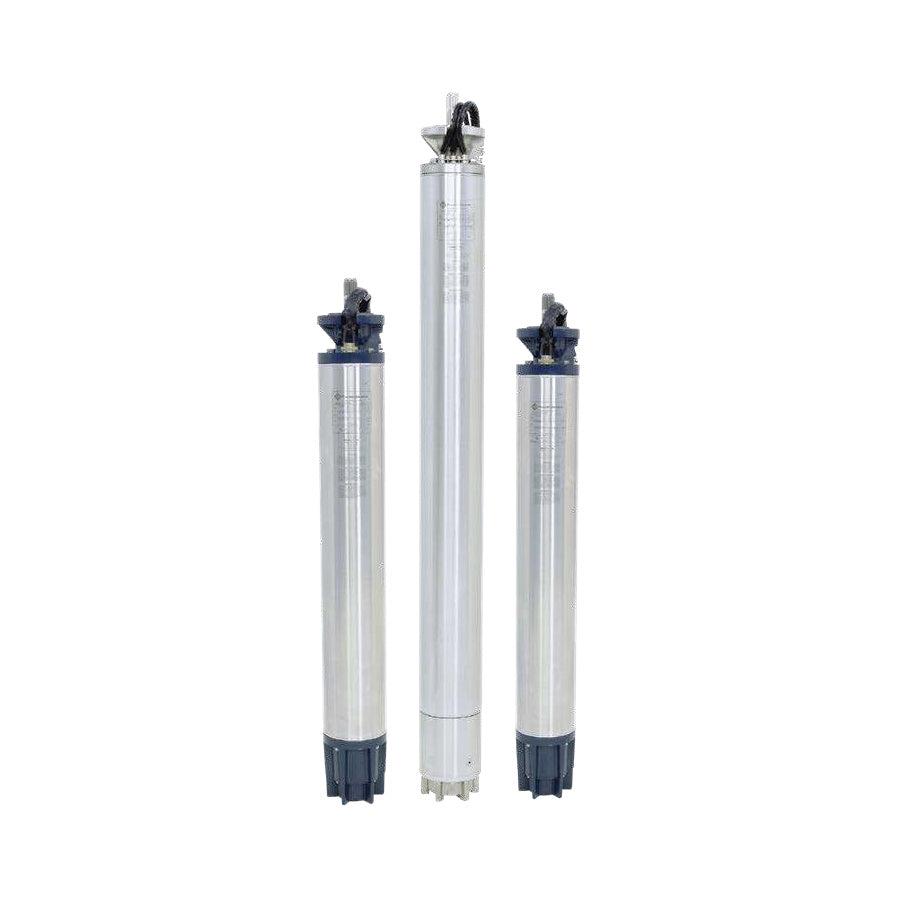

Franklin Electric 8in-Encapsulated-Motors Lineup

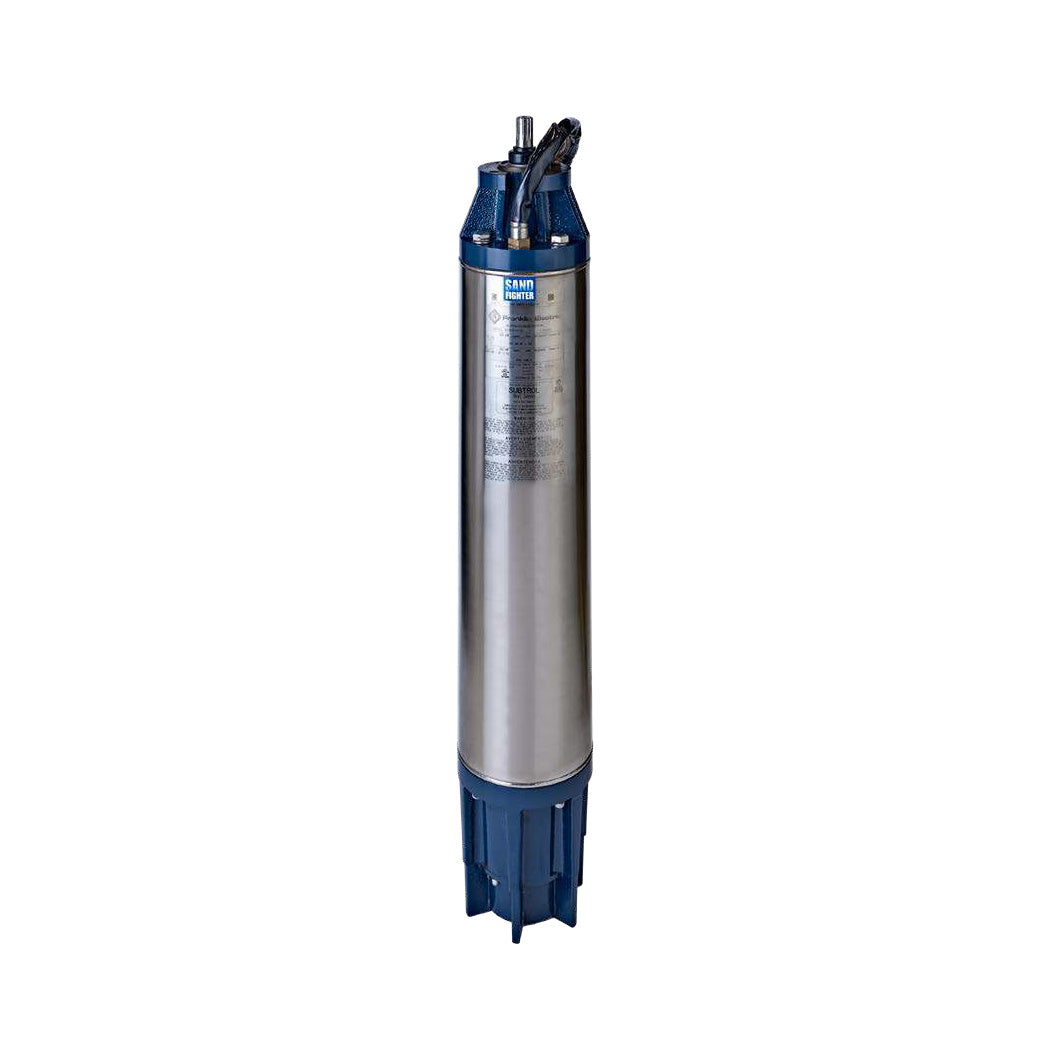

Franklin Electric 8x6 in Encapsulated Motor
Franklin Electric 8in-Encapsulated-Motor 40-200 HP
Franklin Electric 8in-Encapsulated-Motors Lineup
Franklin Electric 8x6 in Encapsulated Motor

Franklin Electric 8 in Submersible Motor - 40-200 HP

HP: 40 HP
Voltage - Phase: 460V 3Ph
Type - Model: 317 SS - 2396006221

Product variant with selected options does not exist!
$19,235.13
SKU: 2396006221
Weight : 320.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Franklin Electric · Submersible Motor
8 in Submersible Motor
47 Franklin builds, 40 to 200 HP.
40 to 200 HP
Three-Phase
380-575V
VFD Compatible
8 in Motor, 36.4-94.8 in L
What Ships and What It Needs to Run

Included: the submersible motor. Franklin lists the lead arrangement for each build (DOL 3-lead or Y-Delta 6-lead) in the Models & Performance table.

Replacement and longer leads: on our motor leads listing. Franklin voids the motor warranty if Franklin-supplied leads are not used.

Pump end required, ordered separately. A pump end of the same horsepower that fits this motor diameter. Couplings are on our couplings and accessories listing.

Starter or drive required, ordered separately. A magnetic starter with quick-trip overloads, or a drive such as the Franklin X-Drive SUB panel.

Drop cable and splice kit: sized to your setting depth and ordered separately.

Overview

These motors are built for dependable operation in vertical 8 in diameter or larger water wells.

  • Double flanged NEMA mounting design
  • Stainless steel splined shaft
  • StatorShield six feature encapsulation system
  • High-capacity, Kingsbury-type, water lubricated thrust bearing
  • Factory filled with Franklin’s non-toxic water soluble fill solution
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Franklin Electric Warranty

Franklin warrants its products for 12 months from the date of installation, but no more than 24 months from the date of manufacture. Franklin states the motor warranty can be extended to 3 years with Franklin overload-protection controls, and is void if Franklin-supplied leads are not used.

Source: Franklin Electric limited warranty, Submersible Pumps AG/Industrial/Municipal Product Catalog.

Specifications
Model Phase HP Range kW Range Poles RPM Max Ambient Duty
Standard 3 40 - 200 30 - 150 2 3525 86 °F / 30 °C Continuous*
Hi-Temp 75 3 40 - 150 30 - 110 2 3525 167 °F / 75 °C Continuous*

**Source:** `Combo Binder.pdf`, PDF page 152 of 205. * At 0.5 ft/sec flow past motor; Motors are also rated for continuous duty up to 86 °F (30 °C) water temperature with NO FLOW in lakes or in wells 12 inches or larger in diameter; Higher temperature ambient motors are available in the 8 in Hi-Temp motor line

60 Hz ratings. Source: Franklin Electric Submersible Motors and Control Boxes product catalog.

Models & Ratings

47 builds, grouped by HP. Open a group to see its rows.

40 HP · 4 builds
Order No. Type Volts Lead Thrust lb
2396006221 316 SS 460/380 DOL (3) 10000
2791009004 Hi-Temp 75 °C 460/380 DOL (3) 12500
2396008521 Sand Fighter 460/380 DOL (3) 10000
2396108521 Sand Fighter 575 DOL (3) 10000
50 HP · 4 builds
Order No. Type Volts Lead Thrust lb
2396016221 316 SS 460/380 DOL (3) 10000
2791019004 Hi-Temp 75 °C 460/380 DOL (3) 12500
2396018521 Sand Fighter 460/380 DOL (3) 10000
2396118521 Sand Fighter 575 DOL (3) 10000
60 HP · 6 builds
Order No. Type Volts Lead Thrust lb
2396026221 316 SS 460/380 DOL (3) 10000
2791029004 Hi-Temp 75 °C 460/380 DOL (3) 12500
2791029204 Hi-Temp 75 °C - 316 SS 460/380 DOL (3) 12500
2396028521 Sand Fighter 460/380 DOL (3) 10000
2791129004 Hi-Temp 75 °C 575 DOL (3) 12500
2396128521 Sand Fighter 575 DOL (3) 10000
75 HP · 7 builds
Order No. Type Volts Lead Thrust lb
2396036241 316 SS 460/380 DOL (3) 10000
2791039004 Hi-Temp 75 °C 460/380 DOL (3) 12500
2791039204 Hi-Temp 75 °C - 316 SS 460/380 DOL (3) 12500
2396038541 Sand Fighter 460/380 DOL (3) 10000
2396136241 316 SS 575 DOL (3) 10000
2791139004 Hi-Temp 75 °C 575 DOL (3) 12500
2396138541 Sand Fighter 575 DOL (3) 10000
100 HP · 7 builds
Order No. Type Volts Lead Thrust lb
2396046241 316 SS 460/380 DOL (3) 10000
2791049004 Hi-Temp 75 °C 460/380 DOL (3) 12500
2791049204 Hi-Temp 75 °C - 316 SS 460/380 DOL (3) 12500
2396048541 Sand Fighter 460/380 DOL (3) 10000
2396248641 Sand Fighter 460/380 Y-Δ (6) 10000
2396146241 316 SS 575 DOL (3) 10000
2396148541 Sand Fighter 575 DOL (3) 10000
125 HP · 6 builds
Order No. Type Volts Lead Thrust lb
2391056204 316 SS 460/380 DOL (3) 10000
2791059004 Hi-Temp 75 °C 460/380 DOL (3) 12500
2791059204 Hi-Temp 75 °C - 316 SS 460/380 DOL (3) 12500
2391058504 Sand Fighter 460/380 DOL (3) 10000
2391156204 316 SS 575 DOL (3) 10000
2391158504 Sand Fighter 575 DOL (3) 10000
150 HP · 7 builds
Order No. Type Volts Lead Thrust lb
2391066204 316 SS 460/380 DOL (3) 10000
2791069004 Hi-Temp 75C 460/380 DOL (3) 12500
2791069204 Hi-Temp 75C - 316 SS 460/380 DOL (3) 12500
2391068504 Sand Fighter 460/380 DOL (3) 10000
2391268604 Sand Fighter 460/380 Y-Δ (6) 10000
2391166204 316 SS 575 DOL (3) 10000
2391168504 Sand Fighter 575 DOL (3) 10000
175 HP · 3 builds
Order No. Type Volts Lead Thrust lb
2391076204 316 SS 460/380 DOL (3) 10000
2391078504 Sand Fighter 460/380 DOL (3) 10000
2391178504 Sand Fighter 575 DOL (3) 10000
200 HP · 3 builds
Order No. Type Volts Lead Thrust lb
2391086204 316 SS 460/380 DOL (3) 10000
2391088504 Sand Fighter 460/380 DOL (3) 10000
2391188504 Sand Fighter 575 DOL (3) 10000

Source: Franklin Electric Submersible Motors and Control Boxes product catalog and Franklin price list effective 15 Jun 2026. Length is Franklin's motor “L” dimension; Franklin publishes motor weights as shipping weights, so they are not shown. A blank means Franklin publishes no figure for that build.

Before You Buy — The Limits That Decide the Fit
  • Continuous duty to 86 °F (30 °C) at 0.5 ft/sec flow past the motor; Hi-Temp 75 builds to 167 °F (75 °C).
  • Install vertically in an 8 in diameter or larger well.
  • All models are VFD compatible; the on-winding SubTrol heat sensor works with SubMonitor Connect.
  • Use Franklin-supplied leads: Franklin voids the motor warranty otherwise. Size the cable from Franklin's AIM manual.
Materials of Construction
Part Material
Shaft Extension Per standard water well
Shaft Mechanical Seal Sand Fighter Seal System
Shaft Slinger Nitrile
Stator Shell 316 SS
Thrust Bearing Rating (86 °F / 30 °C) 10,000 lbs
Mechanical Seal / Rubber Components Nitrile
UL Insulation Class Rating Class F
Motor Ambient Temp. Rating 86 °F / 30 °C
Stator Resin Type FE Standard
Motor Fill Solution (Water Soluble/Non-Toxic) FES91
Accessories
Part No. Description
305516901 Lead, Brass, 13 ft, No Ground
305516902 Lead, Brass, 26 ft, No Ground
305516950 Lead, 316 SS, 13 ft, No Ground
305315901 Lead, 316 SS, 13 ft, No Ground
305315902 Lead, 316 SS, 26 ft, No Ground
156563901 Coupling, 8-inch, #416 SS, 1 in Pump Shaft, 1/4 x 1/4 x 2 Key
156563906 Coupling, 8-inch, #416 SS, 1-3/16 in Pump Shaft, 1/4 x 1/4 x 2 Key
156563902 Coupling, 8-inch, #416 SS, 1-3/16 in Pump Shaft, 5/16 x 5/16 x 2 Key
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
