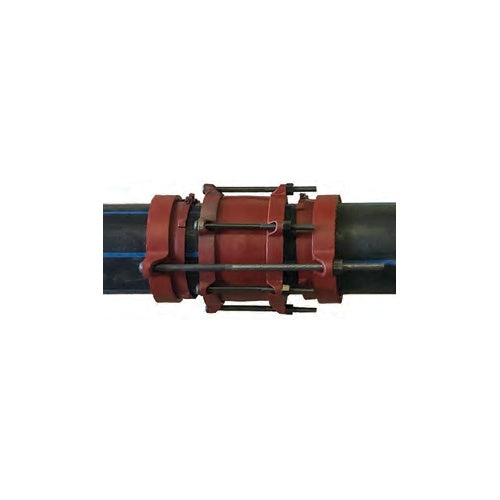

JCM 620 Sur-Grip Bell Joint Restrainer
IPS PVC, C900 PVC and ductile iron · over the bell and low-profile joints
350 PSI on Ductile Iron (2:1 Safety Factor)
235 PSI on DR18 PVC
Serrated Restraining Ring
Compression Follower Rings
IPS PVC, C900 PVC and Ductile Iron
21-63 lb Weight
Description
The JCM 620 Sur-Grip bell joint restrainer anchors IPS PVC, C900 PVC and ductile iron pipe across the bell, flexible couplings and other low-profile joints. A serrated ring grips the pipe and compression follower rings and bolts tie it across the joint.
Sur-Grip restrainers are rated for 235 PSI on DR18 PVC pipe and equal to the pipe rating on other classes, and for 350 PSI on ductile iron pipe with a 2:1 safety factor.
Typical application: Restraint: anchors the pipe across bell and spigot and coupled joints.
Key Features
- Serrated restraining ring grips the pipe
- 350 PSI on ductile iron with a 2:1 safety factor
- 235 PSI on DR18 PVC; equal to the pipe rating on other classes
- Sizes for IPS PVC and for C900 PVC and ductile iron ODs
What Ships and What It Needs to Run
Included: the serrated restraining ring and compression follower rings with bolts and nuts.
Joint to restrain, at install. The restrainer installs over the bell, coupling or low-profile joint and grips the pipe on the restrained side.
Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty
Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.
Working Pressure
350 PSI on ductile iron; 235 PSI on DR18 PVC. JCM rates Sur-Grip restrainers for 350 PSI on ductile iron pipe with a 2:1 safety factor, and for 235 PSI on DR18 PVC pipe, equal to the pipe rating on other PVC classes.
Materials Specifications
| Restraining ring |
Serrated ring body |
| Bolts |
Bolts and compression follower rings, sized in the table |
From the JCM Sur-Grip literature. Request the JCM data sheet for full material detail.
Pipe Applications
IPS PVC, C900 PVC and ductile iron pipe.
Sizes
| Nominal |
Pipe OD |
Pipe |
Ring width |
Bolts / rods |
| 6 in |
6.63 in |
IPS PVC |
2-1/2 in |
3/4 x 12 in (x2) |
| 6 in |
6.90 in |
C900 PVC or Ductile Iron |
2-1/2 in |
3/4 x 12 in (x2) |
| 8 in |
8.63 in |
IPS PVC |
2-3/4 in |
3/4 x 14 in (x2) |
| 8 in |
9.05 in |
C900 PVC or Ductile Iron |
2-3/4 in |
3/4 x 14 in (x2) |
| 12 in |
13.20 in |
C900 PVC or Ductile Iron |
2-3/4 in |
3/4 x 18-1/2 in (x4) |
From the JCM Sur-Grip size tables.
Before You OrderConfirm the pipe OD and type (IPS PVC, C900 PVC, HDPE or ductile iron) before ordering.
For a submittal or an odd OD, email sales@watermainsupply.com with the pipe OD, pipe type and line content.
