JCM 610 Sur-Grip Fitting Restrainer
Anchors pipe to MJ and lugged fittings · IPS PVC, C900 PVC, HDPE, ductile iron
350 PSI on Ductile Iron (2:1 Safety Factor)
235 PSI on DR18 PVC
Serrated Restraining Ring
T-Head Bolts
IPS PVC, C900 PVC and Ductile Iron
15-150 lb Weight
Description

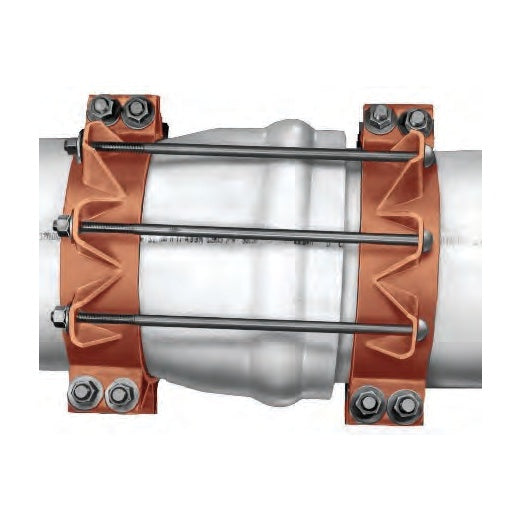

The JCM 610 Sur-Grip fitting restrainer anchors IPS PVC, C900 PVC, HDPE and ductile iron pipe to mechanical joint fittings and other fittings provided with anchor lugs. A serrated ring grips the pipe and T-head bolts tie it to the fitting.
From 14 through 30 in it is a fabricated design with restraining rods, for C900 PVC and HDPE pipe.
Sur-Grip restrainers are rated for 235 PSI on DR18 PVC pipe and equal to the pipe rating on other classes, and for 350 PSI on ductile iron pipe with a 2:1 safety factor.
Typical application: Restraint: anchors the pipe to mechanical joint and lugged fittings.
Key Features
- Serrated restraining ring grips the pipe
- 350 PSI on ductile iron with a 2:1 safety factor
- 235 PSI on DR18 PVC; equal to the pipe rating on other classes
- Sizes for IPS PVC and for C900 PVC and ductile iron ODs
- 14-30 in fabricated design for C900 PVC and HDPE; not for rigid pipe (ductile iron, cast iron, AC, steel) in those sizes
What Ships and What It Needs to Run
Included: the serrated restraining ring and T-head bolts and nuts (restraining rods and bolts on 14-30 in).
Fitting with anchor lugs, at install. The restrainer ties the pipe to a mechanical joint or other fitting provided with anchor lugs.
Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty
Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.
Working Pressure
350 PSI on ductile iron; 235 PSI on DR18 PVC. JCM rates Sur-Grip restrainers for 350 PSI on ductile iron pipe with a 2:1 safety factor, and for 235 PSI on DR18 PVC pipe, equal to the pipe rating on other PVC classes.
Materials Specifications
| Restraining ring |
Serrated ring body |
| Bolts |
T-head bolts, sized in the table |
From the JCM Sur-Grip literature. Request the JCM data sheet for full material detail.
Pipe Applications
IPS PVC, C900 PVC, HDPE and ductile iron pipe to MJ and lugged fittings; 14-30 in for C900 PVC and HDPE only.
Sizes
| Nominal |
Pipe OD |
Pipe |
Ring width |
Bolts / rods |
| 6 in |
6.63 in |
IPS PVC |
2-1/2 in |
3/4 x 9-1/2 in (x2) |
| 6 in |
6.90 in |
C900 PVC or Ductile Iron |
2-1/2 in |
3/4 x 9-1/2 in (x2) |
| 8 in |
8.63 in |
IPS PVC |
2-3/4 in |
3/4 x 9-1/2 in (x2) |
| 8 in |
9.05 in |
C900 PVC or Ductile Iron |
2-3/4 in |
3/4 x 9-1/2 in (x2) |
| 12 in |
13.20 in |
C900 PVC or Ductile Iron |
2-3/4 in |
3/4 x 9-1/2 in (x4) |
| 14 in |
15.30 in |
C900 PVC or HDPE |
5 in |
6 rods 3/4 x 14 in; 4 bolts 1 x 9 in |
| 16 in |
17.40 in |
C900 PVC or HDPE |
5 in |
6 rods 3/4 x 14 in; 4 bolts 1 x 9 in |
| 18 in |
19.50 in |
C900 PVC or HDPE |
5 in |
8 rods 3/4 x 14 in; 4 bolts 1 x 9 in |
| 20 in |
21.60 in |
C900 PVC or HDPE |
7 in |
8 rods 3/4 x 16 in; 6 bolts 1 x 9 in |
| 24 in |
25.80 in |
C900 PVC or HDPE |
7 in |
12 rods 3/4 x 16 in; 6 bolts 1 x 9 in |
From the JCM Sur-Grip size tables.
Before You OrderConfirm the pipe OD and type (IPS PVC, C900 PVC, HDPE or ductile iron) before ordering.
For a submittal or an odd OD, email sales@watermainsupply.com with the pipe OD, pipe type and line content.
