Grundfos 300S SP 6 in Submersible Pump End

HP - Motor Dia: 3 HP - 4 in Motor
Model - Head: 300S30-1B - 29-30 ft at 300 GPM

Product variant with selected options does not exist!

Price
$1,808.29
Coupon 5% off applied automatically in your cart. No code needed.
SKU: 14B700C1
Weight : 20.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Grundfos · Submersible Pump End
300S SP 6 in Pump End
300 GPM class stainless steel SP pump end, motor not included: 30 builds for 3 to 75 HP motors, on 4, 6 and 8 in motors.
300 GPM Rated Flow
3-75 HP
29-760 ft Nominal Head
3 in and 4 in NPT Discharge
4, 6 and 8 in Motor Fit
Grundfos Motor Flange
Built-In Check Valve
AISI 304 Stainless Steel
cCSAus
5.8-7.6 in Dia x 14.9-92.9 in L
14.6-115.5 lb Weight
Overview

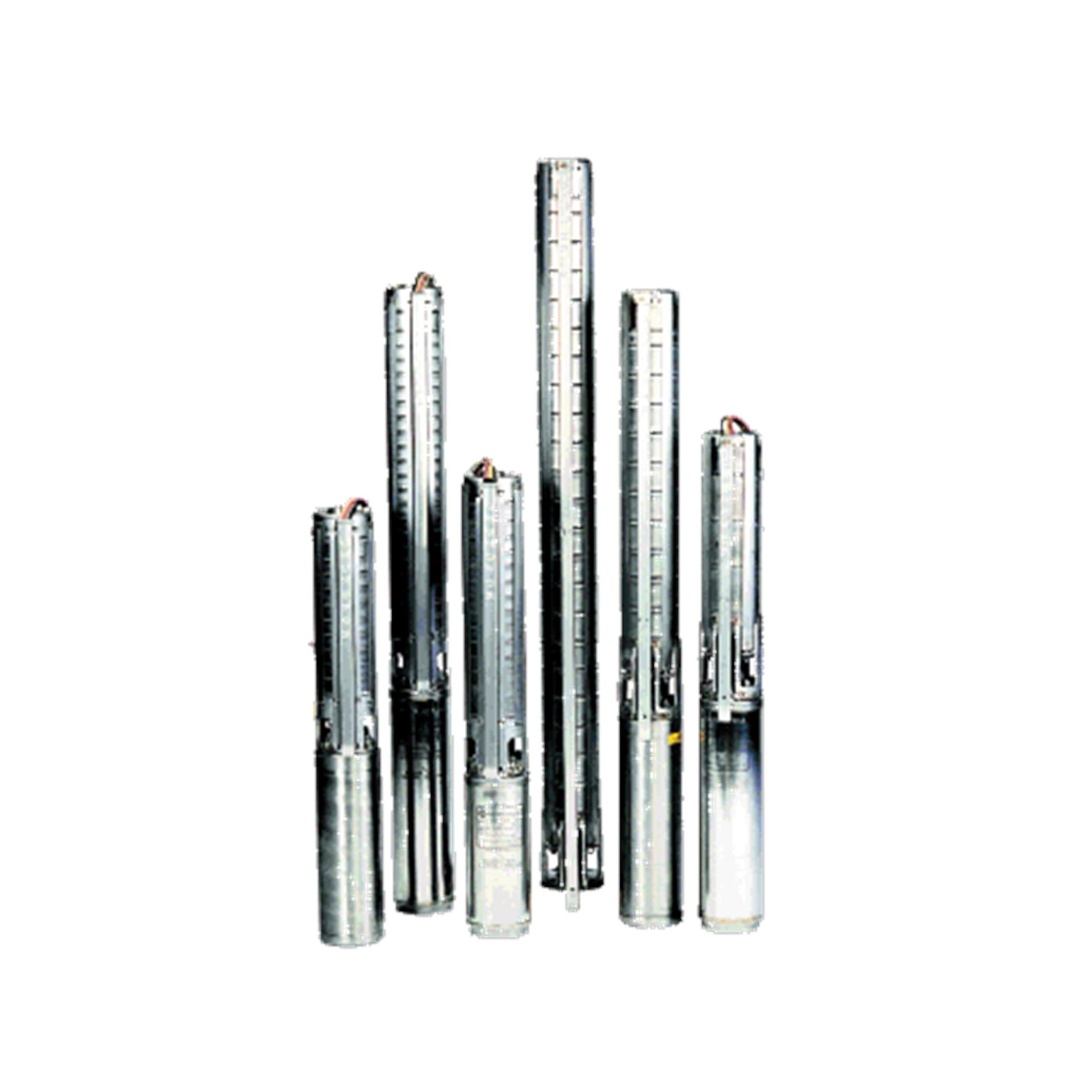

The Grundfos 300S is the 300 GPM class of the SP 6 in submersible range, sold here as the pump end alone: stainless steel chambers and impellers with a built-in check valve, ready to mount on a submersible motor. Pump and impellers are AISI 304 stainless steel. Use it to rebuild an SP installation on a sound motor, or to build a pump around a motor you already have; the complete 300S pumps with Grundfos motors are listed separately.

Every 300S pump end has a Grundfos motor flange. Match the motor horsepower and diameter in the selector; send us the motor model and we will confirm the fit.

What Ships and What It Needs to Run

Included: the Grundfos 300S SP pump end with its built-in check valve.

Submersible motor required, ordered separately. The pump end mounts on a 4 in, 6 in or 8 in submersible motor with a Grundfos motor flange, plus the motor’s control: a control box for a single-phase 3-wire motor, or a starter or drive for a three-phase motor. The motor horsepower and diameter for each build are in the Motor by Horsepower table under Models & Performance.

Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Warranty

24 months from date of installation, but not more than 30 months from date of manufacture. In Grundfos's words, products are “warranted to the original user only to be free of defects in material and workmanship”; the full terms are in the installation and operating instructions on the Data Sheet tab.

Specifications
Specification Value
Rated flow 300 GPM
Motor horsepower 3 to 75 HP
Motor 4 in, 6 in or 8 in submersible motor, Grundfos motor flange
Discharge 3 in and 4 in NPT
Minimum well 6 / 8 in (6 in; 8 in for the sleeve (DS) builds)
Check valve Built in
Liquid temperature Up to 140°F (60°C) at the pump end; the motor sets the working limit
Approvals cCSAus and CULDWUS (Grundfos Product Center codes)
Curve tolerance ISO 9906
Included Pump end only; motor and its control ordered separately
Models & Performance — Will It Do What You Need?

Each table reads like the curve: the head the pump end on its matching motor adds at shut-off, along its curve and at the rated flow of 300 GPM, out to the end of the published curve. Pick a model whose head at your flow covers the pumping level, the pressure you need at the surface (2.31 ft per psi) and pipe friction.

300S · rated 300 GPM · 3 to 20 HP · 9 models
Model HP 0 GPM (Shut-off) 75 GPM 187 GPM 300 GPM (Rated) 374 GPM
300S30-1B 3 48 43 31 29-30 2
300S50-1 5 63 62 46 38 19
300S50-2BB 5 90 83 66 57 15
300S75-2 7-1/2 130 126 98 77-78 48
300S100-3A 10 177 171 135 107 61
300S150-3 15 200 193 152 119 77
300S150-4AA 15 224 217 173 138-139 77
300S150-4 15 267 257 205 157-158 105
300S200-5AA 20 295 286 232 179-180 108
300S · rated 300 GPM · 20 to 40 HP · 9 models
Model HP 0 GPM (Shut-off) 75 GPM 187 GPM 300 GPM (Rated) 374 GPM
300S200-5 20 334 321 257 200-201 134
300S200-6B 20 385 372 302 222-224 156
300S250-6 25 410 393 317 243-244 170
300S250-7AA 25 — — — 260-262 —
300S300-7 30 473 455 368 283-285 198
300S300-8 30 540 519 420 321-324 223
300S300-9B 30 580 556 451 343-346 232
300S400-9 40 604 579 468 370 249
300S400-10 40 680 653 531 409 287
300S · rated 300 GPM · 40 to 75 HP · 8 models
Model HP 0 GPM (Shut-off) 75 GPM 187 GPM 300 GPM (Rated) 374 GPM
300S400-11 40 747 717 582 442 315
300S500-12 50 820 790 644 491 349
300S500-13 50 887 853 694 529 377
300S600-14 60 952 914 745 594 405
300S600-15 60 1040 1000 819 606-629 454
300S750-16 75 1105 1063 872 678 483
300S750-17 75 1171 1127 924 719 513
300S750-18 75 1252 1206 989 760 549

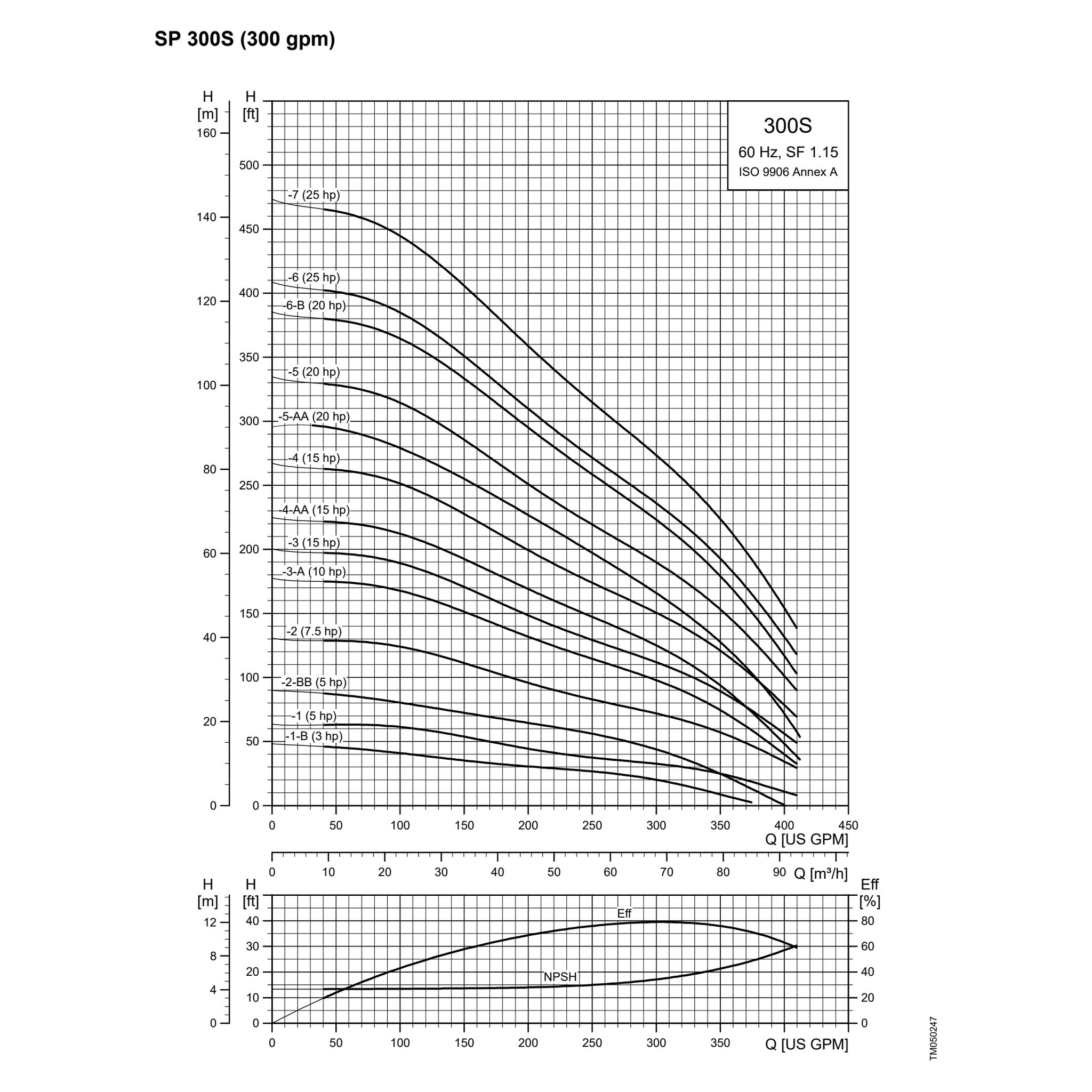

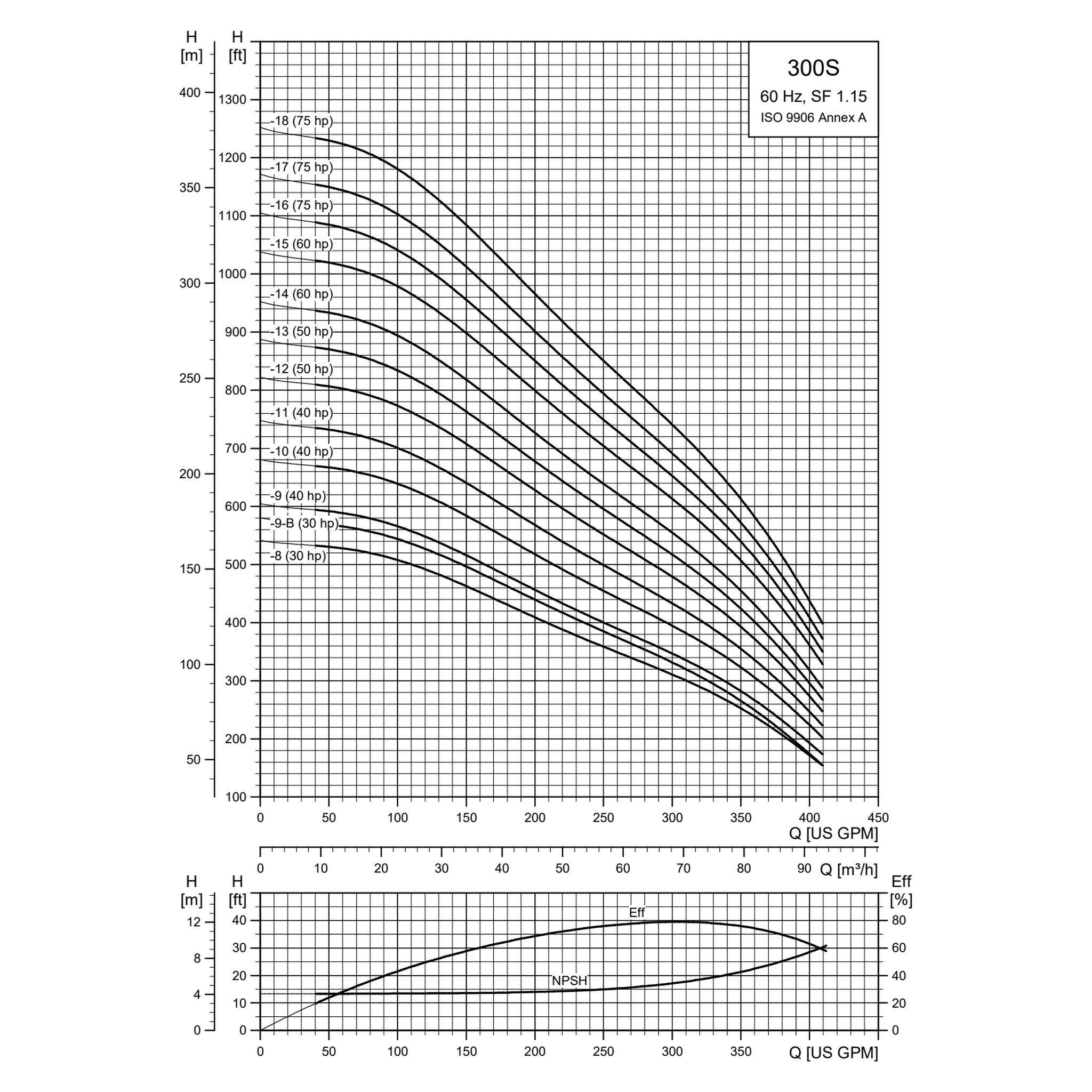

Total head in feet. The shut-off and flow columns are read from the Grundfos 60 Hz curves, digitized from the published vector curves in the Grundfos SP 300S data sheet (60 Hz), at the nearest published point and rounded down. The (Rated) column is the nominal head Grundfos prints for each model at its rated flow, verbatim; where two figures are shown, builds on different motors or voltages differ slightly. 300S: curves end at 374 GPM to 412 GPM; the last column is the last flow every 300S curve reaches. No published curve for 300S250-7AA: rated figure only, full curve on request. 1 ft of head = 0.433 PSI. Full curves are in the product images and on the Data Sheet tab.

Motor by Horsepower

Motor HP Motor Models
3 HP 4 in 300S30-1B
5 HP 4 in 300S50-1, 300S50-2BB
7-1/2 HP 4 in or 6 in 300S75-2
10 HP 4 in or 6 in 300S100-3A
15 HP 6 in 300S150-3, 300S150-4AA, 300S150-4
20 HP 6 in 300S200-5AA, 300S200-5, 300S200-6B
25 HP 6 in 300S250-6, 300S250-7AA
30 HP 6 in 300S300-7, 300S300-8, 300S300-9B
40 HP 6 in 300S400-9, 300S400-10, 300S400-11
50 HP 6 in 300S500-12, 300S500-13
60 HP 6 in or 8 in 300S600-14, 300S600-15
75 HP 8 in 300S750-16, 300S750-17, 300S750-18

Grundfos US price list, January 2026. Grundfos motors for these builds are on our Grundfos MS 4 in motor, Grundfos MS 6 in motor and Grundfos MMS 8 in and 10 in motor listings. Add the motor's control: a control box for a single-phase 3-wire motor, a starter or drive for a three-phase motor.

Before You Buy — The Limits That Decide the Fit
Check What to confirm
Motor A 4 in, 6 in or 8 in submersible motor of the horsepower in the selector, with a Grundfos motor flange; ordered separately
Motor control Control box for a single-phase 3-wire motor; starter or drive for a three-phase motor
Well size Casing ID at least 6 in; 8 in for the sleeve (DS) builds
Duty point Choose the model from the Grundfos curve at your flow and total head. Send us the pumping level, pipe run and pressure and we will check it against the curve
Materials of Construction
Part Material
Pump Stainless steel, EN 1.4301 (AISI 304)
Impellers Stainless steel, EN 1.4301 (AISI 304)

Source: Grundfos Product Center.

For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
