Goulds Water Technology

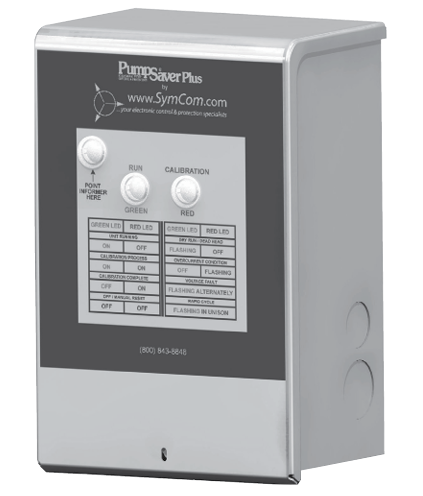

PumpSaver Motor Protection
Electronic motor protection for pump motors — guards against dry-run, rapid cycling, and over/under-voltage. Single- and three-phase models.
Dry-Run Protection
Rapid-Cycle Protection
Voltage Protection
Single & 3-Phase
QD-Box Insider
Genuine Goulds Water Technology equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial distributor.
Overview
PumpSaver Plus devices protect pump motors from the most common causes of failure — running dry, rapid cycling, and over/under-voltage. The Insider models (SymCom 111-Insider-P / 231-Insider-P) install inside a single-phase 3-wire quick-disconnect control box and need no enclosure; enclosed NEMA 3R units mount externally; the 777-KW/HP relay protects three-phase motors; and the INFORMER is a fiber-optic diagnostic tool for single-phase PumpSaver models.
Select your model / configuration above.
Key Features
-
Dry-Run Protection — Shuts the motor down before dry-running causes damage.
-
Rapid-Cycle Protection — Prevents short-cycling that burns out motors and switches.
-
Voltage Protection — Guards against over- and under-voltage conditions.
-
QD-Box Insiders — Insider models fit inside Goulds Water Technology and Pentair single-phase quick-disconnect control boxes — no enclosure required.
-
Enclosed NEMA 3R — Externally-mounted NEMA 3R units for 115 V and 230 V single-phase motors.
-
3-Phase & Diagnostics — 777-KW/HP relay for three-phase motors; INFORMER fiber-optic tool reads single-phase fault history.
Specifications
| Product |
PumpSaver Plus electronic motor protection |
| Protects Against |
Dry-run, rapid cycle, over/under-voltage |
| Insiders (SymCom) |
111-Insider-P (115 V) & 231-Insider-P (230 V); fit 3-wire QD boxes |
| Single Phase |
115 V and 230 V models (0.33 – 3 HP) |
| Three Phase |
777-KW/HP relay, 200–480 V (0.33 – 150 HP) |
| Enclosures |
Insider (in QD box) or NEMA 3R enclosed |
| Diagnostics |
INFORMER fiber-optic handheld tool for single-phase units |
Models in This Listing
| Model |
Rating |
Description |
| 111Insider |
1/3-1HP, 115 V, 1Ph |
Pump protection, fits 3-wire QD box (111-Insider-P) |
| 231Insider |
1/3-1HP, 230 V, 1Ph |
Pump protection, fits 3-wire QD box (231-Insider-P) |
| 111 |
115 V, 1Ph |
PumpSaver 111P, no enclosure |
| 1113RL |
115 V, 1Ph |
PumpSaver 111P-ENCL, NEMA 3R QD enclosure |
| 233153RL |
1/3-1-1/2HP, 230 V, 1Ph |
PumpSaver 233P-1.5-ENCL, NEMA 3R QD enclosure |
| 2333RL |
1/3-3HP, 230 V, 1Ph |
PumpSaver 233P-ENCL, NEMA 3R QD enclosure |
| 777KWHP |
1/3-150HP, 200-480 V, 3Ph |
3-phase motor/pump overload relay |
| INFORMER |
- |
Handheld diagnostic tool, single-phase PumpSaver |
Before You OrderMatch the model to your motor voltage, phase and horsepower. Insider models require a compatible 3-wire quick-disconnect box. Wire per local and National Electrical Code requirements.
