Dresser Style 96 Gasket - 500 PSIG End Gaskets

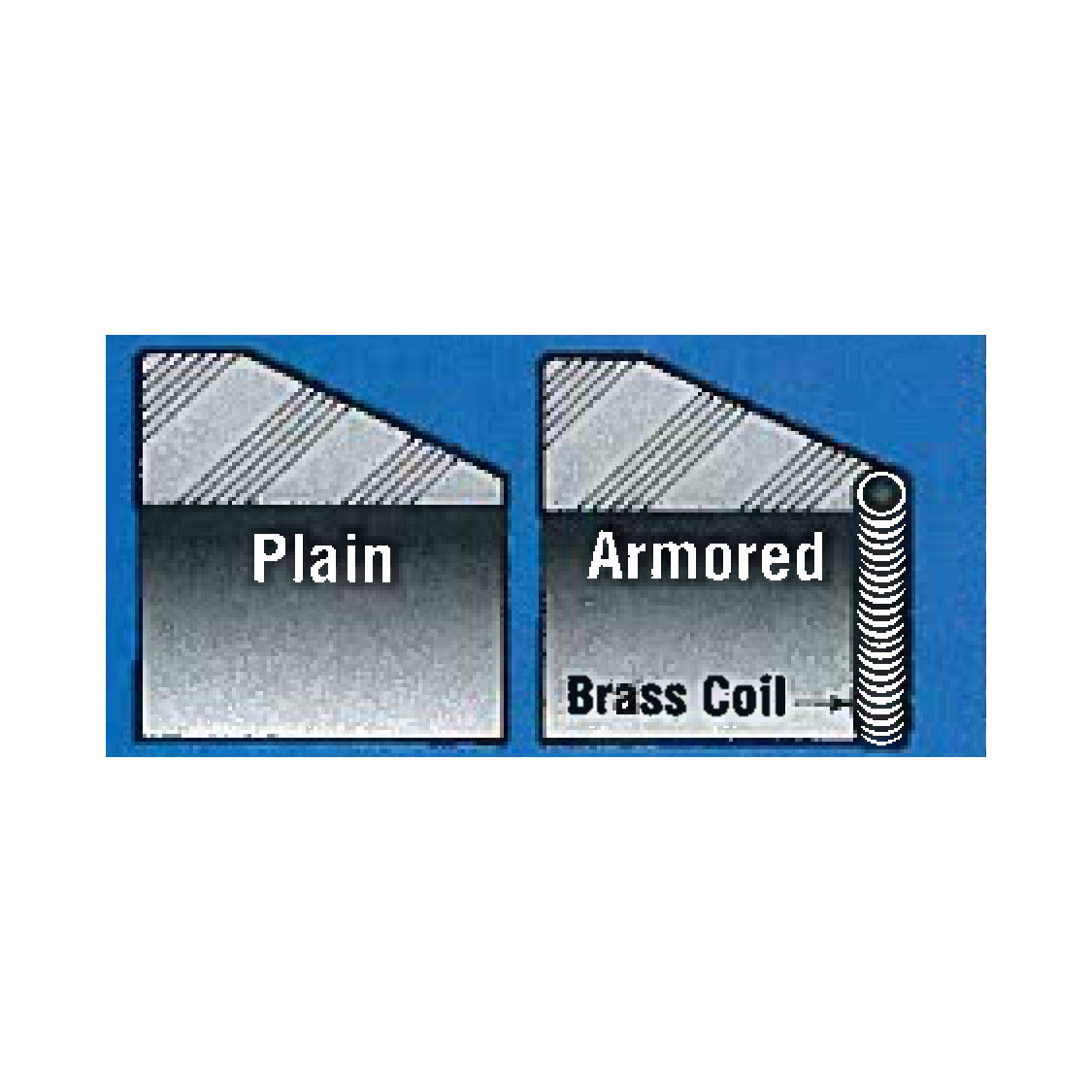

Dresser Style 96 Gasket dimension drawing

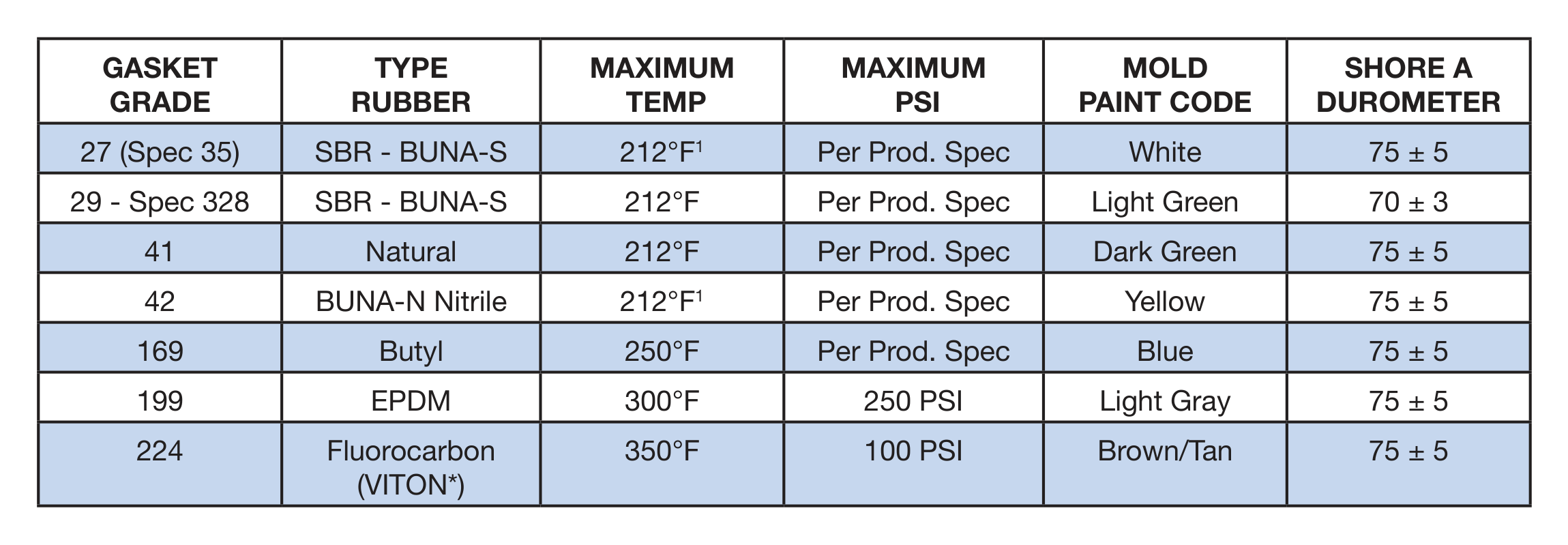

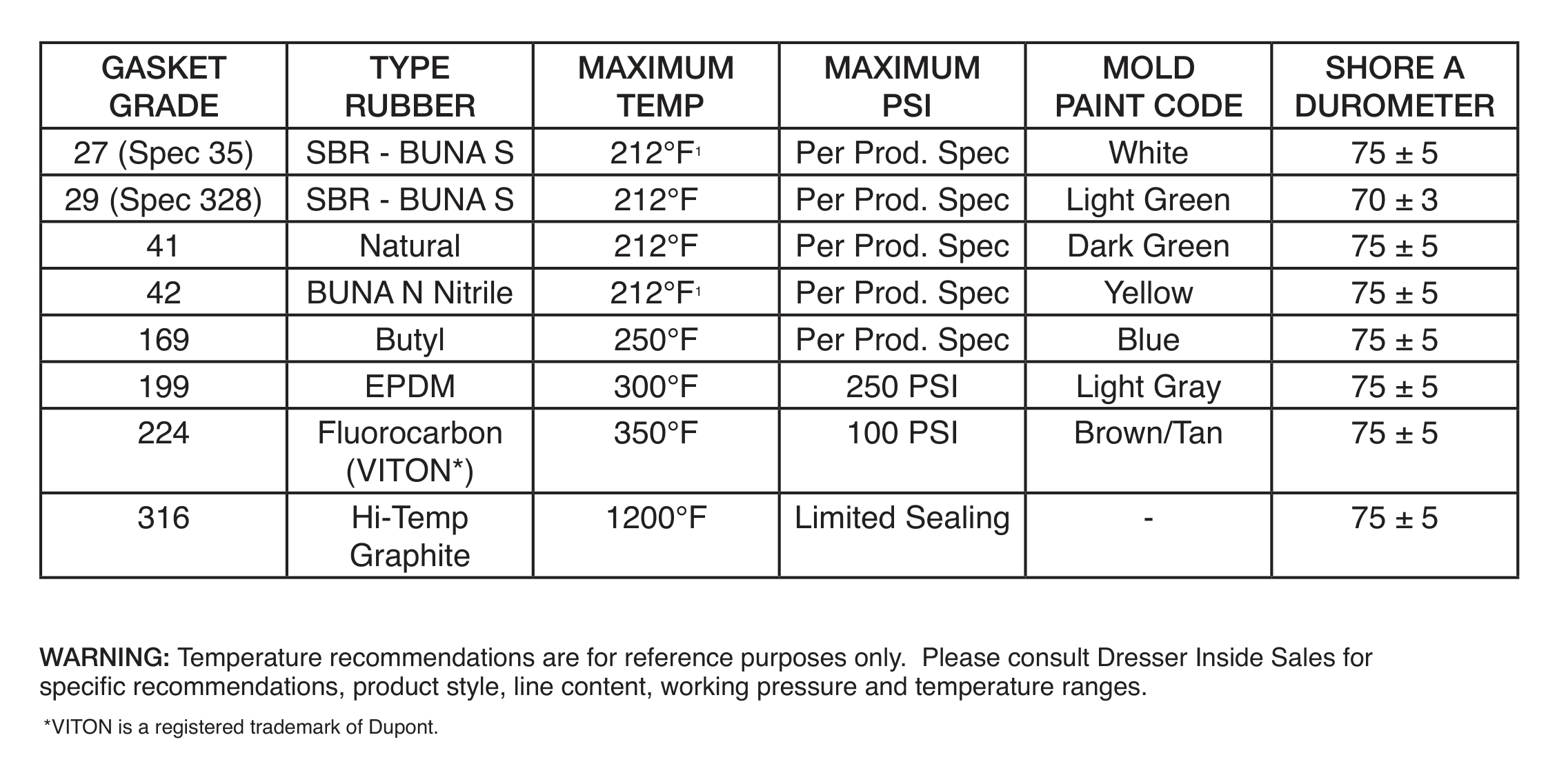

Dresser Style 96 Gasket specification table
Dresser Style 96 Gasket specification table
Dresser Style 96 Gasket specification table
Dresser Style 96 Gasket specification table
Dresser Style 96 Gasket - 500 PSIG End Gaskets
Dresser Style 96 Gasket dimension drawing
Dresser Style 96 Gasket specification table
Dresser Style 96 Gasket specification table
Dresser Style 96 Gasket specification table
Dresser Style 96 Gasket specification table

Dresser Style 96 Gasket - 500 PSIG End Gaskets

Product Type: End Gasket
Nominal Size (inch): 6 (6.625 OD)

Product variant with selected options does not exist!
$879.54
SKU: 0093-0001-901
Weight : 0.4 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Gasket
Style 96 Gasket
500 PSIG end gaskets for the Dresser Style 96 fabricated split sleeve, 6 in to 24 in.
500 PSIG
For Style 96 Split Sleeves
6 in to 24 in
0.4-4.7 lb Weight
Overview

End gaskets for the Dresser Style 96 split sleeve, rated to 500 PSIG, each matched to a specific pipe OD from 6 in to 24 in.

Application: Replacing the gaskets in a Dresser Style 96 when the joint is reworked or reinstalled.

  • One end gasket per variant
  • Gaskets have a shelf life: see the storage bulletin on the Data Sheet tab
  • Every variant ends with the Dresser part number
What Ships and What It Needs to Run

Included: gasket(s) as listed in the option.

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

Working Pressure

Rated to 500 PSIG. For gaskets rated above 500 PSIG, ask us for a quote.

Source: Dresser product literature. The rating on the product label is the actual rating of each part.

Before You Order. Confirm the coupling or sleeve style, nominal size and measured pipe OD before ordering. Order end and side gaskets together where the joint uses both. For other sizes, builds or a factory submittal, email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet

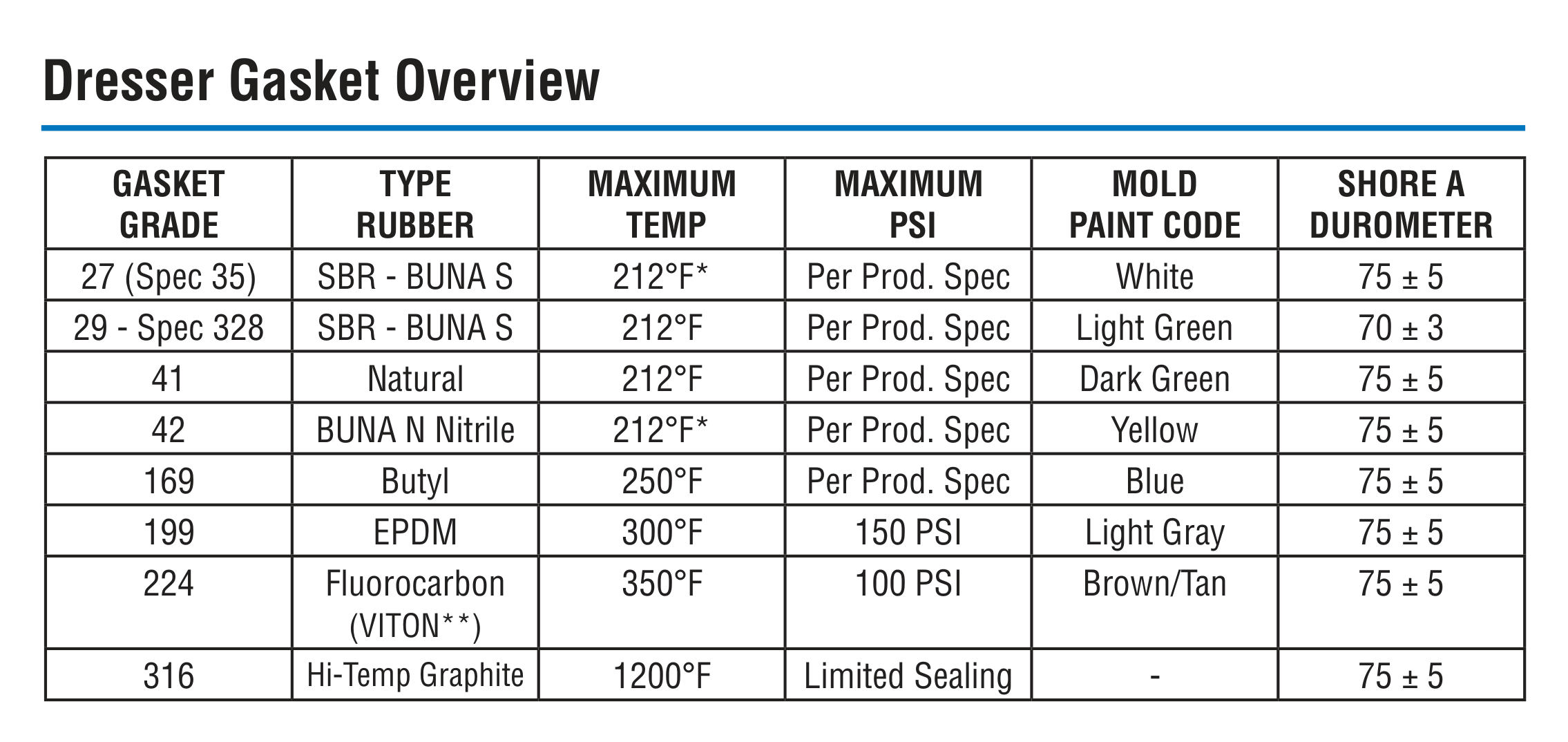

Gas Repair Products Catalog Dresser Gasket Grade Overview Gasket Shelf Life and Storage Bulletin
Videos

Product videos are being added to this listing. For a walkthrough in the meantime, email sales@watermainsupply.com.
