Dresser Style 80 Gasket - End, Side & Grommet

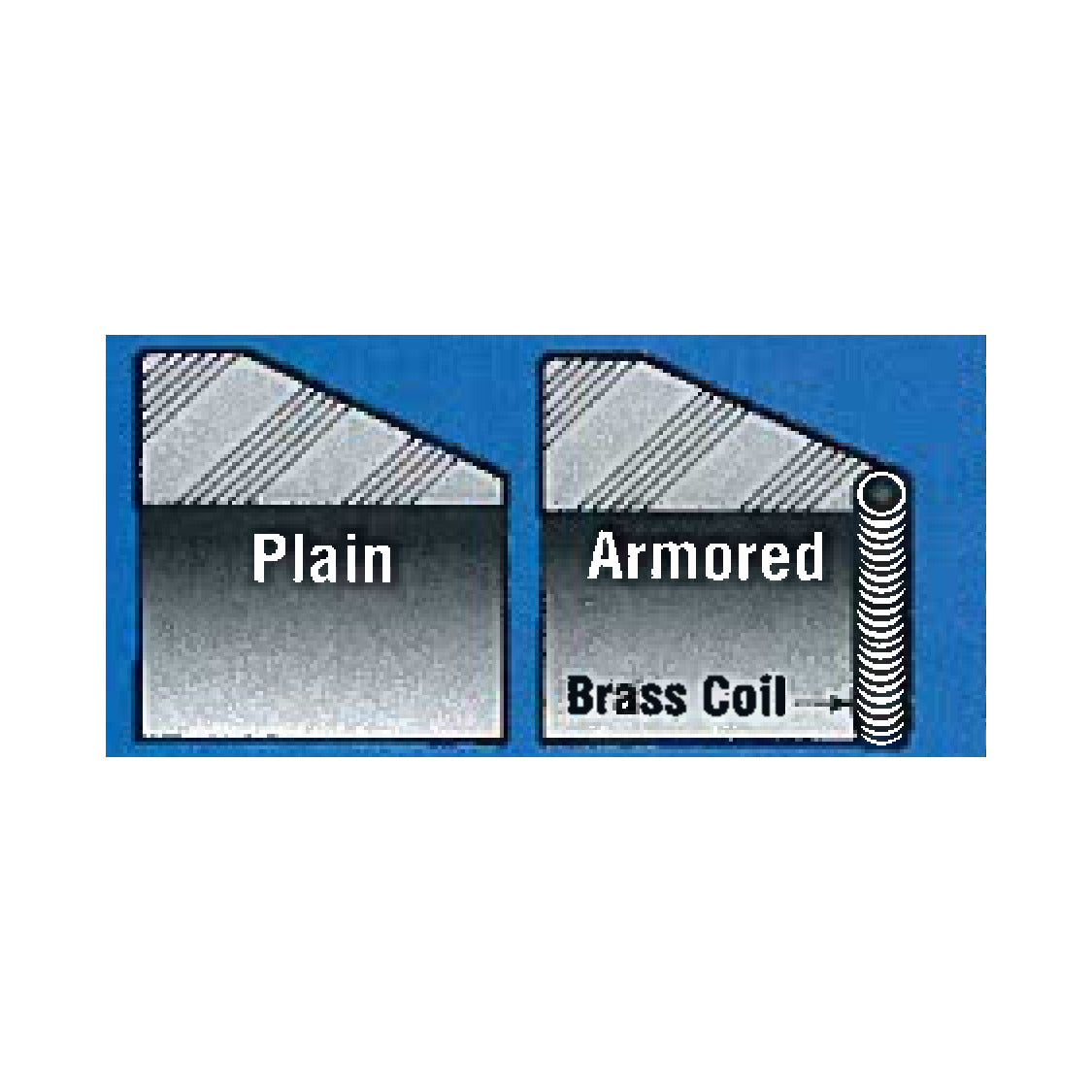

Dresser Style 80 Gasket dimension drawing

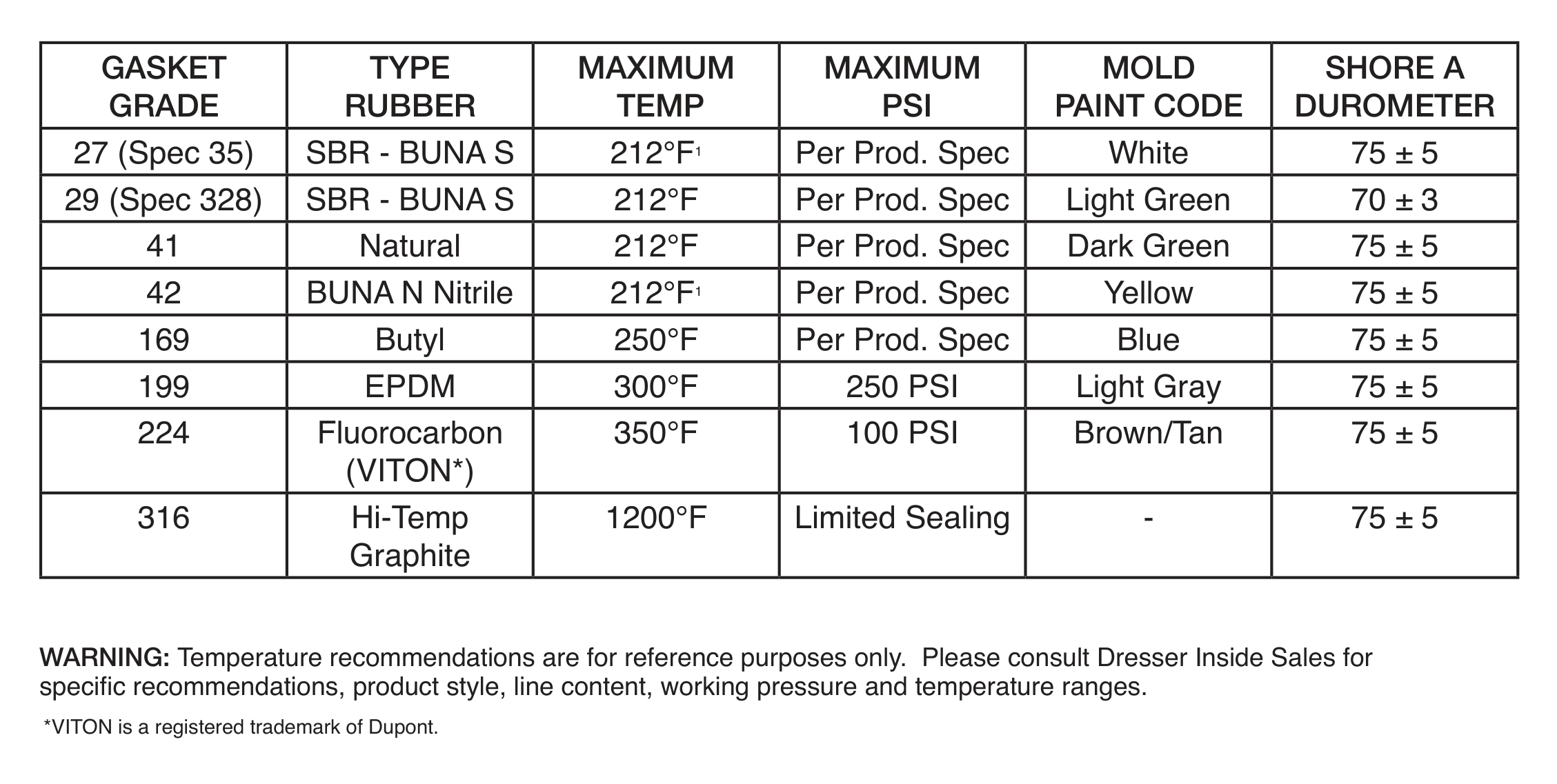

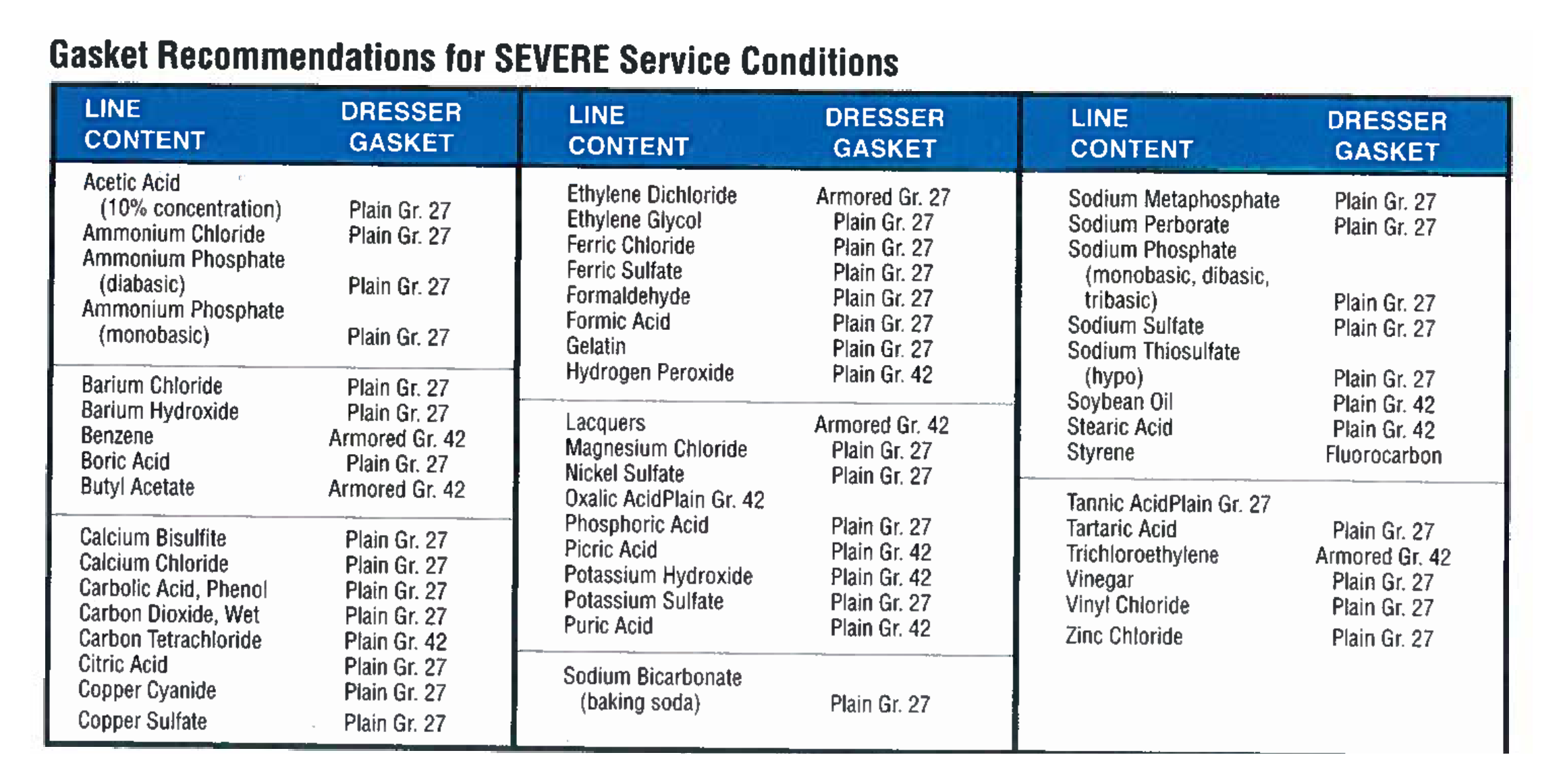

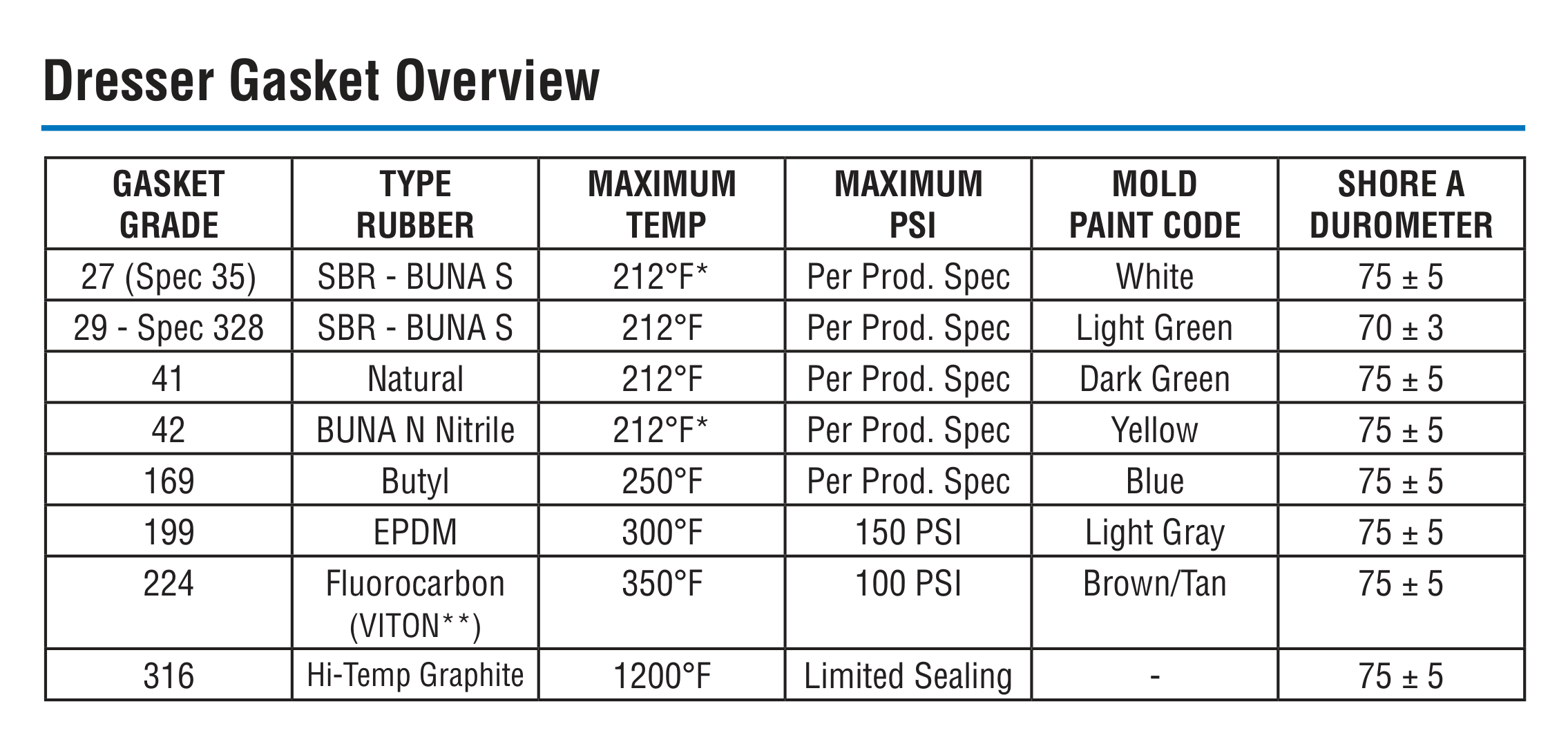

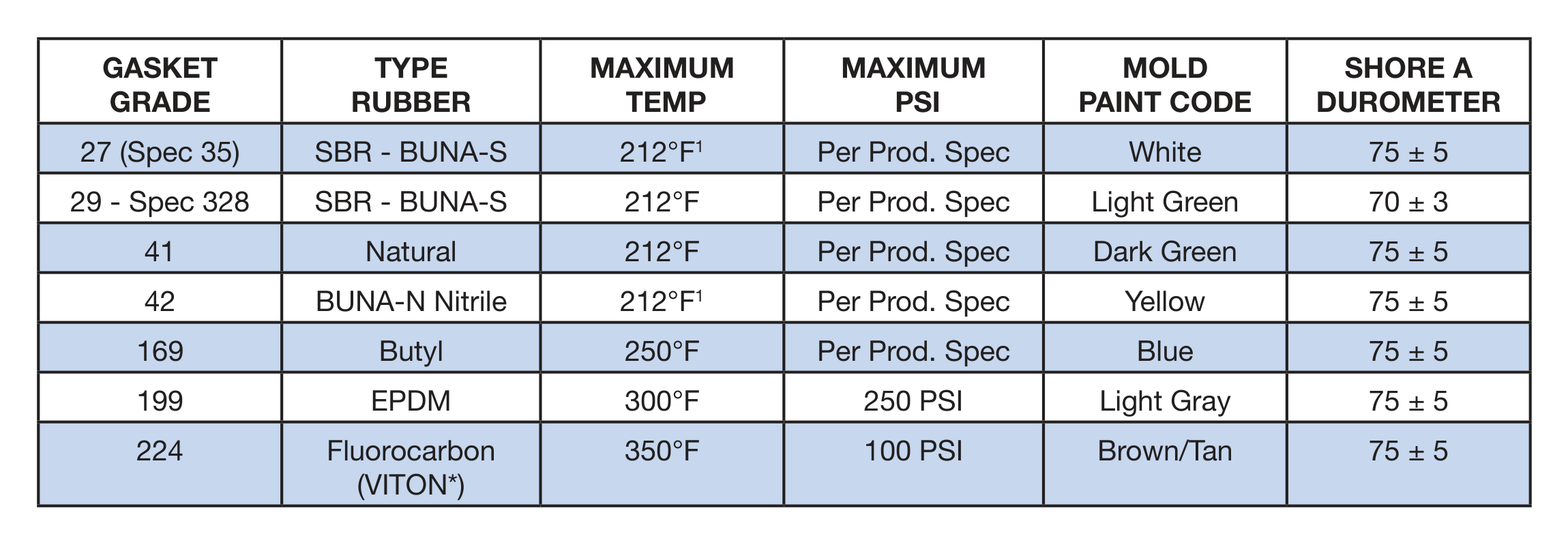

Dresser Style 80 Gasket specification table
Dresser Style 80 Gasket specification table
Dresser Style 80 Gasket specification table
Dresser Style 80 Gasket specification table
Dresser Style 80 Gasket - End, Side & Grommet
Dresser Style 80 Gasket dimension drawing
Dresser Style 80 Gasket specification table
Dresser Style 80 Gasket specification table
Dresser Style 80 Gasket specification table
Dresser Style 80 Gasket specification table

Dresser Style 80 Gasket - End, Side & Grommet

Product Type: End Gasket
Nominal Size (inch): 4 std & Long (4.800 OD)

Product variant with selected options does not exist!
$242.74
SKU: 0080-0013-901
Weight : 0.87 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Gasket
Style 80 Gasket

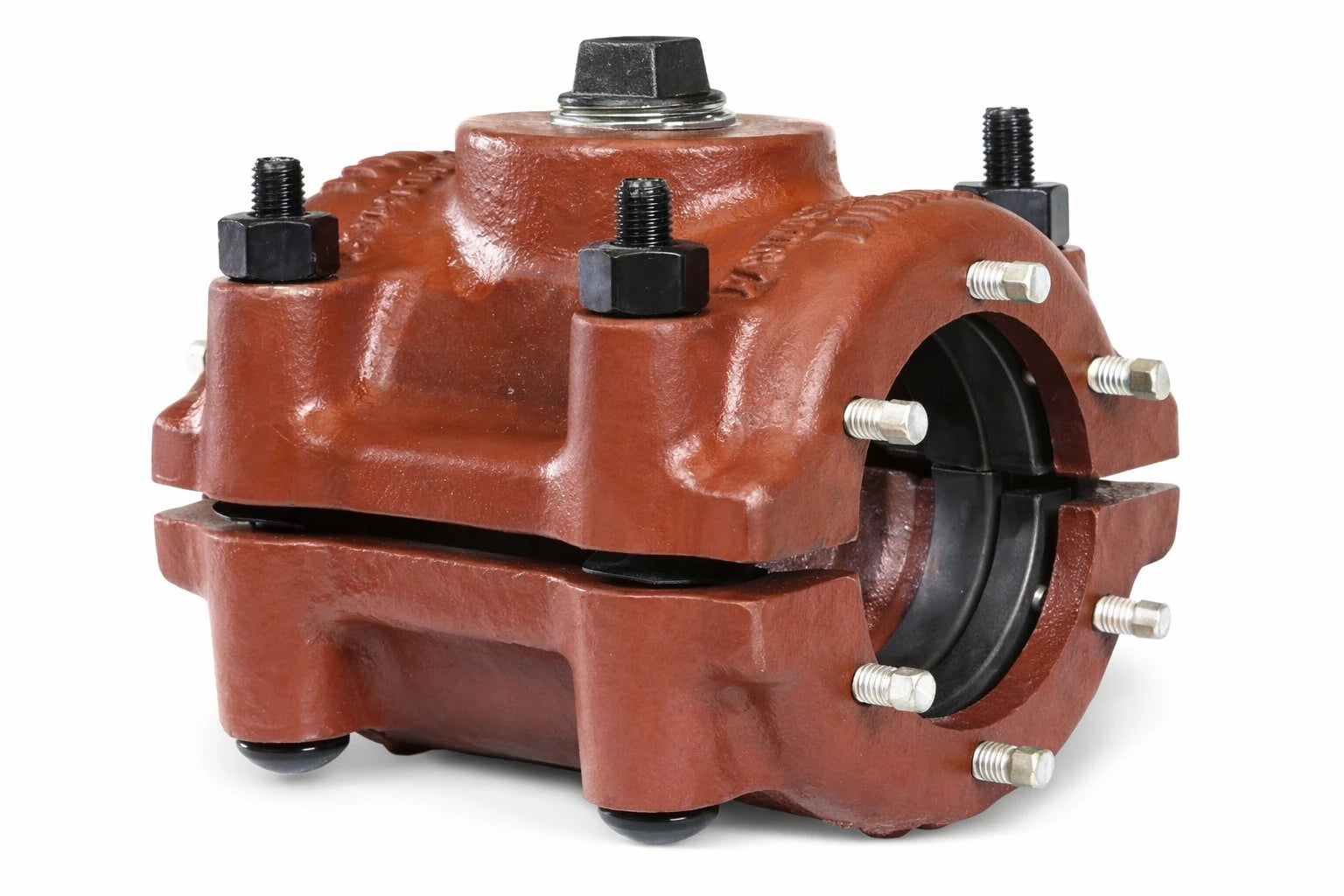

Replacement end gaskets, side gaskets and grommets for the Dresser Style 80 split sleeve.
For Style 80 Split Sleeves
End, Side and Grommet
4 in to 8 in
0.1-1.6 lb Weight
Overview

End gaskets, side gaskets and grommets for the Dresser Style 80 split sleeve, in standard and Long sleeve versions for 4, 6 and 8 in.

Application: Replacing the gaskets in a Dresser Style 80 when the joint is reworked or reinstalled.

  • End gaskets for standard and Long sleeves
  • Side gaskets and grommets
  • Gaskets have a shelf life: see the storage bulletin on the Data Sheet tab
What Ships and What It Needs to Run

Included: gasket(s) as listed in the option.

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

Working Pressure

The gasket rating follows the Style 80 sleeve it is installed in.

Source: Dresser product literature. The rating on the product label is the actual rating of each part.

Materials Specifications
Gasket grade Dresser Grade 29 (Spec 328) SBR, 212°F max, light green mold code

Source: Dresser Gas Repair Products brochure and gasket grade chart.

Before You Order. Confirm the coupling or sleeve style, nominal size and measured pipe OD before ordering. Order end and side gaskets together where the joint uses both. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet
Water Repair Products Catalog Dresser Gasket Grade Overview Gasket Shelf Life and Storage Bulletin
Videos

Product videos are being added to this listing. For a walkthrough in the meantime, email sales@watermainsupply.com.
