Dresser Style 54 Gasket - End & Side Gaskets

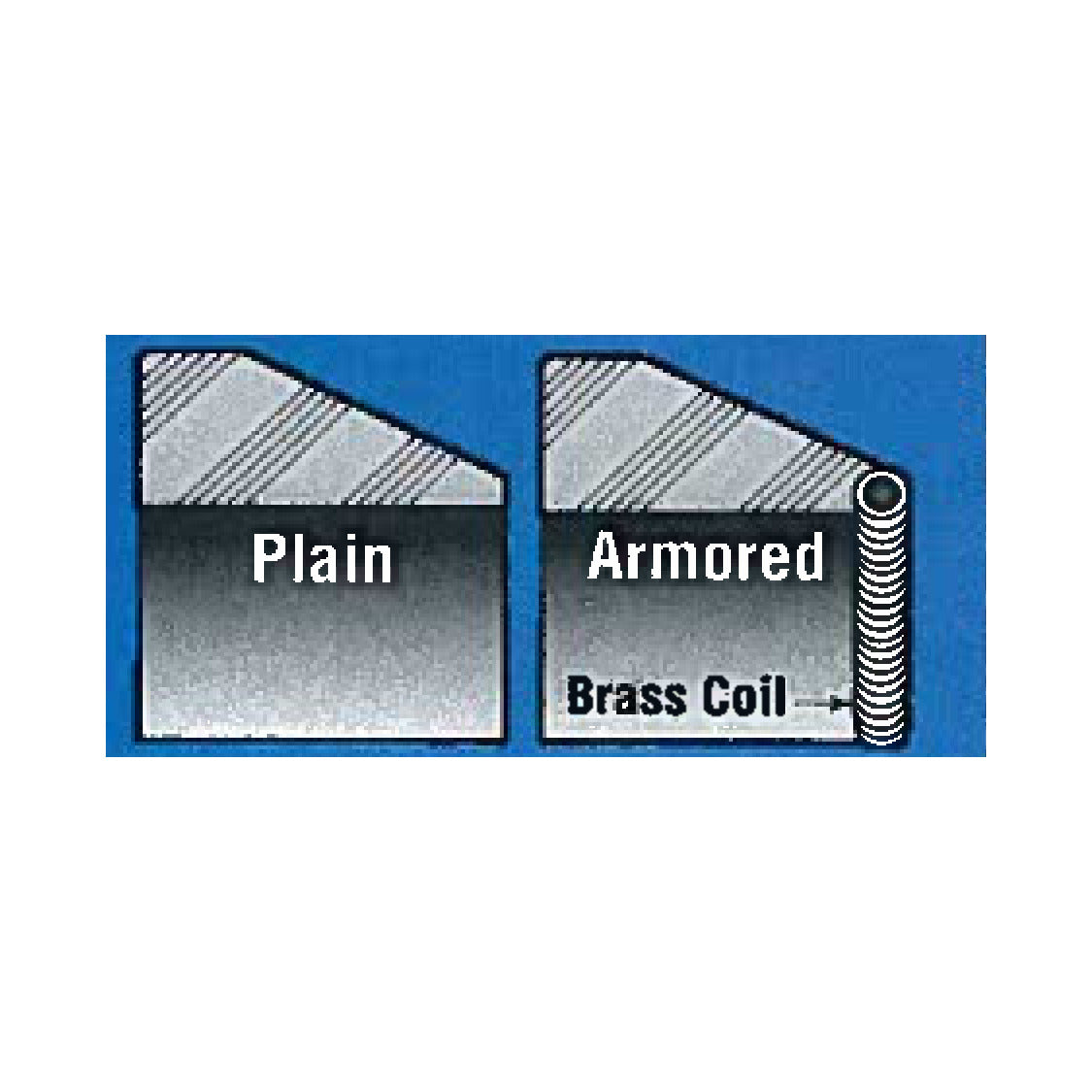

Dresser Style 54 Gasket dimension drawing

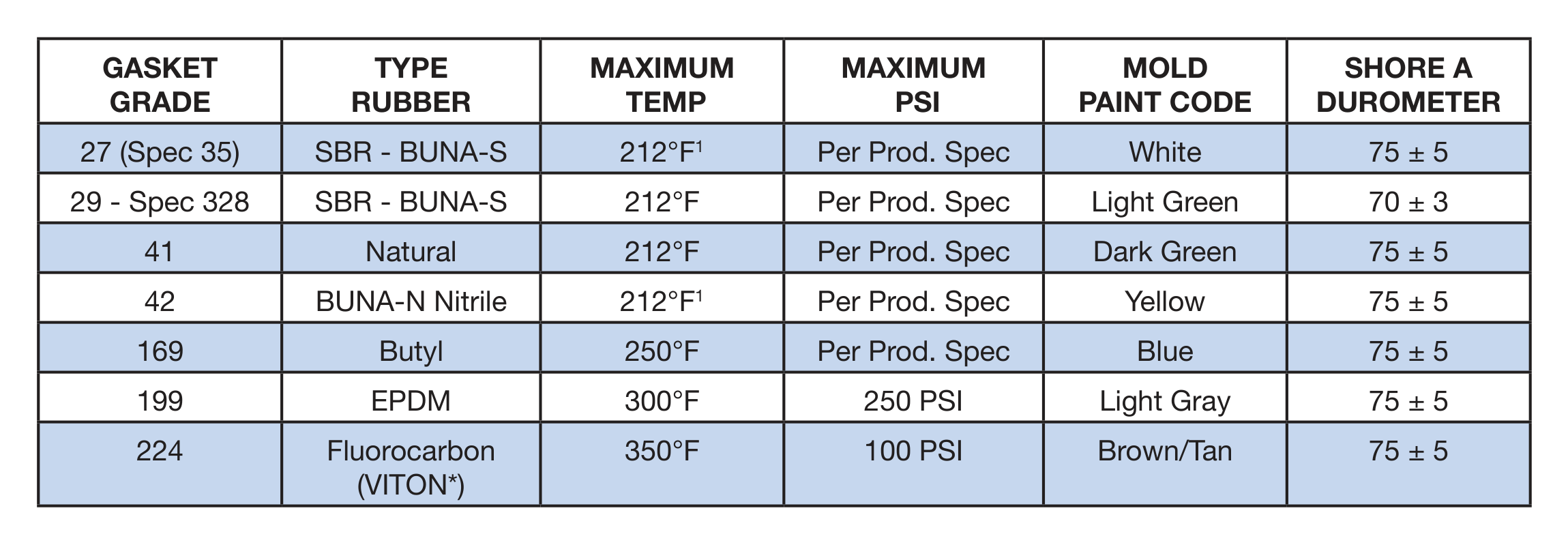

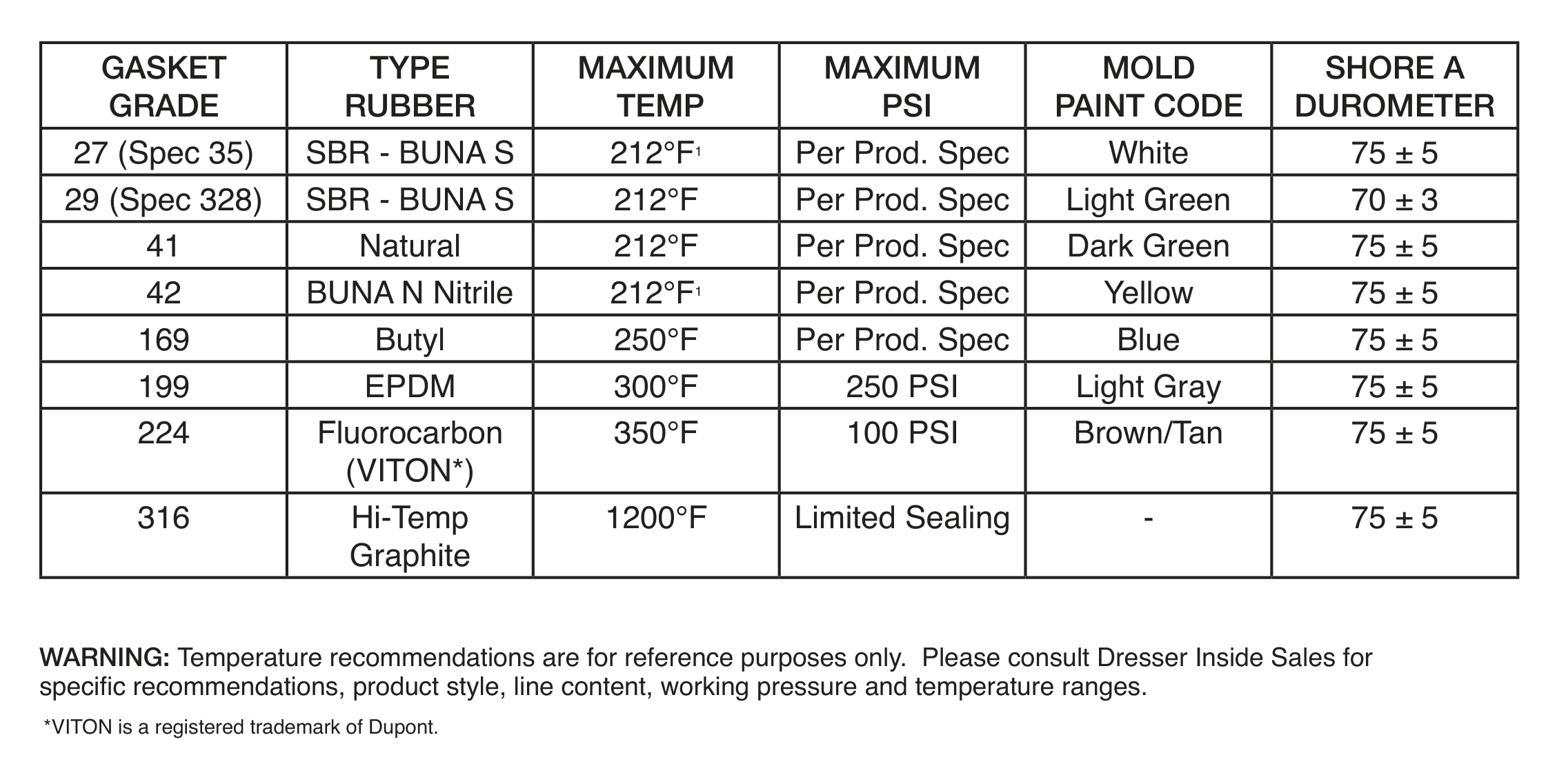

Dresser Style 54 Gasket specification table
Dresser Style 54 Gasket specification table
Dresser Style 54 Gasket specification table
Dresser Style 54 Gasket specification table
Dresser Style 54 Gasket - End & Side Gaskets
Dresser Style 54 Gasket dimension drawing
Dresser Style 54 Gasket specification table
Dresser Style 54 Gasket specification table
Dresser Style 54 Gasket specification table
Dresser Style 54 Gasket specification table

Dresser Style 54 Gasket - End & Side Gaskets

Product Type: End Gasket
Nominal Size (inch): 2 (2.375 OD)

Product variant with selected options does not exist!
$170.91
SKU: 3054-0001-003
Weight : 0.2 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Gasket
Style 54 Gasket
Replacement end and side gaskets for the Dresser Style 54 cast split sleeve, 2 in to 4 in.
For Style 54 Split Sleeves
2 in to 4 in
End and Side Gaskets
0.2-0.4 lb Weight
Overview

End and side gaskets for the Dresser Style 54 split sleeve on 2, 3 and 4 in steel gas pipe. Match the end gasket to the nominal size and the side gasket to the OD range.

Application: Replacing the gaskets in a Dresser Style 54 when the joint is reworked or reinstalled.

  • End gaskets by nominal size
  • Side gaskets by OD range
  • Gaskets have a shelf life: see the storage bulletin on the Data Sheet tab
  • Every variant ends with the Dresser part number
What Ships and What It Needs to Run

Included: gasket(s) as listed in the option.

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

Working Pressure

The Style 54 sleeve is rated 500 PSI; the gasket rating follows the sleeve.

Source: Dresser product literature. The rating on the product label is the actual rating of each part.

Before You Order. Confirm the coupling or sleeve style, nominal size and measured pipe OD before ordering. Order end and side gaskets together where the joint uses both. For other sizes, builds or a factory submittal, email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet

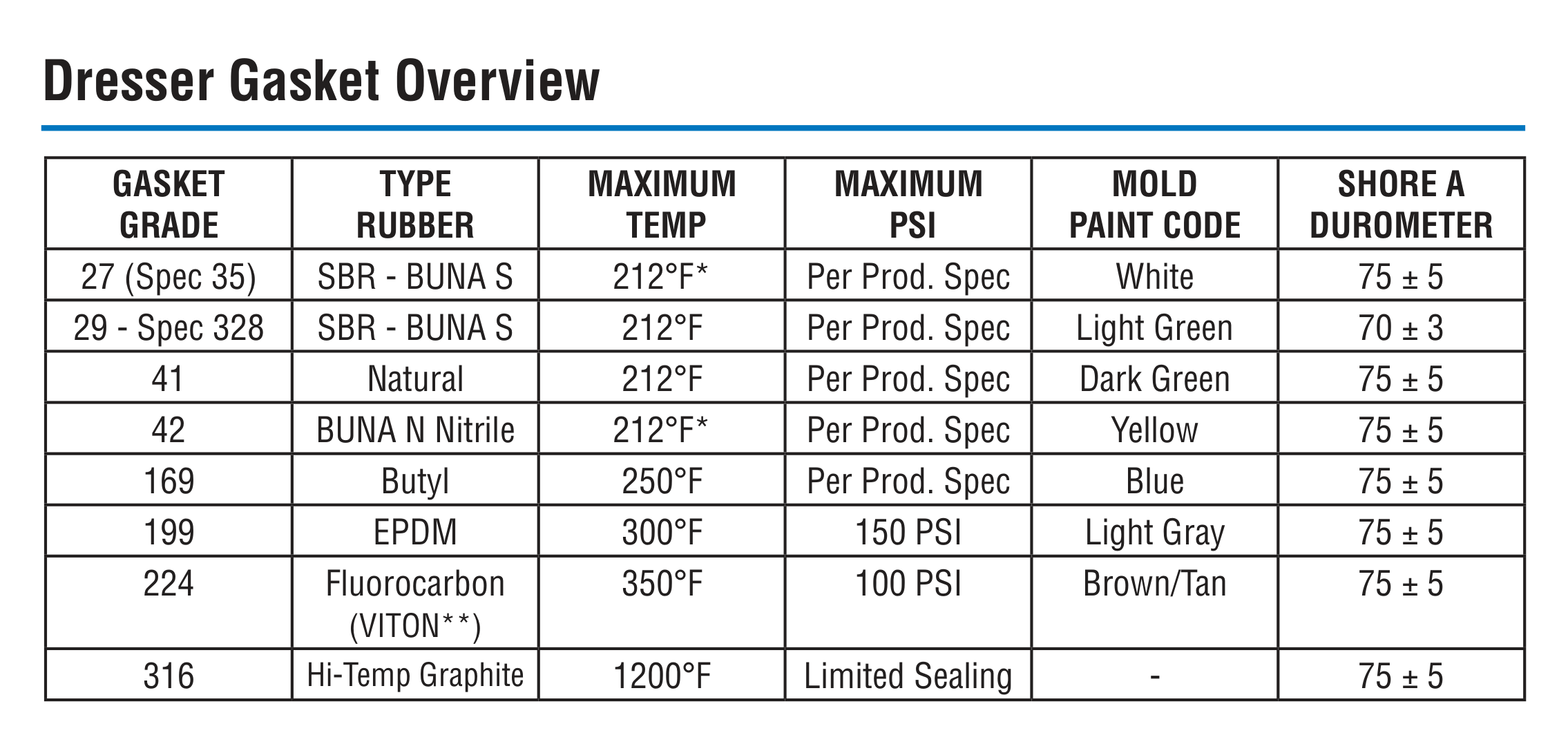

Gas Repair Products Catalog Dresser Gasket Grade Overview Gasket Shelf Life and Storage Bulletin
Videos

Product videos are being added to this listing. For a walkthrough in the meantime, email sales@watermainsupply.com.
