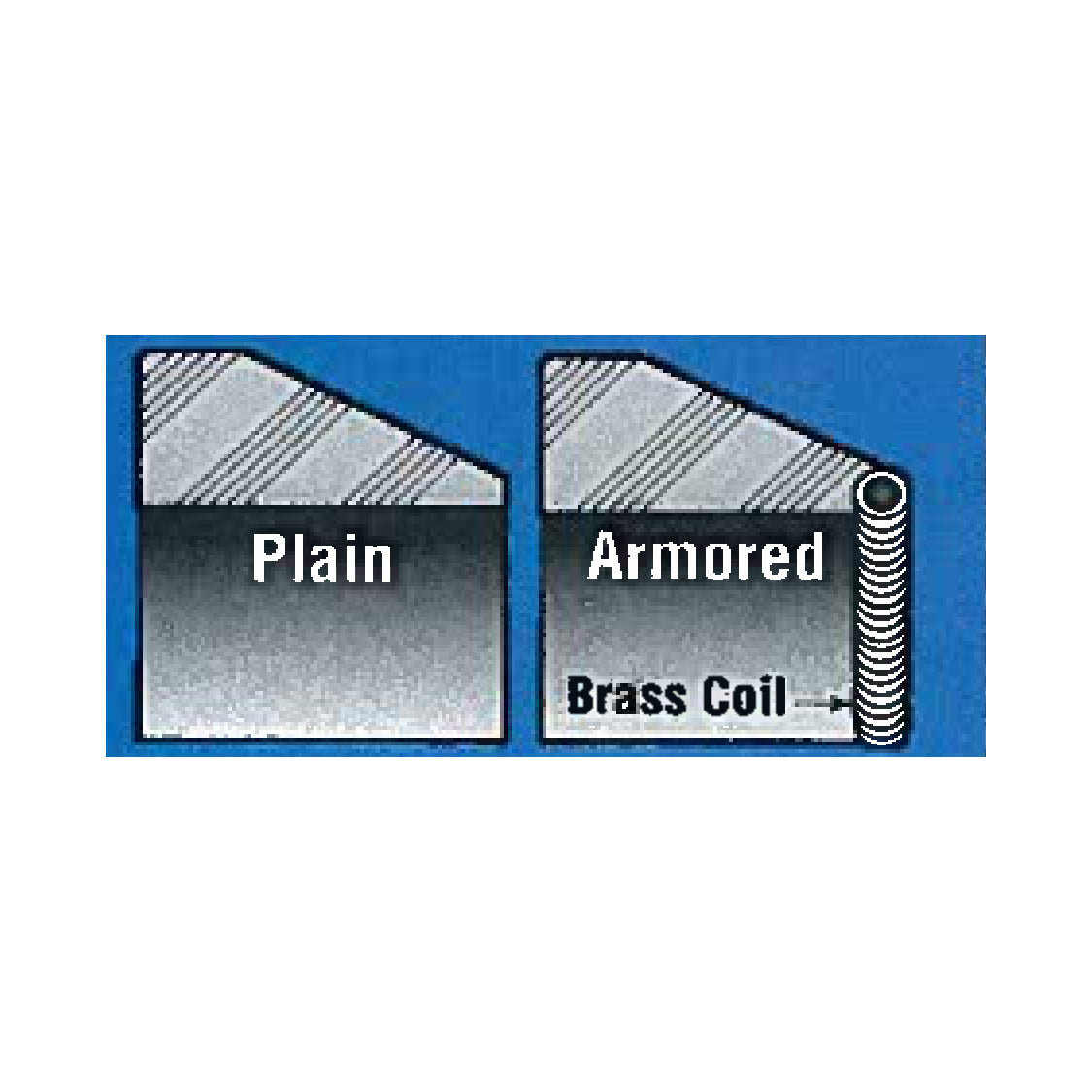

Dresser Stab 38/40 Gasket dimension drawing
Dresser Stab 38/40 Gasket dimension drawing
Dresser Stab 38/40 Gasket specification table
Dresser Stab 38/40 Gasket specification table
Dresser Stab 38/40 Gasket specification table
Dresser Stab 38/40 Gasket specification table
Dresser Stab 38/40 Gasket - Armored Grade 27 Buna-S
Dresser Stab 38/40 Gasket dimension drawing
Dresser Stab 38/40 Gasket dimension drawing
Dresser Stab 38/40 Gasket specification table
Dresser Stab 38/40 Gasket specification table
Dresser Stab 38/40 Gasket specification table
Dresser Stab 38/40 Gasket specification table

Dresser Stab 38/40 Gasket - Armored Grade 27 Buna-S

Nominal Size (inch): 2
Outside Diameter: 2.375

Product variant with selected options does not exist!
$62.17
SKU: 3123-0001-001
Weight : 0.5 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Gasket

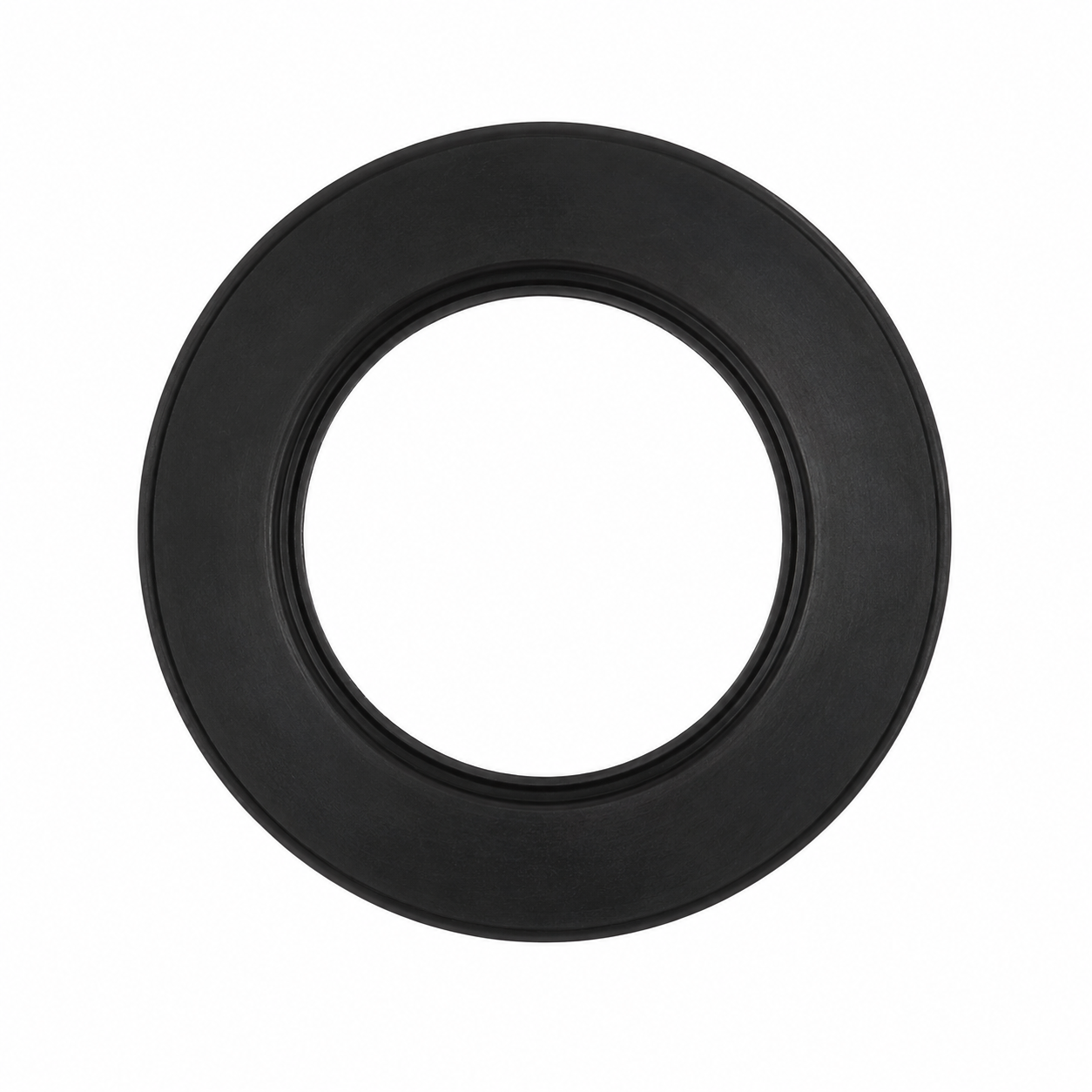

Stab 38/40 Gasket
Armored Grade 27 replacement gaskets for Dresser Stab 38 and Stab 40 couplings, 2 in to 12 in.
Armored Grade 27 Buna-S
For Stab 38 and Stab 40
2 in to 12 in
0.5 lb Weight
Overview

Armored Grade 27 (#123) gaskets for Dresser Stab 38 and Stab 40 couplings, each matched to a specific pipe OD from 2 in to 12 in.

Application: Replacing the gaskets in a Dresser Style Stab 38 and Stab 40 when the joint is reworked or reinstalled.

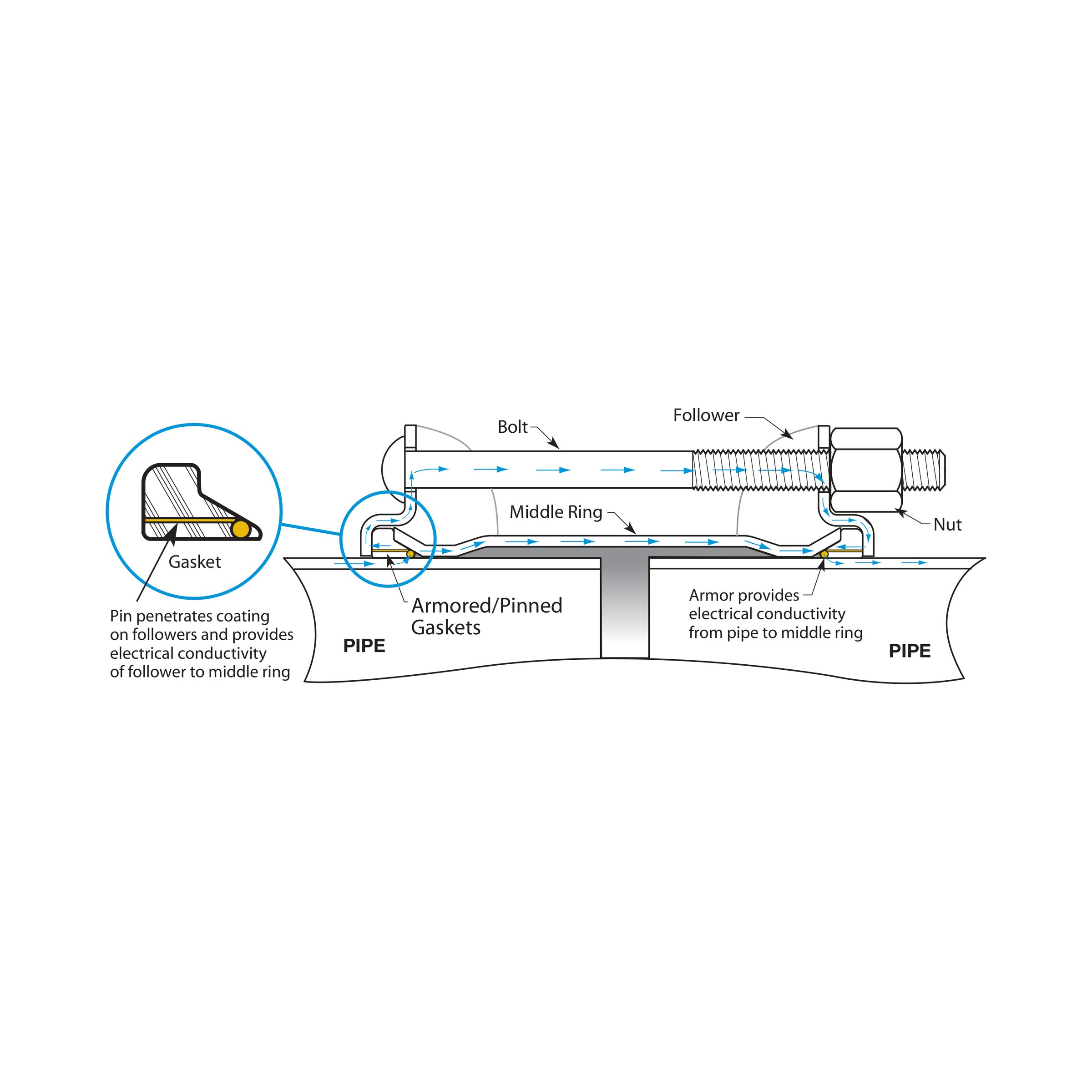

  • Armored for conductivity
  • Matched to pipe OD
  • Gaskets have a shelf life: see the storage bulletin on the Data Sheet tab
  • Every variant ends with the Dresser part number
What Ships and What It Needs to Run

Included: gasket(s) as listed in the option.

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

Working Pressure

The gasket rating follows the Stab 38 or 40 coupling it is installed in.

Source: Dresser product literature. The rating on the product label is the actual rating of each part.

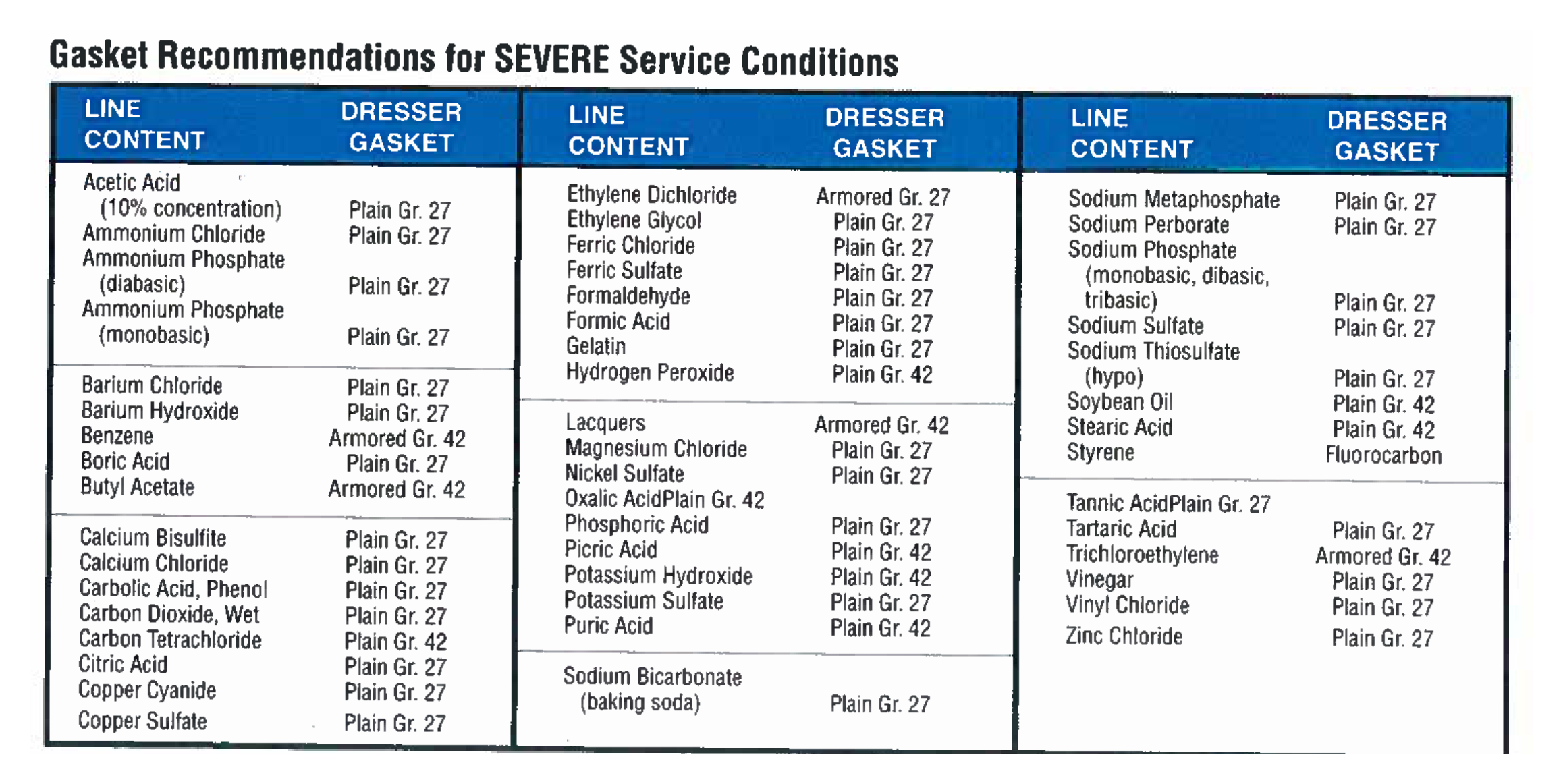

Before You Order. Confirm the coupling or sleeve style, nominal size and measured pipe OD before ordering. Order end and side gaskets together where the joint uses both. For other sizes, builds or a factory submittal, email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet

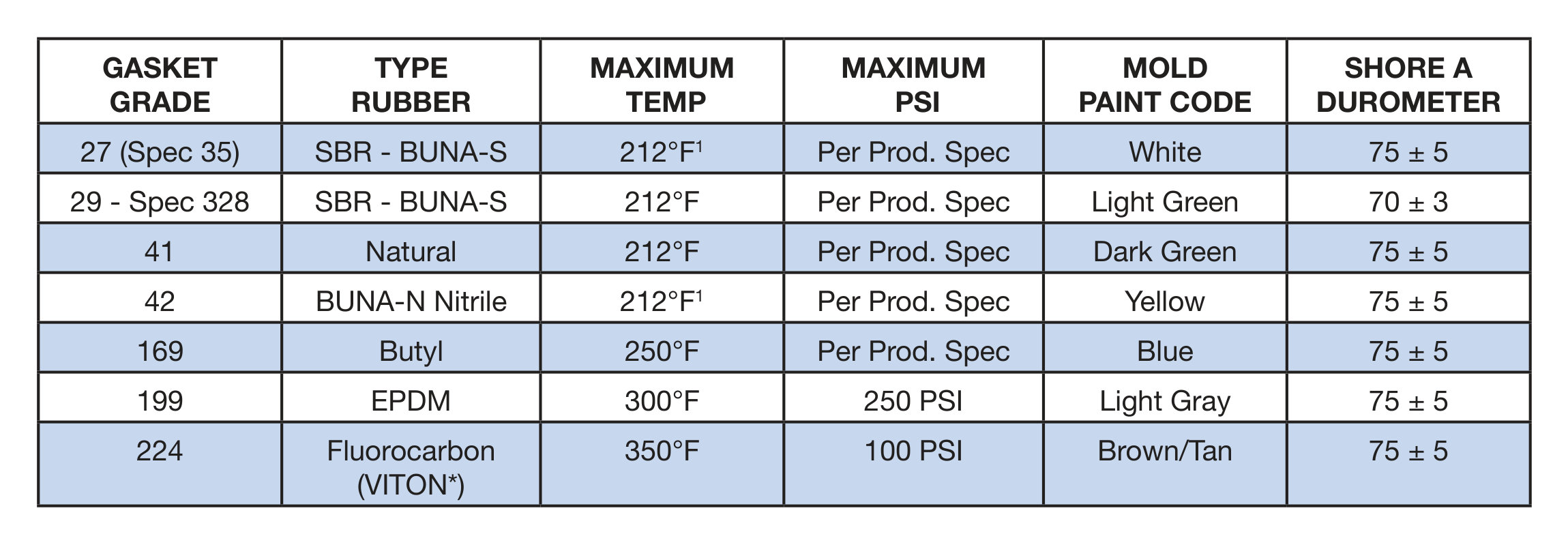

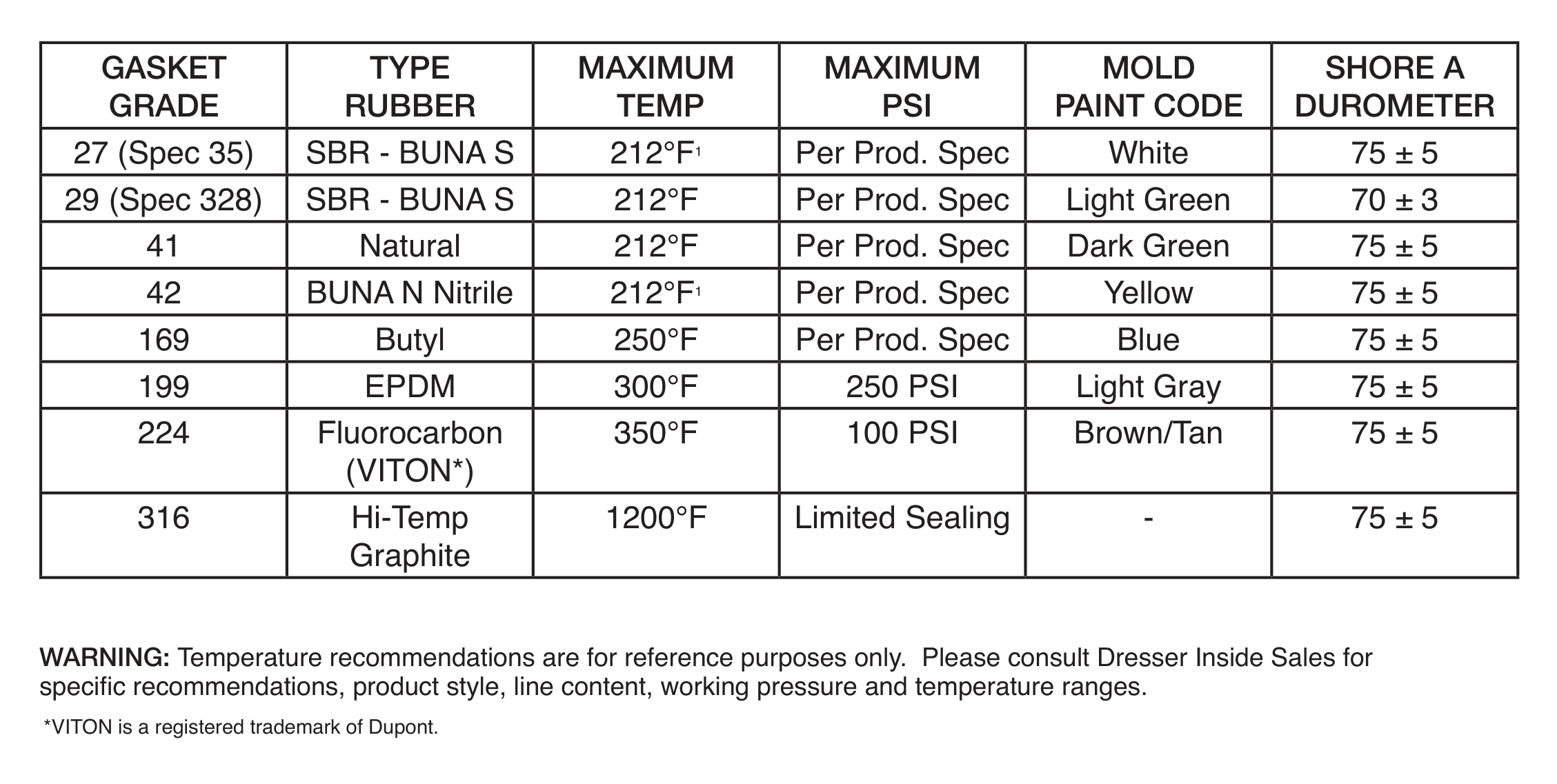

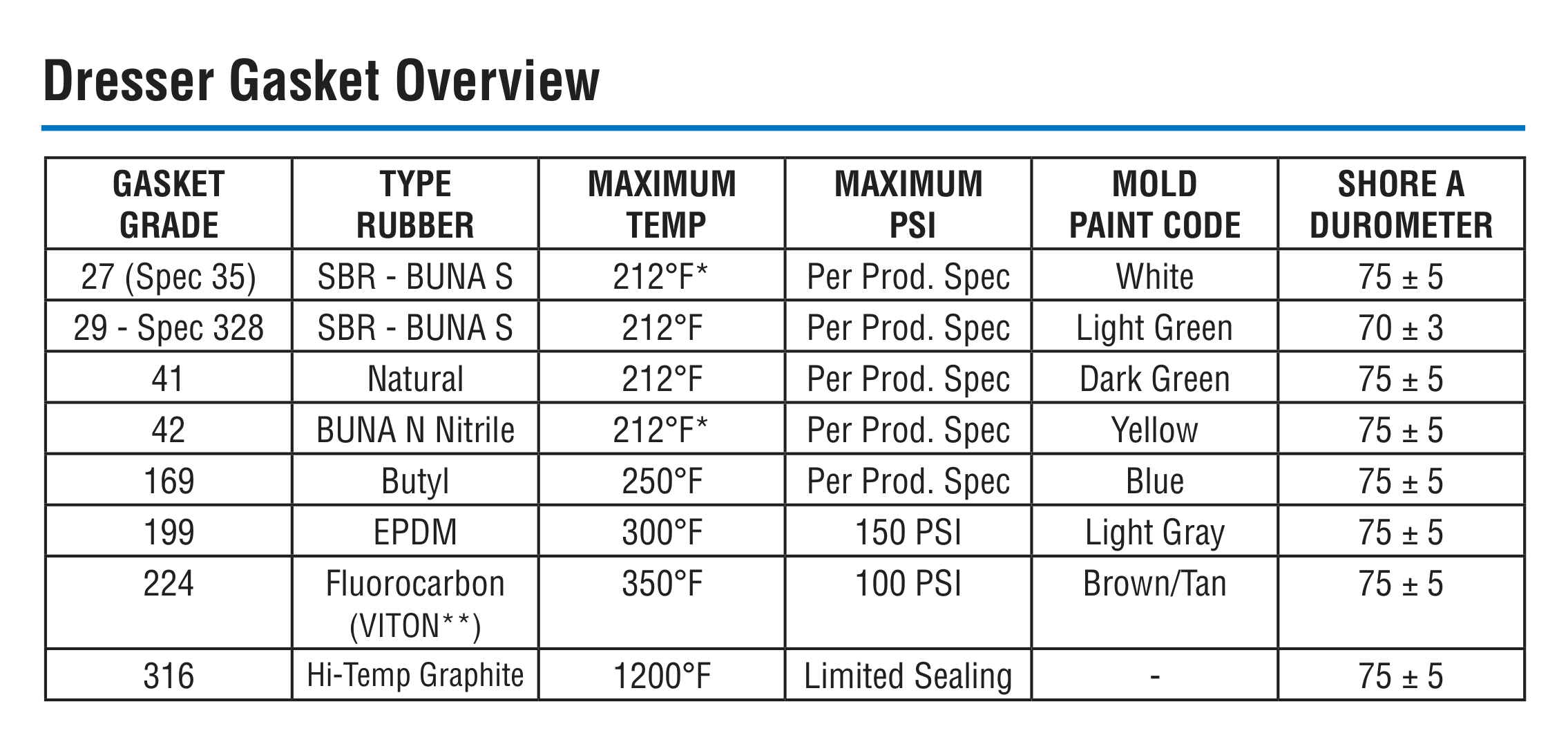

Style 38, 138, 40 CIP Coupling Submittal Dresser Gasket Grade Overview Gasket Shelf Life and Storage Bulletin
