A.Y. McDonald · Sewage Pump
DuraMAC High Volume Sewage Pumps
1/2 HP sewage pumps with a stainless steel housing on a cast iron base: up to 140 GPM and 30 ft of lift, 2 in solids.
30 ft Max Lift · 140 GPM Max
1/2 HP
120V 1Ph
Tethered, Vertical or No Switch
2 in Solids
2 in Discharge
Stainless Steel Housing
15 ft or 25 ft Cord
25 lb Weight
What Ships and What It Needs to Run
Included: the pump with stainless steel housing and cast iron base, carrying handle, power cord and, except on the 5050CUSJ15, a float switch.
Float or control panel required on the 5050CUSJ15, ordered separately. Use a piggyback float or a control panel.
Sized at install: sealed sewage basin and lid, check and shutoff valves, discharge and vent piping, alarm.
Overview
This pump features a stainless steel housing and a cast iron base, built-in thermal overload protection and a permanent split capacitor, continuous-duty motor, with a carrying handle attached. It lifts up to 30 ft and easily passes 2 in solids through a non-clogging cast stainless steel vortex impeller.
Which switch fits your pit? A vertical float rides up and down on a rod beside the pump, so it works in narrow basins. A tethered float swings on its cord, so it needs more room but gives a longer run between starts. No-switch models run from a separate piggyback float or a control panel, the usual choice when a basin already has its own controls.
-
15 ft power cord, 25 ft on the 5050CTSJH25.
-
5050CUSJ15 — no-switch version from the 7/1/26 price list, same pump.
Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier. Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor.
A.Y. McDonald Warranty by Model
Under Baker Manufacturing’s published limited warranty (A.Y. McDonald Pumps & Accessories price list, effective 7/1/26): 3 years from the date of installation: 5050CTSJ15, 5050CVSJ15, 5050CUSJ15. 1 year from the date of installation, or 2 years from the date of manufacture, whichever comes first: 5050CTSJH25. Per Baker’s terms, the warranty does not cover failure caused by sand or abrasive materials in the water.
Outgrow It and You Don’t Replace It
Models & Ratings (60 Hz)
| Model |
Part No. |
Switch |
Cord |
Amps |
Solids |
Max Flow |
At 10 ft |
Weight |
| 5050CTSJ15 |
6192-128 |
Tethered Float |
15 ft |
12 |
2 in |
140 GPM |
97 GPM |
26 lb |
| 5050CTSJH25 |
6192-133 |
Tethered Float |
25 ft |
12 |
2 in |
140 GPM |
97 GPM |
25 lb |
| 5050CVSJ15 |
6192-129 |
Vertical Float |
15 ft |
12 |
2 in |
140 GPM |
97 GPM |
25 lb |
| 5050CUSJ15 |
6192-127 |
No Switch |
15 ft |
12 |
2 in |
140 GPM |
97 GPM |
25 lb |
Source: A.Y. McDonald Pumps by Baker catalog, rev 3/26, and Pumps & Accessories price list, effective 7/1/26.
Shared Specifications
| HP |
1/2 |
| Voltage |
120V, 1 phase, 60 Hz |
| Amps |
12 |
| Construction |
Cast iron / stainless steel |
| Discharge |
2 in |
| Solids |
2 in |

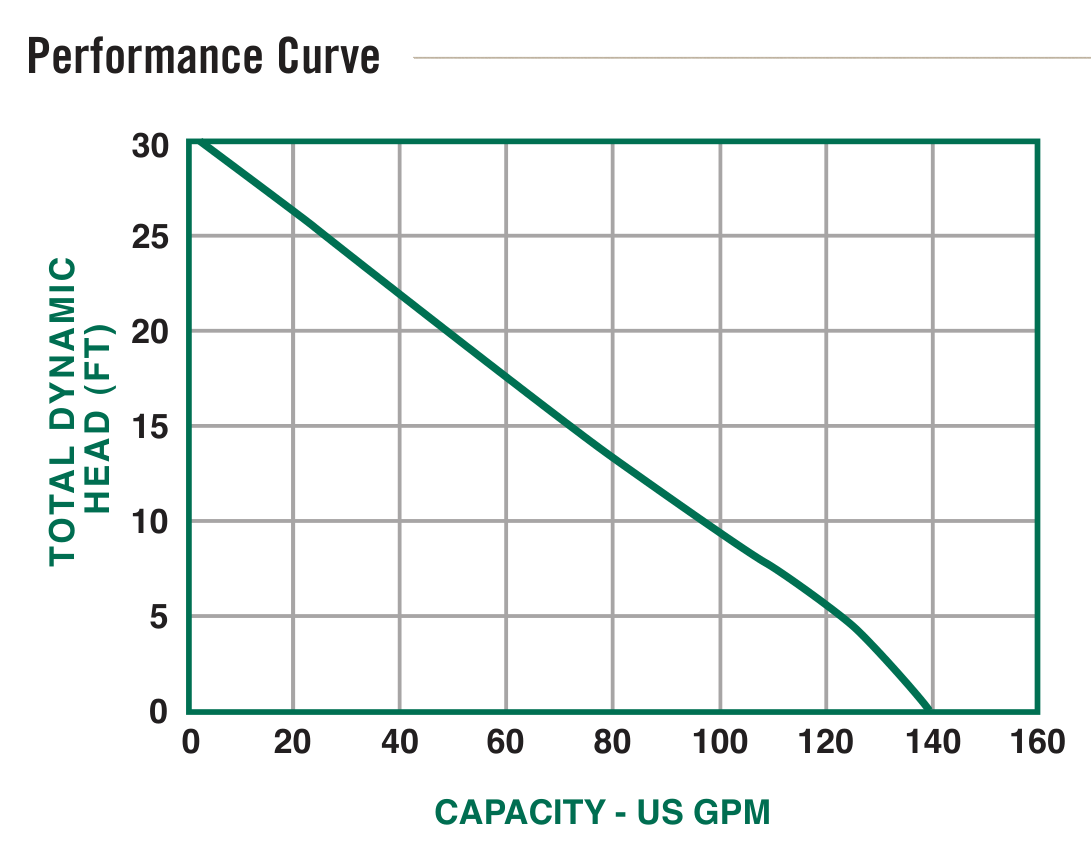

Performance — Will It Do What You Need?
| Total head → |
0 ft |
5 ft |
10 ft |
15 ft |
20 ft |
25 ft |
30 ft |
| 5050CTSJ15, CVSJ15, CTSJH25, CUSJ15 |
140 |
123 |
97 |
72 |
49 |
25 |
3 |
Gallons per minute at each total head, as printed by A.Y. McDonald. Total head is the vertical lift from the water level to the highest point of the discharge, plus pipe and fitting friction. A dash is a head the pump does not reach. Source: A.Y. McDonald Pumps by Baker catalog, rev 3/26, p. 313. The 5050CUSJ15 is a no-switch version of the same pump from the 7/1/26 price list.
Before You Buy — The Limits That Decide the Fit
| Water |
Raw sewage with up to 2 in solids; plumbing codes call for 2 in solids handling when a toilet drains to the basin. |
| Discharge velocity |
Codes require at least 2 ft/s in the discharge pipe: about 21 GPM in 2 in pipe. Check the table at your total head. |
| Basin |
A sealed, vented sewage basin with a gasketed lid; check local code for vent size. |
| Alarm |
A high-water alarm is good practice and required by many codes. |
| Check valve and shutoff |
Fit a check valve and a full-port shutoff on the discharge. |
| Power |
120V single phase, 12 A. |
Materials of Construction
| Housing |
Stainless steel |
| Base |
Cast iron |
| Impeller |
Cast stainless steel vortex |
