Included: the 5033CVSP cast iron pump mounted on a plastic base, vertical float switch, 10 ft cord, check valve and discharge pipe, pre-plumbed.
Sized at install: basin and the rest of the discharge run.
With its rugged cast iron construction and strong plastic base, the 5033CVSPEZ handles up to 60 GPM. It comes pre-plumbed with a check valve and discharge pipe; the pump is mounted to the base to prevent clogging and switch malfunction.
Covered for 5 years from the date of installation under Baker Manufacturing’s published limited warranty (A.Y. McDonald Pumps & Accessories price list, effective 7/1/26). Per Baker’s terms, the warranty does not cover failure caused by sand or abrasive materials in the water.
Single unit.
| Model | 5033CVSPEZ |
| Part No. | 6190-153 |
| Pump | 5033CVSP, 1/3 HP cast iron |
| Voltage | 120V, 1 phase |
| Amps | 5.9 |
| Switch | Vertical float |
| Discharge | 1-1/2 in |
| Solids | 1/2 in |
| Cord | 10 ft |

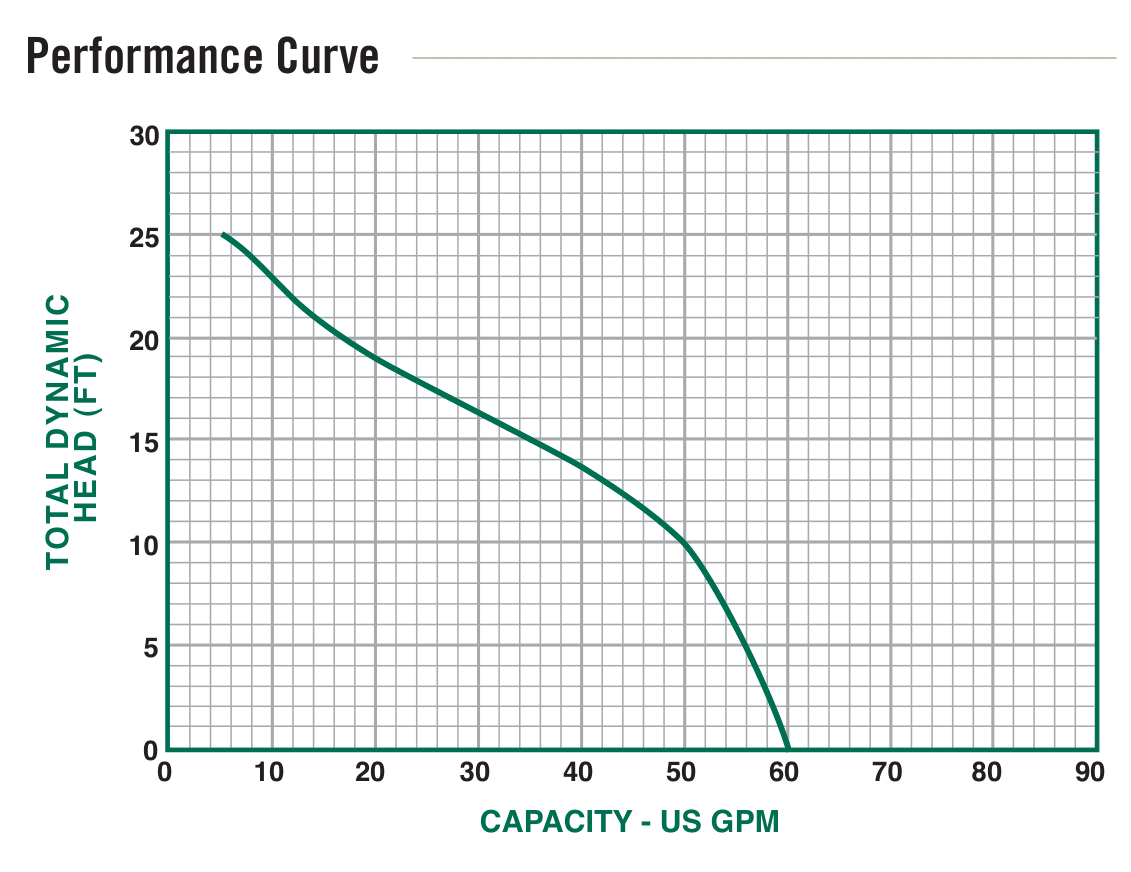

| Total head → | 0 ft | 5 ft | 10 ft | 15 ft | 20 ft | 25 ft |
|---|---|---|---|---|---|---|
| 5033CVSP | 60 | 56 | 50 | 35 | 15 | 6 |
Gallons per minute at each total head, as printed by A.Y. McDonald. Total head is the vertical lift from the water level to the highest point of the discharge, plus pipe and fitting friction. A dash is a head the pump does not reach. Source: A.Y. McDonald Pumps by Baker catalog, rev 3/26, p. 301.
| Water | Clear water and groundwater with small solids (see Solids in the table). A.Y. McDonald lists these pumps as non-potable. |
| Power | 120V single phase. |
| Pairing | Single pump. |
