A.Y. McDonald · Sump Pump Kit
DuraMAC 5030CVSPCSK Crawl Space Kit
A complete kit for pumping water out of crawl spaces, with a pre-drilled basin and discharge hose.
30 GPM at 10 ft Lift · 46 GPM Max
3/10 HP
120V 1Ph
Vertical Float Switch
Pre-Drilled Basin
24 ft x 1-1/4 in Hose
34 lb Weight
What Ships and What It Needs to Run
Included: the 5030CVSP 3/10 HP cast iron pump with vertical float switch, an 18-1/4 x 17-1/4 in poly basin with slotted cover, a 24 ft x 1-1/4 in hose and a 1-1/2 x 1-1/4 in hose adapter with stainless steel clamp.
Sized at install: where the hose discharges.
Overview
With pre-drilled holes in the basin, this kit pumps water out of crawl spaces. Everything shown ships in the kit.
Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier. Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor.
5-Year A.Y. McDonald Warranty
Covered for 5 years from the date of installation under Baker Manufacturing’s published limited warranty (A.Y. McDonald Pumps & Accessories price list, effective 7/1/26). Per Baker’s terms, the warranty does not cover failure caused by sand or abrasive materials in the water.
Outgrow It and You Don’t Replace It
Specifications
| Model |
5030CVSPCSK |
| Part No. |
6190-171 |
| Pump |
5030CVSP, 3/10 HP cast iron |
| Voltage |
120V, 1 phase |
| Amps |
4.1 |
| Basin |
18-1/4 x 17-1/4 in poly, slotted cover |
| Hose |
24 ft x 1-1/4 in |
| Solids |
3/8 in |

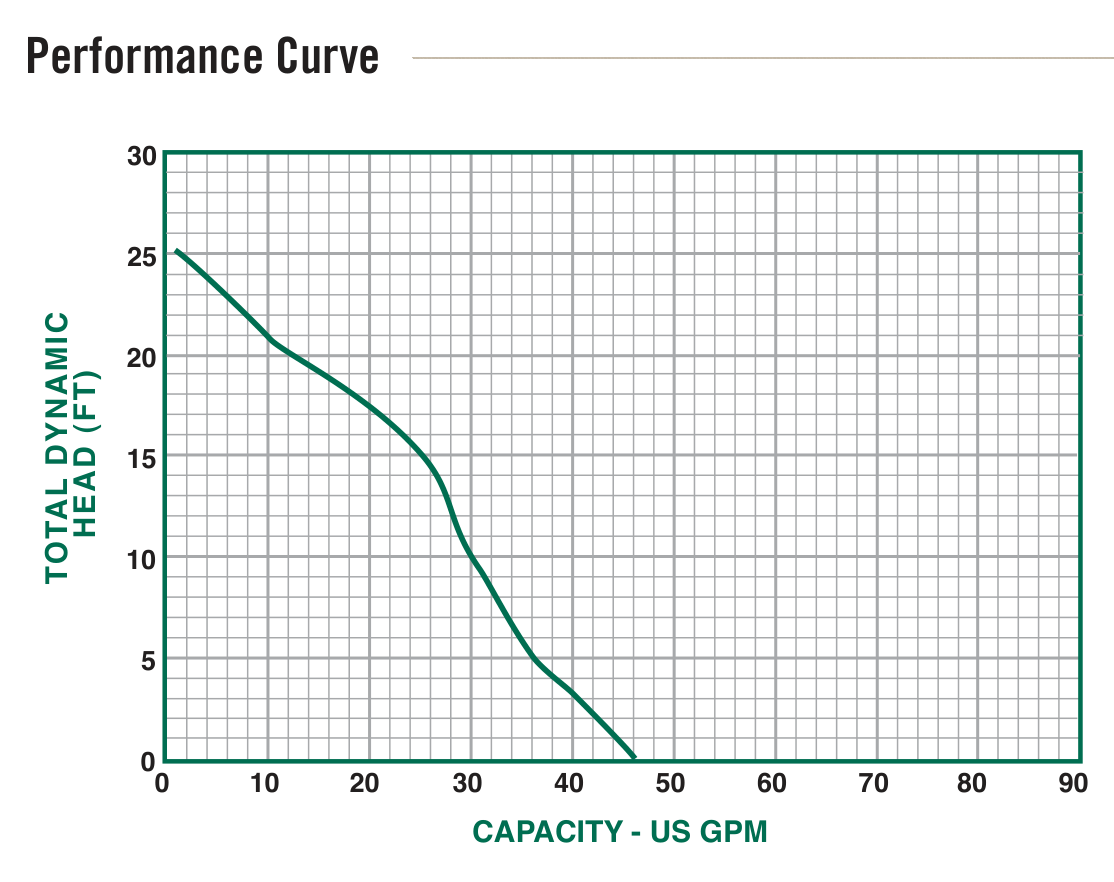

Performance — Will It Do What You Need?
| Total head → |
0 ft |
5 ft |
10 ft |
15 ft |
20 ft |
25 ft |
| 5030CVSP |
46 |
36 |
30 |
25 |
12 |
1 |
Gallons per minute at each total head, as printed by A.Y. McDonald. Total head is the vertical lift from the water level to the highest point of the discharge, plus pipe and fitting friction. A dash is a head the pump does not reach. Source: A.Y. McDonald Pumps by Baker catalog, rev 3/26, p. 303.
Before You Buy — The Limits That Decide the Fit
| Water |
Clear water and groundwater with small solids (see Solids in the table). A.Y. McDonald lists these pumps as non-potable. |
| Power |
120V single phase. |
| Pairing |
Single pump. |
