A.Y. McDonald · Backup Sump Pump
DuraMAC 5000PVSPBU Battery Backup System
A 12V DC backup pump that keeps the pit draining during a power failure or a primary pump fault.
18 GPM at 10 ft Lift · 23 GPM Max
12V DC
Vertical Float Switch
Alarm and Control Unit
1-1/4 or 1-1/2 in Discharge
10 ft Cord
13.5 lb Weight
What Ships and What It Needs to Run
Included: the 12V DC thermoplastic pump with vertical switch and 10 ft cord, the alarm and control unit with fuse and mute, and a thermoplastic battery box.
Battery required, ordered separately. A 12 volt deep-cycle marine battery.
Sized at install: check valve and discharge piping.
Overview
This battery backup system gives temporary backup during power failures or a malfunction of your primary electric sump pump. It runs on a 12 volt deep-cycle marine battery, which is not included.
-
Pump discharge — 1-1/4 in; 1-1/2 in with the check valve.
-
Alarm and control unit — with fuse and mute feature.
A 12V pump moves less than a 120V pump. Compare its 18 GPM at 10 ft with your pit’s storm inflow; where inflow is higher, a water-powered backup such as the Guardian is the stronger choice.
Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier. Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor.
2-Year A.Y. McDonald Warranty
Covered for 2 years from the date of installation under Baker Manufacturing’s published limited warranty (A.Y. McDonald Pumps & Accessories price list, effective 7/1/26). Per Baker’s terms, the warranty does not cover failure caused by sand or abrasive materials in the water.
Outgrow It and You Don’t Replace It
Specifications
| Model |
5000PVSPBU |
| Part No. |
6190-170 |
| Voltage |
12V DC |
| Amps |
12 |
| Discharge |
1-1/4 in or 1-1/2 in |
| Solids |
1/8 in |
| Cord |
10 ft |
| Construction |
Thermoplastic |
| Weight |
13.5 lb |

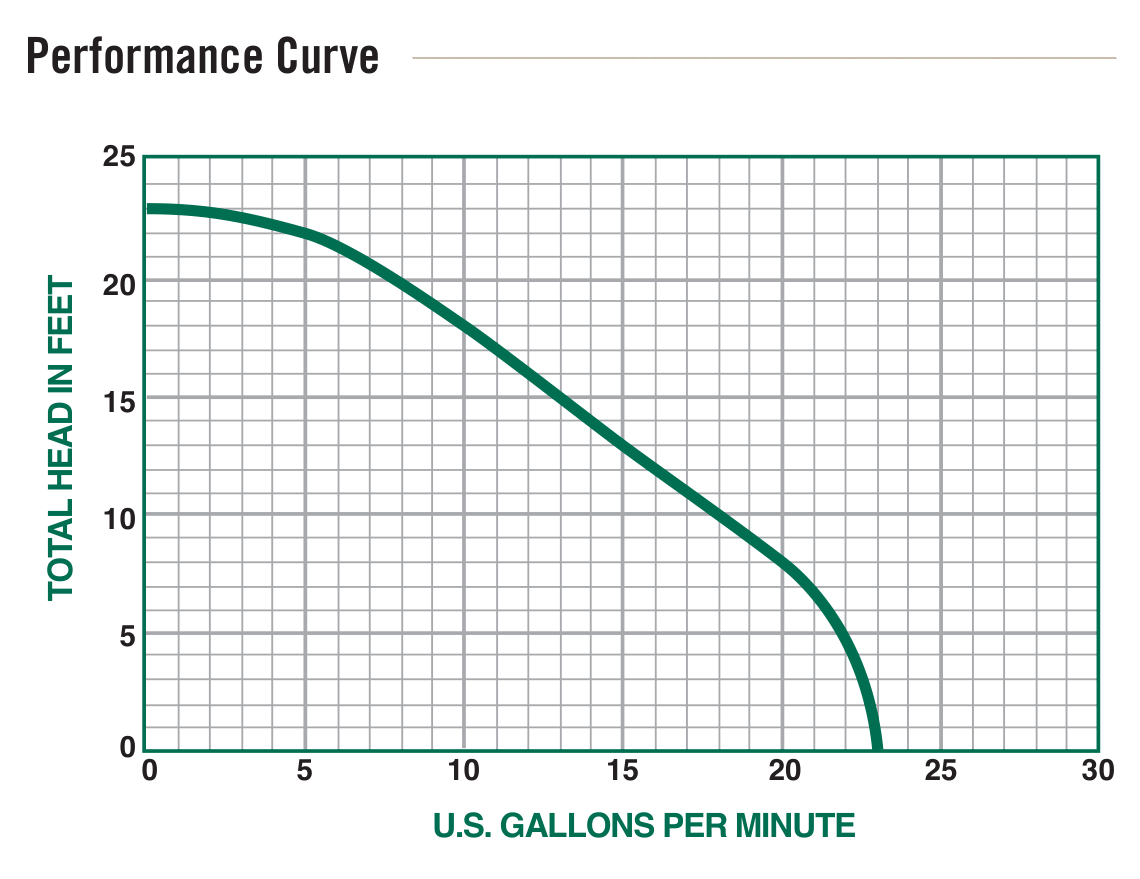

Performance — Will It Do What You Need?
| Total head → |
0 ft |
5 ft |
10 ft |
15 ft |
20 ft |
| 5000PVSPBU |
23 |
22 |
18 |
13 |
8 |
Gallons per minute at each total head, as printed by A.Y. McDonald. Total head is the vertical lift from the water level to the highest point of the discharge, plus pipe and fitting friction. A dash is a head the pump does not reach. Source: A.Y. McDonald Pumps by Baker catalog, rev 3/26, p. 305.
Before You Buy — The Limits That Decide the Fit
| Battery |
12V deep-cycle marine battery, not included. |
| Role |
Backup to a primary 120V sump pump, sharing the pit. |
| Lift |
The table ends at 20 ft. |
