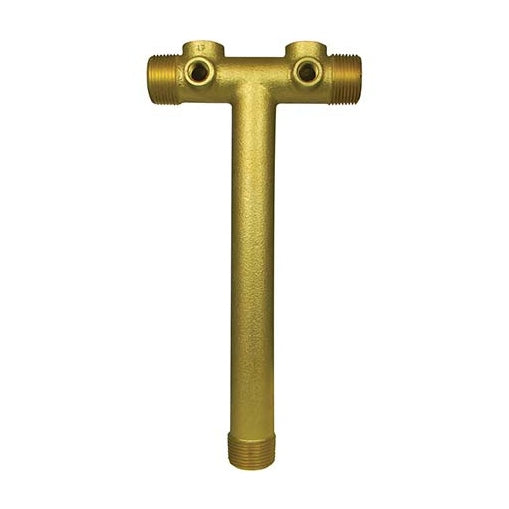

A.Y. McDonald 72045 Tank Tee Kit (tank tee shown), No-Lead
A.Y. McDonald 72045 Tank Tee Kit (tank tee shown), No-Lead

A.Y. McDonald 72045 Tank Tee Kit - No-Lead, with Pressure Switch and Gauge

Tank Tee Size: 1 in x 11 in
Switch Setting: 30/50 PSI
Valves - Model: Drain and Relief Valves - 72045CD

Product variant with selected options does not exist!
$205.08
SKU: 5424-288
Weight : 4.4 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
A.Y. McDonald Mfg. Co. · Tank Tee Kit
72045 Tank Tee Kit
Double-drain-hole tank tee with switch, gauge, drain and relief valves
No-Lead
30/50 PSI · 40/60 PSI Switch
0-100 PSI Gauge
Tank Tee 1 in x 11 in · 1 1/4 in x 14 in · 1 1/4 in x 16 in
Overview

The A.Y. McDonald 72045 Tank Tee Kit brings the pressure-tank connections of a water system together on one No-Lead 72045 tank tee. Every model ships with the tank tee, a pressure switch at its listed setting, a 0-100 PSI pressure gauge and a 2200 brass nipple; each model then adds the valves named in its option. Pick the tank tee size, then the switch setting, then the valve set.

  • No-Lead tank tee
  • Pressure switch at 30/50 PSI, 40/60 PSI (by model)
  • 0-100 PSI pressure gauge on every model
  • Valves by model: Drain Valve 72008, Pressure Relief Valve 72049, Check Valve 72057T
What Ships and What It Needs to Run

Included: the 72045 tank tee, the pressure switch at the setting shown in the option, a 0-100 PSI gauge and a 2200 brass nipple, plus the valves named in the option (from: Drain Valve 72008, Pressure Relief Valve 72049, Check Valve 72057T).

Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
1-Year A.Y. McDonald Warranty

Covered for 1 year from the date of shipment from A.Y. McDonald’s factory under A.Y. McDonald’s published limited warranty, which applies to the products A.Y. McDonald manufactures.

Specifications
Tank tee 72045, No-Lead
Tank tee size 1 in x 11 in, 1 1/4 in x 14 in, 1 1/4 in x 16 in
Pressure switch settings 30/50 PSI, 40/60 PSI
Pressure gauge 0-100 PSI
Nipple 2200 brass, 1/4 in x 3 in
Tank tee body Brass (C46400 MOD)
Components Every component No-Lead: tank tee, pressure switch, pressure gauge, 2200 brass nipple and the valves named in the option
Packaging Individually boxed, carton label lists every component

Source: A.Y. McDonald Plumbing Price List, effective 7-07-26, p. 75; A.Y. McDonald No-Lead Brass Tank Tees submittal (9/22) (tank tee only); A.Y. McDonald Plumbing Catalog (1/25), Tank Tee Kits, p. 110.

Models

1 in x 11 in tank tee

Model Switch Valves
72045CD 30/50 PSI Drain Valve 72008 1/2 in, Pressure Relief Valve 72049 1/2 in
72045CJ 30/50 PSI Drain Valve 72008 1/2 in, Pressure Relief Valve 72049 1/2 in, Check Valve 72057T 1 in
72045CE 40/60 PSI Drain Valve 72008 1/2 in, Pressure Relief Valve 72049 1/2 in

1 1/4 in x 14 in tank tee

Model Switch Valves
72045XL 40/60 PSI Drain Valve 72008 3/4 in, Pressure Relief Valve 72049 3/4 x 1/2 in

1 1/4 in x 16 in tank tee

Model Switch Valves
72045XK 40/60 PSI Drain Valve 72008 3/4 in, Pressure Relief Valve 72049 3/4 x 1/2 in
Before You Order. Switch setting: the pump turns on at the first figure and off at the second (20/40, 30/50 or 40/60 PSI). Match it to the pressure your system runs at. Each model number is a fixed kit; the valves in it are listed in the Models table.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet
Tank Tee Kits Catalog Page (2025): all kit components 72045 Tank Tee Submittal Data Sheet (tank tee only)
Videos

Product videos are being added to this listing. For a walkthrough in the meantime, email sales@watermainsupply.com.
