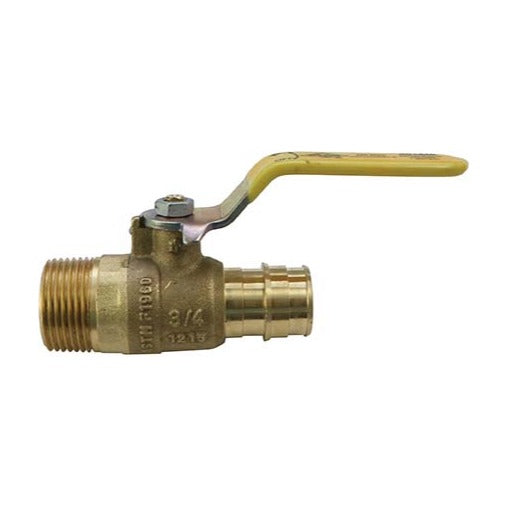

The A.Y. McDonald 72030EXMP is a No-Lead expansion PEX standard port ball valve with MNPT x Expansion PEX connections, rated 400 WOG.
Included: one ball valve.
Covered for 1 year from the date of shipment from A.Y. McDonald’s factory under A.Y. McDonald’s published limited warranty, which applies to the products A.Y. McDonald manufactures.
| Construction | No-Lead brass |
| Connections | MNPT x Expansion PEX |
| Pressure rating | 400 WOG |
| Pex end | PEX end conforms to ASTM F1960 |
| Feature | Blow-out-proof stem |
| Certification | NSF/ANSI 61-8 and NSF/ANSI 372 |
| Lead content | Weighted average of the wetted surface under 0.25% lead (A.Y. McDonald No-Lead definition) |
| Sizes | 3/4 in, 1 in |
Source: A.Y. McDonald Plumbing Price List, effective 7-07-26, pp. 10-13; A.Y. McDonald Plumbing Catalog (1/25), No-Lead Full Port and Specialty Ball Valves, pp. 14-18; A.Y. McDonald submittal data sheet.
| Part No. | Size | Sold As |
|---|---|---|
| 5423-247 | 3/4 in | Single |
| 5423-249 | 1 in | Single |
