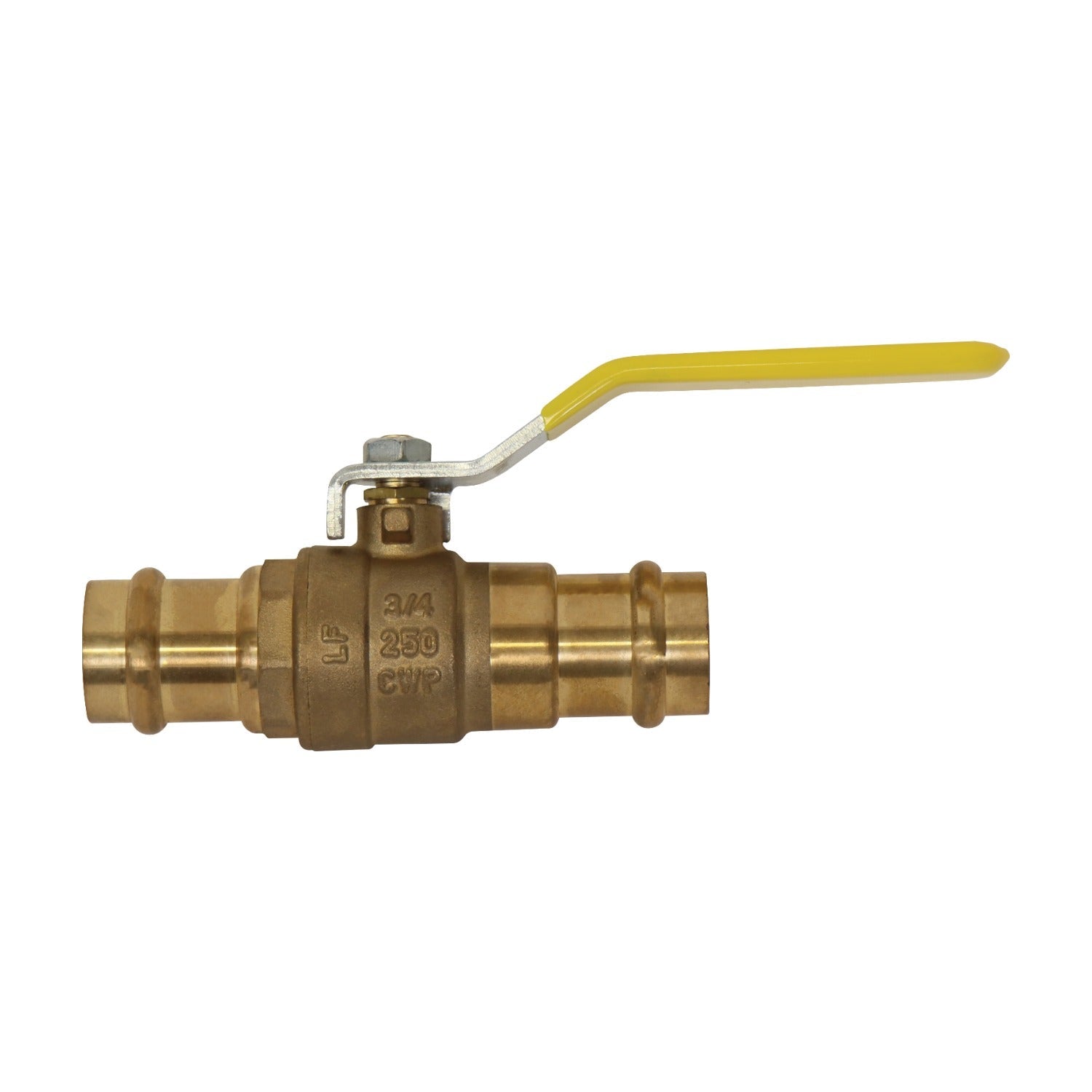

The A.Y. McDonald 72028PF is a No-Lead press fit full port ball valve with CTS Press Fit x CTS Press Fit connections, rated 250 PSI CWP.
Included: one ball valve.
Covered for 1 year from the date of shipment from A.Y. McDonald’s factory under A.Y. McDonald’s published limited warranty, which applies to the products A.Y. McDonald manufactures.
| Construction | No-Lead brass |
| Connections | CTS Press Fit x CTS Press Fit |
| Pressure rating | 250 PSI CWP |
| Feature | Blow-out-proof stem |
| Feature | Forged brass body |
| Certification | NSF/ANSI 61-8 |
| Lead content | Weighted average of the wetted surface under 0.25% lead (A.Y. McDonald No-Lead definition) |
| Sizes | 1/2 in, 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, 2 in, 2 1/2 in, 3 in, 4 in |
Source: A.Y. McDonald Plumbing Price List, effective 7-07-26, pp. 10-13; A.Y. McDonald Plumbing Catalog (1/25), No-Lead Full Port and Specialty Ball Valves, pp. 14-18; A.Y. McDonald submittal data sheet.
| Part No. | Size | Sold As |
|---|---|---|
| 5426-115 | 1/2 in | Single |
| 5426-116 | 3/4 in | Single |
| 5426-117 | 1 in | Single |
| 5426-118 | 1 1/4 in | Single |
| 5426-119 | 1 1/2 in | Single |
| 5426-120 | 2 in | Single |
| 5426-154 | 2 1/2 in | Single |
| 5426-155 | 3 in | Single |
| 5426-156 | 4 in | Single |
