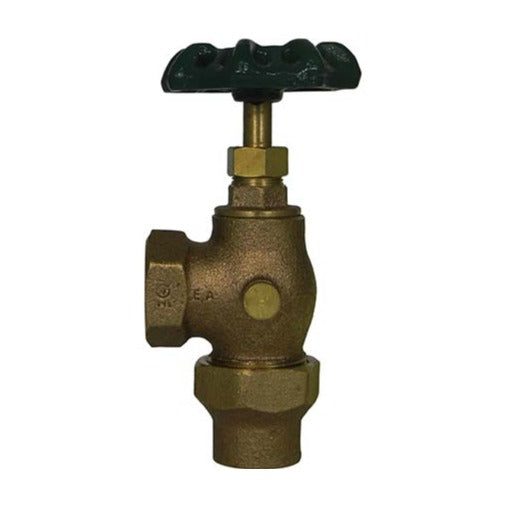

The A.Y. McDonald 72025 is a No-Lead angle stop valve with drain with Flare x FNPT connections, rated 125 WOG.
Included: one angle stop valve.
Covered for 1 year from the date of shipment from A.Y. McDonald’s factory under A.Y. McDonald’s published limited warranty, which applies to the products A.Y. McDonald manufactures.
| Construction | No-Lead brass |
| Connections | Flare x FNPT |
| Pressure rating | 125 WOG |
| Feature | Soft seat design |
| Feature | Drain |
| Certification | NSF/ANSI 372 and NSF/ANSI 61 |
| Lead content | Weighted average of the wetted surface under 0.25% lead (A.Y. McDonald No-Lead definition) |
| Sizes | 3/4 in x 1/2 in, 3/4 in x 3/4 in, 1 in x 3/4 in, 1 in x 1 in |
Source: A.Y. McDonald Plumbing Price List, effective 7-07-26, pp. 18-19; A.Y. McDonald Plumbing Catalog (1/25), No-Lead Gate, Stop and Angle Stop Valves, pp. 26-27; A.Y. McDonald submittal data sheet.
| Part No. | Size | Sold As |
|---|---|---|
| 5420-041 | 3/4 in x 1/2 in | Single |
| 5420-035 | 3/4 in x 3/4 in | Single |
| 5420-037 | 1 in x 3/4 in | Single |
| 5420-036 | 1 in x 1 in | Single |
