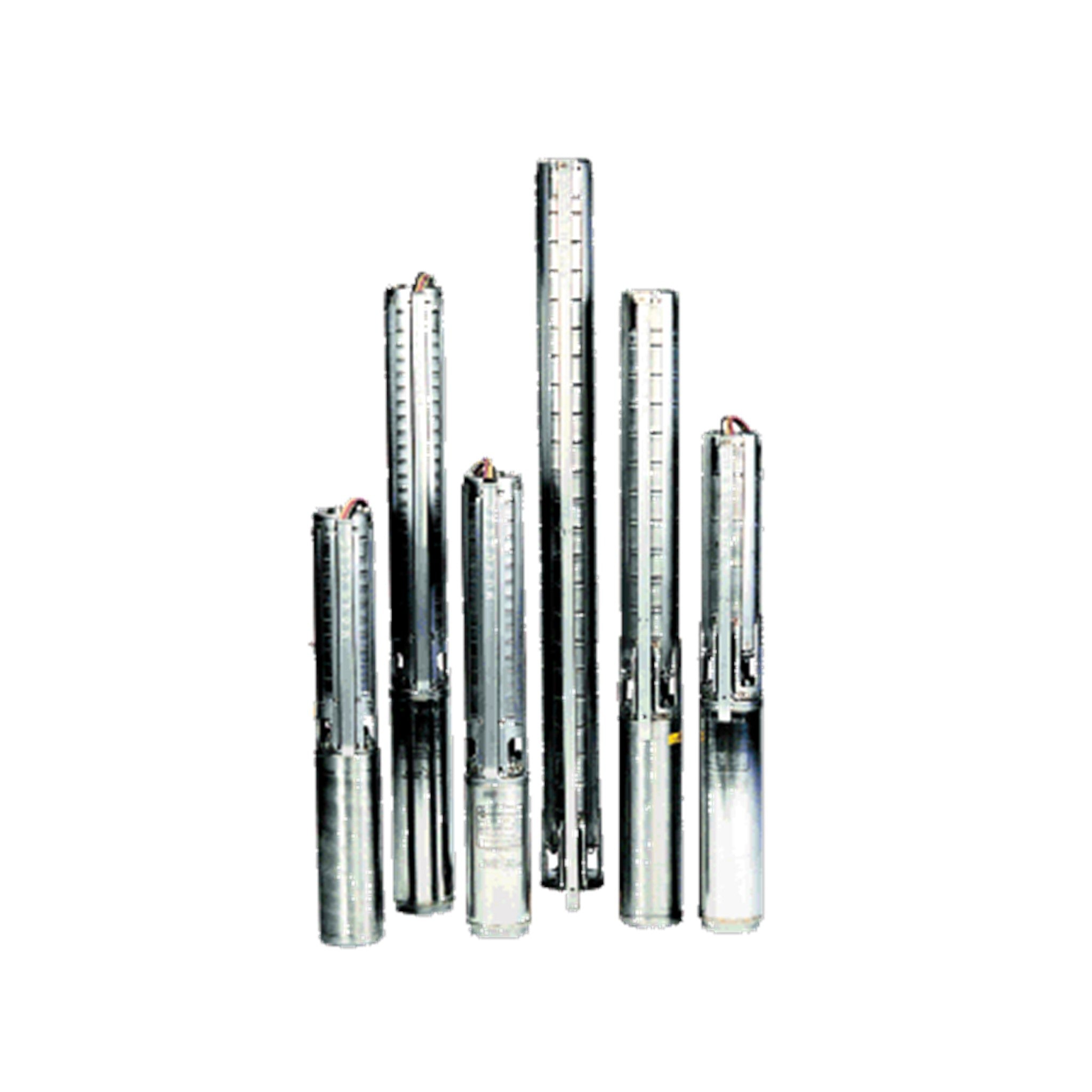

The Grundfos 45S is the 45 GPM class of the SP 4 in submersible range, sold here as the pump end alone: stainless steel chambers and impellers with a built-in check valve, ready to mount on a submersible motor. Pump and impellers are AISI 304 stainless steel. Use it to rebuild an SP installation on a sound motor, or to build a pump around a motor you already have; the complete 45S pump with a Grundfos motor is listed separately.
The 45S pump end has a NEMA motor flange. Match the motor horsepower and diameter in the selector, and the flange to your motor; send us the motor model and we will confirm the fit.
Included: the Grundfos 45S SP pump end with its built-in check valve; DS builds come built into a stainless steel sleeve.
Submersible motor required, ordered separately. The pump end mounts on a 4 in or 6 in submersible motor with a NEMA motor flange, plus the motor’s control: a control box for a single-phase 3-wire motor, or a starter or drive for a three-phase motor. The motor horsepower and diameter for each build are in the Motor by Horsepower table under Models & Performance.
24 months from date of installation, but not more than 30 months from date of manufacture. In Grundfos's words, products are “warranted to the original user only to be free of defects in material and workmanship”; the full terms are in the installation and operating instructions on the Data Sheet tab.
| Specification | Value |
|---|---|
| Rated flow | 45 GPM |
| Motor horsepower | 1 to 25 HP |
| Motor | 4 in or 6 in submersible motor, NEMA motor flange |
| Discharge | 2 in NPT; male on DS builds |
| Minimum well | 4 / 6 in (6 in; 4 in for the sleeve (DS) builds) |
| Check valve | Built in |
| Liquid temperature | Up to 140°F (60°C) at the pump end; the motor sets the working limit |
| Approvals | cCSAus and CULDWUS (Grundfos Product Center codes) |
| Curve tolerance | ISO 9906 |
| Included | Pump end only; motor and its control ordered separately |
Each table reads like the curve: the head the pump end on its matching motor adds at shut-off, along its curve and at the rated flow of 45 GPM, out to the end of the published curve. Pick a model whose head at your flow covers the pumping level, the pressure you need at the surface (2.31 ft per psi) and pipe friction.
| Model | HP | 0 GPM (Shut-off) | 11.7 GPM | 29 GPM | 45 GPM (Rated) | 58.6 GPM (Max) |
|---|---|---|---|---|---|---|
| 45S10-3 | 1 | 92 | 89 | 85 | 72-73 | 50 |
| 45S15-4 | 1-1/2 | 119 | 119 | 114 | 97-99 | 69 |
| 45S20-5 | 2 | 153 | 150 | 145 | 123-124 | 88 |
| 45S30-7 | 3 | 219 | 211 | 204 | 174-178 | 126 |
| 45S50-9 | 5 | 280 | 275 | 268 | 234 | 170 |
| 45S50-12 | 5 | — | 365 | 353 | 306 | 220 |
| 45S75-15 | 7-1/2 | — | 461 | 450 | 386-390 | 289 |
| 45S75-18 | 7-1/2 | 551 | 551 | 536 | 458-463 | 341 |
| 45S100-22 | 10 | 673 | 674 | 657 | 564-568 | 420 |
| 45S100-25 | 10 | 759 | 763 | 742 | 632-640 | 470 |
| 45S150-28 | 15 | 860 | 863 | 843 | 727-729 | 545 |
| Model | HP | 0 GPM (Shut-off) | 11.7 GPM | 29 GPM | 45 GPM (Rated) | 58.6 GPM (Max) |
|---|---|---|---|---|---|---|
| 45S150-31 | 15 | 949 | 953 | 930 | 801-803 | 598 |
| 45S150-34 | 15 | 1039 | 1042 | 1016 | 869-876 | 649 |
| 45S150-37 | 15 | 1128 | 1130 | 1100 | 939-942 | 698 |
| 45S200-40DS | 20 | 1227 | 1231 | 1203 | 1037-1044 | 776 |
| 45S200-43DS | 20 | 1320 | 1321 | 1289 | 1105-1118 | 828 |
| 45S200-47DS | 20 | 1439 | 1440 | 1404 | 1199-1216 | 896 |
| 45S200-51DS | 20 | 1560 | 1559 | 1517 | 1291-1392 | 963 |
| 45S250-54DS | 25 | 1660 | 1663 | 1626 | 1389-1405 | 1051 |
| 45S250-57DS | 25 | 1740 | 1753 | 1712 | 1460-1471 | 1103 |
| 45S250-60DS | 25 | 1840 | 1842 | 1798 | 1530-1543 | 1154 |
| 45S250-63DS | 25 | 1920 | 1931 | 1883 | 1599-1613 | 1203 |

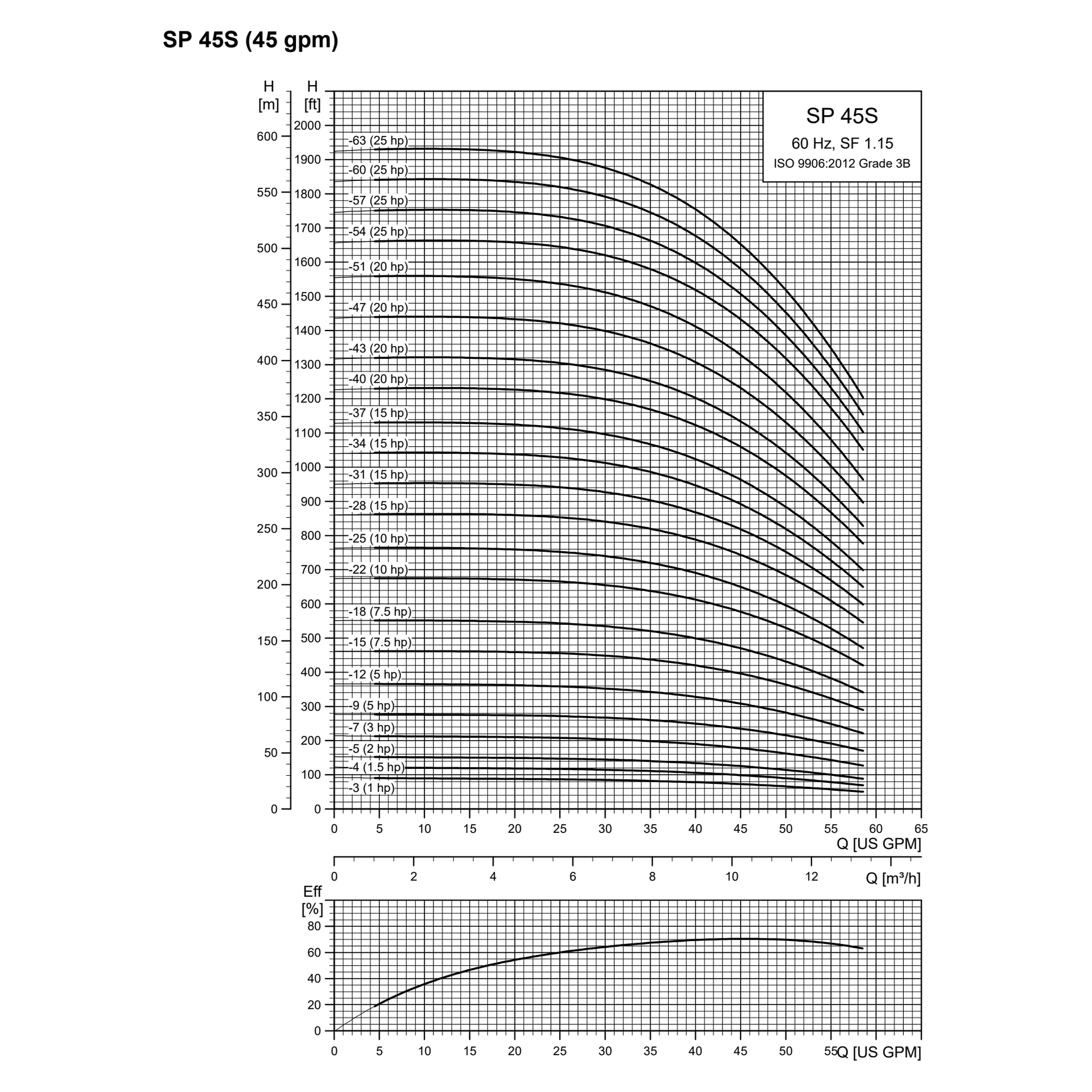

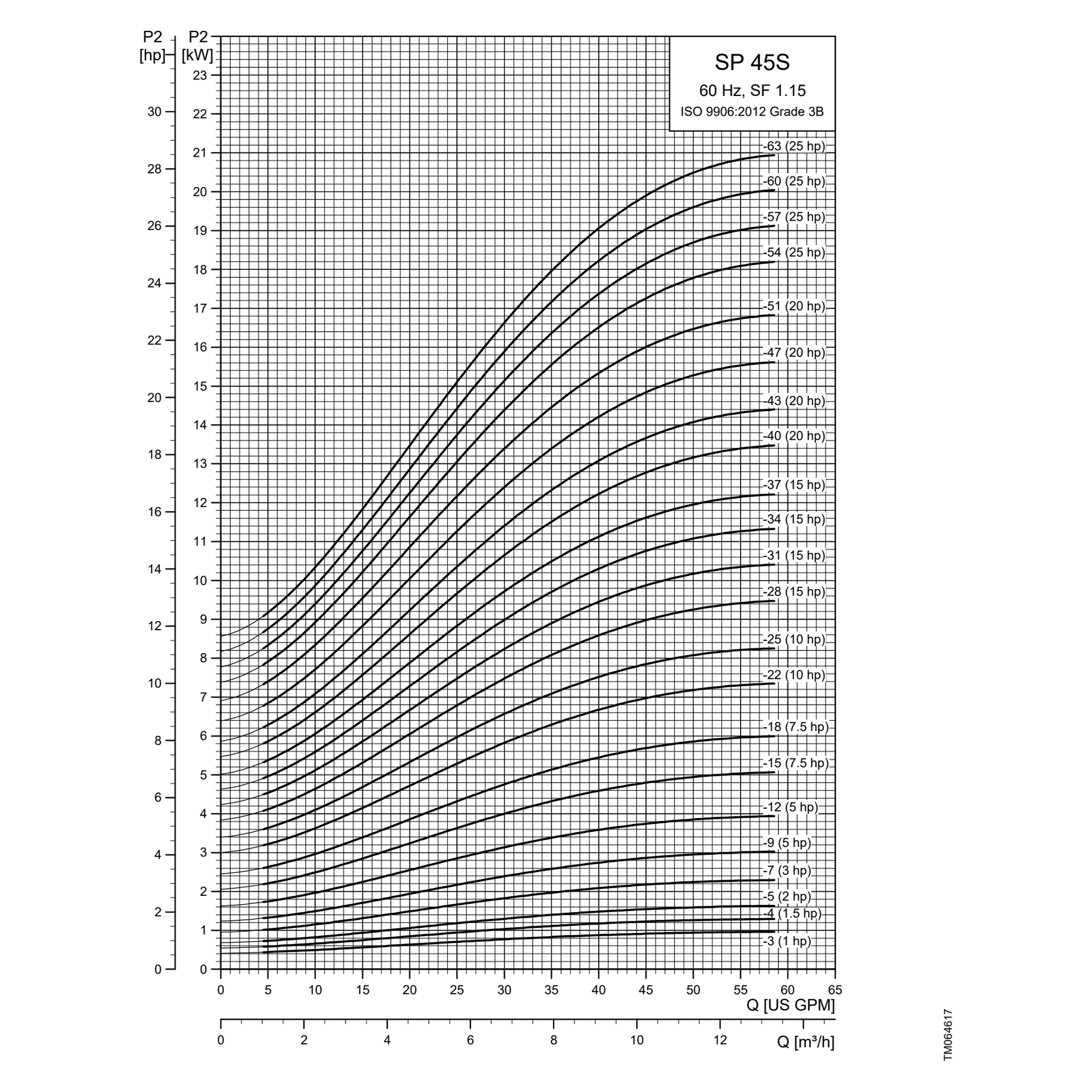

Total head in feet. The shut-off and flow columns are read from the Grundfos 60 Hz curves, digitized from the published vector curves in the Grundfos SP 45S data sheet (60 Hz), at the nearest published point and rounded down. The (Rated) column is the nominal head Grundfos prints for each model at its rated flow, verbatim; where two figures are shown, builds on different motors or voltages differ slightly. 1 ft of head = 0.433 PSI. Full curves are in the product images and on the Data Sheet tab.
Motor by Horsepower
| Motor HP | Motor | Models |
|---|---|---|
| 1 HP | 4 in | 45S10-3 |
| 1-1/2 HP | 4 in | 45S15-4 |
| 2 HP | 4 in | 45S20-5 |
| 3 HP | 4 in | 45S30-7 |
| 5 HP | 4 in | 45S50-9, 45S50-12 |
| 7-1/2 HP | 4 in or 6 in | 45S75-15, 45S75-18 |
| 10 HP | 4 in or 6 in | 45S100-22, 45S100-25 |
| 15 HP | 6 in | 45S150-28, 45S150-31, 45S150-34, 45S150-37 |
| 20 HP | 6 in | 45S200-40DS, 45S200-43DS, 45S200-47DS, 45S200-51DS |
| 25 HP | 6 in | 45S250-54DS, 45S250-57DS, 45S250-60DS, 45S250-63DS |
Grundfos US price list, January 2026. Grundfos motors for these builds are on our Grundfos MS 4 in motor and Grundfos MS 6 in motor listings. Add the motor's control: a control box for a single-phase 3-wire motor, a starter or drive for a three-phase motor.
What It Delivers on a 30/50 Pressure Switch
GPM at 30 PSI (switch cut-in), by depth to water
| Model | 20 ft | 30 ft |
|---|---|---|
| 45S20-5 | 58 | 55 |
GPM at 50 PSI (switch cut-out), by depth to water
| Model | 20 ft | 30 ft |
|---|---|---|
| 45S20-5 | 38.5 | 27 |
GPM at 30 PSI (switch cut-in), by depth to water
| Model | 60 ft | 70 ft | 80 ft | 90 ft | 100 ft |
|---|---|---|---|---|---|
| 45S30-7 | 58 | 55.5 | 53.5 | 51 | 48 |
GPM at 50 PSI (switch cut-out), by depth to water
| Model | 60 ft | 70 ft | 80 ft | 90 ft | 100 ft |
|---|---|---|---|---|---|
| 45S30-7 | 45.5 | 41.5 | 36.5 | 28 | — |
GPM at 30 PSI (switch cut-in), by depth to water
| Model | 110 ft | 120 ft | 130 ft | 140 ft | 150 ft | 160 ft |
|---|---|---|---|---|---|---|
| 45S50-9 | 57 | 55 | 53 | 51 | 49 | 46.5 |
GPM at 50 PSI (switch cut-out), by depth to water
| Model | 110 ft | 120 ft | 130 ft | 140 ft | 150 ft | 160 ft |
|---|---|---|---|---|---|---|
| 45S50-9 | 47 | 44.5 | 41 | 37 | 30.5 | 9 |
GPM at 30 PSI (switch cut-in), by depth to water
| Model | 160 ft | 170 ft | 180 ft | 200 ft | 225 ft | 250 ft |
|---|---|---|---|---|---|---|
| 45S50-12 | 57.5 | 56 | 54.5 | 52 | 47.5 | 42 |
GPM at 50 PSI (switch cut-out), by depth to water
| Model | 160 ft | 170 ft | 180 ft | 200 ft | 225 ft | 250 ft |
|---|---|---|---|---|---|---|
| 45S50-12 | 50.5 | 49 | 47 | 43 | 35.5 | 5 |
GPM at 30 PSI (switch cut-in), by depth to water
| Model | 225 ft | 275 ft | 300 ft | 350 ft | 375 ft | 425 ft |
|---|---|---|---|---|---|---|
| 45S75-15 | 58 | 52.5 | 49 | 40 | 32 | — |
| 45S75-18 | — | 58 | 56 | 51 | 48.5 | 41 |
GPM at 50 PSI (switch cut-out), by depth to water
| Model | 225 ft | 275 ft | 300 ft | 350 ft | 375 ft | 425 ft |
|---|---|---|---|---|---|---|
| 45S75-15 | 52.5 | 45.5 | 40.5 | — | — | — |
| 45S75-18 | — | 54 | 51.5 | 45.5 | 41.5 | 26 |
GPM at 30 PSI (switch cut-in), by depth to water
| Model | 375 ft | 450 ft | 550 ft | 700 ft | 850 ft | 1000 ft |
|---|---|---|---|---|---|---|
| 45S100-22 | 56.5 | 51 | 38.5 | — | — | — |
| 45S100-25 | — | 55.5 | 48 | — | — | — |
| 45S150-28 | — | — | 54 | 42 | — | — |
| 45S150-31 | — | — | 57.5 | 48.5 | 31.5 | — |
| 45S150-34 | — | — | — | 52.5 | 42.5 | — |
| 45S150-37 | — | — | — | 55.5 | 47.5 | 34.5 |
GPM at 50 PSI (switch cut-out), by depth to water
| Model | 375 ft | 450 ft | 550 ft | 700 ft | 850 ft | 1000 ft |
|---|---|---|---|---|---|---|
| 45S100-22 | 53 | 46 | 24.5 | — | — | — |
| 45S100-25 | 57 | 52 | 43 | — | — | — |
| 45S150-28 | — | 57 | 51 | 35.5 | — | — |
| 45S150-31 | — | — | 55 | 45 | — | — |
| 45S150-34 | — | — | 57.5 | 50 | 37.5 | — |
| 45S150-37 | — | — | — | 53 | 44.5 | 24 |
GPM at 30 PSI (switch cut-in), by depth to water
| Model | 750 ft | 900 ft | 1050 ft | 1200 ft | 1350 ft | 1500 ft |
|---|---|---|---|---|---|---|
| 45S200-40DS | 56.5 | 50 | 40 | — | — | — |
| 45S200-43DS | — | 53 | 45.5 | 32.5 | — | — |
| 45S200-47DS | — | 56 | 50.5 | 42.5 | 25.5 | — |
| 45S200-51DS | — | 58 | 53.5 | 47.5 | 39 | — |
| 45S250-54DS | — | — | 56.5 | 51.5 | 45.5 | 36 |
| 45S250-57DS | — | — | 58 | 53.5 | 48.5 | 41.5 |
GPM at 50 PSI (switch cut-out), by depth to water
| Model | 750 ft | 900 ft | 1050 ft | 1200 ft | 1350 ft | 1500 ft |
|---|---|---|---|---|---|---|
| 45S200-40DS | 55 | 47.5 | 35 | — | — | — |
| 45S200-43DS | 57 | 51 | 42.5 | 19.5 | — | — |
| 45S200-47DS | — | 54.5 | 48 | 39 | — | — |
| 45S200-51DS | — | 57 | 52 | 45.5 | 35.5 | — |
| 45S250-54DS | — | — | 55 | 50 | 43 | 30.5 |
| 45S250-57DS | — | — | 56.5 | 52 | 46.5 | 38.5 |
GPM at 30 PSI (switch cut-in), by depth to water
| Model | 1100 ft | 1200 ft | 1250 ft | 1350 ft | 1400 ft | 1500 ft |
|---|---|---|---|---|---|---|
| 45S250-60DS | 58 | 55.5 | 54 | 51 | 49 | 45.5 |
| 45S250-63DS | — | 57 | 55.5 | 53 | 51.5 | 48 |
GPM at 50 PSI (switch cut-out), by depth to water
| Model | 1100 ft | 1200 ft | 1250 ft | 1350 ft | 1400 ft | 1500 ft |
|---|---|---|---|---|---|---|
| 45S250-60DS | 57 | 54 | 52.5 | 49.5 | 47.5 | 43 |
| 45S250-63DS | 58 | 55.5 | 54.5 | 51.5 | 50 | 46.5 |
Calculated, not printed: Grundfos publishes no output table for the SP 45S. Each cell is the flow where the published 60 Hz curve meets the depth to water plus 69 ft (30 PSI) or 116 ft (50 PSI), interpolated between published points and rounded down to 0.5 GPM. 45S10-3, 45S15-4 cannot hold 50 PSI from a 20 ft depth on the published curve and are left out. Riser and pipe friction are not included. A dash on the shallow side means the flow runs past the end of the published curve; on the deep side, the pump cannot reach that pressure (or gives under 1 GPM).
| Check | What to confirm |
|---|---|
| Motor | A 4 in or 6 in submersible motor of the horsepower in the selector, with a NEMA motor flange; ordered separately |
| Motor control | Control box for a single-phase 3-wire motor; starter or drive for a three-phase motor |
| Well size | Casing ID at least 6 in; 4 in for the sleeve (DS) builds |
| Duty point | Choose the model from the Grundfos curve at your flow and total head. Send us the pumping level, pipe run and pressure and we will check it against the curve |
| Part | Material |
|---|---|
| Pump | Stainless steel, EN 1.4301 (AISI 304) |
| Impellers | Stainless steel, EN 1.4301 (AISI 304) |
Source: Grundfos Product Center.
