Grundfos 300S SP 6 in Submersible Well Pump

HP - Motor Dia: 3 HP - 4 in Motor
Voltage - Phase: 230V 1Ph 3-Wire
Model - Head: 300S30-1B - 29-30 ft at 300 GPM

Product variant with selected options does not exist!

Price
$3,566.18
Coupon 5% off applied automatically in your cart. No code needed.
SKU: 14B745C1
Weight : 70.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Grundfos · Submersible Well Pump
300S SP
300 GPM class stainless steel submersible well pump for 6 in and larger wells: 40 complete builds from 3 HP to 40 HP on 4 in and 6 in Grundfos motors, with a 3-4 in NPT discharge.
300 GPM Rated Flow
3-40 HP
29-409 ft Nominal Head
3-4 in NPT Discharge
6 in Min. Well
230V 1Ph · 230V and 460V 3Ph
AISI 304 Stainless Steel
cCSAus
5.7-5.8 in Dia x 32.8-94.8 in L
52.9-244.7 lb Weight
Overview

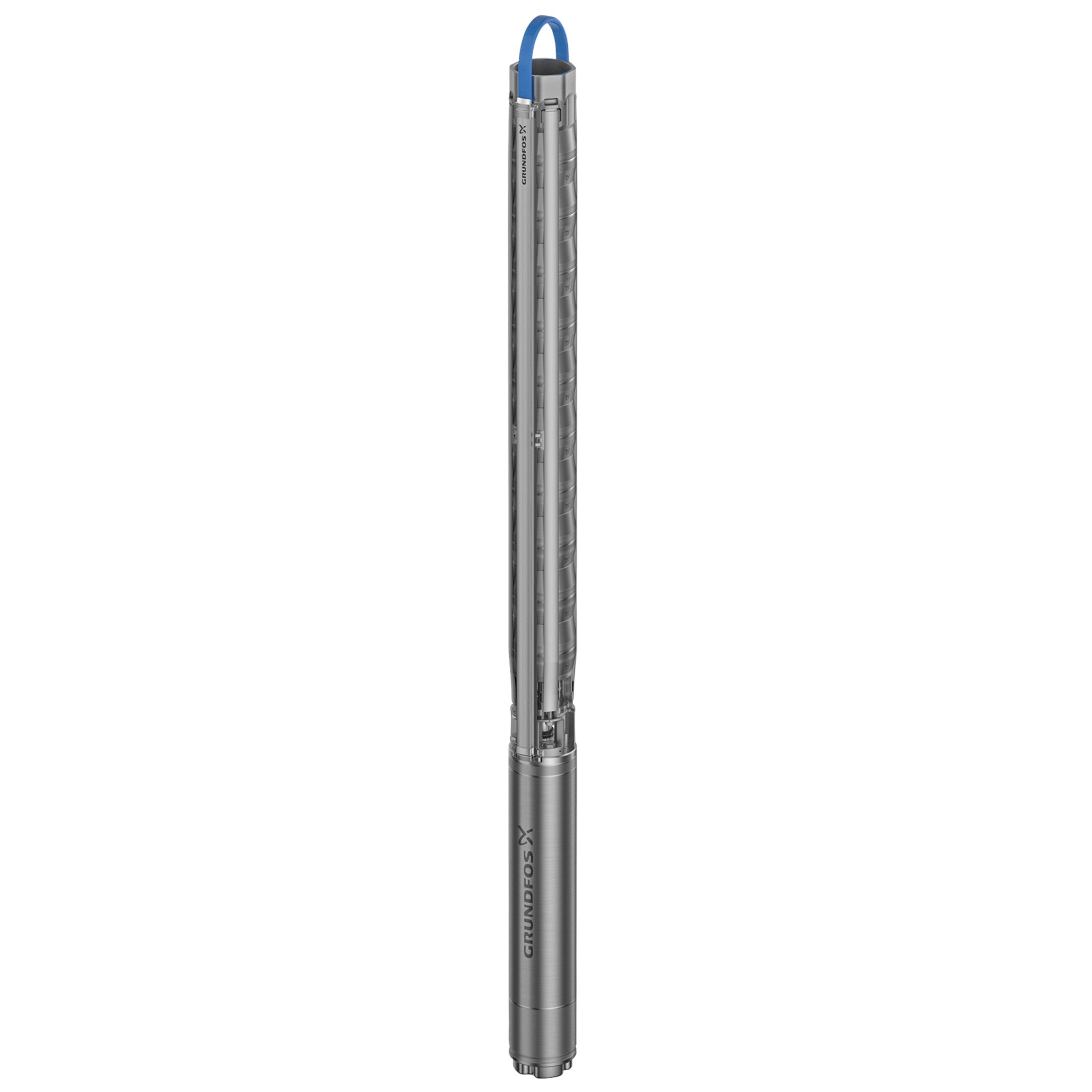

The Grundfos 300S is the 300 GPM class of the Grundfos SP submersible range, built for 6 in and larger wells. Pump and impellers are AISI 304 stainless steel. Each build here is a complete pump: the 300S pump end and a Grundfos submersible motor, supplied together under one part number, with a 3-4 in NPT discharge.

Typical uses listed by Grundfos include groundwater supply, irrigation, residential water pressure boosting and municipal wells.

The 300S range here runs on 4 in Grundfos MS4000 motors (3-10 HP) and 6 in Grundfos MS6000C motors (7-1/2-40 HP). The motor size for each build is shown in the selector.

Single-phase builds (3-5 HP, 230V) use a 3-wire motor and run through a Grundfos control box, sold separately. Three-phase builds are available at 230V or 460V.

What Ships and What It Needs to Run

Included: the 300S pump end and its Grundfos motor, factory-assembled as one complete pump.

Single-phase 230V builds (3-5 HP, 3-wire): control box required, ordered separately. Use the Grundfos SA-SPM6 3-wire control box listed for each build in the Control Box by Horsepower table under Models & Performance.

Three-phase 230V and 460V builds: motor starter or drive required, ordered separately. Wire the motor through a magnetic starter or a drive (VFD) rated for its horsepower and voltage.

Drop cable and splice kit: sized to your setting depth and ordered separately.

Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Warranty

24 months from date of installation, but not more than 30 months from date of manufacture. In Grundfos's words, products are “warranted to the original user only to be free of defects in material and workmanship”; the full terms are in the installation and operating instructions on the Data Sheet tab.

Specifications
Specification Value
Rated flow 300 GPM
Horsepower 3 to 40 HP
Discharge 3 in NPT female; 4 in NPT female on the 300S300-7, 300S250-7AA, 300S300-8, 300S400-9, 300S300-9B and 300S400-10
Minimum well size 6 in
Voltage and phase 230V 1Ph (3-5 HP, 3-wire); 230V 3Ph (3-30 HP); 460V 3Ph (3-40 HP)
Motors 4 in Grundfos MS4000 (3-10 HP); 6 in Grundfos MS6000C (7-1/2-40 HP)
Liquid temperature MS4000 4 in: up to 104°F (40°C); MS6000C 6 in: up to 104°F (40°C)
Approvals cCSAus on every build listed by Grundfos; most builds also carry CULDWUS (Grundfos Product Center codes)
Curve tolerance ISO 9906
Minimum submergence 8 ft
Included Pump end and motor, assembled as one complete pump
Models & Performance — Will It Do What You Need?

Each table reads like the curve: the head the pump adds at shut-off, along its curve and at the rated flow of 300 GPM, out to the end of the published curve. Pick a model whose head at your flow covers the pumping level, the pressure you need at the surface (2.31 ft per psi) and pipe friction.

300S · rated 300 GPM · 3 to 20 HP · 9 models
Model HP 0 GPM (Shut-off) 75 GPM 187 GPM 300 GPM (Rated) 374 GPM
300S30-1B 3 48 43 31 29-30 2
300S50-1 5 63 62 46 38 19
300S50-2BB 5 90 83 66 57 15
300S75-2 7-1/2 130 126 98 77-78 48
300S100-3A 10 177 171 135 107 61
300S150-3 15 200 193 152 119 77
300S150-4AA 15 224 217 173 138-139 77
300S150-4 15 267 257 205 157-158 105
300S200-5AA 20 295 286 232 179-180 108
300S · rated 300 GPM · 20 to 40 HP · 9 models
Model HP 0 GPM (Shut-off) 75 GPM 187 GPM 300 GPM (Rated) 374 GPM
300S200-5 20 334 321 257 200-201 134
300S200-6B 20 385 372 302 222-224 156
300S250-6 25 410 393 317 243-244 170
300S250-7AA 25 — — — 260-262 —
300S300-7 30 473 455 368 283-285 198
300S300-8 30 540 519 420 321-324 223
300S300-9B 30 580 556 451 343-346 232
300S400-9 40 604 579 468 370 249
300S400-10 40 680 653 531 409 287

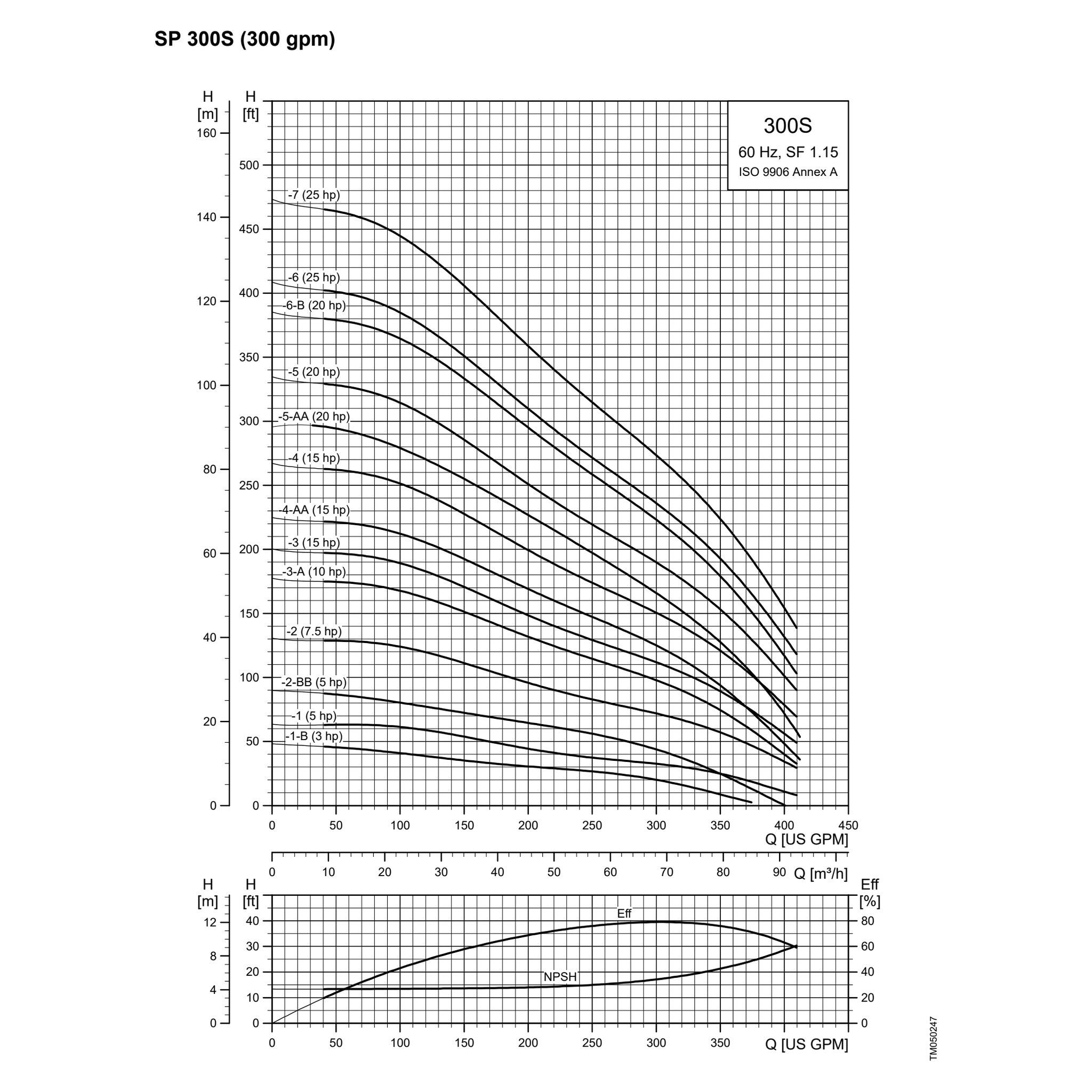

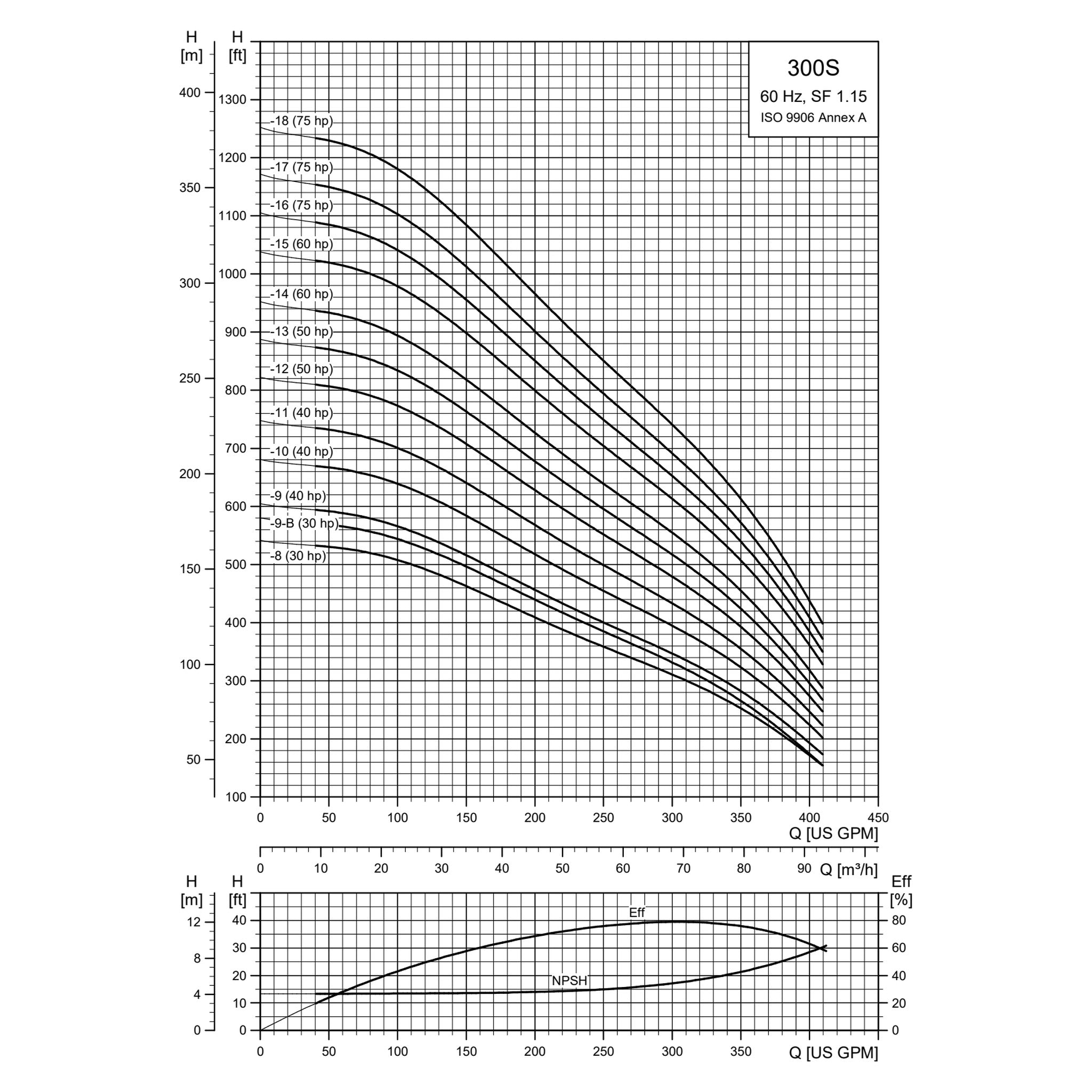

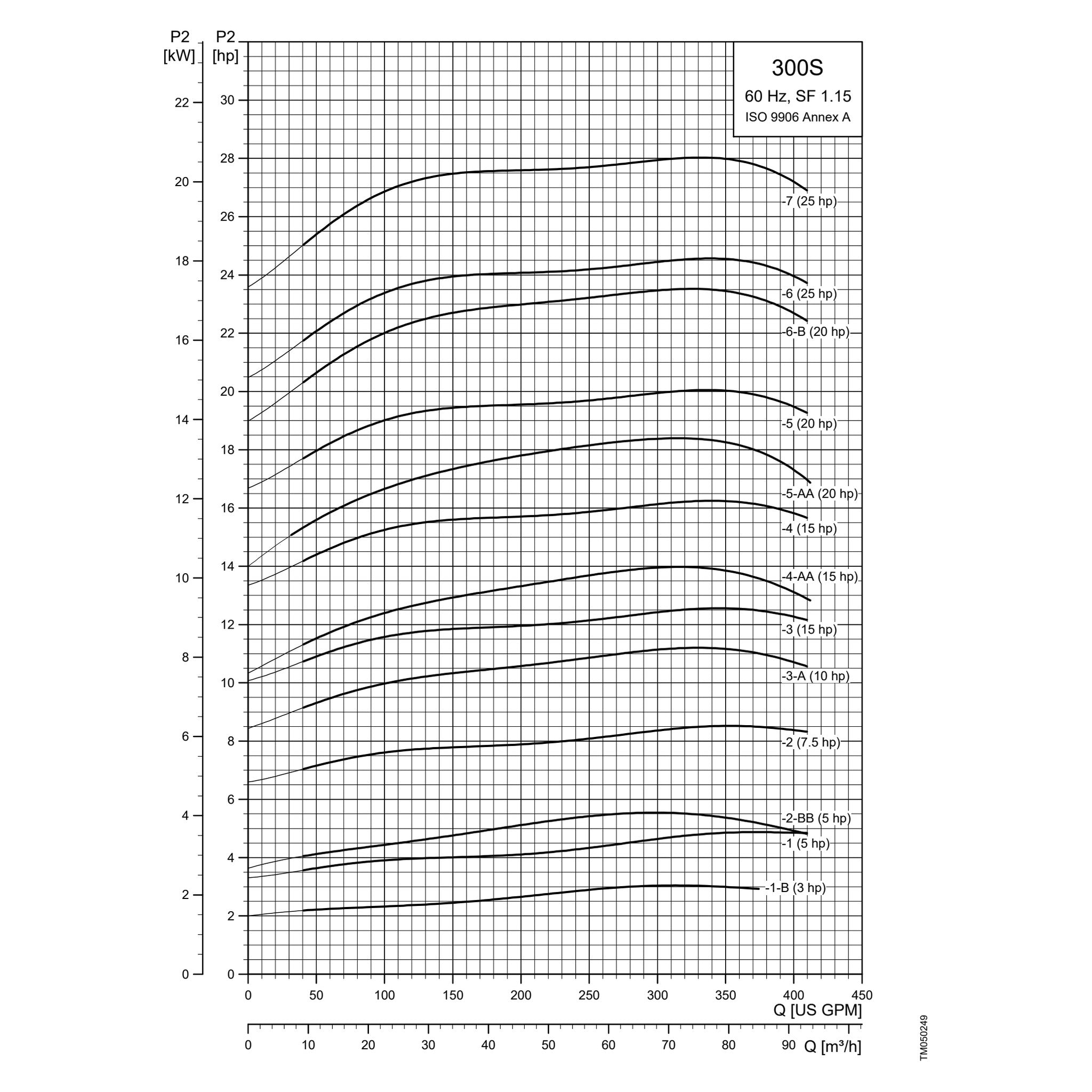

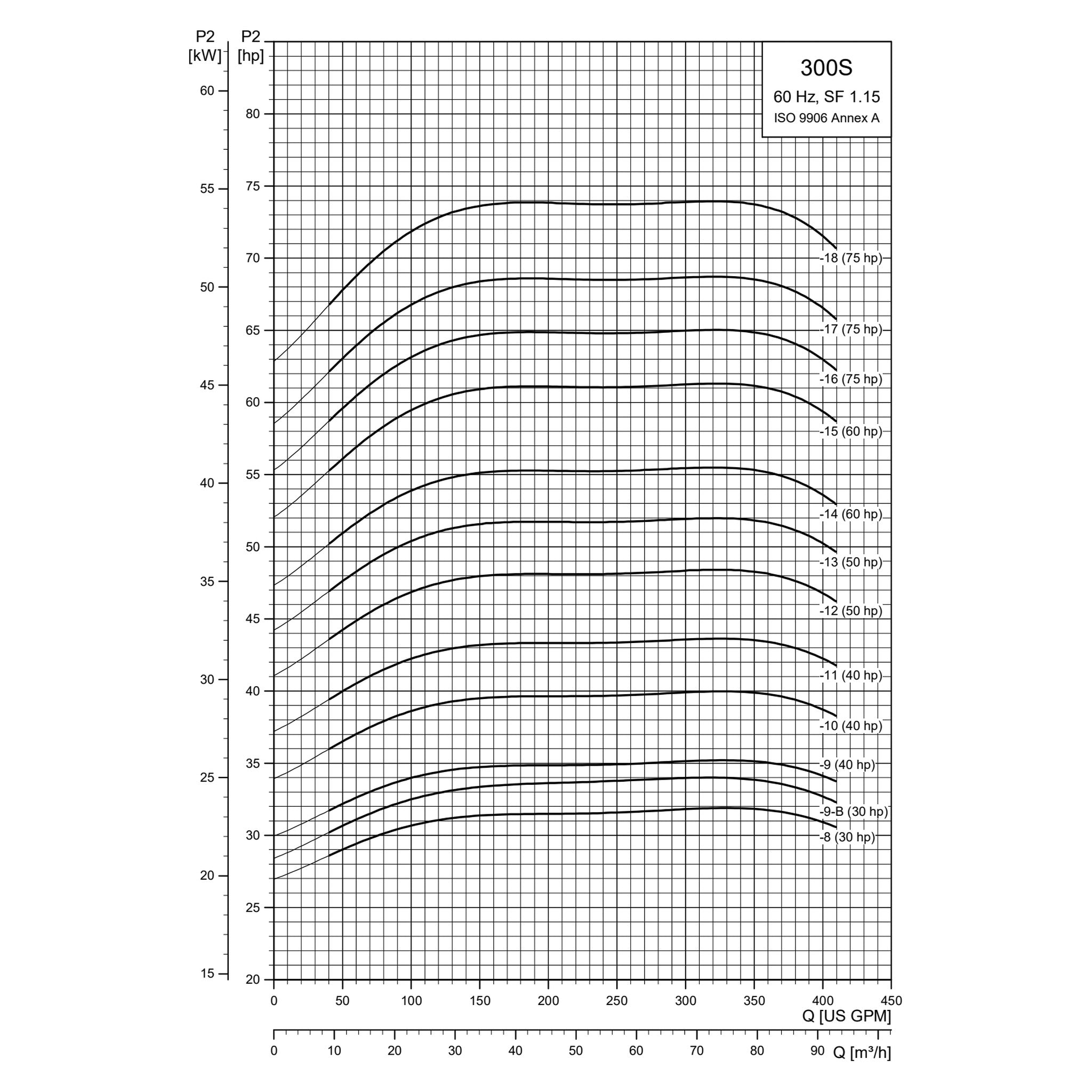

Total head in feet. The shut-off and flow columns are read from the Grundfos 60 Hz curves, digitized from the published vector curves in the Grundfos SP 300S data sheet (60 Hz), at the nearest published point and rounded down. The (Rated) column is the nominal head Grundfos prints for each model at its rated flow, verbatim; where two figures are shown, builds on different motors or voltages differ slightly. 300S: curves end at 374 GPM to 412 GPM; the last column is the last flow every 300S curve reaches. Grundfos's curve and printed table disagree here. 300S: the published curve reads below the printed nominal head at 300 GPM by about 4% of shut-off head on the median model. Both are shown as published; we check your duty point against the curve before you order. No published curve for 300S250-7AA: rated figure only, full curve on request. 1 ft of head = 0.433 PSI. Full curves are in the product images and on the Data Sheet tab.

Control Box by Horsepower (single-phase 3-wire builds)

Motor HP Models Control box
3 HP 300S30-1B 98315258
5 HP 300S50-1, 300S50-2BB 98315260

Grundfos US price list, January 2026. Every box is on our Grundfos SA-SPM6 3-Wire Control Box listing; Deluxe boxes add a magnetic starter. Three-phase builds need a magnetic starter or drive instead.

Before You Buy — The Limits That Decide the Fit
Check What to confirm
Well size 6 in casing or larger
Submergence At least 8 ft of water above the pump
Single phase A Grundfos control box is required and sold separately: 98315258 (3 HP), 98315260 (5 HP)
Three phase A magnetic starter or drive is needed and is not included
Power Match horsepower, voltage and phase to your service. Single-phase and three-phase builds are not interchangeable
Water temperature MS4000 4 in: up to 104°F (40°C); MS6000C 6 in: up to 104°F (40°C)
Materials of Construction
Part Material
Pump Stainless steel, EN 1.4301 (AISI 304)
Impellers Stainless steel, EN 1.4301 (AISI 304)
Motor, 4 in MS4000 Stainless steel, EN 1.4301 (AISI 304)
Motor, 6 in MS6000C Stainless steel, DIN W.-Nr. 1.4301 (AISI 304)

Source: Grundfos Product Center.

For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
