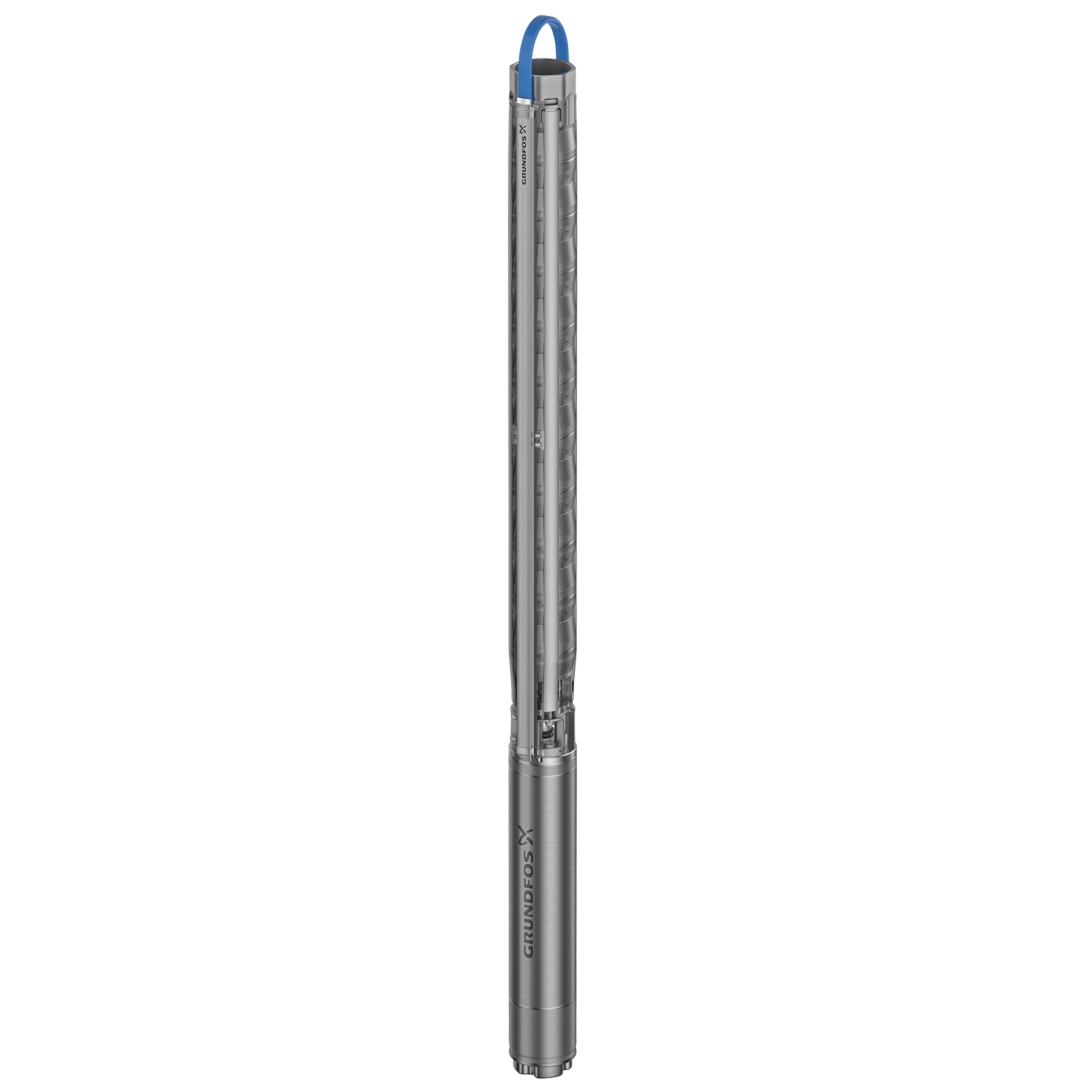

Grundfos 230S SP 6 in Submersible Well Pump

HP - Motor Dia: 2 HP - 4 in Motor
Voltage - Phase: 230V 1Ph 3-Wire
Model - Head: 230S20-1B - 23 ft at 242 GPM

Product variant with selected options does not exist!

Price
$3,399.06
Coupon 5% off applied automatically in your cart. No code needed.
SKU: 15B745C1
Weight : 55.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Grundfos · Submersible Well Pump
230S SP
230 GPM class stainless steel submersible well pump for 6 in and larger wells: 50 complete builds from 2 HP to 40 HP on 4 in and 6 in Grundfos motors, with a 3 in NPT discharge.
230 GPM Rated Flow
2-40 HP
23-525 ft Rated Head
3 in NPT Discharge
6 in Min. Well
230V 1Ph · 230V and 460V 3Ph
AISI 304 Stainless Steel
cCSAus
38.8-260.1 lb Weight
Overview

The Grundfos 230S is the 230 GPM class of the Grundfos SP submersible range, built for 6 in and larger wells. Pump and impellers are AISI 304 stainless steel. Each build here is a complete pump: the 230S pump end and a Grundfos submersible motor, supplied together under one part number, with a 3 in NPT discharge.

Typical uses listed by Grundfos include groundwater supply, irrigation, residential water pressure boosting and municipal wells.

The 230S range here runs on 4 in Grundfos MS402 motors (2-3 HP), 4 in Grundfos MS4000 motors (2-10 HP) and 6 in Grundfos MS6000C motors (7-1/2-40 HP). The motor size for each build is shown in the selector.

Single-phase builds (2-5 HP, 230V) use a 3-wire motor and run through a Grundfos control box, sold separately. Three-phase builds are available at 230V or 460V.

What Ships and What It Needs to Run

Included: the 230S pump end and its Grundfos motor, factory-assembled as one complete pump.

Single-phase 230V builds (2-5 HP, 3-wire): control box required, ordered separately. Use the Grundfos SA-SPM6 3-wire control box listed for each build in the Control Box by Horsepower table under Models & Performance.

Three-phase 230V and 460V builds: motor starter or drive required, ordered separately. Wire the motor through a magnetic starter or a drive (VFD) rated for its horsepower and voltage.

Drop cable and splice kit: sized to your setting depth and ordered separately.

Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Warranty

24 months from date of installation, but not more than 30 months from date of manufacture. In Grundfos's words, products are “warranted to the original user only to be free of defects in material and workmanship”; the full terms are in the installation and operating instructions on the Data Sheet tab.

Specifications
Specification Value
Rated flow 230 GPM
Horsepower 2 to 40 HP
Discharge 3 in NPT female
Minimum well size 6 in
Voltage and phase 230V 1Ph (2-5 HP, 3-wire); 230V 3Ph (2-30 HP); 460V 3Ph (2-40 HP)
Motors 4 in Grundfos MS4000 (2-10 HP); 4 in Grundfos MS402 (2-3 HP); 6 in Grundfos MS6000C (7-1/2-40 HP)
Liquid temperature MS402 4 in: up to 104°F (40°C); MS4000 4 in: up to 104°F (40°C); MS6000C 6 in: up to 104°F (40°C)
Approvals cCSAus on every build listed by Grundfos; most builds also carry CULDWUS (Grundfos Product Center codes)
Curve tolerance ISO 9906
Included Pump end and motor, assembled as one complete pump
Models & Performance — Will It Do What You Need?

Each table reads like the curve: the head the pump adds at shut-off, along its curve and at the rated flow of 242 GPM, out to the end of the published curve. Pick a model whose head at your flow covers the pumping level, the pressure you need at the surface (2.31 ft per psi) and pipe friction.

230S · rated 242 GPM · 2 to 20 HP · 11 models
Model HP 242 GPM (Rated)
230S20-1B 2 23
230S30-1A 3 26
230S50-1 5 36
230S50-2AB 5 52
230S75-2 7-1/2 75
230S75-3BB 7-1/2 82
230S100-3 10 118
230S100-4BC 10 121
230S150-4 15 157
230S150-5B 15 197
230S200-5 20 197
230S · rated 242 GPM · 20 to 40 HP · 11 models
Model HP 242 GPM (Rated)
230S200-6 20 240
230S200-7C 20 262
230S250-7 25 279
230S250-8 25 322
230S250-8B 25 322
230S250-9BB 25 361
230S300-9 30 361
230S400-10 40 404
230S400-11 40 443
230S400-12 40 482
230S400-13 40 525

Nominal head in feet at rated flow, verbatim from the Grundfos price list and data booklet tables. Grundfos publishes no curve data for 230S20-1B, 230S30-1A, 230S50-1 and the other models here; the full curve is available on request. 1 ft of head = 0.433 PSI.

Control Box by Horsepower (single-phase 3-wire builds)

Motor HP Models Control box
2 HP 230S20-1B 98315256
3 HP 230S30-1A 98315258
5 HP 230S50-1, 230S50-2AB 98315260

Grundfos US price list, January 2026. Every box is on our Grundfos SA-SPM6 3-Wire Control Box listing; Deluxe boxes add a magnetic starter. Three-phase builds need a magnetic starter or drive instead.

Before You Buy — The Limits That Decide the Fit
Check What to confirm
Well size 6 in casing or larger
Single phase A Grundfos control box is required and sold separately: 98315256 (2 HP), 98315258 (3 HP), 98315260 (5 HP)
Three phase A magnetic starter or drive is needed and is not included
Power Match horsepower, voltage and phase to your service. Single-phase and three-phase builds are not interchangeable
Water temperature MS402 4 in: up to 104°F (40°C); MS4000 4 in: up to 104°F (40°C); MS6000C 6 in: up to 104°F (40°C)
Duty point Choose the model from the Grundfos curve at your flow and total head. Send us the pumping level, pipe run and pressure and we will check it against the curve
Materials of Construction
Part Material
Pump Stainless steel, EN 1.4301 (AISI 304)
Impellers Stainless steel, EN 1.4301 (AISI 304)
Motor, 4 in MS402 Stainless steel, DIN W.-Nr. 1.4301 (AISI 304)
Motor, 4 in MS4000 Stainless steel, EN 1.4301 (AISI 304)
Motor, 6 in MS6000C Stainless steel, DIN W.-Nr. 1.4301 (AISI 304)

Source: Grundfos Product Center.

For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
