Grundfos 1100S SP 10 in Submersible Well Pump

HP - Motor Dia: 30 HP - 6 in Motor
Voltage - Phase: 230V 3Ph
Model - Head: 1100S300-1A - 77-89 ft at 1100 GPM

Product variant with selected options does not exist!

Price
$10,978.07
Coupon 5% off applied automatically in your cart. No code needed.
SKU: 18BG30A1
Weight : 290.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 ¡ Same-day shipping available
Description
Grundfos ¡ Submersible Well Pump
1100S SP
1100 GPM class stainless steel submersible well pump for 10 in and larger wells: 16 complete builds from 30 HP to 250 HP on 6 in, 8 in and 10 in Grundfos motors, with a 6 in NPT discharge.
1100 GPM Rated Flow
30-250 HP
77-703 ft Nominal Head
6 in NPT Discharge
10 in Min. Well
230V and 460V 3Ph
AISI 304 Stainless Steel
cCSAus
9.3-9.8 in Dia x 66.7-160.2 in L
261.0-1483.2 lb Weight
Overview

The Grundfos 1100S is the 1100 GPM class of the Grundfos SP submersible range, built for 10 in and larger wells. Pump and impellers are AISI 304 stainless steel. Each build here is a complete pump: the 1100S pump end and a Grundfos submersible motor, supplied together under one part number, with a 6 in NPT discharge.

Typical uses listed by Grundfos include groundwater supply, irrigation, residential water pressure boosting and municipal wells.

The 1100S range here runs on 6 in Grundfos MS6000C motors (30-40 HP), 8 in Grundfos MMS8000 motors (60-150 HP) and 10 in Grundfos MMS10000 motors (200-250 HP). The motor size for each build is shown in the selector.

All builds are three-phase, at 230V or 460V.

What Ships and What It Needs to Run

Included: the 1100S pump end and its Grundfos motor, factory-assembled as one complete pump.

Three-phase 230V and 460V builds: motor starter or drive required, ordered separately. Wire the motor through a magnetic starter or a drive (VFD) rated for its horsepower and voltage.

Drop cable and splice kit: sized to your setting depth and ordered separately.

Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Warranty

24 months from date of installation, but not more than 30 months from date of manufacture. In Grundfos's words, products are “warranted to the original user only to be free of defects in material and workmanship”; the full terms are in the installation and operating instructions on the Data Sheet tab.

Specifications
Specification Value
Rated flow 1100 GPM
Horsepower 30 to 250 HP
Discharge 6 in NPT female
Minimum well size 10 in
Voltage and phase 230V 3Ph (30 HP); 460V 3Ph (30-250 HP)
Motors 6 in Grundfos MS6000C (30-40 HP); 8 in Grundfos MMS8000 (60-150 HP); 10 in Grundfos MMS10000 (200-250 HP)
Liquid temperature MS6000C 6 in: up to 104°F (40°C); MMS8000 8 in (1100S1500-4, -4A and -4AA): up to 104°F (40°C) with 1.6 ft/s flow past the motor; MMS8000 8 in (1100S600-2AA, 1100S750-2A, 1100S1000-2, -3AA, 1100S1250-3 and -3A): up to 113°F (45°C) with 1.6 ft/s flow past the motor; MMS10000 10 in (1100S2500-6, -6A and -6AA): up to 95°F (35°C) with 1.6 ft/s flow past the motor; MMS10000 10 in (1100S2000-5): up to 113°F (45°C) with 1.6 ft/s flow past the motor
Approvals cCSAus and CULDWUS (Grundfos Product Center codes)
Curve tolerance ISO 9906
Minimum submergence 30 ft
Included Pump end and motor, assembled as one complete pump
Models & Performance — Will It Do What You Need?

Each table reads like the curve: the head the pump adds at shut-off, along its curve and at the rated flow of 1100 GPM, out to the end of the published curve. Pick a model whose head at your flow covers the pumping level, the pressure you need at the surface (2.31 ft per psi) and pipe friction.

1100S ¡ rated 1100 GPM ¡ 30 to 125 HP ¡ 8 models
Model HP 0 GPM (Shut-off) 295 GPM 736 GPM 1100 GPM (Rated) 1473 GPM (Max)
1100S300-1A 30 126 122 100 77-89 14
1100S400-1 40 183 172 136 109 54
1100S600-2AA 60 260 254 218 180 58
1100S750-2A 75 318 305 256 217 99
1100S1000-2 100 374 356 289 230 141
1100S1000-3AA 100 450 434 371 314 135
1100S1250-3A 125 503 484 403 319 175
1100S1250-3 125 557 533 434 340 215
1100S ¡ rated 1100 GPM ¡ 150 to 250 HP ¡ 7 models
Model HP 0 GPM (Shut-off) 295 GPM 736 GPM 1100 GPM (Rated) 1473 GPM (Max)
1100S1500-4AA 150 634 612 517 411 212
1100S1500-4A 150 687 661 548 431 250
1100S1500-4 150 739 710 579 450 290
1100S2000-5 200 939 907 745 577 390
1100S2500-6AA 250 — — — 658 —
1100S2500-6A 250 — — — 673 —
1100S2500-6 250 — — — 703 —

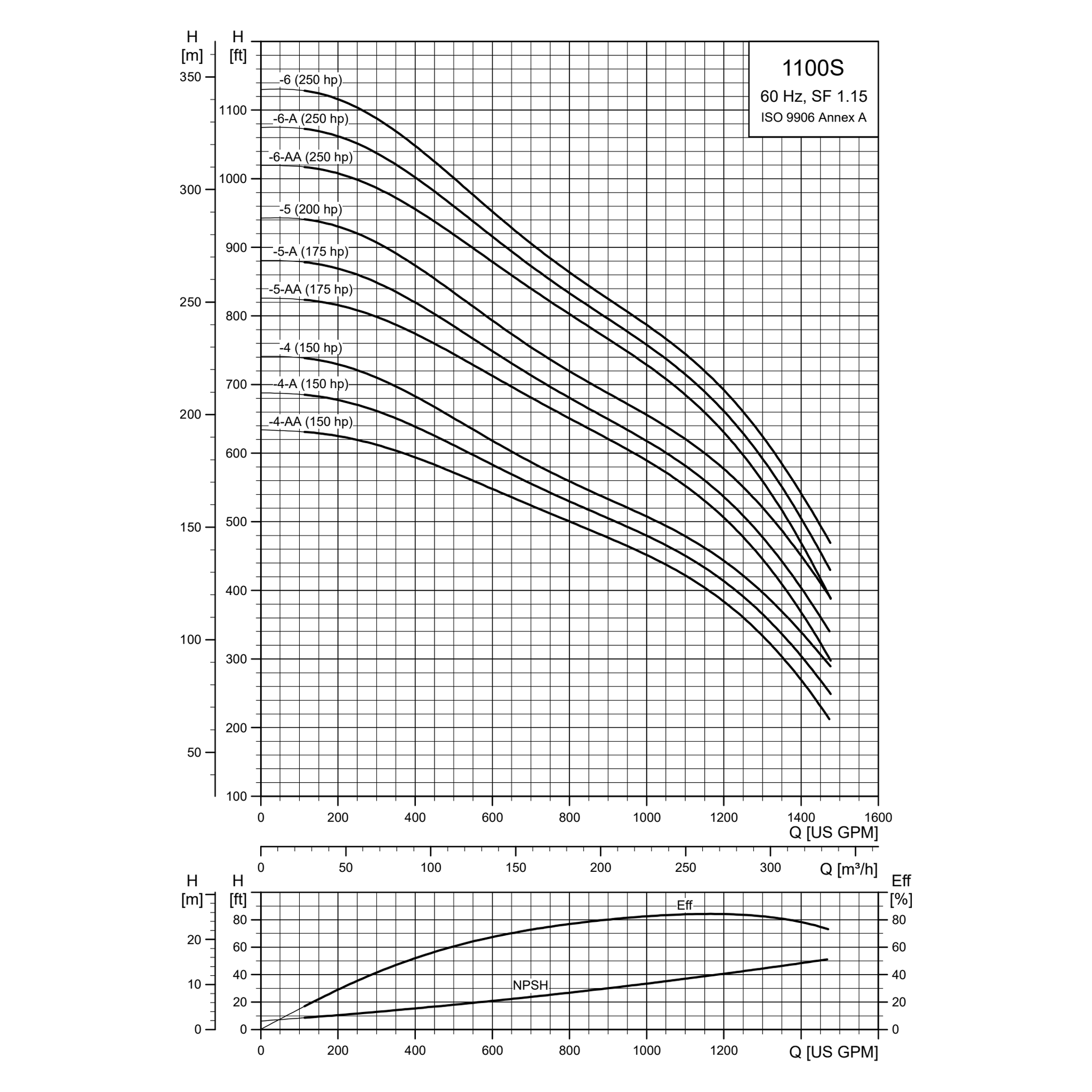

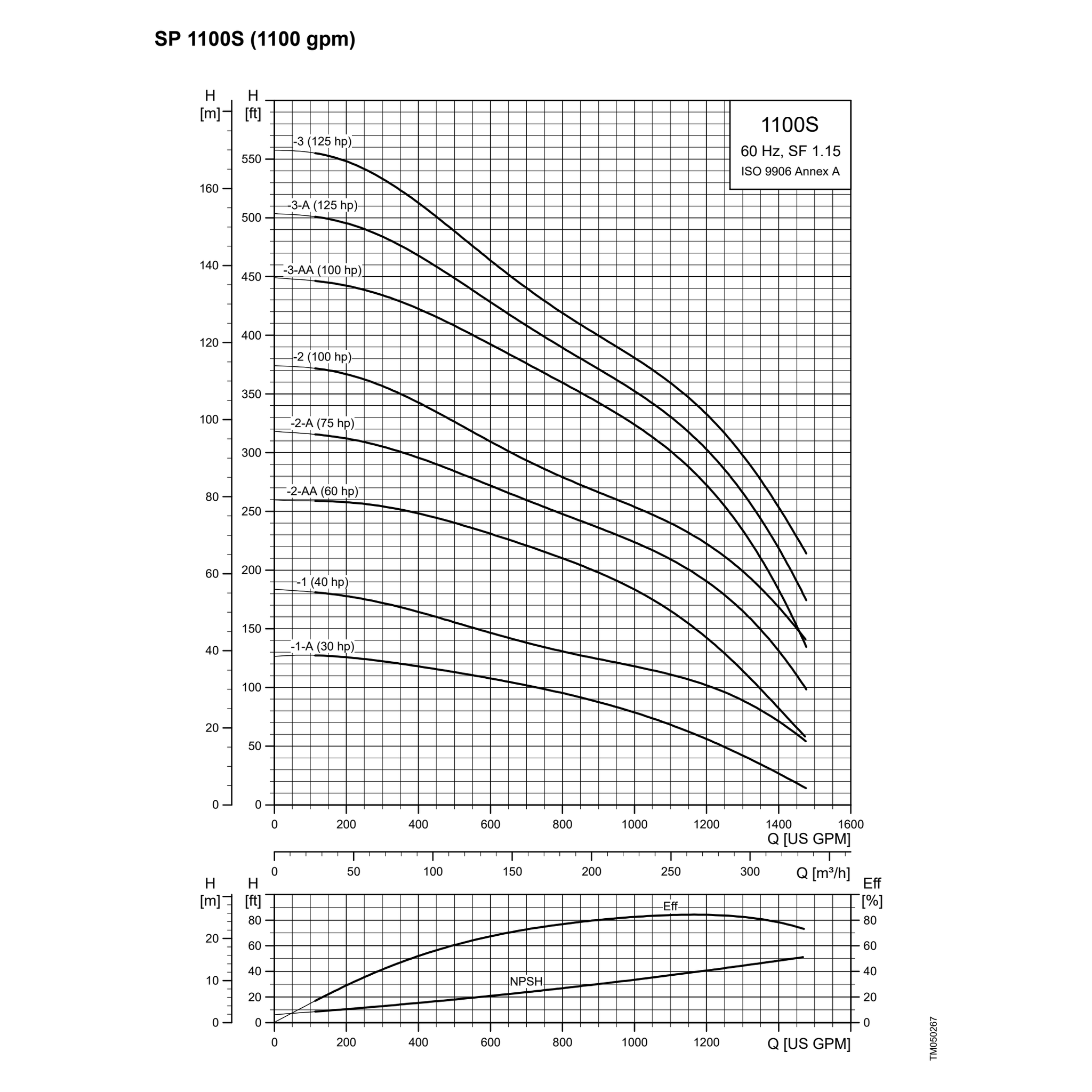

Total head in feet. The shut-off and flow columns are read from the Grundfos 60 Hz curves, digitized from the published vector curves in the Grundfos SP 1100S data sheet (60 Hz), at the nearest published point and rounded down. The (Rated) column is the nominal head Grundfos prints for each model at its rated flow, verbatim; where two figures are shown, builds on different motors or voltages differ slightly. No published curve for 1100S2500-6AA, 1100S2500-6A, 1100S2500-6: rated figure only, full curve on request. 1 ft of head = 0.433 PSI. Full curves are in the product images and on the Data Sheet tab.

Before You Buy — The Limits That Decide the Fit
Check What to confirm
Well size 10 in casing or larger
Submergence At least 30 ft of water above the pump
Three phase A magnetic starter or drive is needed and is not included
Power Match horsepower, voltage and phase to your service
Water temperature MS6000C 6 in: up to 104°F (40°C); MMS8000 8 in (1100S1500-4, -4A and -4AA): up to 104°F (40°C) with 1.6 ft/s flow past the motor; MMS8000 8 in (1100S600-2AA, 1100S750-2A, 1100S1000-2, -3AA, 1100S1250-3 and -3A): up to 113°F (45°C) with 1.6 ft/s flow past the motor; MMS10000 10 in (1100S2500-6, -6A and -6AA): up to 95°F (35°C) with 1.6 ft/s flow past the motor; MMS10000 10 in (1100S2000-5): up to 113°F (45°C) with 1.6 ft/s flow past the motor
Duty point Choose the model from the Grundfos curve at your flow and total head. Send us the pumping level, pipe run and pressure and we will check it against the curve
Materials of Construction
Part Material
Pump Stainless steel, EN 1.4301 (AISI 304)
Impellers Stainless steel, EN 1.4301 (AISI 304)
Motor, 6 in MS6000C Stainless steel, DIN W.-Nr. 1.4301 (AISI 304)
Motor, 8 in MMS8000 Cast iron, DIN W.-Nr. 0.6025 (ASTM Class 35-40)
Motor, 10 in MMS10000 Cast iron, DIN W.-Nr. 0.6025 (ASTM Class 35-40)

Source: Grundfos Product Center.

For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
