Dresser Style 711 Insulating Reducing Coupling - Cast Iron to Steel or PE Gas Pipe

Cast Iron OD x Size: 3.80 in CI x 3 in
Small End - Part No.: Steel - 0711-9603-214

Product variant with selected options does not exist!

Price
$1,289.26
Coupon 5% off applied automatically in your cart. No code needed.
SKU: 0711-9603-214
Weight : 28.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Gas Coupling

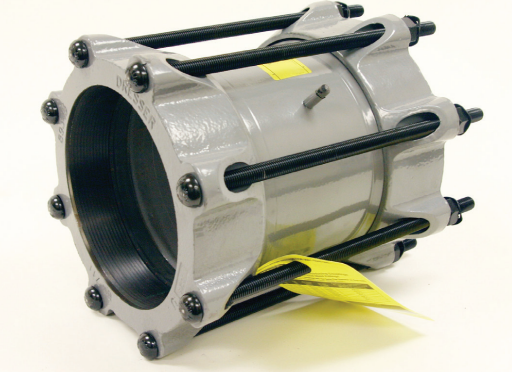

Style 711 Insulating Reducing Coupling
Insulating reducing coupling from cast iron gas main to steel or PE pipe.
50 PSI Max (Cast Iron)
Seal and Restraint, DOT 192.281(e)
ASTM F1948 Category 1
Natural Gas Service
Steel, PE and Cast Iron Pipe
28-152 lb Weight
Overview

This Style 711 coupling insulates and transitions from a cast iron main to steel or polyethylene, sealing the cast iron end and gripping the steel or PE end against pullout.

Application: Tie-ins from cast iron gas mains to steel or PE replacement pipe.

  • Assembled stab design: little or no disassembly in the ditch
  • Metallic grip mechanism locks the pipe against pullout
  • PE pipe needs the matching color-coded insert stiffener
What Ships and What It Needs to Run

Included: insulating reducing coupling, insulators, gaskets, grip ring, bolts and nuts, assembled.

Also needed: insert stiffener for PE pipe, sized to the pipe SDR (sold separately).

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

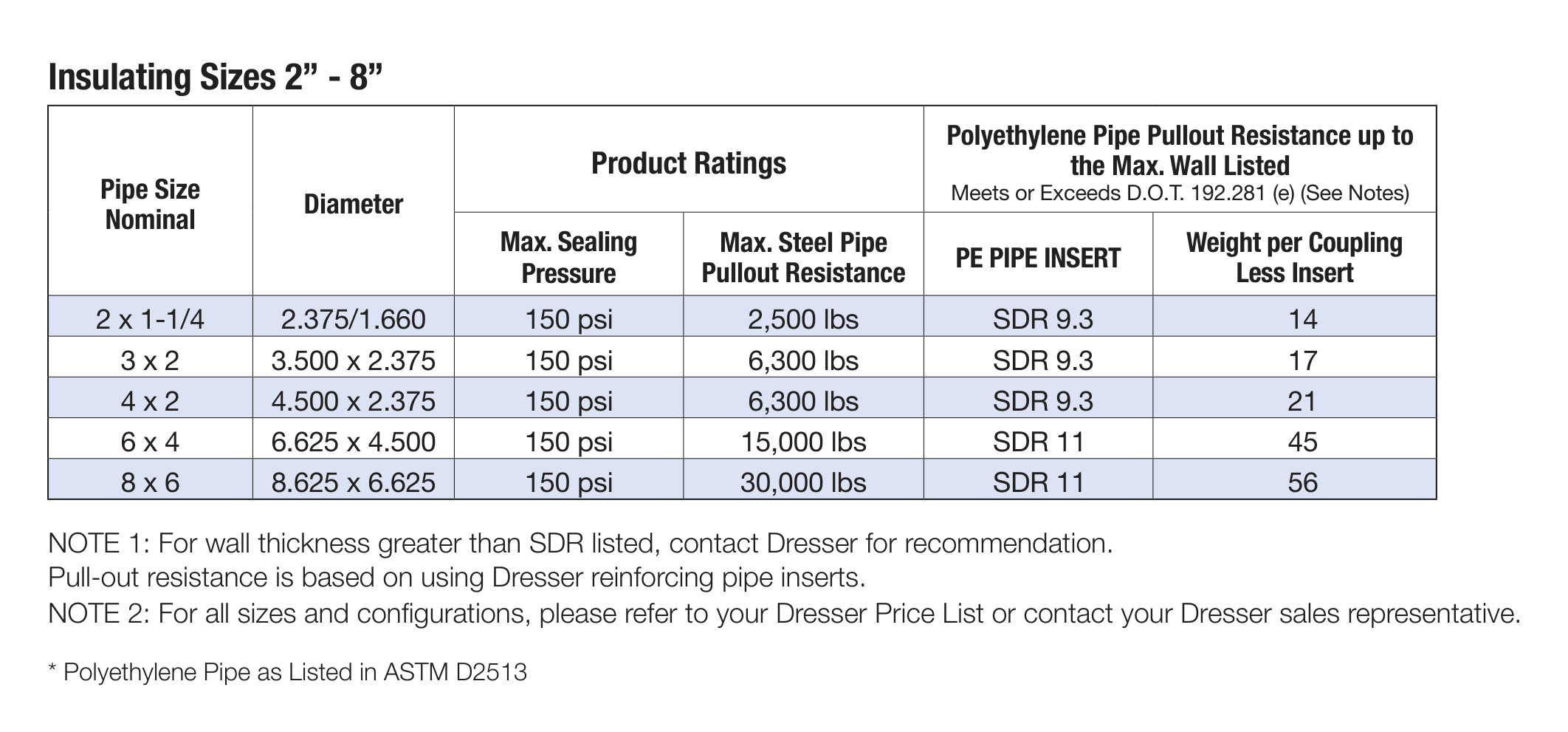

Working Pressure

Dresser rates Style 711 products on cast iron pipe to 50 PSI. Steel and PE builds carry higher, size-based ratings.

Source: Dresser Gas Product Selection Guide (NGS-DPS-015). The rating on the product label is the actual rating of each part.

Materials Specifications
Grip rings 4140 carbon steel, slotted
Insulation PPO thermoplastic follower insulators, PP body insulators, HDPE or PVC pipe end separators
Gaskets Insulating gasket and armored gasket
Compliance DOT 192.281(e), ASTM F1948 Category 1

Source: Dresser Style 711 Bolted Coupling Brochure (2021).

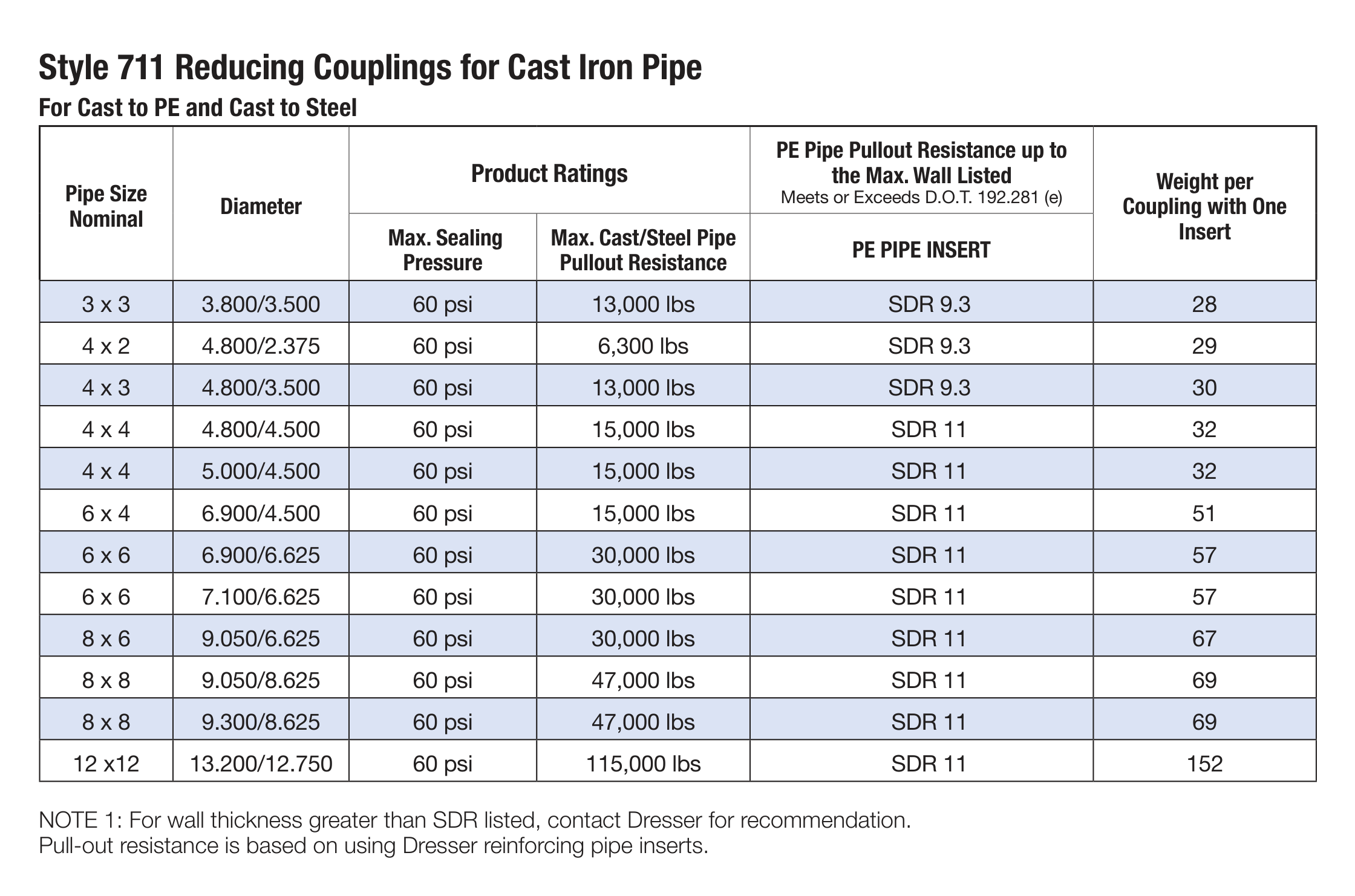

Sizes
Cast Iron OD x Size Small End
3.80 in CI x 3 in Steel, PE SDR 11, PE SDR 11.5, PE SDR 13.5
4.80 in CI x 4 in Steel, PE SDR 11, PE SDR 11.5, PE SDR 13.5
5.00 in CI x 4 in Steel
6.90 in CI x 4 in Steel, Steel, 2 Anode Connectors, PE SDR 11, PE SDR 11.5
6.90 in CI x 6 in Steel, PE SDR 11, PE SDR 11.5, PE SDR 13.5, PE SDR 21.5
7.10 in CI x 6 in Steel, PE SDR 11
9.05 in CI x 8 in Steel, PE SDR 11, PE SDR 11.5, PE SDR 13.5
9.30 in CI x 8 in Steel, PE SDR 11
13.20 in CI x 12 in Steel, PE SDR 13.5

Sizes as listed in Dresser’s 2026 price lists; the picker shows the part number for each build.

Installation Notes
  • Mark the pipe and stab it into the fitting to the full stab depth.
  • On PE pipe, install the correct-SDR Dresser insert stiffener (or one qualified to DOT 192.283(b)) in every PE pipe end.
  • Read the Dresser installation instructions and warnings before installing.

Source: Dresser Gas Product Selection Guide (NGS-DPS-015), product warnings.

Before You Order. Confirm pipe OD and, for PE, the SDR, so the right grip ring and insert stiffener are supplied. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
