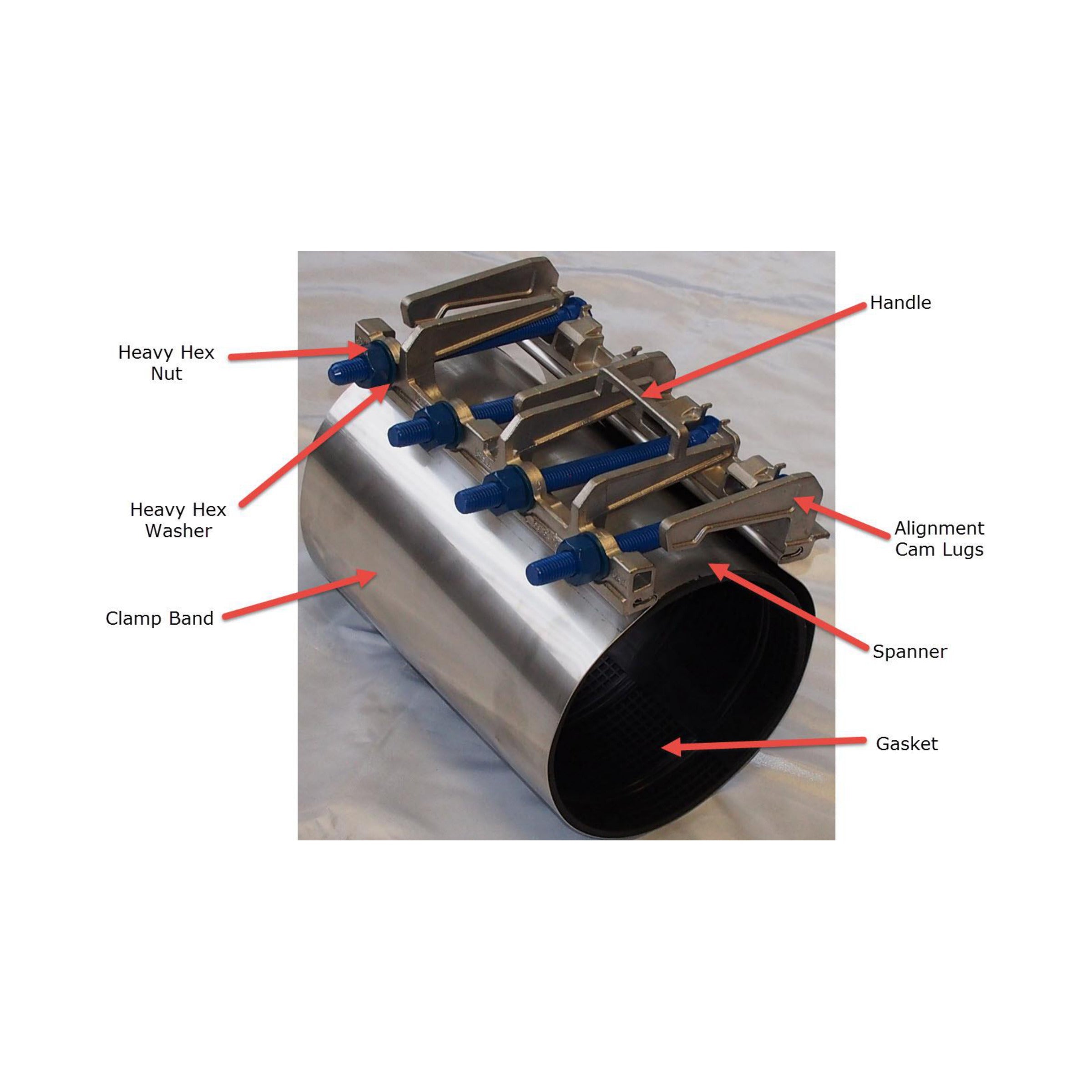

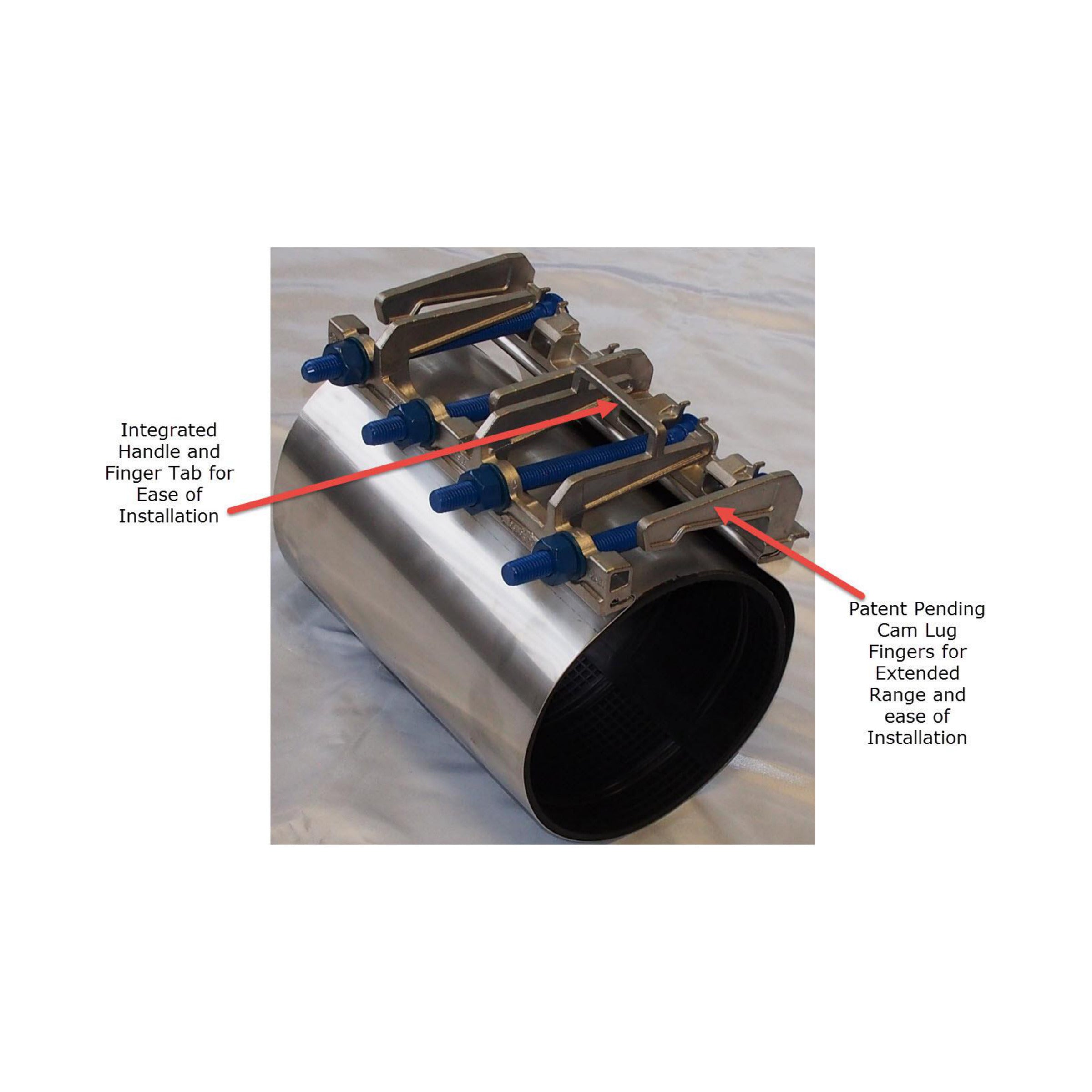

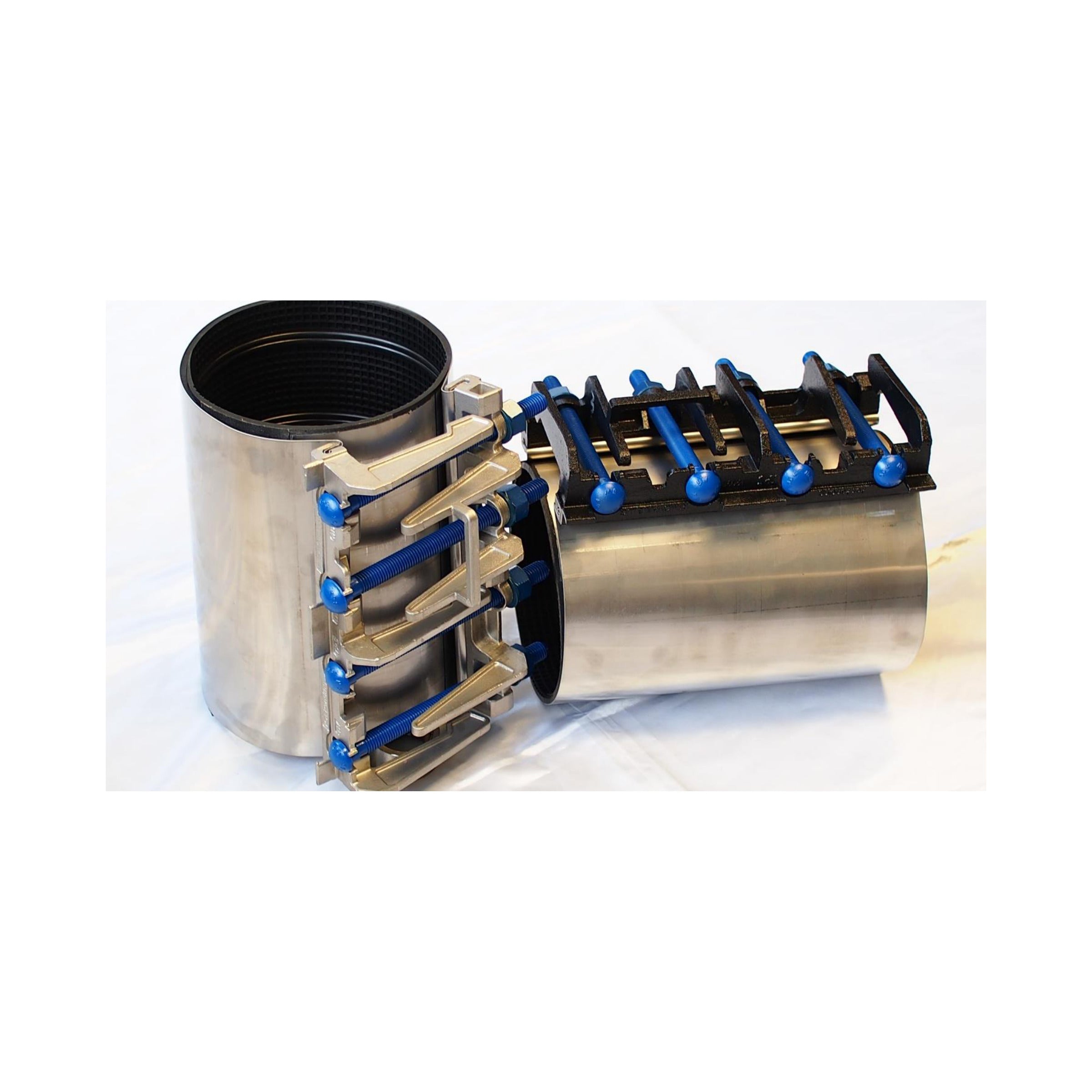

The Quick-Cam wraps the pipe and closes with cam lugs that carry a built-in handle, sealing leaks, holes and breaks with a waffled mat gasket and multi O-ring seal beads.
Application: Leak and break repair on ductile iron, cast iron, steel, PVC and asbestos cement water mains.
Included: clamp with gasket, lugs, bolts and nuts, assembled.
Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

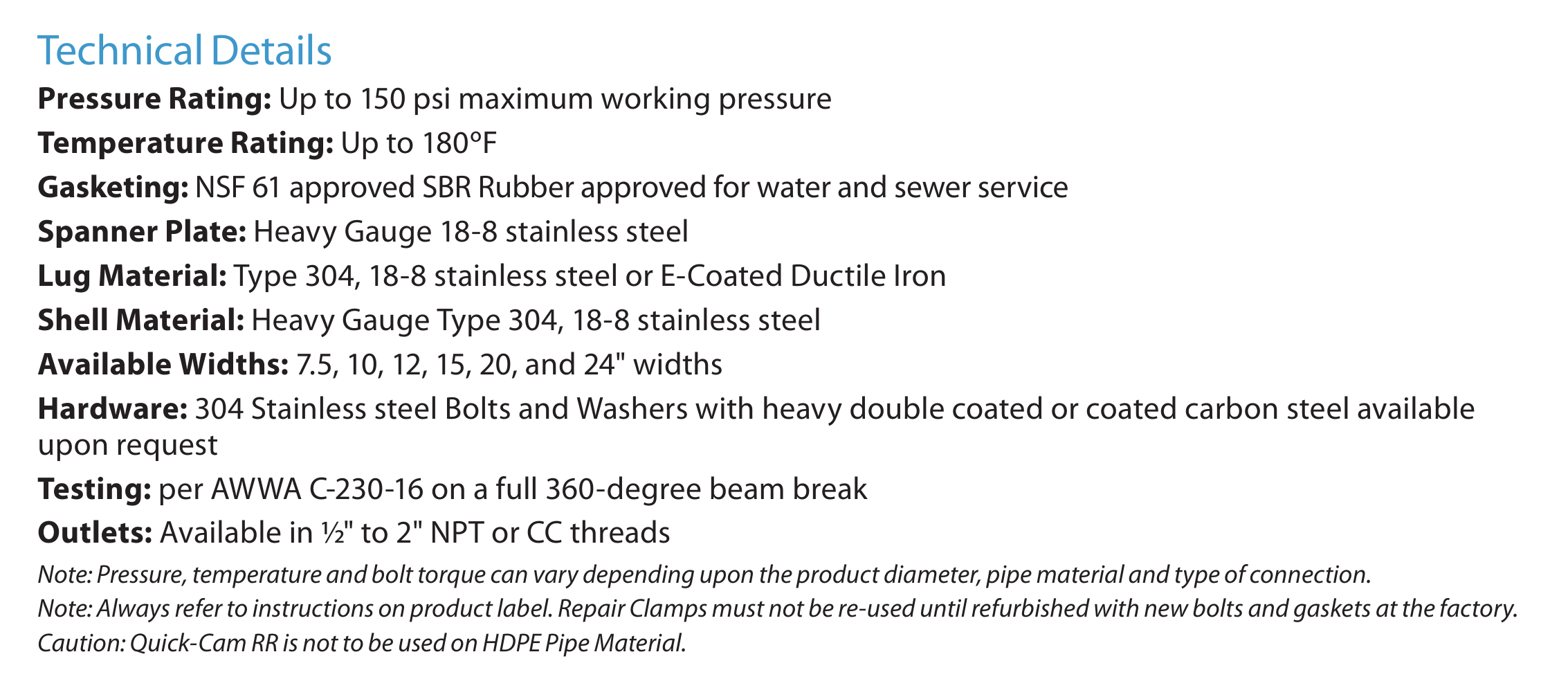

Up to 150 PSI maximum working pressure on water and sewer lines, at up to 180°F, tested per AWWA C230-16 on a full 360-degree beam break. Regular Range clamps cover a narrower OD band per clamp than the Extended Range. The allowable pressure on any job also depends on the pipe diameter, material and connection, and never exceeds the rating of the pipe.
Source: Dresser Quick-Cam Repair Clamp brochure (DUS.DPSW.011), Quick-Cam RR technical details. The rating on the product label is the actual rating of each part.
| Band | 18-8 stainless steel |
| Gasket | SBR rubber, NSF 61, for water and sewer service |
| Alignment lugs | Ductile iron, cam lug with handle |
| Bolts | Carbon steel, coated |
Source: Dresser Quick-Cam Repair Clamp brochure (DUS.DPSW.011), Quick-Cam RR technical details.
Steel, cast iron, ductile iron, PVC and asbestos cement. The Regular Range is not for HDPE.

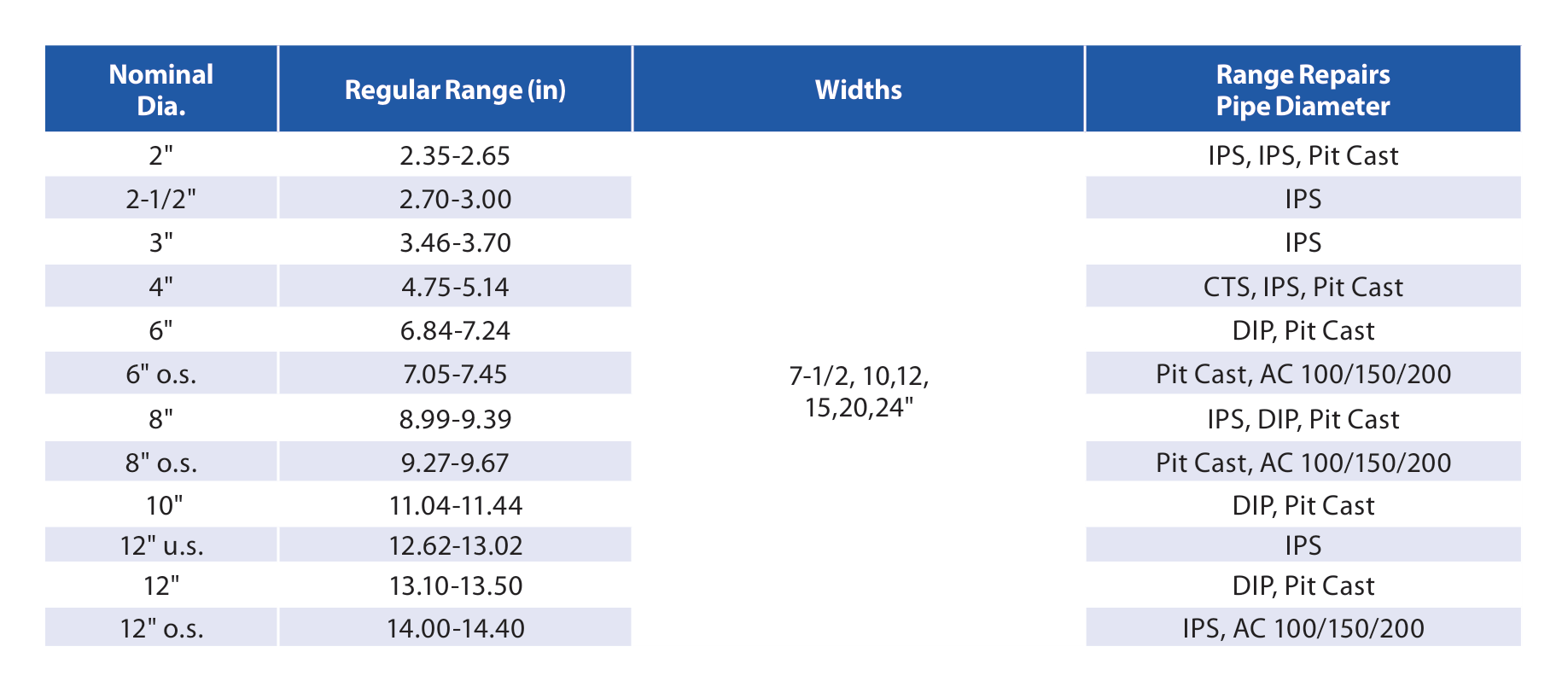

| Nominal Size - OD Range | Width |
|---|---|
| 2 in - 2.35-2.65 in OD | 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide |
| 2-1/2 in - 2.70-3.00 in OD | 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide |
| 3 in - 3.46-3.70 in OD | 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide |
| 4 in - 4.75-5.14 in OD | 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide |
| 6 in - 6.84-7.24 in OD | 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide |
| 6 in OS - 7.05-7.45 in OD | 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide |
| 8 in - 8.99-9.39 in OD | 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide |
| 8 in OS - 9.27-9.67 in OD | 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide |
| 10 in - 11.04-11.44 in OD | 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide |
| 12 in US - 12.62-13.02 in OD | 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide |
| 12 in - 13.10-13.50 in OD | 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide |
| 12 in OS - 14.00-14.40 in OD | 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide |
Sizes as listed in Dresser’s 2026 price lists; the picker shows the part number for each build.
Source: Dresser TPS Quick-Cam Repair Clamp Installation Instructions (INST 1004, Rev E).
