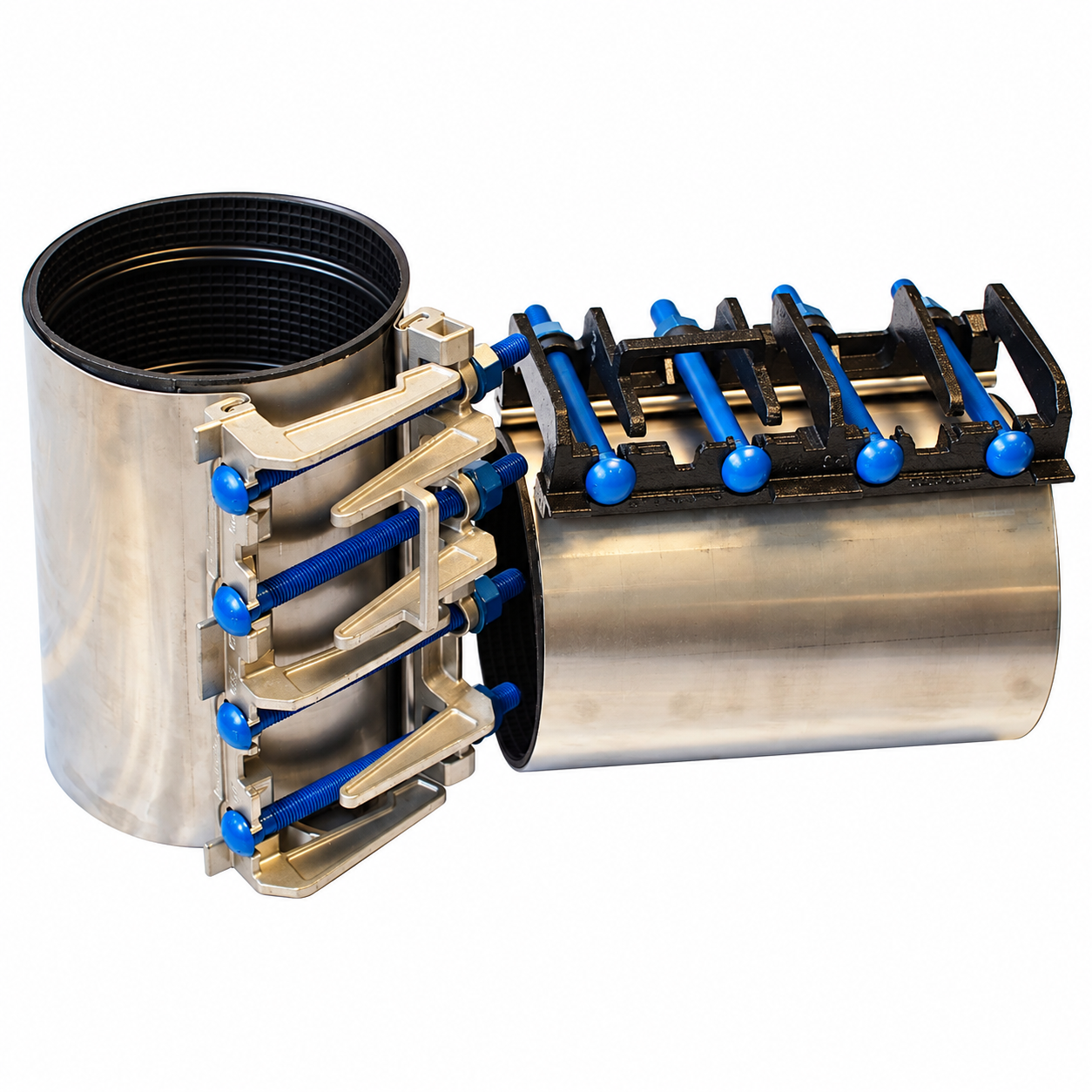

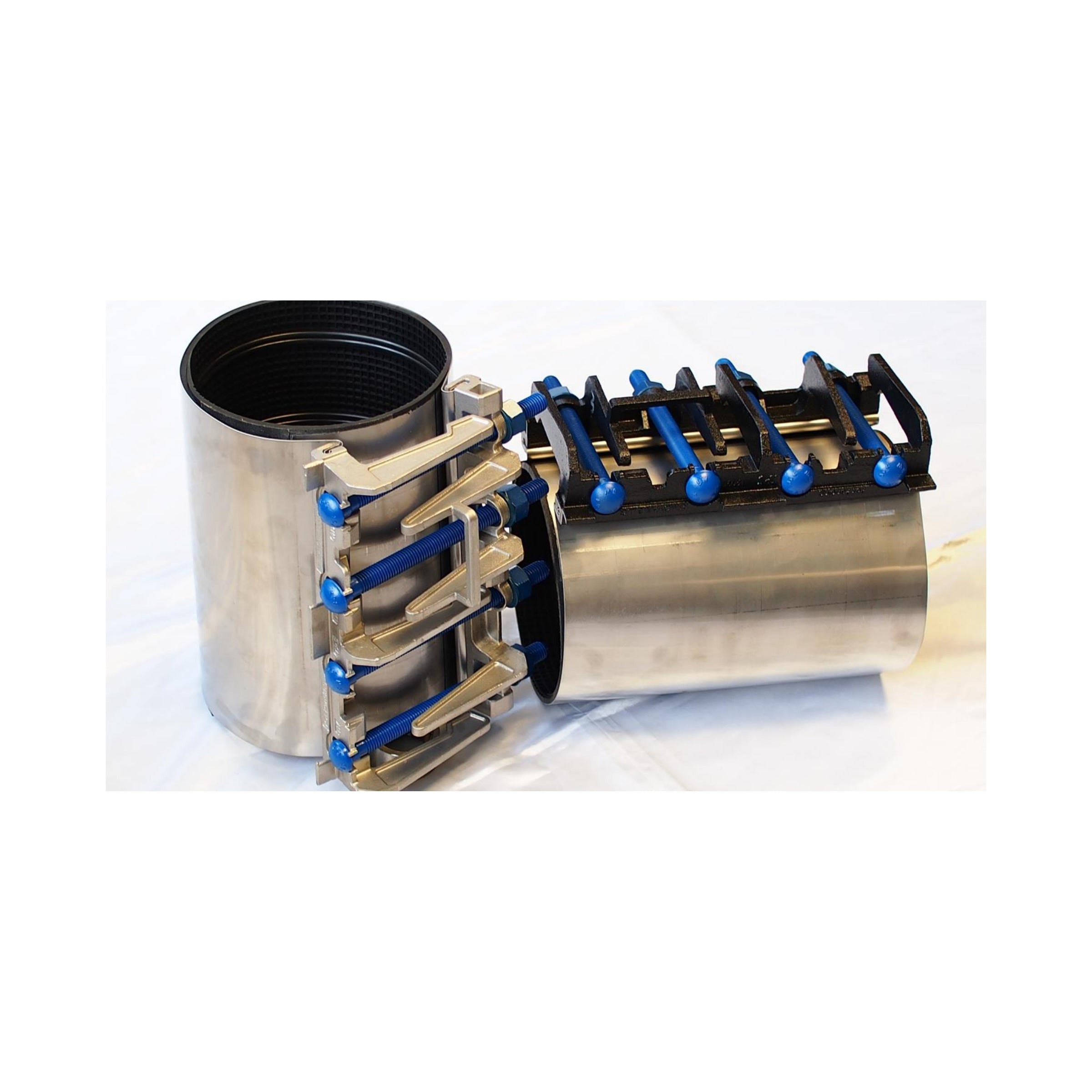

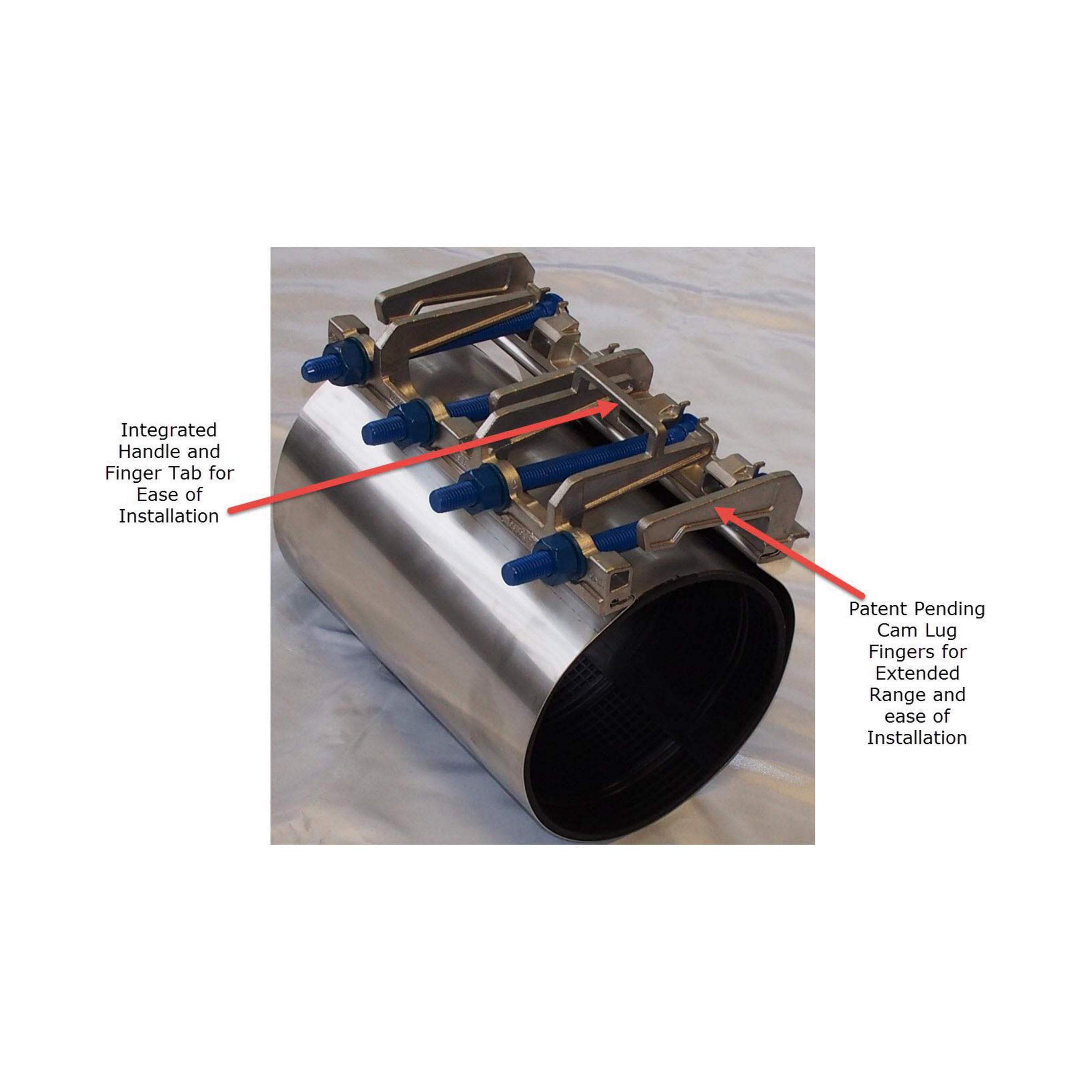

The Quick-Cam wraps the pipe and closes with cam lugs that carry a built-in handle, sealing leaks, holes and breaks with a waffled mat gasket and multi O-ring seal beads.
Application: Leak and break repair on ductile iron, cast iron, steel, PVC and asbestos cement water mains.
Included: clamp with gasket, lugs, bolts and nuts, assembled.
Covered for 12 months from the date of purchase under Dresser’s published warranty terms.
Regular Range clamps cover a narrower OD band per clamp. Dresser has not published a separate Regular Range rating in the literature we hold; the rating on the product label governs, and we confirm it before you order.

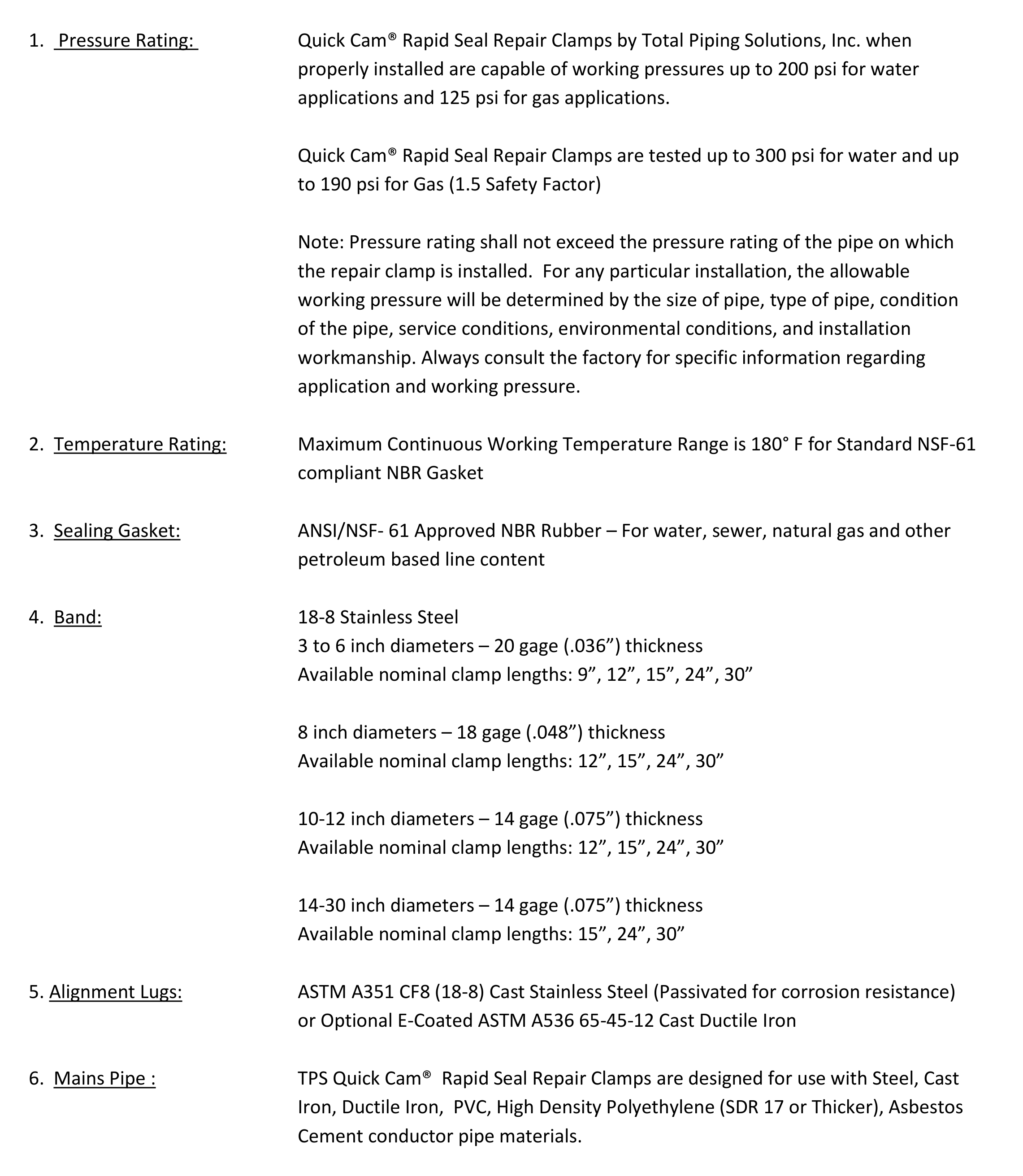

Source: TPS Quick-Cam Repair Clamp Technical Specification (Rev B, 2017). The rating on the product label is the actual rating of each part.

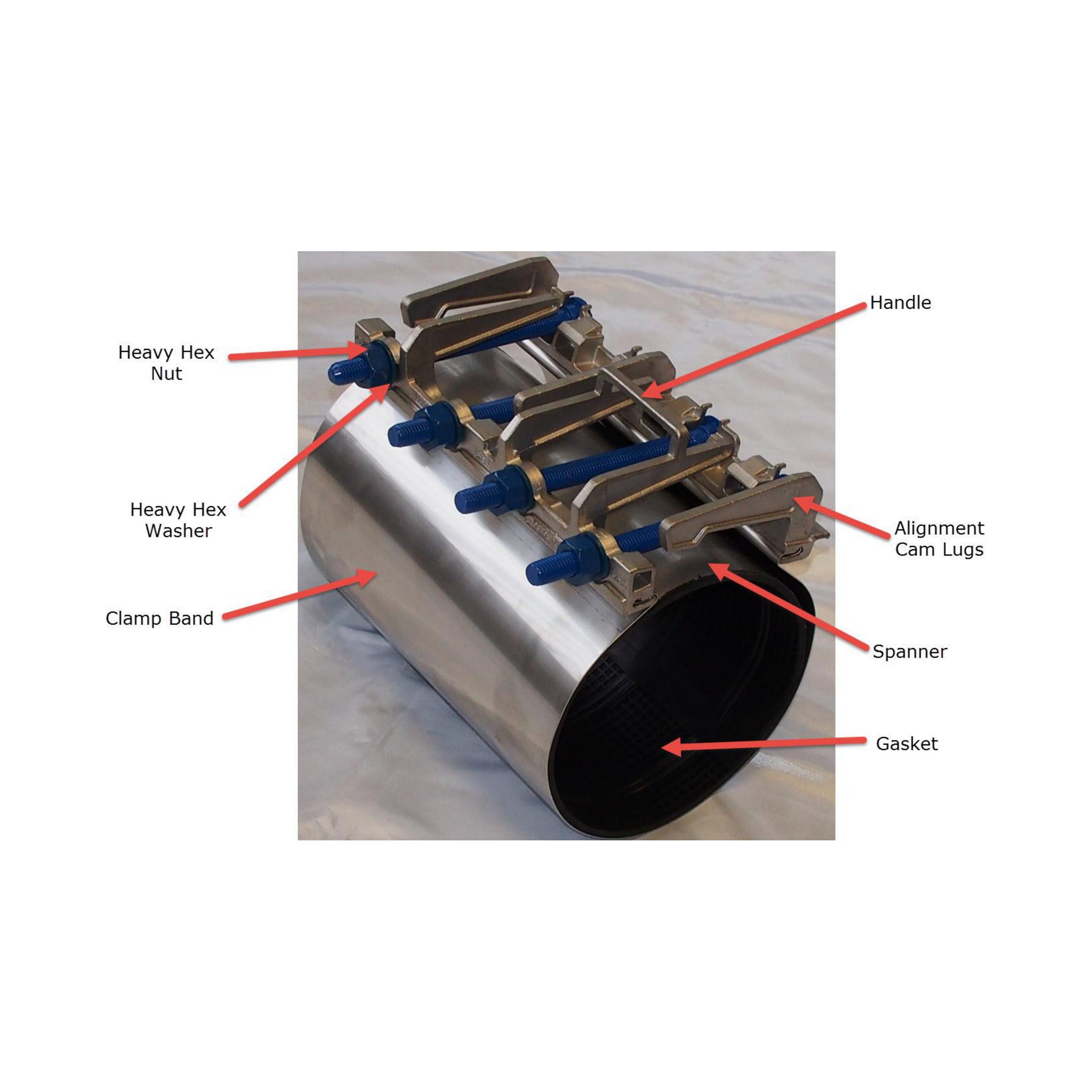

| Band | 18-8 stainless steel |
| Gasket | NBR, NSF/ANSI 61, multi O-ring seal bead with waffled mat |
| Alignment lugs | ASTM A351 CF8 18-8 stainless steel, cam lug with handle |
| Bolts | Track head, 18-8 Type 304 stainless, ASTM A193 B8, fluoroelastomer coated |
Source: TPS Quick-Cam Repair Clamp Technical Specification (Rev B, 2017).
Product videos are being added to this listing. For a walkthrough in the meantime, email sales@watermainsupply.com.
