Dresser Style 711 Reducing Bolted Coupling - Seal and Restraint, Steel or PE Gas Pipe

Nominal Size: 2 x 1-1/4 in
Pipe Ends - Part No.: Steel x Steel - 0711-9026-201

Product variant with selected options does not exist!

Price
$753.77
Coupon 5% off applied automatically in your cart. No code needed.
SKU: 0711-9026-201
Weight : 14.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Gas Coupling

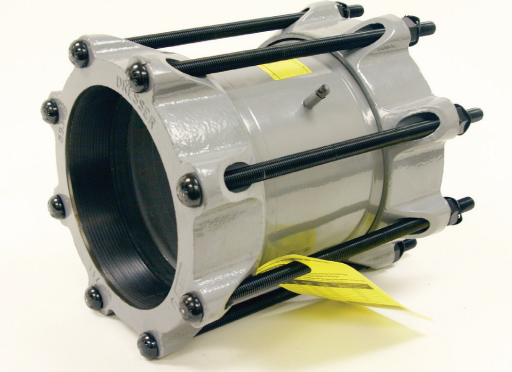

Style 711 Reducing Bolted Coupling
Reducing seal and restraint coupling for steel and PE gas mains, 2 x 1-1/4 in to 12 x 10 in.
Seal and Restraint, DOT 192.281(e)
ASTM F1948 Category 1
Natural Gas Service
Steel, PE and Cast Iron Pipe
14-177 lb Weight
Overview

The Style 711 Reducing Coupling joins two different pipe sizes with the same seal and restraint design as the straight 711: compression seal on each end and a grip ring that locks the pipe against pullout.

Application: Size transitions on steel and PE natural gas mains.

  • Assembled stab design: little or no disassembly in the ditch
  • Metallic grip mechanism locks the pipe against pullout
  • PE pipe needs the matching color-coded insert stiffener
What Ships and What It Needs to Run

Included: coupling body, followers, gaskets, grip rings, bolts and nuts, assembled for stab installation.

Also needed: insert stiffener for PE pipe, sized to the pipe SDR (sold separately).

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

Working Pressure

Rated by size per the Style 711 brochure; the rating on the product label governs.

Source: Dresser Style 711 Bolted Coupling Brochure (2021). The rating on the product label is the actual rating of each part.

Materials Specifications
Grip rings 4140 carbon steel, slotted, for pipe restraint
Gaskets Armored pinned gaskets, conductive for cathodic protection
PE pipe Insert stiffener required, color-coded by SDR
Compliance DOT 192.281(e), ASTM F1948 Category 1

Source: Dresser Style 711 Bolted Coupling Brochure (2021).

Sizes
Nominal Size Pipe Ends
2 x 1-1/4 in Steel x Steel, Steel x PE SDR 11
3 x 2 in Steel x Steel, Steel x PE SDR 11
4 x 2 in Steel x Steel, Steel x PE SDR 11
4 x 3 in Steel x Steel, Steel x PE SDR 11, Steel x PE SDR 11.5
6 x 4 in Steel x Steel
8 x 6 in Steel x Steel, Steel x PE SDR 11
10 x 6 in Steel x Steel
12 x 10 in Steel x Steel

Sizes as listed in Dresser’s 2026 price lists; the picker shows the part number for each build.

Installation Notes
  • Mark the pipe and stab it into the fitting to the full stab depth.
  • On PE pipe, install the correct-SDR Dresser insert stiffener (or one qualified to DOT 192.283(b)) in every PE pipe end.
  • Read the Dresser installation instructions and warnings before installing.

Source: Dresser Gas Product Selection Guide (NGS-DPS-015), product warnings.

Before You Order. Confirm pipe OD and, for PE, the SDR, so the right grip ring and insert stiffener are supplied. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
