Dresser Style 711 Insulating Bolted Coupling - Seal and Restraint, Steel or PE Gas Pipe

Nominal Size - OD: 2 in - 2.38 in OD
Pipe Ends - Part No.: Steel x Steel - 0711-9754-214

Product variant with selected options does not exist!

Price
$417.65
Coupon 5% off applied automatically in your cart. No code needed.
SKU: 0711-9754-214
Weight : 8.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Gas Coupling

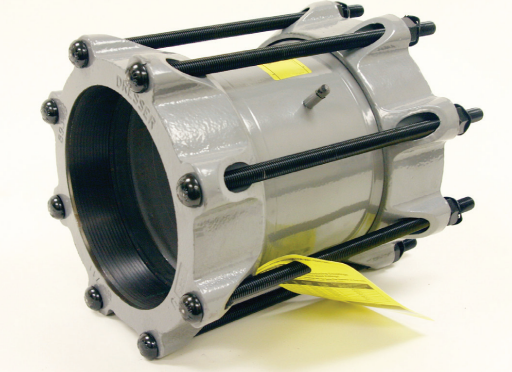

Style 711 Insulating Bolted Coupling
Insulating seal and restraint coupling for steel and PE gas mains, 2 in to 12 in.
150-300 PSI Max Sealing Pressure
Seal and Restraint, DOT 192.281(e)
ASTM F1948 Category 1
Natural Gas Service
Steel, PE and Cast Iron Pipe
8-155 lb Weight
Overview

The Style 711 Insulating Coupling uses the same seal and restraint principle as the standard 711 and adds full electrical insulation between pipes, so a cathodically protected section can be isolated at the joint.

Application: Insulated joints on steel and PE gas mains where cathodic protection sections meet.

  • Assembled stab design: little or no disassembly in the ditch
  • Metallic grip mechanism locks the pipe against pullout
  • PE pipe needs the matching color-coded insert stiffener
What Ships and What It Needs to Run

Included: insulating coupling, insulators, gaskets, grip rings, bolts and nuts, assembled.

Also needed: insert stiffener for PE pipe, sized to the pipe SDR (sold separately).

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

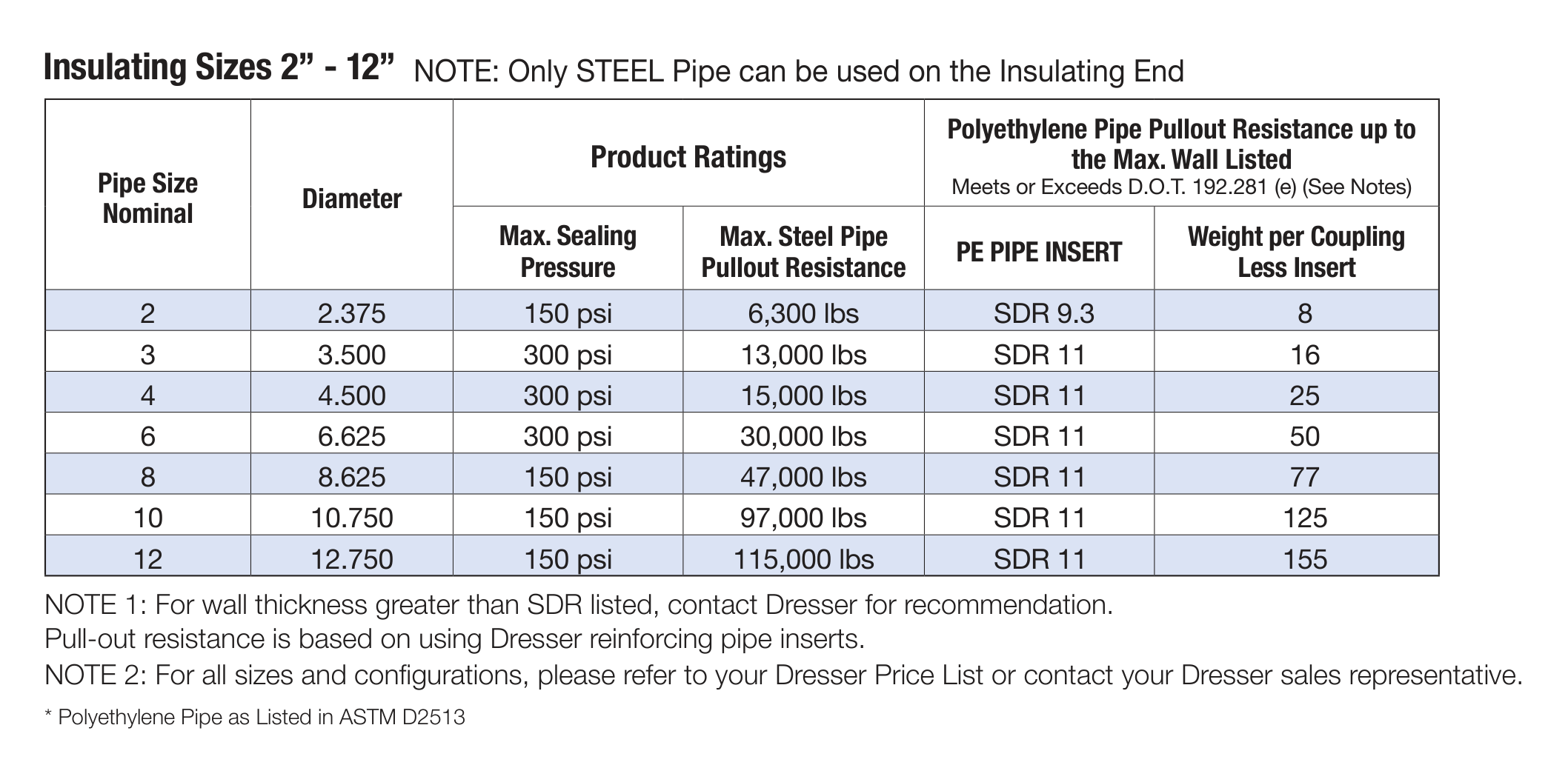

Working Pressure

Maximum sealing pressure depends on size, from 150 to 300 PSI.

Nominal size Couplings, max sealing pressure Pipe pullout resistance (steel)
1-1/4 in 150 PSI 2,500 lb
2 in 150 PSI 6,300 lb
3 in 300 PSI 13,000 lb
4 in 300 PSI 15,000 lb
6 in 300 PSI 30,000 lb
8 in 150 PSI 47,000 lb
10 in 150 PSI 97,000 lb
12 in 150 PSI 115,000 lb

Source: Dresser Style 711 Bolted Coupling Brochure (2021). The rating on the product label is the actual rating of each part.

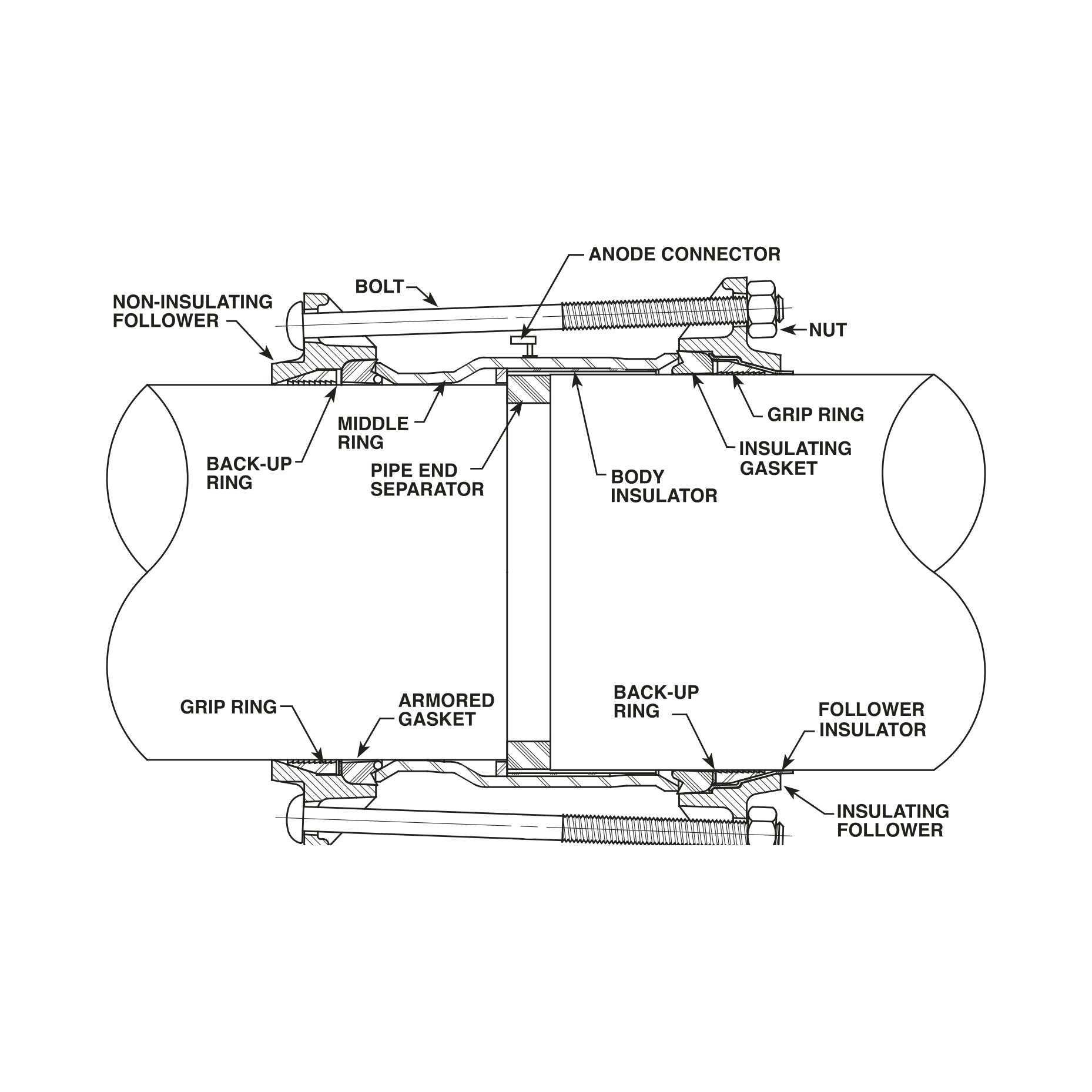

Materials Specifications
Grip rings 4140 carbon steel, slotted
Insulation PPO thermoplastic follower insulators, PP body insulators, HDPE or PVC pipe end separators
Gaskets Insulating gasket and armored gasket
Compliance DOT 192.281(e), ASTM F1948 Category 1

Source: Dresser Style 711 Bolted Coupling Brochure (2021).

Sizes
Nominal Size - OD Pipe Ends
2 in - 2.38 in OD Steel x Steel, Steel x PE SDR 11
3 in - 3.50 in OD Steel x Steel, Steel x PE SDR 11, Steel x PE SDR 11.5
4 in - 4.50 in OD Steel x Steel, Steel x PE SDR 11, Steel x PE SDR 11.5
6 in - 6.63 in OD Steel x Steel, Steel x PE SDR 11, Steel x PE SDR 11.5
8 in - 8.63 in OD Steel x Steel, Steel x PE SDR 11
12 in - 12.75 in OD Steel x Steel

Sizes as listed in Dresser’s 2026 price lists; the picker shows the part number for each build.

Installation Notes
  • Mark the pipe and stab it into the fitting to the full stab depth.
  • On PE pipe, install the correct-SDR Dresser insert stiffener (or one qualified to DOT 192.283(b)) in every PE pipe end.
  • Read the Dresser installation instructions and warnings before installing.

Source: Dresser Gas Product Selection Guide (NGS-DPS-015), product warnings.

Before You Order. Confirm pipe OD and, for PE, the SDR, so the right grip ring and insert stiffener are supplied. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
