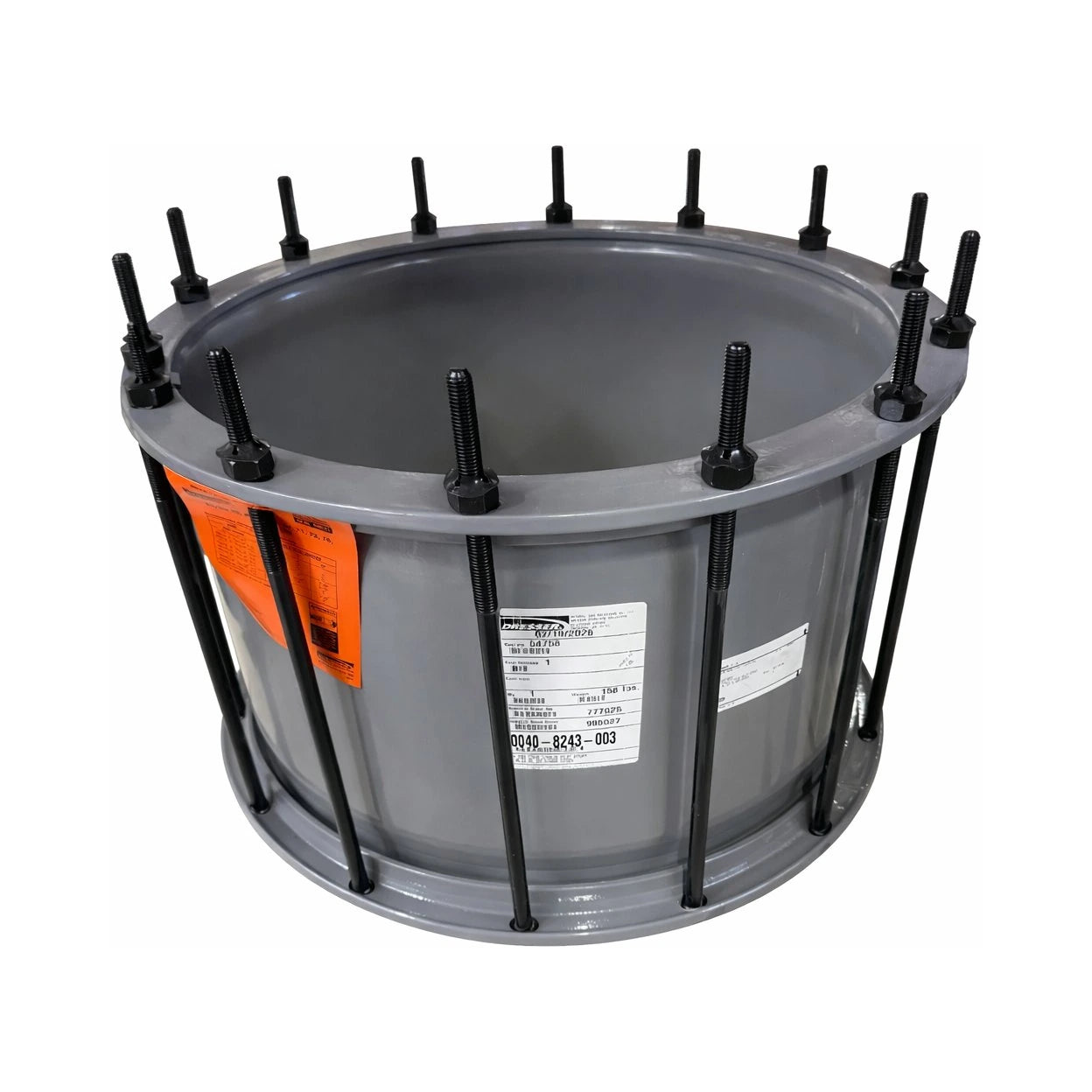

Dresser STAB-40 long coupling for steel pipe

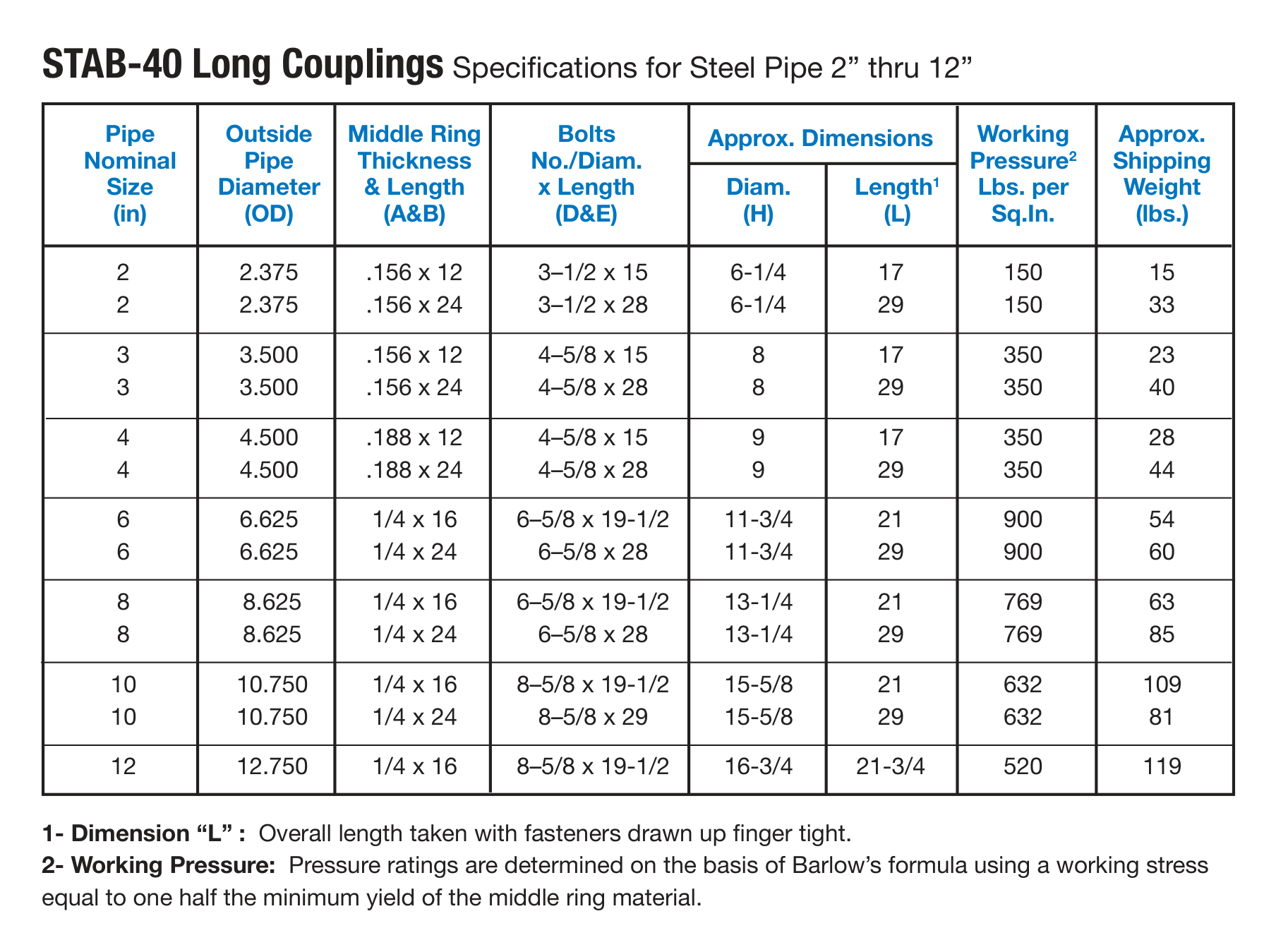

Dresser STAB-40 long coupling specification table
Dresser STAB-40 long coupling for steel pipe
Dresser STAB-40 long coupling specification table

Dresser STAB-40 Long Coupling - Steel Gas Pipe, 2 in to 12 in

Nominal Size - OD: 2 in - 2.38 in OD
Middle Ring - Part No.: 0.156 x 12 in - 0040-0007-201

Product variant with selected options does not exist!
$287.35
SKU: 0040-0007-201
Weight : 15.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Gas Coupling
STAB-40 Long Coupling
Pre-assembled Style 40 long coupling for steel gas pipe, 2 in to 12 in, with 12, 16 or 24 in middle rings.
150 to 900 PSI by Size
Long Middle Ring
Steel Pipe, 2 in to 12 in
Natural Gas Service
15-119 lb Weight
Overview

The Dresser STAB-40 is the long-sleeve version of the STAB packaged pipe joint: a Style 40 long coupling that leaves the factory fully assembled. Its 12, 16 or 24 in middle ring bridges a gap or a cut-out section of steel pipe, and the crew slides it on and stabs the pipe in without taking anything apart.

Application: Closing gaps and replacing short damaged sections on steel gas pipe.

  • Ships assembled for stab installation
  • 12, 16 or 24 in middle ring
  • Every variant ends with the Dresser part number
Lead Time: 4 to 6 Weeks

STAB couplings are built to order by Dresser. Allow 4 to 6 weeks from order to shipment. Call 1-888.510.4036 to confirm the current lead time before you schedule the job.

What STAB Means

STAB is Dresser's name for its pre-assembled couplings: the crew stabs the pipe end into a coupling that is already put together. The coupling itself, middle ring, followers, gaskets and bolts, is the same design as the standard Style 40. The difference is how it arrives and how fast it goes in.

STAB Standard Style 40
How it ships Factory assembled, no loose parts, one marked carton Ordered as a coupling, and parts such as gaskets are also sold separately
Installation Slide on, stab the pipe in, center, tighten. No disassembly Assembled onto the pipe from its parts
Gaskets Armored or armored pinned Grade 27 Buna-S Choice of gasket grades
Sizes 2 in to 12 in steel pipe Wider size range and pipe types
Best for Gas crews who want fast, repeatable joints and simple stocking Special gaskets, sizes or pipe types
Installation in Brief
  • Clean both pipe ends to bare metal so the gaskets seat on steel
  • Chalk a centering mark 14 in from each pipe end
  • Lubricate gaskets and pipe ends with soapy water; add anti-freeze in freezing weather
  • Slide the coupling onto one end, stab the other pipe in until the ends meet, then back it out 1/2 in to 1 in for deflection and expansion
  • Center the coupling between the chalk marks and tighten the nuts a turn or two at a time around the pipe, to at least 80 ft-lb
  • Maximum deflection after tightening: 6 degrees on 2 in, 4 degrees on 3 in to 12 in

Summary only. Follow the full Dresser instructions on the Data Sheet tab.

What Ships and What It Needs to Run

Included: coupling fully assembled: middle ring, followers, armored Grade 27 gaskets, bolts and nuts.

Also needed: a ratchet wrench and soapy water to lubricate the gaskets.

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

Working Pressure

Working pressure depends on size, per the Dresser STAB-40 table, based on Barlow formula at half the middle ring minimum yield.

Nominal size OD (in) Working pressure
2 in 2.375 150 PSI
3 in 3.500 350 PSI
4 in 4.500 350 PSI
6 in 6.625 900 PSI
8 in 8.625 769 PSI
10 in 10.750 632 PSI
12 in 12.750 520 PSI

Source: Dresser STAB-40 specifications and STAB installation instructions. The rating on the product label is the actual rating of each part.

Materials Specifications
Followers AISI C1012 or ASME SA36
Middle ring ASTM A513, ASTM A635 or ASME SA675 GR60
Bolts AWWA C111 / ANSI A21.11
Gaskets Grade 27 Buna-S, armored or armored pinned
Coating Fusion-bonded grey epoxy; Dresser RED-D optional

Source: Dresser STAB-40 specifications and STAB installation instructions.

Before You Order. The coupling seals but does not restrain the pipe: anchor it wherever pullout could occur. Measure the gap and the pipe OD before ordering. For other sizes, builds or a factory submittal, email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet
STAB-38 Coupling Data Sheet STAB-38 and STAB-40 Installation Instructions Style 40 Long Coupling Brochure Style 40 Long Coupling Submittal Seal-Only Steel Products Catalog for Gas (NGS-DPS-016) Bolted Coupling Installation and Torque Guide
