A.Y. McDonald · Shallow Well Jet Pump
8500 High Capacity Shallow Well Jet Pump
Cast iron shallow well jet pump with the ejector built in, for water up to 25 ft below the pump. Built for flow: up to 24 GPM at low lift. 1/2 to 1 HP, certified for drinking water.
6.5–18.4 GPM at 40 PSI, 15 ft Lift
1/2-1 HP
115/230V 1Ph
58-64 PSI Max Shut-Off
Up to 25 ft Suction Lift
20/40 or 30/50 PSI Switch
1 1/4 in Suction · 1 in Discharge
Square Flange Motor
NSF/ANSI 61 and 372
20-20.6 L x 10.5 W x 10 H in
43-47 lb Weight
What Ships and What It Needs to Run
Included: the pump with its built-in ejector (nozzle and venturi in the pump housing), the Square Flange capacitor-start motor, and a pressure switch factory set to 20/40 PSI on the 1/2 HP or 30/50 PSI on the 3/4 and 1 HP models. The housing plug is tapped for a 1/4 in pressure gauge.
Pressure tank, foot valve and suction pipe: sized to your well and ordered separately. A.Y. McDonald calls for a reliable foot valve where the water is below the pump, so the pump keeps its prime. Our diaphragm tanks cover 2 to 119 gallons.
Overview

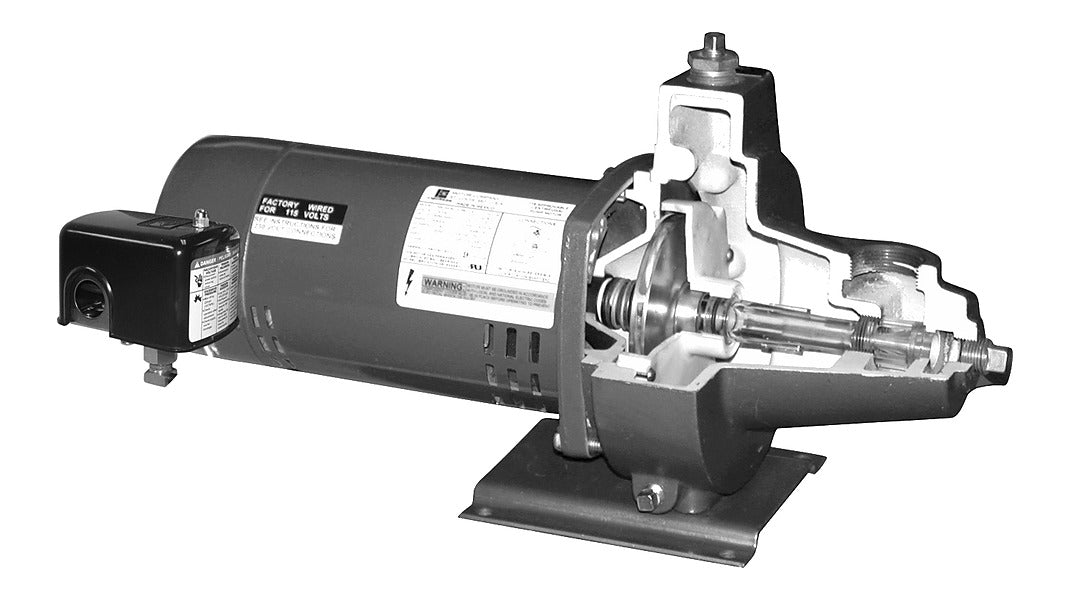

The 8500 High Capacity is A.Y. McDonald’s cast iron shallow well jet pump with a square flange motor. The ejector sits in the pump housing in front of the impeller, so a single 1 1/4 in suction line runs to the water and the pump lifts it from as much as 25 ft below.
Certified for drinking water to NSF/ANSI 61 and NSF/ANSI 372, for private wells and home water systems.
High capacity or high pressure? This High Capacity version gives more water at 20 to 50 PSI. Where the system needs a 40/60 PSI switch setting, the 8500 High Pressure holds pressure to 70 to 80 PSI at less flow.
-

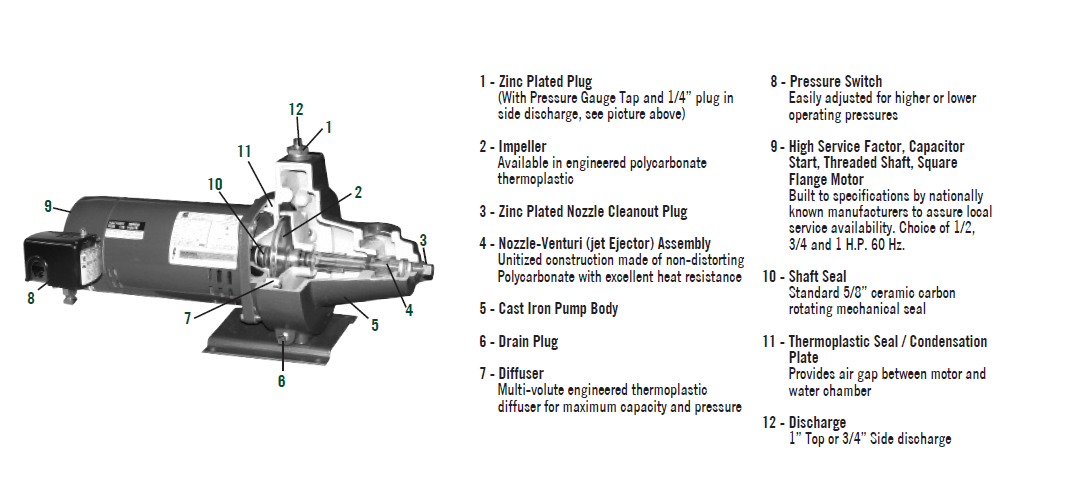

Easily serviced — the working parts come out with the motor, so the piping stays put; nozzle clean-out and drain plugs in the housing.
-
Thermoplastic seal and condensation plate keeps an air gap between the motor and the water chamber; screwdriver slot on the motor shaft for impeller removal.
-
Standardized A.Y. McDonald parts across the jet pump line.
Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier. Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor.
12-Month A.Y. McDonald Warranty
Covered for 1 year from the date of installation, or 2 years from the date of manufacture, whichever comes first, under A.Y. McDonald’s published limited warranty terms, as set out in the A.Y. McDonald Pumps & Accessories Price List. Components made by other manufacturers, such as the motor and the pressure switch, carry their original manufacturer’s warranty.
Single Unit
Each pump runs on its own pressure switch and tank. Size it to the household’s peak demand. Where the water is deeper than 25 ft, a convertible jet with a deep well ejector reaches 120 ft.

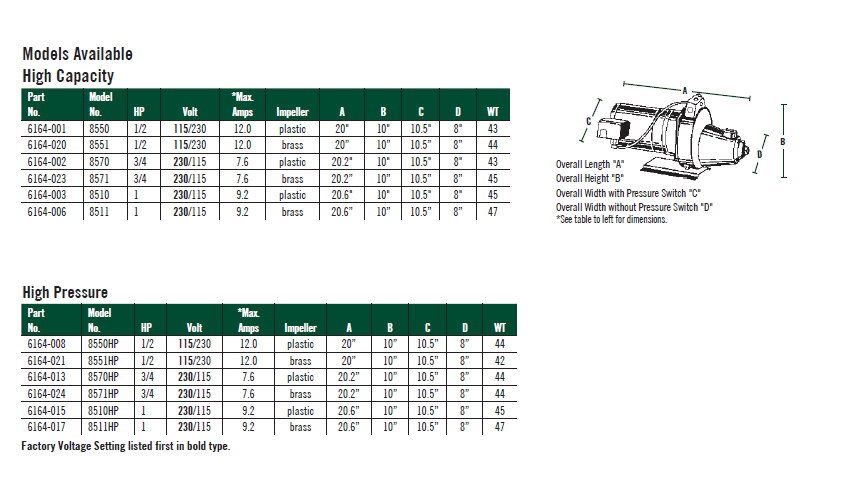

Models & Ratings (60 Hz)
| Model |
Part No. |
Power |
Voltage |
Max Amps |
Switch, factory set |
Impeller |
Length “A” |
Catalog weight |
| 8550 |
6164-001 |
1/2 HP |
115/230V 1Ph |
12.0 |
20/40 PSI |
Plastic |
20 in |
43 lb |
| 8551 |
6164-020 |
1/2 HP |
115/230V 1Ph |
12.0 |
20/40 PSI |
Brass |
20 in |
44 lb |
| 8570 |
6164-002 |
3/4 HP |
230/115V 1Ph |
7.6 |
30/50 PSI |
Plastic |
20.2 in |
43 lb |
| 8571 |
6164-023 |
3/4 HP |
230/115V 1Ph |
7.6 |
30/50 PSI |
Brass |
20.2 in |
45 lb |
| 8510 |
6164-003 |
1 HP |
230/115V 1Ph |
9.2 |
30/50 PSI |
Plastic |
20.6 in |
45 lb |
| 8511 |
6164-006 |
1 HP |
230/115V 1Ph |
9.2 |
30/50 PSI |
Brass |
20.6 in |
47 lb |
Where two voltages are shown, the first is the factory wiring setting. Voltage is changed with the voltage change device on the motor, never at the pressure switch, and must match your supply before power is applied. All models listed are single phase unless the table states 3Ph.
Source: Pumps by Baker catalog, rev 3/26, p. 215. Max amps at the factory voltage setting.
Specifications
| Suction / discharge |
1 1/4 in suction; 1 in discharge |
| Maximum suction lift |
25 ft, the last row of the published table |
| Motor |
Square flange, threaded shaft (7/16 in - 20), capacitor start, high service factor, UL and CSA listed |
| Motor protection |
Built-in thermal overload, automatic reset |
| Voltage change |
Dual voltage with an easily accessible voltage switch |
| Discharge options |
1 in top or 3/4 in side discharge |
| Pressure switch |
Factory set 20/40 PSI (1/2 HP) or 30/50 PSI (3/4 and 1 HP); adjustable |
| Shaft seal |
5/8 in ceramic/carbon rotating mechanical seal |
| Certification |
NSF/ANSI 61 and NSF/ANSI 372 |
| App or remote connectivity |
None — runs from its pressure switch |
Performance — Will It Do What You Need?
Find your depth to water down the left and the pressure across the top. Each figure is gallons per minute delivered at that duty point, from A.Y. McDonald’s published table.
| Model |
HP |
Suction lift, ft |
20 PSI |
30 PSI |
40 PSI |
50 PSI |
Max shut-off, PSI |
| 8550 / 8551 |
1/2 |
5 |
15.6 |
15.6 |
8.6 |
2.3 |
58 |
| 15 |
11.7 |
11.7 |
6.5 |
1.2 |
| 25 |
6.6 |
6.6 |
4.7 |
|
| 8570 / 8571 |
3/4 |
5 |
18.8 |
18.8 |
16.2 |
8.8 |
61 |
| 15 |
14.4 |
14.4 |
12.3 |
3.9 |
| 25 |
8.6 |
8.6 |
7.3 |
2.7 |
| 8510 / 8511 |
1 |
5 |
24.2 |
24.0 |
23.0 |
15.0 |
64 |
| 15 |
20.1 |
18.6 |
18.4 |
10.9 |
| 25 |
11.6 |
11.4 |
11.3 |
4.7 |
Reading it against the switch: the pump works between the cut-in and cut-out columns. On a 30/50 PSI switch, the 1 HP 8510 lifting 15 ft delivers 18.6 GPM at cut-in and 10.9 GPM as it reaches cut-out.
Max shut-off is the pressure at zero flow — a ceiling, not a working point. A blank cell is a combination the pump does not reach. Source: Pumps by Baker catalog, rev 3/26, p. 216, High Capacity shallow well performance.
Before You Buy — The Limits That Decide the Fit
| Pressure switch |
Factory set 20/40 PSI on the 1/2 HP and 30/50 PSI on the 3/4 and 1 HP. The cut-out has to sit below the pump’s shut-off pressure, 58 to 64 PSI here, so for a 40/60 PSI system choose the 8500 High Pressure. |
| Suction lift |
Up to 25 ft from water level to pump. For deeper water, a convertible jet with a deep well ejector. |
| Priming |
Start it with the pump and suction line completely full of water. A reliable foot valve holds the prime; an air leak in the suction line makes it lose prime. |
| Power |
Dual voltage, single phase: factory wired 115V on the 1/2 HP and 230V on the 3/4 and 1 HP. Max amps 12.0, 7.6 and 9.2 at the factory setting. |
| Drinking water |
Certified to NSF/ANSI 61 and NSF/ANSI 372. |
| Pressure tank |
Sized separately: the Tank Calculator works it from pump GPM and the switch setting. |
| Pairing |
Single unit. |
