A.Y. McDonald · Shallow Well Jet Pump
8100 High Pressure Shallow Well Jet Pump
Cast iron shallow well jet pump with the ejector built in, for water up to 25 ft below the pump. Built for pressure: shut-off 70 to 80 PSI. 1/2 to 1 HP, certified for drinking water.
5.4–10.0 GPM at 40 PSI, 15 ft Lift
1/2-1 HP
115/230V 1Ph
70-80 PSI Max Shut-Off
Up to 25 ft Suction Lift
30/50 PSI Switch
1 1/4 in Suction · 1 in Discharge
NEMA J Motor
NSF/ANSI 61 and 372
19.5-20 L x 10.5 W x 10 H in
46-53 lb Weight
What Ships and What It Needs to Run
Included: the pump with its built-in ejector (nozzle and venturi in the pump housing), the NEMA J capacitor-start motor, and a pressure switch factory set to 30/50 PSI. The housing plug is tapped for a 1/4 in pressure gauge.
Pressure tank, foot valve and suction pipe: sized to your well and ordered separately. A.Y. McDonald calls for a reliable foot valve where the water is below the pump, so the pump keeps its prime. Our diaphragm tanks cover 2 to 119 gallons.
Overview

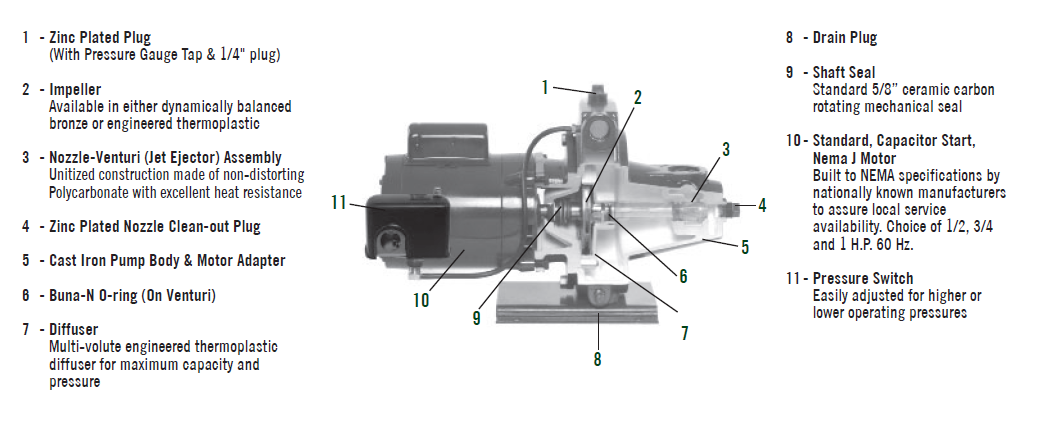

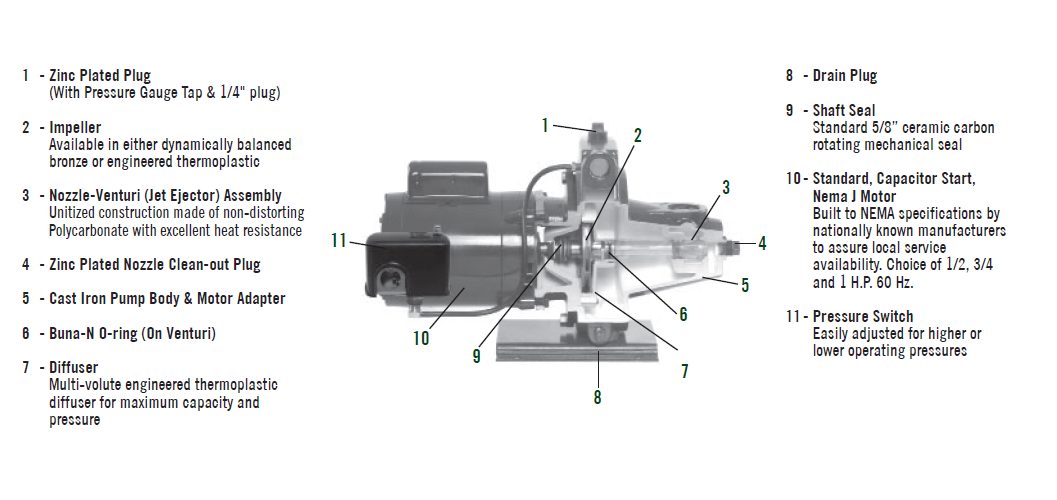

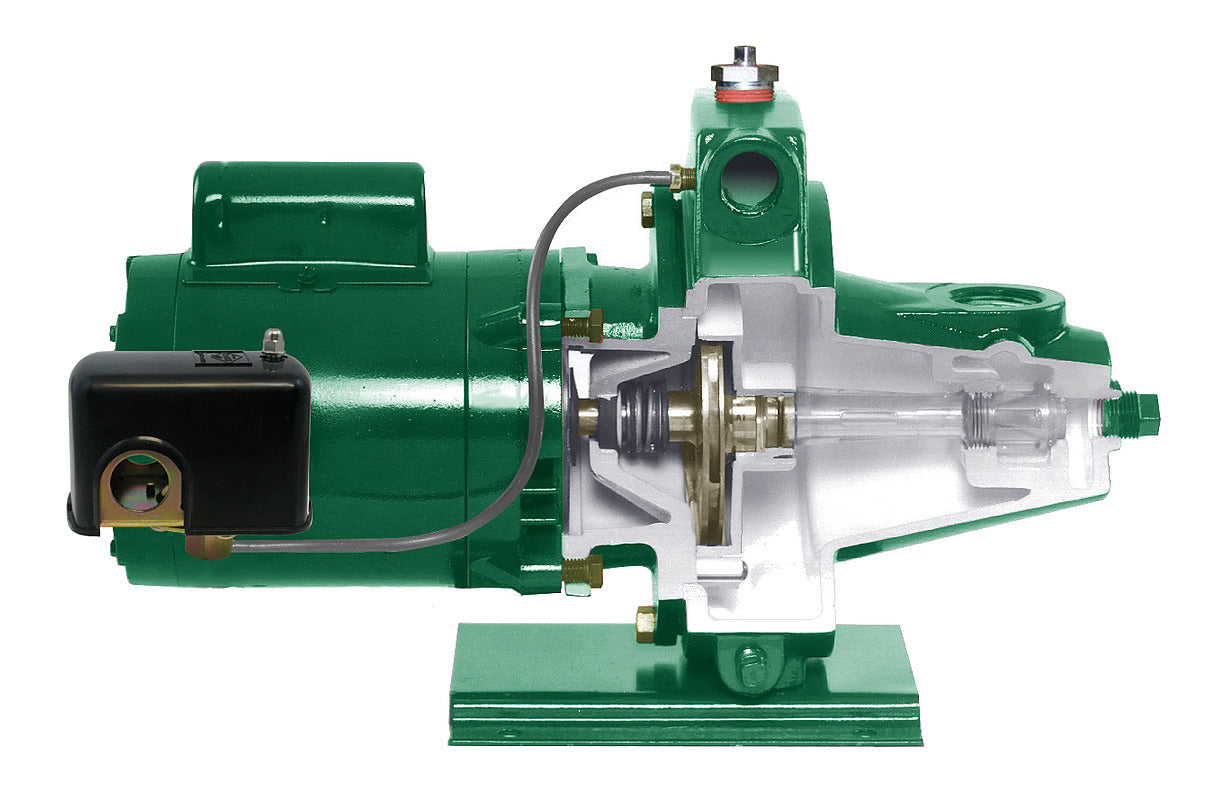

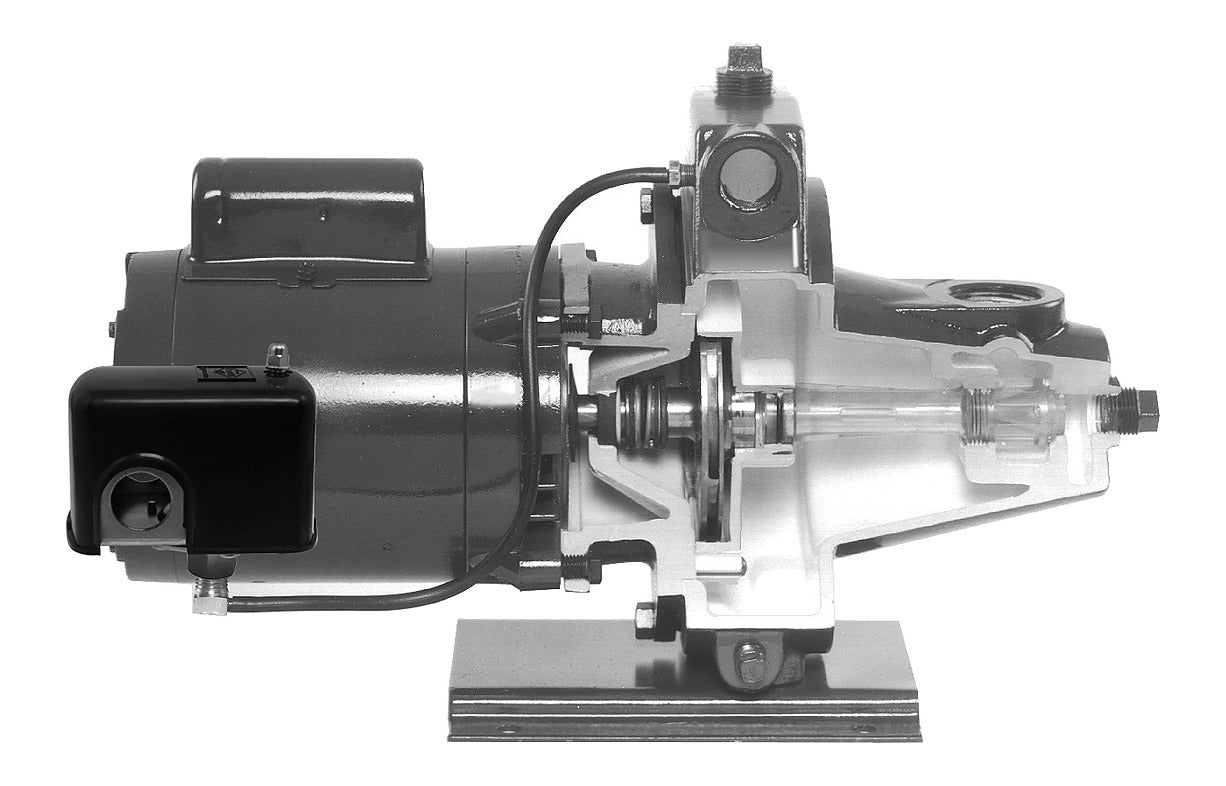

The 8100 High Pressure is A.Y. McDonald’s cast iron shallow well jet pump with a NEMA j motor. The ejector sits in the pump housing in front of the impeller, so a single 1 1/4 in suction line runs to the water and the pump lifts it from as much as 25 ft below.
Certified for drinking water to NSF/ANSI 61 and NSF/ANSI 372, for private wells and home water systems.
High pressure or high capacity? This High Pressure version holds pressure to 70 to 80 PSI at shut-off, so it suits a 40/60 PSI switch setting. Where flow matters more than pressure, the 8100 High Capacity gives more water at 20 to 50 PSI.
-
Easily serviced — the working parts come out with the motor, so the piping stays put; nozzle clean-out and drain plugs in the housing.
-
Precision-machined cast iron motor adapter for positive alignment.
-
Standardized A.Y. McDonald parts across the jet pump line.
Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier. Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor.
12-Month A.Y. McDonald Warranty
Covered for 1 year from the date of installation, or 2 years from the date of manufacture, whichever comes first, under A.Y. McDonald’s published limited warranty terms, as set out in the A.Y. McDonald Pumps & Accessories Price List. Components made by other manufacturers, such as the motor and the pressure switch, carry their original manufacturer’s warranty.
Single Unit
Each pump runs on its own pressure switch and tank. Size it to the household’s peak demand. Where the water is deeper than 25 ft, a convertible jet with a deep well ejector reaches 120 ft.

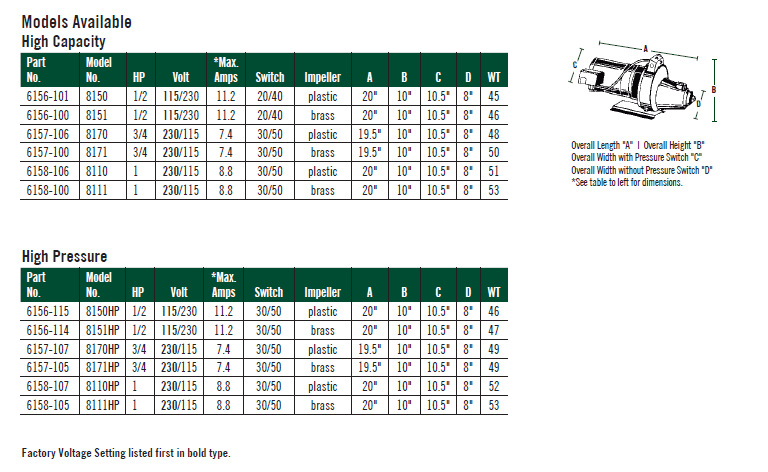

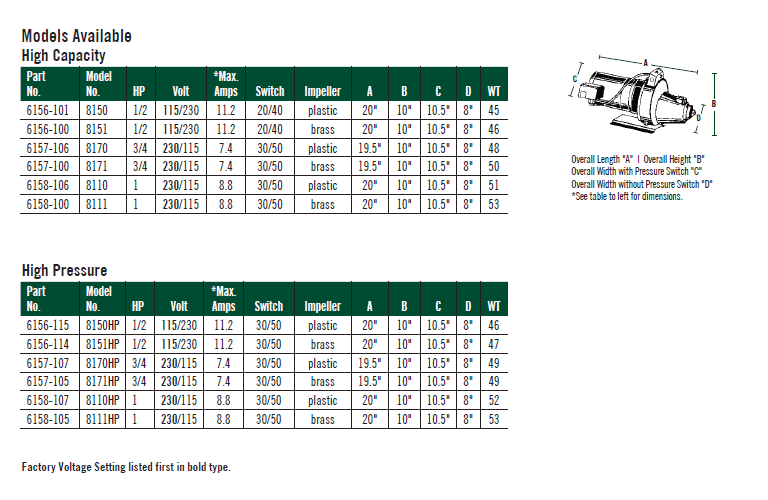

Models & Ratings (60 Hz)
| Model |
Part No. |
Power |
Voltage |
Max Amps |
Switch, factory set |
Impeller |
Length “A” |
Catalog weight |
| 8150HP |
6156-115 |
1/2 HP |
115/230V 1Ph |
11.2 |
30/50 PSI |
Plastic |
20 in |
46 lb |
| 8151HP |
6156-114 |
1/2 HP |
115/230V 1Ph |
11.2 |
30/50 PSI |
Brass |
20 in |
47 lb |
| 8170HP |
6157-107 |
3/4 HP |
230/115V 1Ph |
7.4 |
30/50 PSI |
Plastic |
19.5 in |
49 lb |
| 8171HP |
6157-105 |
3/4 HP |
230/115V 1Ph |
7.4 |
30/50 PSI |
Brass |
19.5 in |
49 lb |
| 8110HP |
6158-107 |
1 HP |
230/115V 1Ph |
8.8 |
30/50 PSI |
Plastic |
20 in |
52 lb |
| 8111HP |
6158-105 |
1 HP |
230/115V 1Ph |
8.8 |
30/50 PSI |
Brass |
20 in |
53 lb |
Where two voltages are shown, the first is the factory wiring setting. Voltage is changed with the voltage change device on the motor, never at the pressure switch, and must match your supply before power is applied. All models listed are single phase unless the table states 3Ph.
Source: Pumps by Baker catalog, rev 3/26, p. 211. Max amps at the factory voltage setting.
Specifications
| Suction / discharge |
1 1/4 in suction; 1 in discharge |
| Maximum suction lift |
25 ft, the last row of the published table |
| Motor |
NEMA J (threaded shaft, 7/16 in - 20), capacitor start, UL and CSA listed, standard service factor |
| Motor protection |
Built-in thermal overload, automatic reset |
| Voltage change |
Dual voltage with voltage change device |
| Pressure switch |
Factory set 30/50 PSI; adjustable |
| Shaft seal |
5/8 in ceramic/carbon rotating mechanical seal |
| Certification |
NSF/ANSI 61 and NSF/ANSI 372 |
| App or remote connectivity |
None — runs from its pressure switch |
Performance — Will It Do What You Need?
Find your depth to water down the left and the pressure across the top. Each figure is gallons per minute delivered at that duty point, from A.Y. McDonald’s published table.
| Model |
HP |
Suction lift, ft |
30 PSI |
40 PSI |
50 PSI |
60 PSI |
70 PSI |
Max shut-off, PSI |
| 8150HP / 8151HP |
1/2 |
5 |
7.6 |
7.1 |
5.7 |
2.7 |
|
70 |
| 15 |
5.5 |
5.4 |
4.3 |
2.0 |
|
| 25 |
3.7 |
3.6 |
2.9 |
|
|
| 8170HP / 8171HP |
3/4 |
5 |
9.4 |
9.4 |
7.8 |
4.2 |
|
74 |
| 15 |
7.0 |
7.0 |
5.9 |
2.9 |
|
| 25 |
4.6 |
4.6 |
3.8 |
2.1 |
|
| 8110HP / 8111HP |
1 |
5 |
13.4 |
13.4 |
12.7 |
9.2 |
3.0 |
80 |
| 15 |
10.0 |
10.0 |
9.4 |
6.5 |
2.4 |
| 25 |
6.2 |
6.2 |
6.0 |
4.3 |
1.8 |
Reading it against the switch: reset to 40/60 PSI, the 1 HP 8110HP lifting 15 ft delivers 10.0 GPM at cut-in and 6.5 GPM as it reaches cut-out. At the factory 30/50 setting it gives 10.0 and 9.4 GPM.
Max shut-off is the pressure at zero flow — a ceiling, not a working point. A blank cell is a combination the pump does not reach. Source: Pumps by Baker catalog, rev 3/26, p. 212, High Pressure shallow well performance.
Before You Buy — The Limits That Decide the Fit
| Pressure switch |
Factory set 30/50 PSI. The shut-off of 70 to 80 PSI leaves room to reset the switch to 40/60 PSI for a higher-pressure system. |
| Suction lift |
Up to 25 ft from water level to pump. For deeper water, a convertible jet with a deep well ejector. |
| Priming |
Start it with the pump and suction line completely full of water. A reliable foot valve holds the prime; an air leak in the suction line makes it lose prime. |
| Power |
Dual voltage, single phase: factory wired 115V on the 1/2 HP and 230V on the 3/4 and 1 HP. Max amps 11.2, 7.4 and 8.8 at the factory setting. |
| Drinking water |
Certified to NSF/ANSI 61 and NSF/ANSI 372. |
| Pressure tank |
Sized separately: the Tank Calculator works it from pump GPM and the switch setting. |
| Pairing |
Single unit. |
