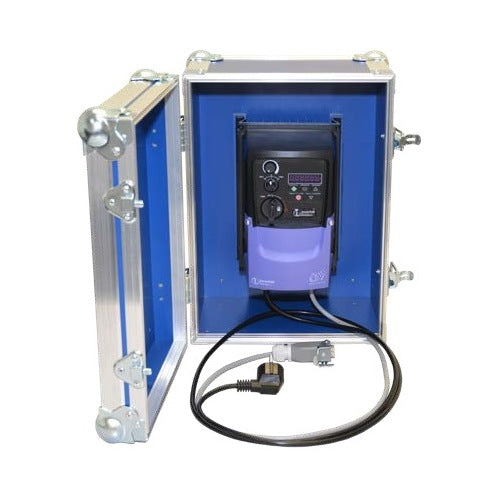

Redi-Flo2 MP1 frequency converter in carry case, European version shown

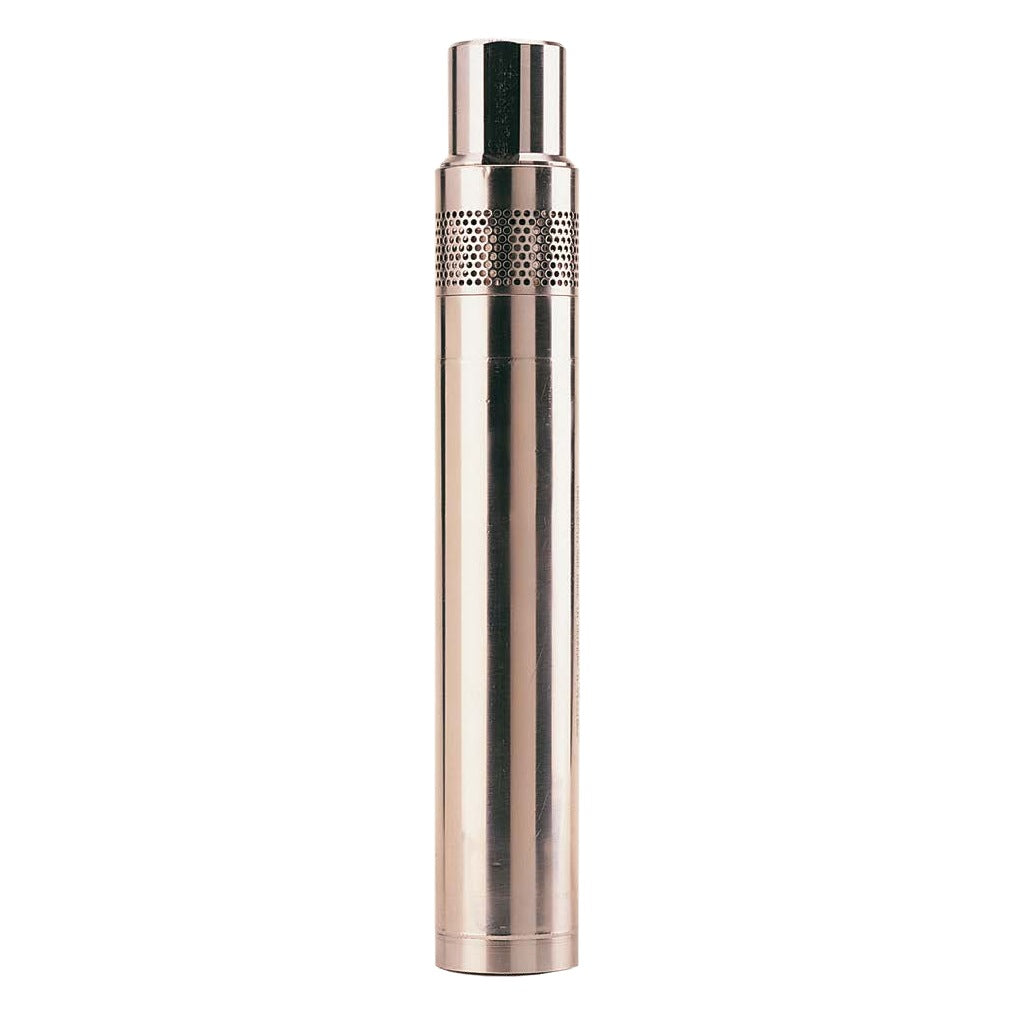

Redi-Flo2 MP1 2 in sampling pump the converter and leads fit
Redi-Flo2 MP1 frequency converter in carry case, European version shown
Redi-Flo2 MP1 2 in sampling pump the converter and leads fit

Redi-Flo2 MP1 Frequency Converter and Teflon Motor Lead Kits

Item: Frequency Converter - 230V Input

Product variant with selected options does not exist!
$2,546.87
SKU: WMS-RF2-12274601
Weight : 18.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Environmental Sampling Pump Accessories
Redi-Flo2 MP1 Frequency Converter and Teflon Motor Lead Kits
The matched frequency converter for the Redi-Flo2 (MP 1) sampling pump, for 230V or 115V supply, and complete Teflon motor lead replacement kits in 100, 200 and 300 ft.
For Redi-Flo2 / MP 1 Pumps
230V or 115V Input
25 to 400 Hz Output
IP66 Converter
100, 200, 300 ft Lead Kits
Overview
  • Frequency converter. Converts single-phase supply to the 3-phase, 25 to 400 Hz power the pump needs, with built-in motor protection set to 6.1 A. Programmed for the Redi-Flo2 pump; the pump warranty requires it. Ships in a carry case with its supply and motor cables.
  • Teflon motor lead kits. Complete replacement leads in 100, 200 and 300 ft for an existing Redi-Flo2 pump. Built to order.

Need the pump too? See the Redi-Flo2 MP1 sampling pump, which can ship with the lead and converter.

Specifications
Specification Value
Converter supply, 230V 1 x 200-240V (+/- 10%), 50/60 Hz; 12.9 A input; 7.0 A output
Converter supply, 115V 1 x 110-115V (+/- 10%), 50/60 Hz; 21.9 A input; 5.8 A output
Output 3 x 15.4V at 25 Hz to 3 x 235V at 400 Hz
Motor protection Built-in overcurrent protection, set to 6.1 A
Ramp 0 to 400 Hz and 400 to 0 Hz in 6 s max
Enclosure IP66; ambient -14 to 104°F (-10 to 40°C)
Weight 8 kg (17.6 lb) with case
Lead kits Teflon motor lead, 100, 200 or 300 ft, complete

Source: Royal Eijkelkamp MP 1 / Redi-Flo2 user manual (US). Converter photo shows the European version.

Sampling Only — Read Before Ordering

For groundwater purging and sampling only. The pump is not designed for continuous duty such as remedial pumping or dewatering, and the manufacturer warranty is void if it is used for anything other than groundwater sampling. For continuous recovery pumping, use the PR4-E Redi-Flo4 or PR4 pollution recovery pumps.

Converter required. The pump runs only from its matched frequency converter, which is programmed for this pump. Using any other drive voids the pump warranty.

Built to order. Converters and lead kits are built to order and cannot be returned or cancelled once ordered. We confirm the build and ship date by email when the order is received.

For sampling-system sizing or a quote on custom lead lengths, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply™ — A division of E4 Industrial LLC. Watermain Supply™ is a trademark of E4 Industrial LLC.
Data Sheet
MP 1 / Redi-Flo2 Pump and Converter User Manual (US)
Videos

Product videos are being added to this listing. For a walkthrough in the meantime, email sales@watermainsupply.com.
