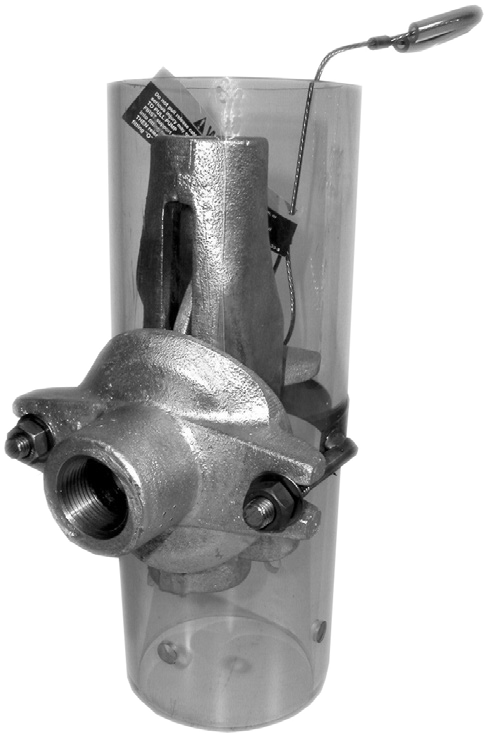

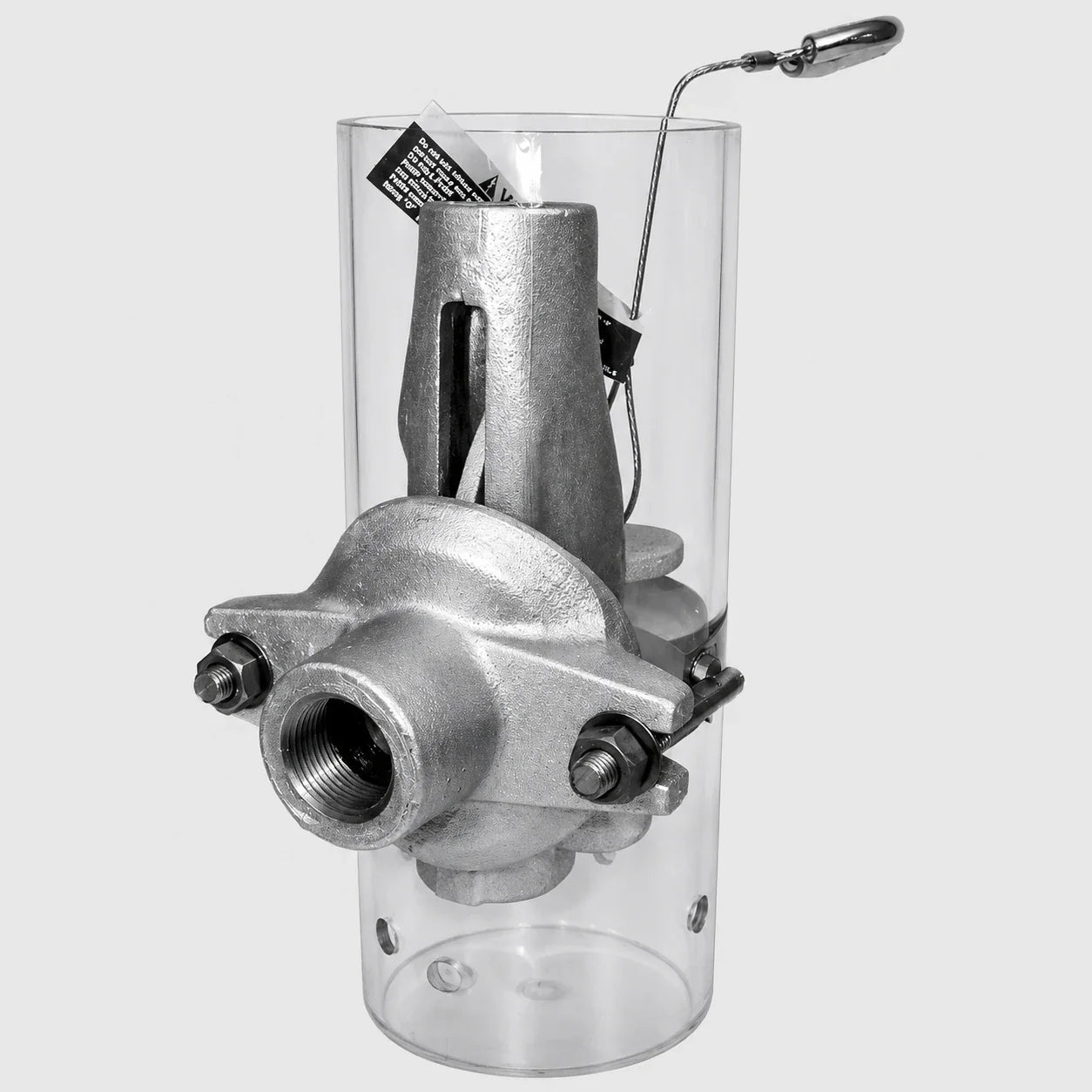

The Monitor Snappy Pitless Adapter provides a sanitary, frost-proof water service connection below the frost line so regular well casing can be used all the way up. The submersible pump and drop pipe hang from the drop fitting, which locks into the casing fitting as the pump is lowered.
Lead-free galvanized cast iron casing fittings with corrosion-resistant internal parts; conforms to Water Systems Council PAS-97(2017) and NSF/ANSI 372. Supports 1,000 lb and is rated at 250 psi. Pressurized versions carry dual casing O-rings for Illinois and Michigan code. Select by well I.D. and drop pipe size.
| Material | Lead-free galvanized cast iron |
| Well sizes | 4 in to 6-1/4 in I.D. |
| Drop and discharge | 1 in or 1-1/4 in |
| Support | 1,000 lb |
| Pressure rating | 250 psi |
| Standards | PAS-97(2017), NSF/ANSI 372 |
Downloads: Monitor Domestic Products Catalog | Monitor Repair Parts & Installation Catalog
For engineering-led selection support or a factory submittal, email sales@watermainsupply.com or call 281.664.8000.
